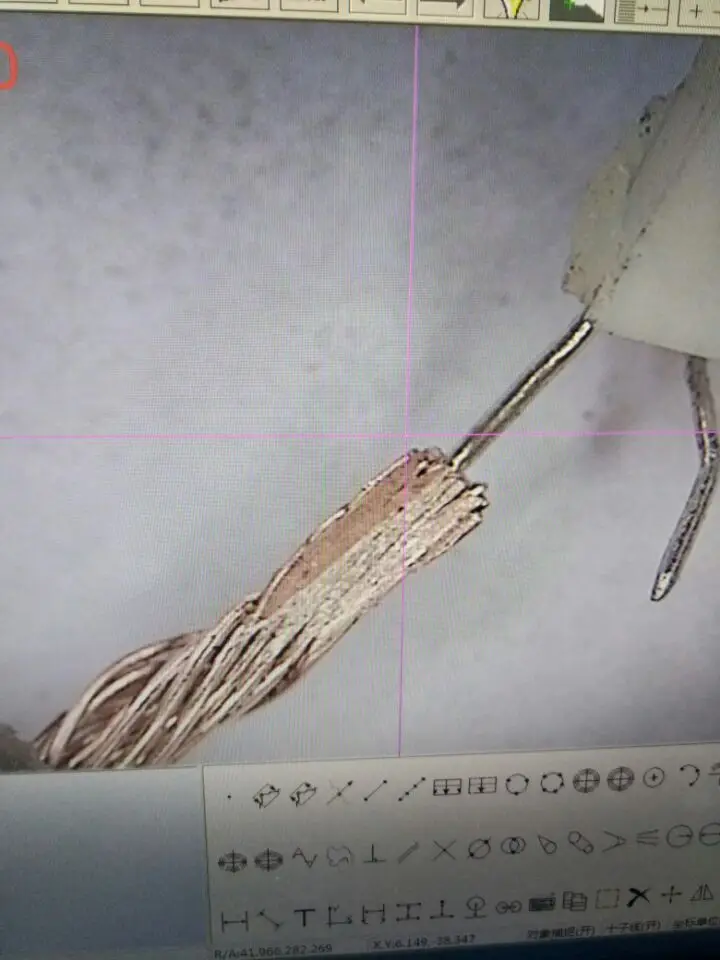

Platinum wire resistor unit and multi strand copper wire spot welding

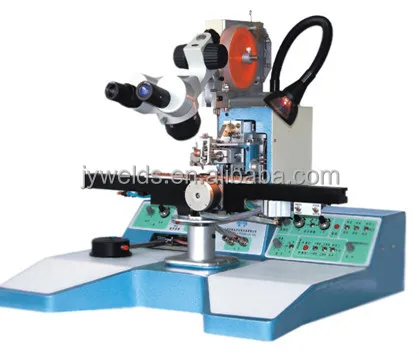

 BL Series Heavy Wire Bonder

                  BL-030

Application

High power dynatron/FET/SCR, Power module, IGBT, High power Fast recovery diode, Schottky transistor, Lead attachment, wire bonding, TO-3,TO-3P,TO-3PF,TO-3PN,TO-3PL,TO-220F,TO-126,TO-12F,TO-66,TO-251,TO-202 etc.

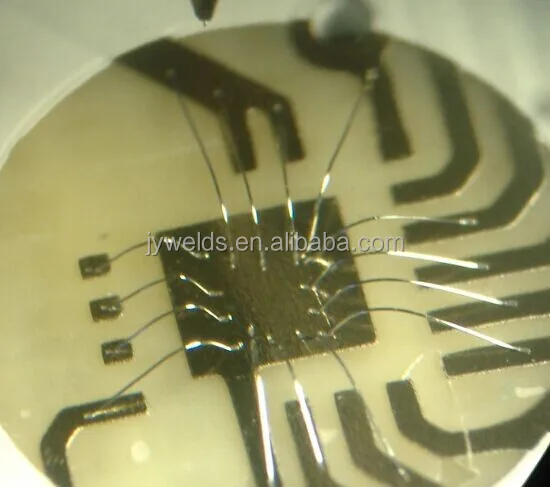

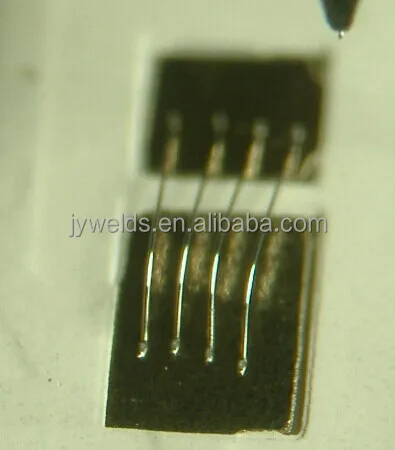

Samples:

Specification

  1,electric requiement:220VAC±10%,50HZ,be sure connected to ground

   2,aluminium wire diameter:75~500μm (3~20mil)

   3,ultrasonic power:0-30W, two channel.can be set separately of the two point

   4,bond time:10-500ms,two channel

   5,bond force:30-1200g,two channel

   6,motorized Y:0-18mm

   7,microscope rate:7.5 and 15

   8,working area:Φ25mm

   9,light:adjustable brightness

   10,size:620×610×560mm

   11,weight:~40kg

A, CE certification B&C, National High-tech product certification D, Trademark certification E, Invention patent F,10Mlillion capital business license

Service:

1, We are the leading precise welding company, and can help you detect a best precise welding plan with our more than 20 years welding experience.

2,We can design and develop precise welding machine according your requirements.

3,We can help you welding some samples for testing before you buy the machine, and it is free.

4,We are usually punctual and trustworthy.

5,We want to meet the best costmer’s satisfaction so that we can won more chance.

Resistance welding machine also named spot welding machine, the principle is after the combination of the metal workpieces, applying appropriate pressure, using the welding current to generate the heat from the electrodes and the workpieces’ resistance, the heat may melt the metal and get a welding joint.

There are five main factors of resistance welding:1, welding current;2,welding time;3,welding pressure;4,electrode material;5,electrode dimension.

The power supply of resistance welding also has been developed from capacitor energy storage/AC 50Hz to inverter DC type to crystal type.

We are making inverter DC type, that means 50% power less than capacitor energy storage/AC 50Hz type, and much more precise and stability, can reduce the reject rate, can be more powerful when high speed welding.

1, Resistance welding power supply Specifications:

PS: We have the independent property rights of the power supply, we can make customized power supply.

      As the input voltage,we can also provide 220V/380V*3/220V*3/110V.etc

1,IGBT inverter with 4kHz frequency.

2,Three step welding with upslopw and downslope.

3,High precisely welding control system.

4,Constant-current control, constant-voltage control, constant power control, constant pulse width control.

5,Upper and lower monitor of the current or the voltage etc.

6,Easily operating,.

7,The power supply can be easily used on a automatic machine, and automatic adjust the current to keep the tip heat.

2, Principle of inverter resistance welding power supply and the current waveform of capacitor type/AC type/inverter type/crystal type

3, Technical parameters of the resistance welding power supply

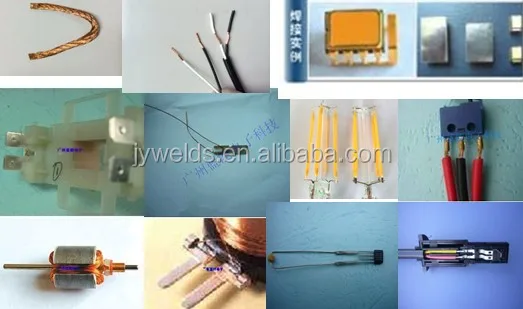

4, Applicable area and part of the welding sample:

5, Main component configuration brand list:

ABB; Microchip; Hitachi; Siemens; Fuji; Infineon; Schneider.

6, Our honors and certifications

7, Service:

1, We are the leading precise welding company, and can help you detect a best precise welding plan with our more than 20 years welding experience.

2,We can design and develop precise welding machine according your requirements.

3,We can help you welding some samples for testing before you buy the machine, and it is free.

4,We are usually punctual and trustworthy.

5,We want to meet the best costmer’s satisfaction so that we can won more chance.

Application

Digital tube, lattice, integrated circuit soft package, integrated circuit, transistor, semiconductor devices ect.

Specification

1,electric requirement:220VAC±10%,50HZ,be sure connected to ground

   2,wire diameter:20~50μm

   3,ultrasonic power:0-5W, two channel. can be set separately of the two point

   4,bond time:5-200ms,two channel

   5,bond force:10-60g,two channel

   6, span between first bond to second bond by automatic mode:0-10mm(motorized)

   7,bond radian: 0-6mm(motorized)

   8, jig moving area: Φ16mm

   9,mouse hand:20*20mm

   10,digital camera: optional

   11,dimension:600*560*390mm

   12,weight:36kg
