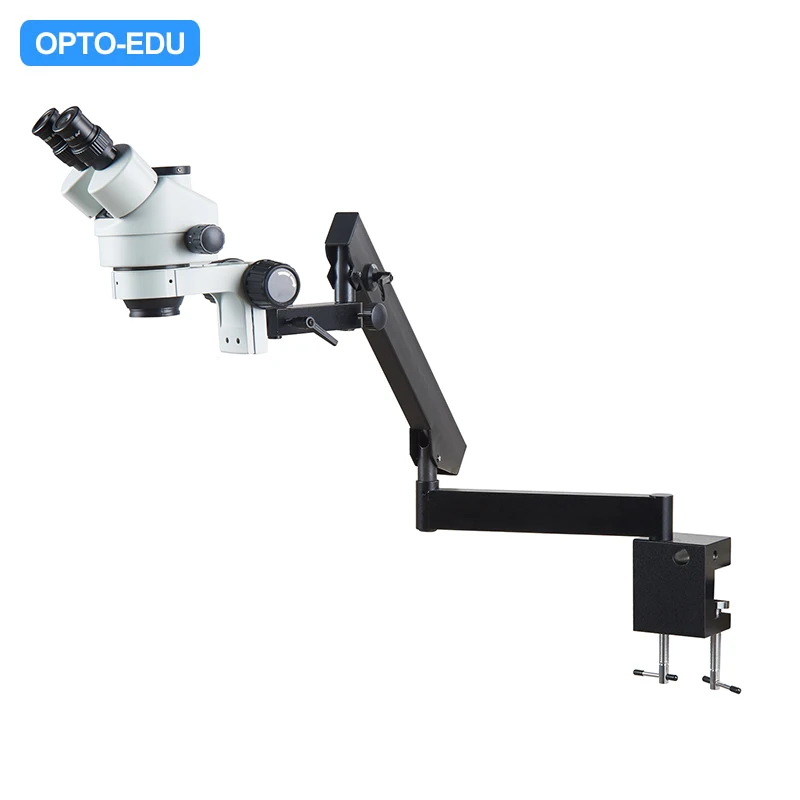

OPTO EDU A23.3645 STL6AT Trinocular Swing Arm Boom Stand Without Light Source 7 45x Zoom Stereo Microscope
- Category: >>>
- Supplier: Opto-Edu (Beijing) Co. Ltd.
Share on (60812176455):
Product Overview
Description
Eyepiece WF10X/20mm, High Eyepoint, Eyepiece Tube Diopter Adjustable
0.7x-4.5x, Magnification Up To 3.5x-180x With Optional Eyepieces And Auxiliary Objectives
A54.3640 35 Kinds Stands Optional For Different Usage & Condition
0.7x-4.5x, Magnification Up To 3.5x-180x With Optional Eyepieces And Auxiliary Objectives
A54.3640 35 Kinds Stands Optional For Different Usage & Condition
A23.3645, A23.3645N Series Zoom Stereo Microscope Specification | B | T | |||||||||
Head | Binocular Head, 45° Inclined, 360° Rotatable, Interpupillary Adjustment 54-75mm, Both Eyepiece Tube ±5° Diopter Adjustable, | ● | |||||||||
Trinocular Head, 45° Inclined, 360° Rotatable, Interpupillary Adjustment 54-75mm, Both Eyepiece Tube ±5° Diopter Adjustable, With Eyepiece Adapter Focus Adjustable, Light Split Fixed P50:E50, Simul Focal Design To Show Image On Both Eyepiece & Photo Port At Same Time | ● | ||||||||||
Eyepiece | WF10x/20mm, High Eyepoint, Dia.30mm | ||||||||||
Zoom Lens | 0.7x~4.5x | ||||||||||
Zoom Ratio | 1:6.5 | ||||||||||
Magnification | 7x-45x, Up To 3.5x-270x With Optional Eyepieces & Auxiliary Objectives | ||||||||||
Working Distance | 100mm, Up To 30~165mm With Auxiliary Objectives | ||||||||||
Field Of View | 0.9-57.1mm (Detail See Optical Data Sheet) | ||||||||||
Focusing | Pole Stand Coarse Focusing Range 50mm, Tension Adjustable Track Stand Coarse Focusing Range 74mm, Tension Adjustable | ||||||||||

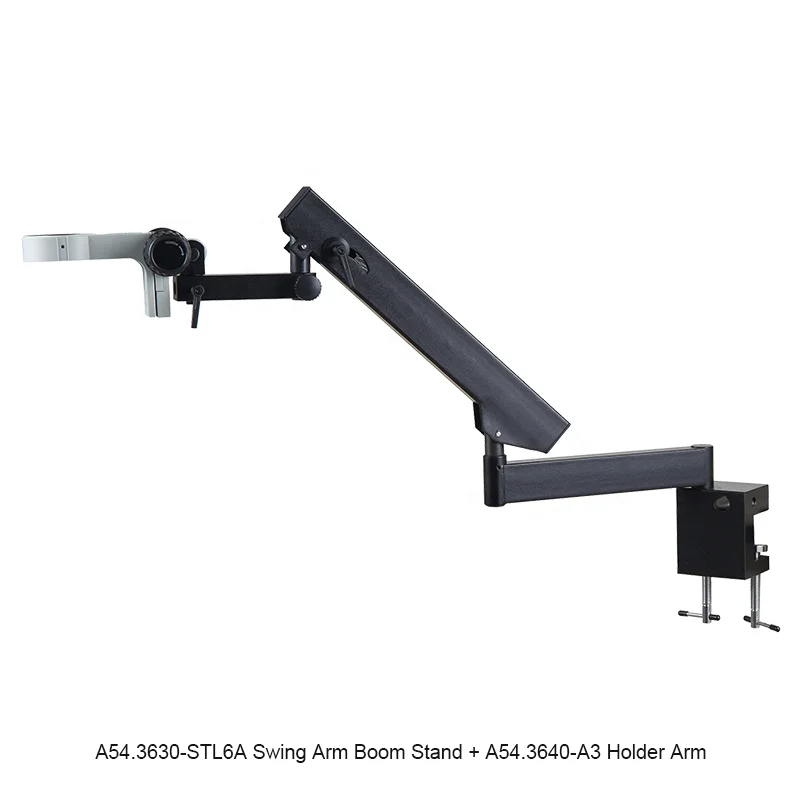

Stand | 35 Kinds Stand Optional, Details See A54.3630 Choose Model According To Cata. No. Like: A23.3645-B1 Means Binocular Head With B1 Stand A23.3645-B1TMeans Trinocular Head With B1 Stand | ||||||||||
A23.3645, A23.3645N Series Zoom Stereo Microscope Optical Data Sheet | ||||||||||
Zoom Lens | 0.7x~4.5x | |||||||||
Auxiliary Lens | 0.5x | 1.0x (Standard ) | 1.5x | 2.0x | ||||||
Working Distance | 165mm | 100mm | 45mm | 30mm | ||||||
WF10x/20mm | Magnification | 3.5x-22.5x | 7.0x-45x | 10.5x-67.5x | 14x-90x | |||||
View Field(mm) | 57.1-8.9 | 28.6-4.4 | 19-3 | 14.3-2.2 | ||||||
WF15x/15mm | Magnification | 5.25x-33.75x | 10.5x-67.5x | 15.75x-101.25x | 21x-135x | |||||
View Field(mm) | 42.8-6.7 | 21.1-3.3 | 14.3-2.2 | 10.7-1.7 | ||||||
WF20x/10mm | Magnification | 7.0x-45x | 14.0x-90x | 21.0x-135x | 28x-180x | |||||
View Field(mm) | 28.6-4.4 | 14.3-2.2 | 9.5-1.5 | 7.1-1.1 | ||||||
WF25x/9mm | Magnification | 8.85x-56.3x | 17.5x-112.5x | 26.2x-168.8x | 35x-225x | |||||
View Field(mm) | 25.4-4.0 | 12.9-2.0 | 8.6-1.3 | 6.4-1.0 | ||||||
WF30x/8mm | Magnification | 10.5x-67.5x | 21x-135x | 31.5x-202.5x | 42x-270x | |||||
View Field(mm) | 22.9-3.6 | 11.4-1.8 | 7.6-1.2 | 5.7-0.9 | ||||||
Optional Accessories | Cata.No. | ||||||||||
Head | Binocular Head + WF10x/20mm | A53.3645-B | |||||||||

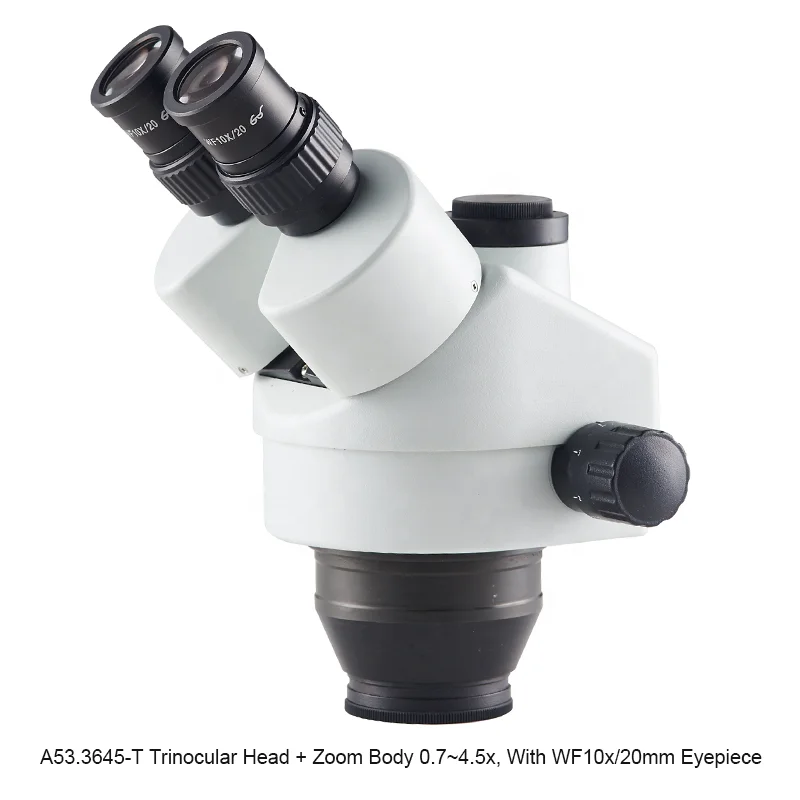

Trinocular Head + WF10x/20mm | A53.3645-T | ||||||||||

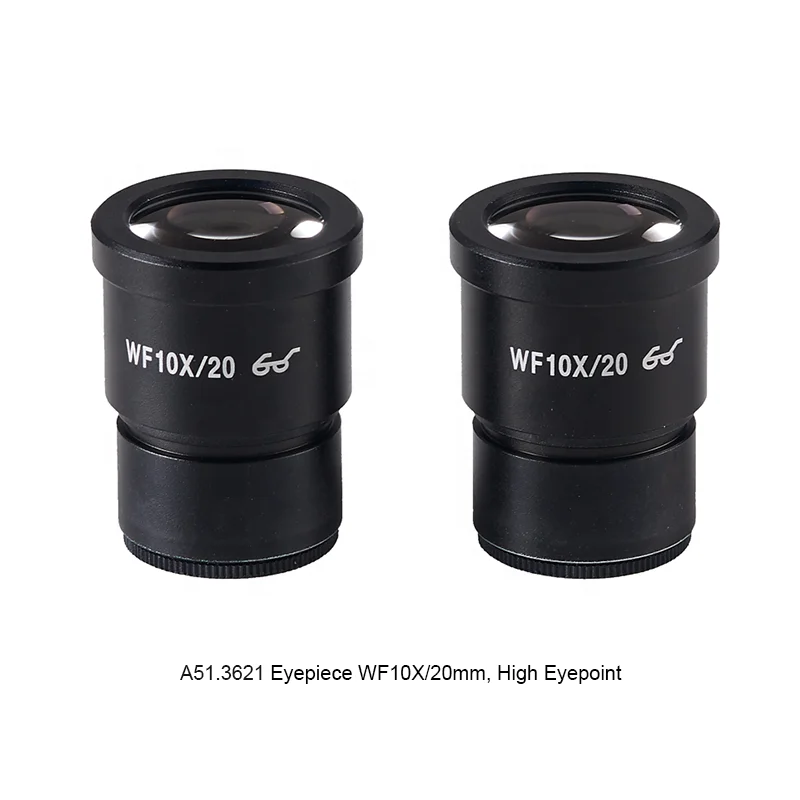

Eyepiece | WF10x/20mm, High Eyepoint, Dia.30mm | A51.3621-1020 | |||||||||
WF15x/15mm, High Eyepoint, Dia.30mm | A51.3621-1515 | ||||||||||
WF20x/10mm, High Eyepoint, Dia.30mm | A51.3621-2010 | ||||||||||
WF25x/9mm, High Eyepoint, Dia.30mm | A51.3621-2509 | ||||||||||
WF30x/8mm, High Eyepoint, Dia.30mm, Diopter Adjustable | A51.3622-3008 | ||||||||||
Auxiliary Lens | 0.5x, W.D. 165mm | A52.3621-05 | |||||||||
1.5x, W.D. 45mm | A52.3621-15 | ||||||||||
2.0x, W.D. 30mm | A52.3621-20 | ||||||||||

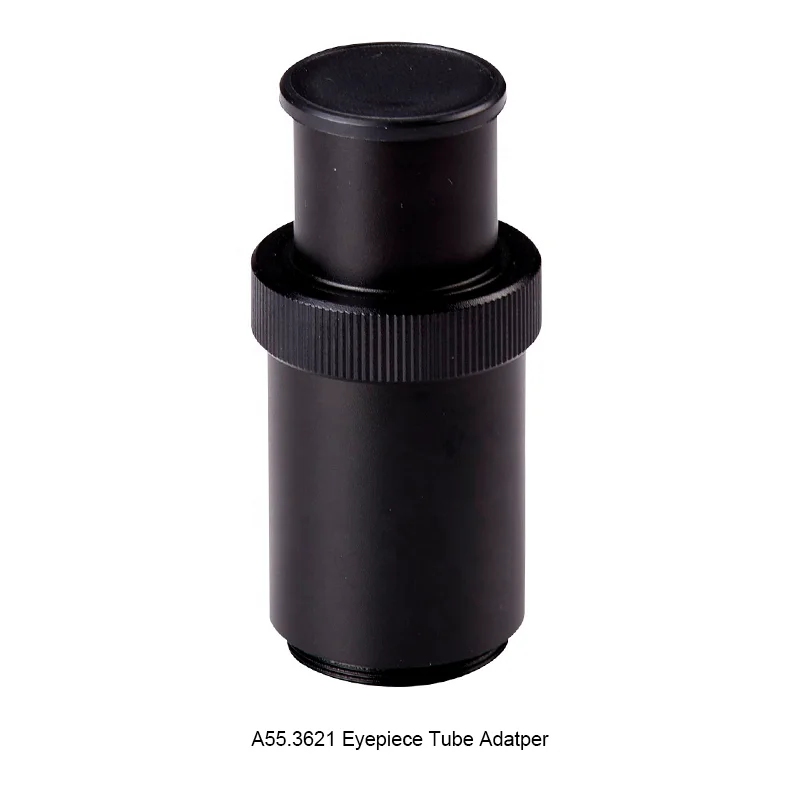

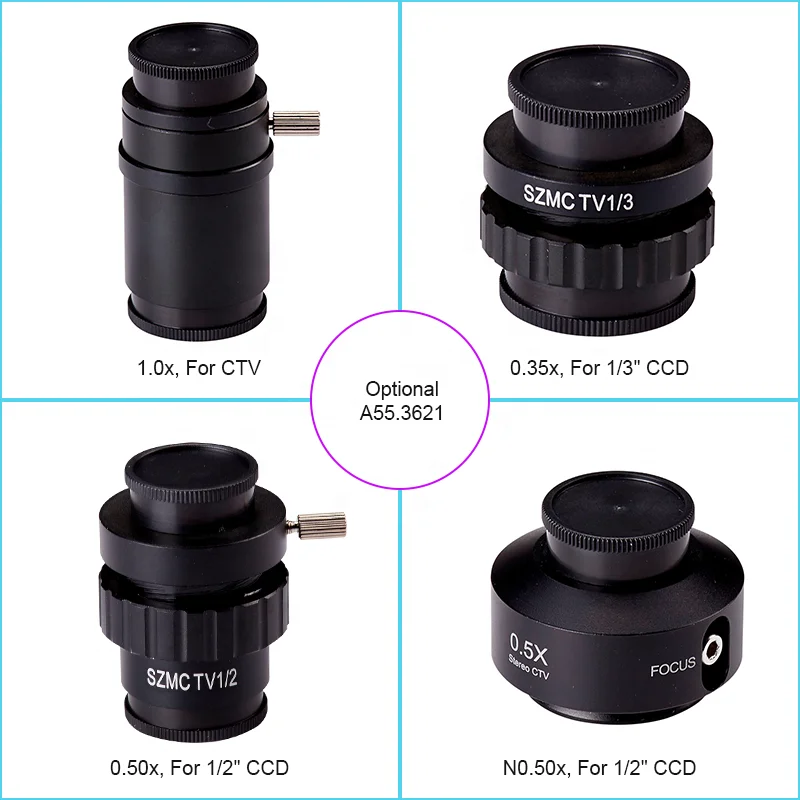

CCD Adapter | Eyepiece Adapter Focus Adjustable | A55.3623-E | |||||||||
1.0x, Focus Adjustable | A55.3623-10 | ||||||||||
0.50x, Focus Adjustable, For 1/2"CCD | A55.3623-05 | ||||||||||
0.35x, Focus Adjustable, For 1/3"CCD | A55.3623-35 | ||||||||||
