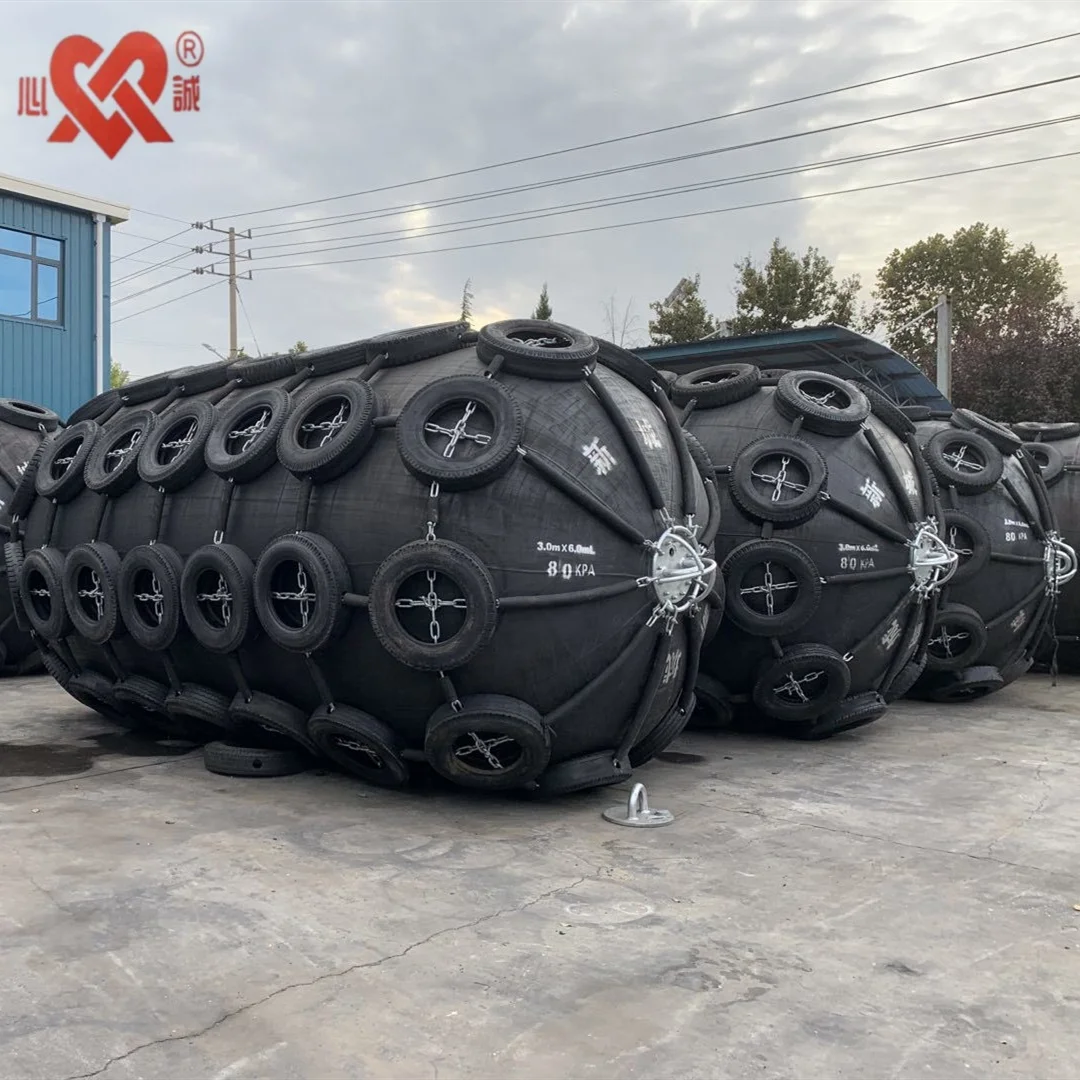

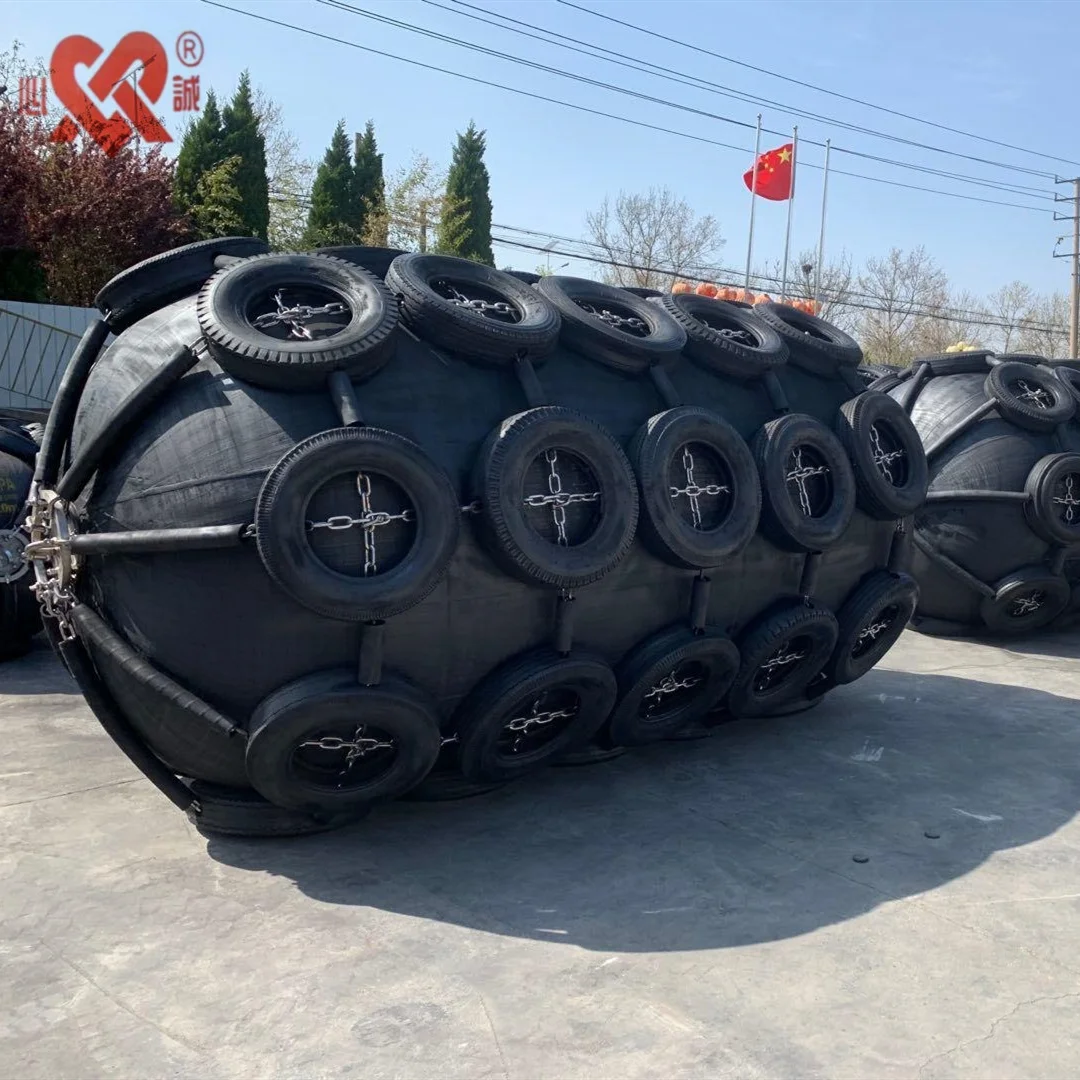

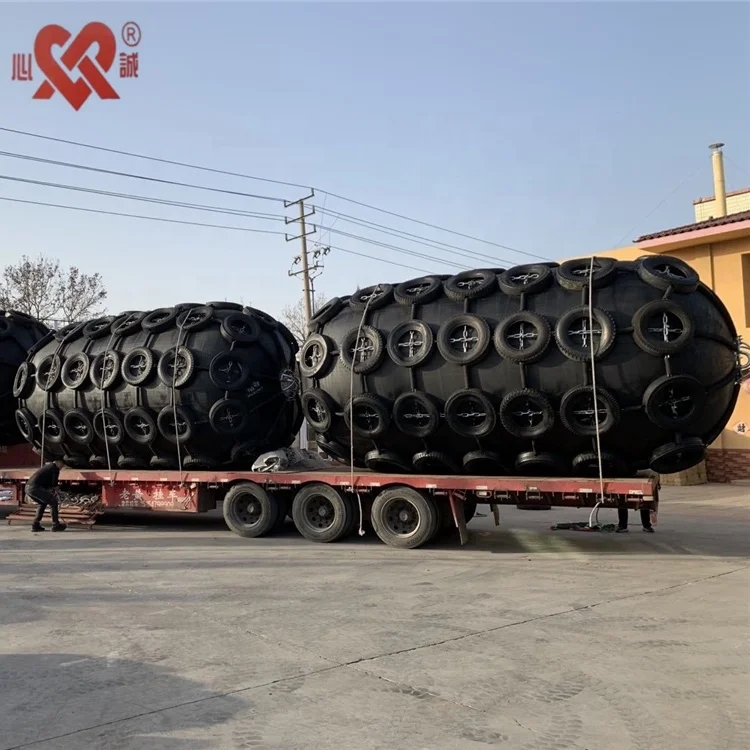

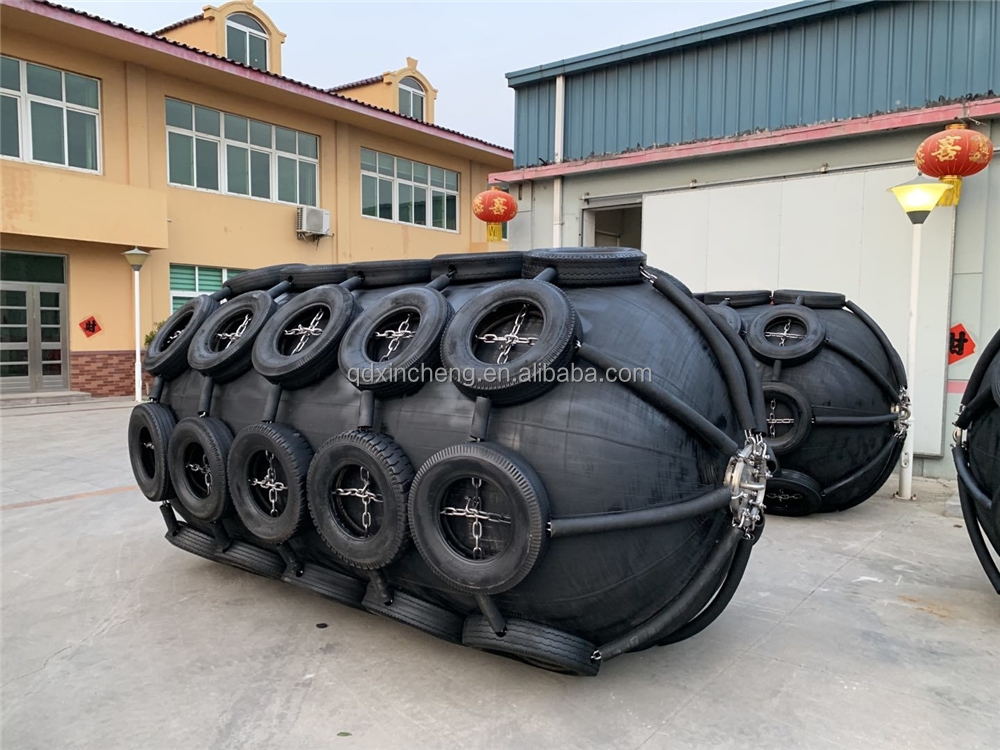

Marine accessories 50KPA Pneumatic Boat rubber fender with tyre and chain
- Category: Marine Parts & Accessories >>>
- Supplier: Qingdao Xincheng Rubber Products Co. Ltd.
Share on (60812201607):
Product Overview
Description
Product Description

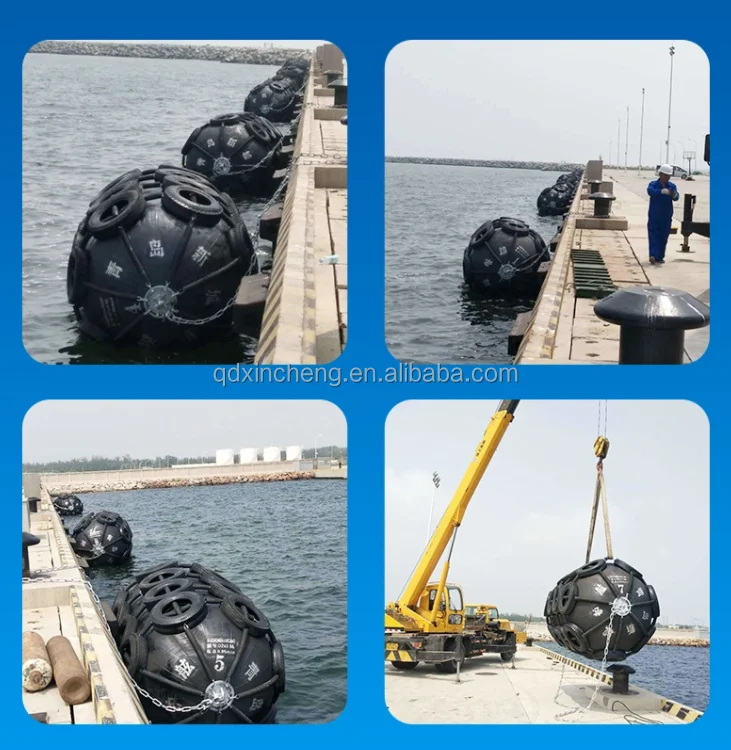

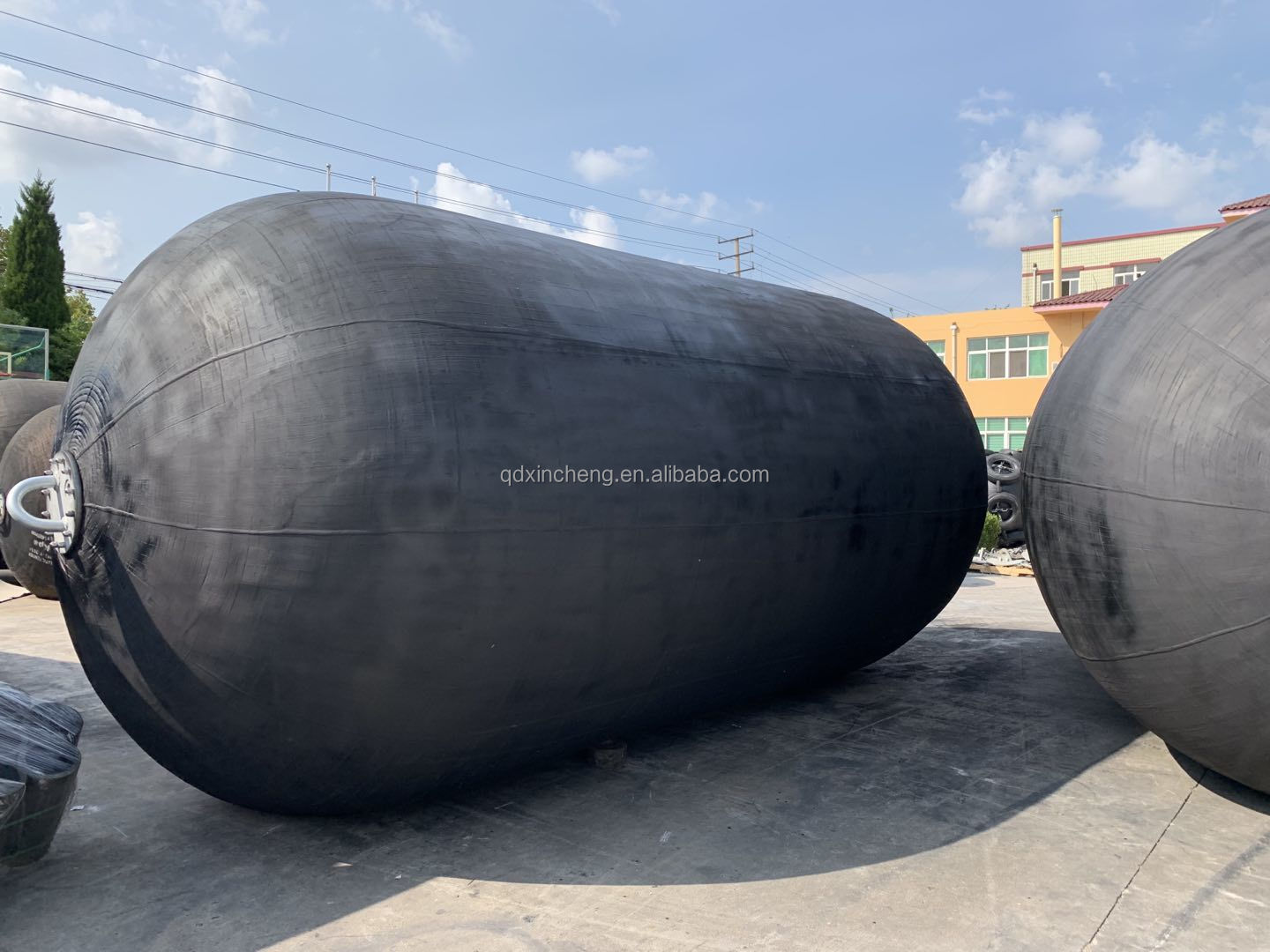

Pneumatic ship fender manufacture is the advanced anti-collision device for marine application in the world. Pneumatic rubber fender is also known as floating fender or Yokohama type tugboat rubber fender, it is often installed on the terminal or ship, which aims to absorb or reduce the collision energy between ship to ship and ship to dock. This kind of product can protect the ship or dock from the damage of collision. With inner compressed air, it can float on the water and widely used as protecting medium equipment. Size : D0.5 m x L1.0 m ~ D 3.3 x L6.5m. “XINCHENG” yokohama barco defensas are produced in strict accordance with the ISO17357-2002 and GB/T 2002-2002 international quality standard. Nowadays, our products have been exported to all over the world.
Advantages ship rubber fender:
1. Large compression deformation, low reaction force, high energy absorption
2. Good floating performance, meet the needs of water level change
3. With compressed air as medium, the collision energy consumption bu compressed air power
4. Easy installation and long service life

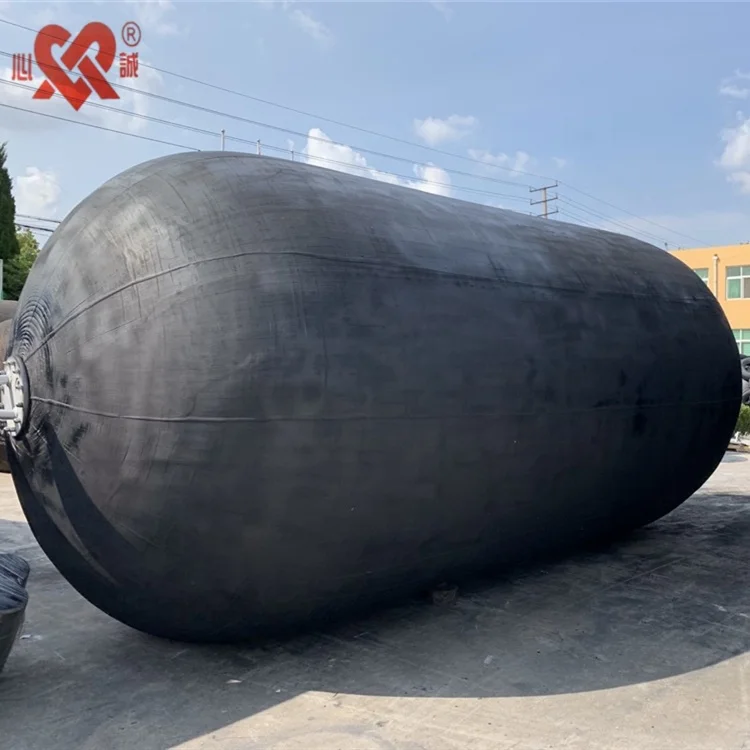

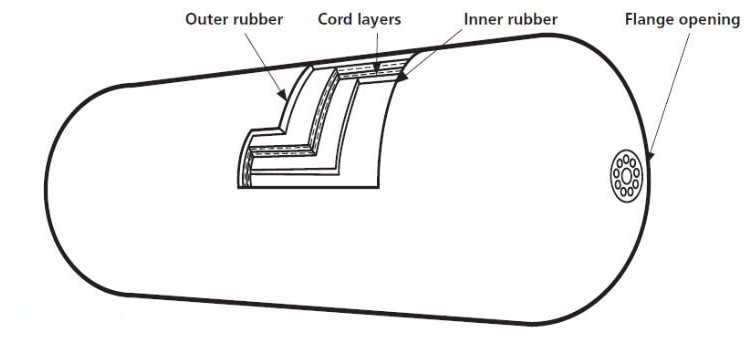

Structure ship fender manufacture
1. Outer Rubber
Cover outside on the ball of rubber layer, which is used to protect skeleton material and inner rubber ball from damage of external force, the main features: high strength, wear resistance, ageing resistance and tear resistance.
2. Synthetic cord reinforced rubber layer
Reinforced cord rubber layer is composed of winding Synthetic cord layer, It is mainly used for maintain the internal air pressure, which has good elasticity, no deformation and high power etc.
3. Inner Rubber
On the ball inside the rubber layer, which is used to prevent air leakage and control the ball pressure.
4. Flange opening
The metal parts at both ends of fender, which can be fitted with charging valve and safety valve.
Synthetic-tyre-cord layers commonly used in tyres, have been proved to provide strong efficient reinforcement layers in fenders. Each layer is coated with rubber compound on both sides as well as in between synthetic-tyre-cord threads, hence isolating all cords from each other.
1. Wrap threads that run vertically through the synthetic -tyre-cord pattern.
2. Weft threads that run perpendicular to the wrap threads.

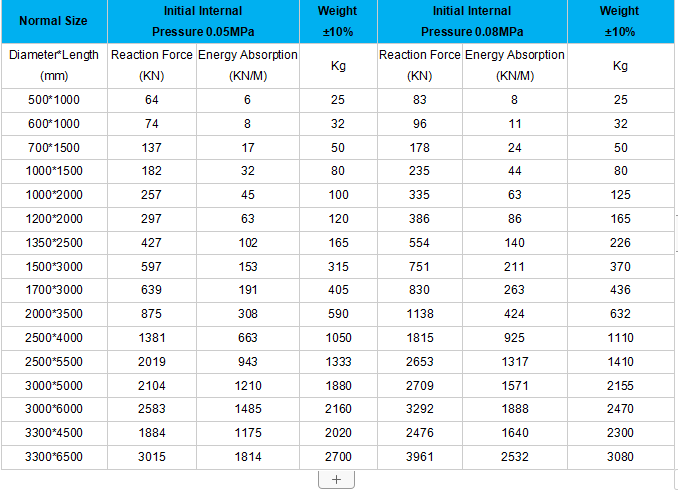

Pneumatic boat fender dimensions
NOTE: 1. REACTION FORCE AND ENERGY ABSORPTION TOLERANCE IS ±10%
2. WEIGHT TOLERANCE IS ±10%
3. SPECIAL SIZE CAN BE PRODUCED FOLLOW CUSTOMER'S NEEDS
Our Services

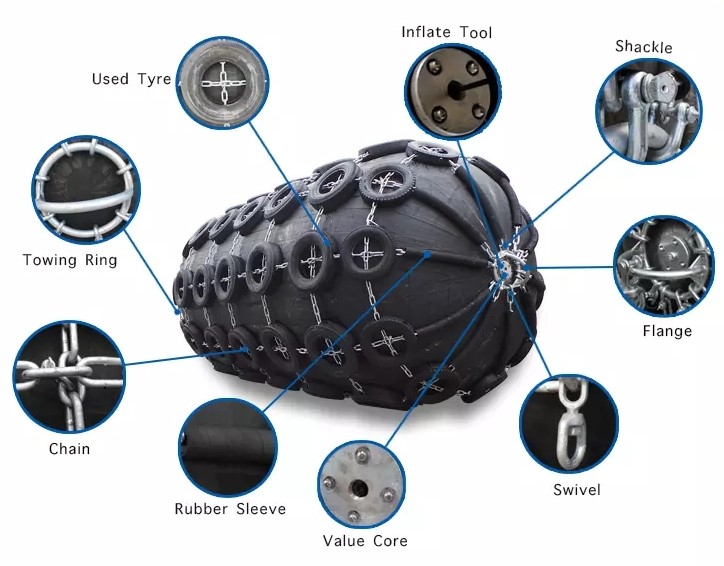

Accessories of ship pneumatic rubber fender

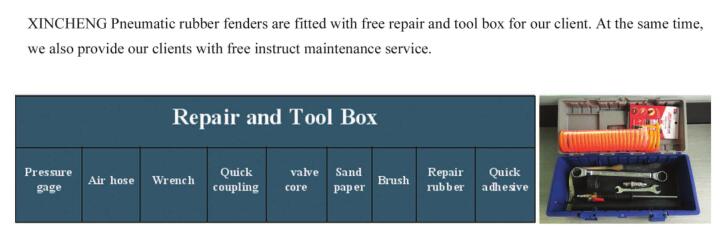

XINCHENG pneumatic rubber fenders are fitted with FREE repair and tool box for each client. At the same time, we also provide our clients with FREE instruct maintenance service.

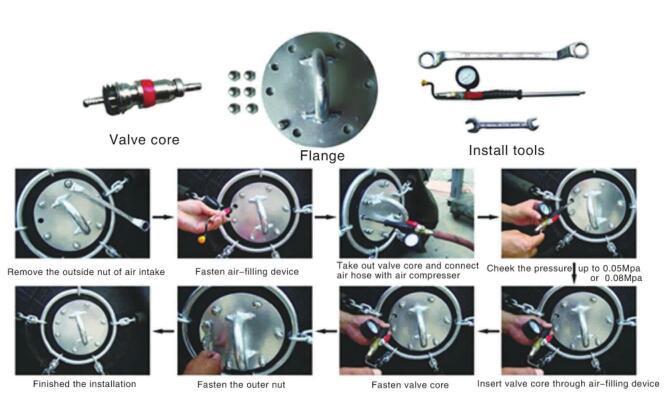

How to inflate pneumatic ship rubber fenders?

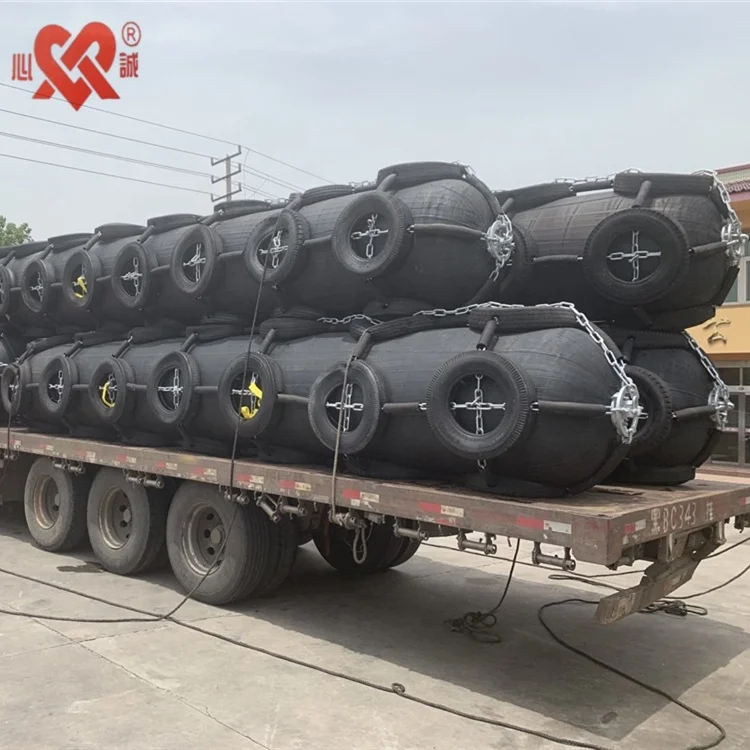

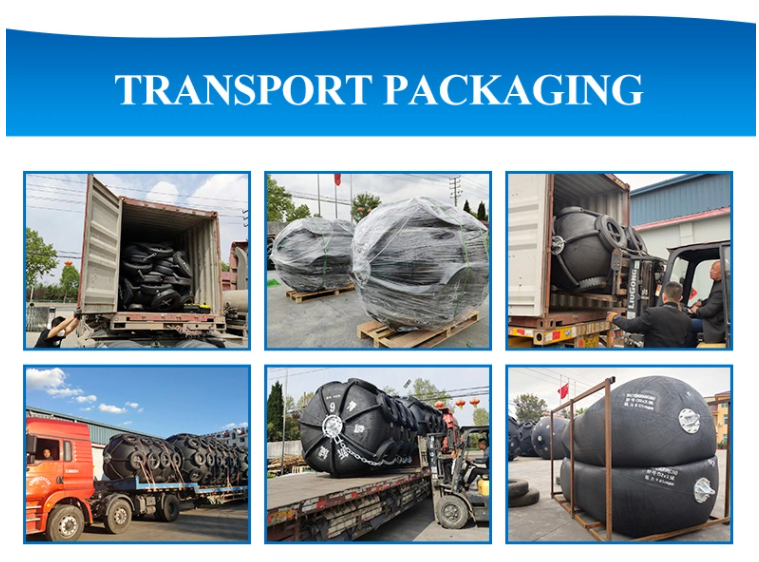

Packaging & Shipping
Xincheng LR certificate yokohama pneumatic rubber fender have two shipment ways for our clients to choose, infate way(with air) and deflate way(without air) to transport. For bigger size fenders, it had better to ship without air, aim to help you to save much transportation cost.
Company Information
Qingdao Xincheng Rubber Products Co., Ltd, as a Professional manufacturing Company, which was founded in 1986. The Company is a production, scientific research and design, product development, technical services for the integrated enterprise.
FAQ
1. Are you a factory or trading company?
A: We are a factory.
2. What is your MOQ?
A: ONLY 1 piece.
3. What is your lead time for production?
A: Generally, production time is about 5 working days after receipt of deposit.
4. What is your payment terms?
A: T/T and L/C at sight.
5. What is your warranty?
A: Warranty is 24 months.
6. What certificate do you have?
A: ISO9001:2008, CCS, SGS, BV, LR, RS.
