Entrance and Exit Security Tripod Turnstile Gate Outdoor Mechanism Application for Building
- Category: >>>
- Supplier: Vanshui Enterprise Company Limited
Share on (60812213747):
Product Overview
Description
Products Description
Products Introduction

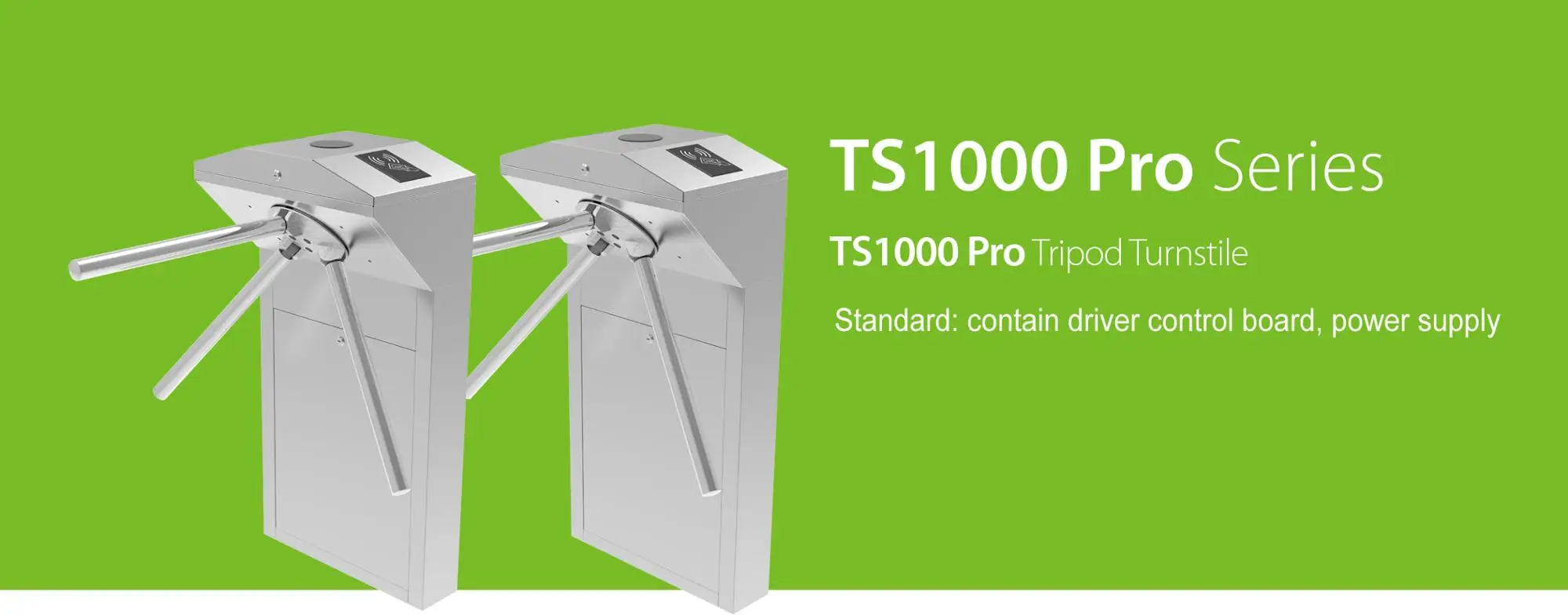

The TS1000 PRO series tripod turnstiles represent classic and safe way to protect your premises. They are widely used in various indoor environment applications. They fit perfectly as an economical option into the office buildings and other related applications.

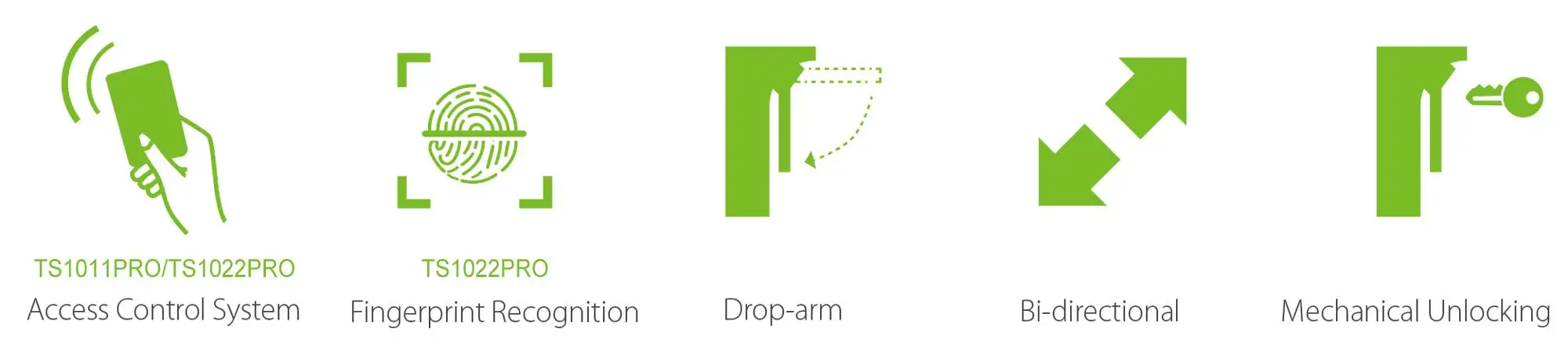

Features
1. SUS304 stainless steel housing
2. Bi-directional tripod turnstile with arm drop function
3. LED pictograms for intuitive user experience and high throughput in both directions
4. High quality at an affordable price
5. Low power consumption
6. Wide range of accessories
7. Easy and simple installation process
8. Easy to maintain and monitor
2. Bi-directional tripod turnstile with arm drop function
3. LED pictograms for intuitive user experience and high throughput in both directions
4. High quality at an affordable price
5. Low power consumption
6. Wide range of accessories
7. Easy and simple installation process
8. Easy to maintain and monitor
Specification

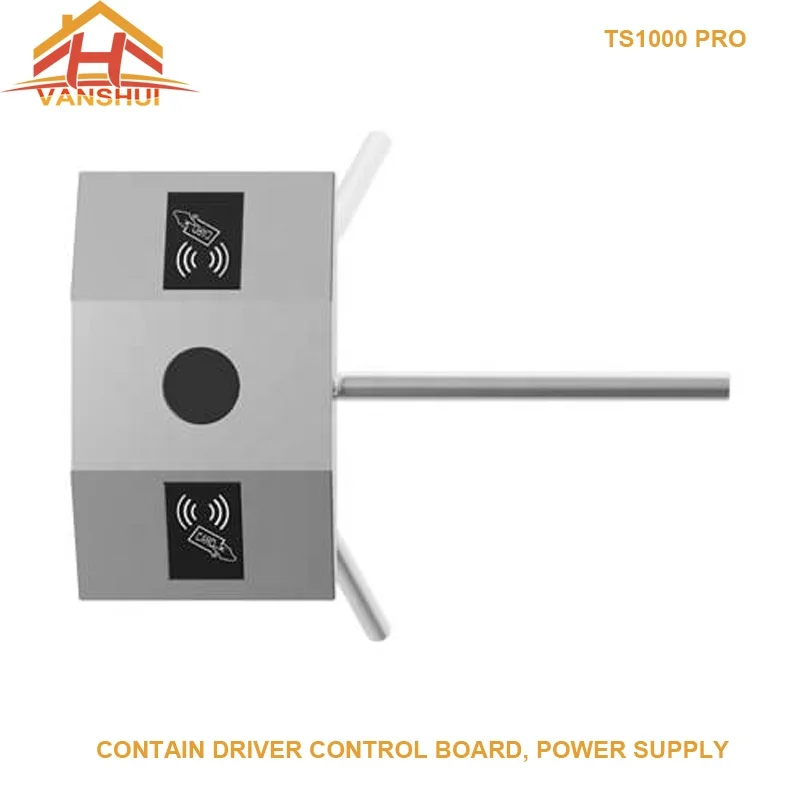

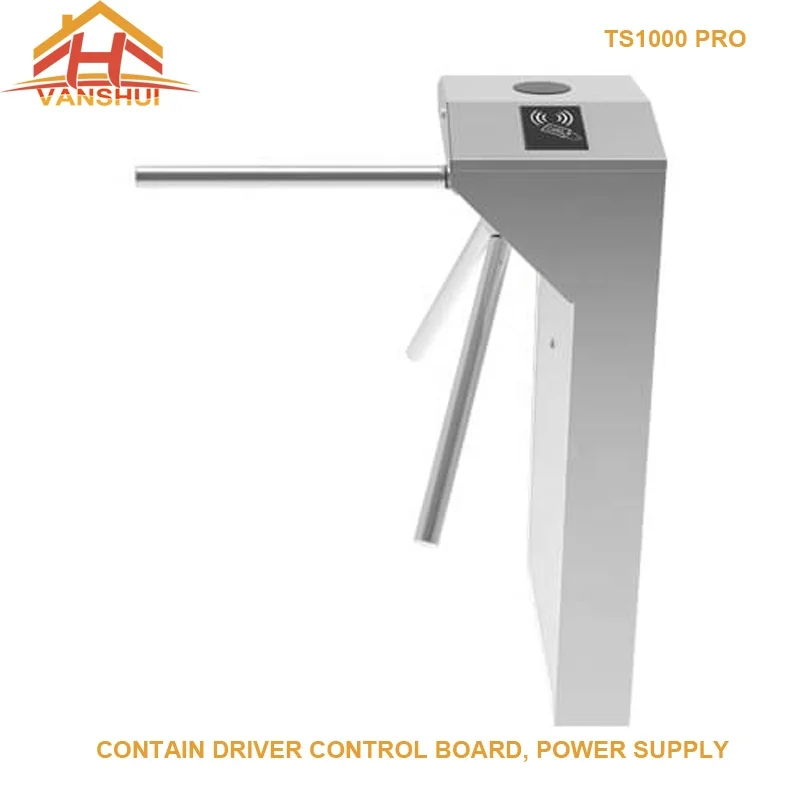

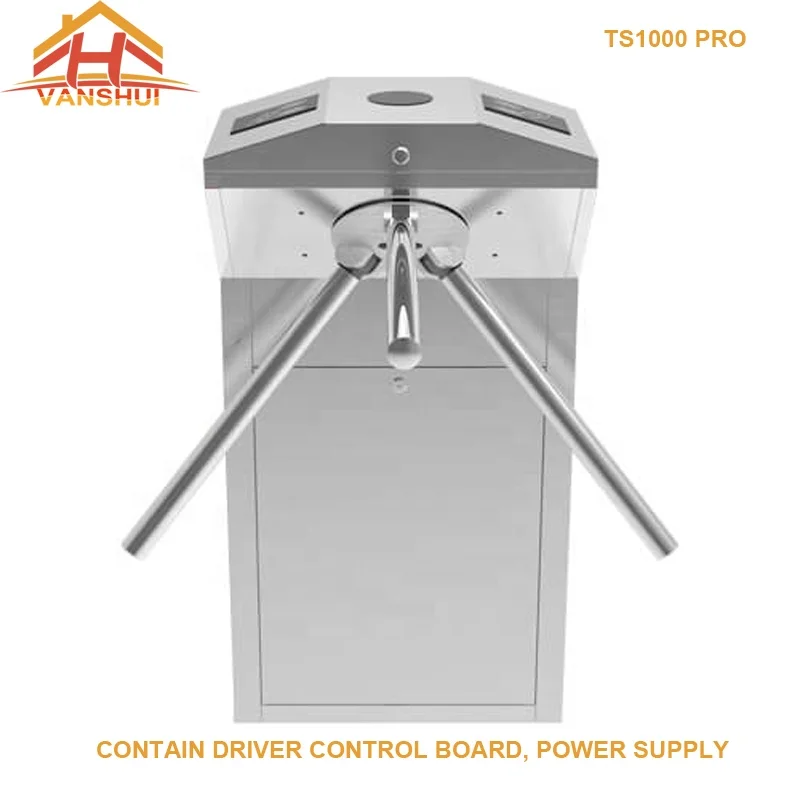

Model | TS1000 PRO |
Power Requirements | AC 220V/110V, 50/60HZ |
Power Consumption | Starting: 68W |
Standby: 15W | |
Unlock: 60W | |
Working Temperature | -28℃ to 60℃ |
Working Humidity | 5%-85% |
Working Environment | Indoor/outdoor(if sheltered) |
Speed of throughput | RFID Card(Model:TS1011 PRO): Maximum 30/minute |
Fingerprint(Model:TS1022 PRO): Maximum 25/minute | |
Lane width(mm) | 500 |
Footprint (mm*mm) | 520*800 |
Dimension(mm) | L=520,W=310, H=1010, + arm length 500 |
Dimension with packing (mm) | L=570,W=365,H=1080 |
Net weight (KG) | 34 |
Weight with packing (KG) | 40 |
LED indicator | Y |
Cabinet material | SUS304 Stainless Steel |
LID Material | SUS304 Stainless Steel |
Barrier Material | SUS304 Stainless Steel |
Ingress Protection | IP54 |
Barrier movement | Rotating |
Emergency Button Input | Y |
Security Level | Medium |
MCBF | 1 million |
Options/Accessories | Counter, SUS316 Cabinet and LID, Remote Control |
Diagram
