Product Overview

Description

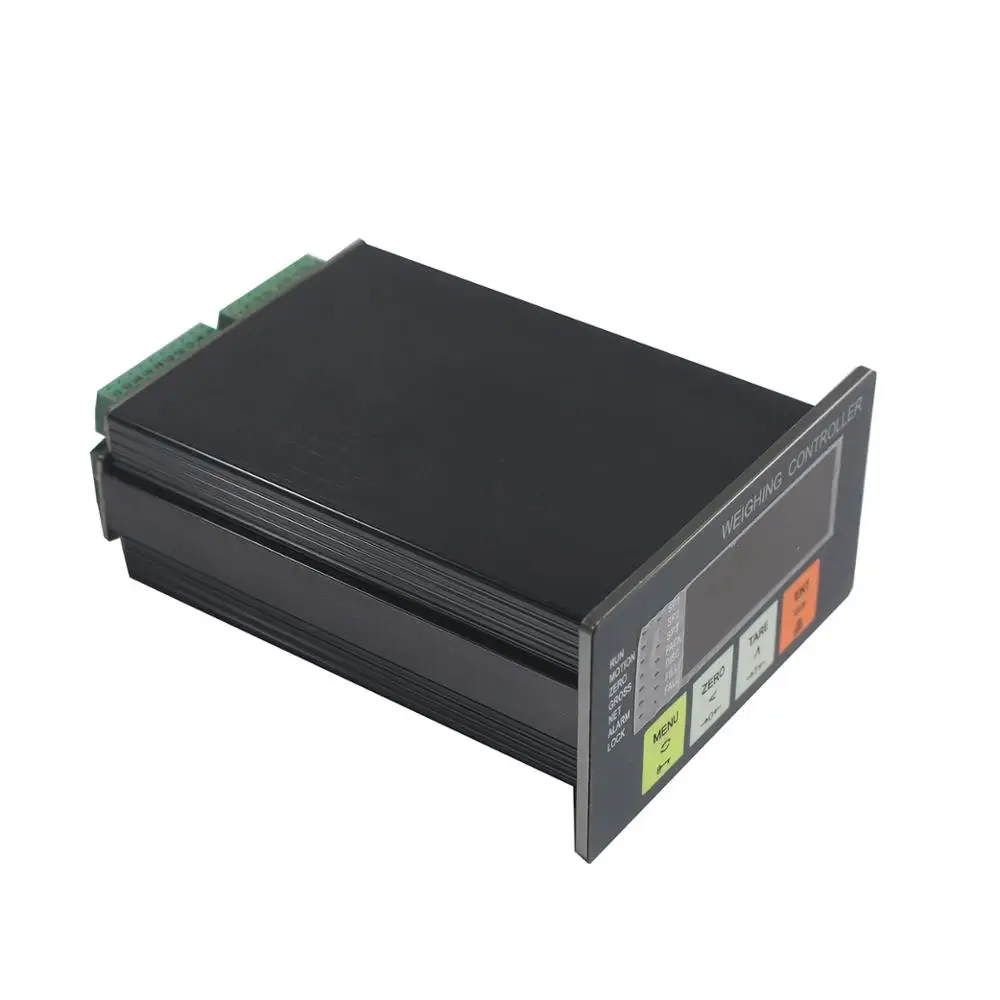

Cheap Factory Price LED Ration Weight Packaging Indicator, Packing Scales Controller BST106-B66

             Main Features:

² Suitable for Ration Packing Scale. Optional Application Modes: Single-hopper-weighing Mode [Single-scale Mode], Double-hopper-weighing Mode [Double-scale Mode] and Bag-weighing Mode with Auto Bag-releasing or Manual Bag-releasing.

² EMC design with high anti-jamming capability, suitable for industrial environment.

² 32-bit ARM CPU with 48MHz clock & higher arithmetic speed.

² 6+8 Red LED digital tubes for English character and digit display.

² 4-key English keypad.

² Menu&Shortcut mode operation with key tone.

² 24-bit High-precision and high-speed ∑-A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.

² Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.

² Max. Connection Quantity: 4 Loadcells (350Ω).

² Auto Zero Initial Calibration after Power-on, Auto Zero Tracking, Zero Fine Adjustment, Zero Calibration and Load Calibration functions available.

² Optional Data Calibration function.

² Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.

² 6 Normally open switch inputs [DI] and 8 normally open transistor switch outputs [DO].

² Optional ‘High/Medium/Low Speed Feed’ DOs for feeding control. Optional Low-speed Feeding Modes: Continuous Feeding Mode and Inching Feeding Mode.

² 1 Optional and definable analog signal AO[4~20mA] for weight signal output or ‘High/Medium/Low Speed Feed’ control.

² Optional ‘Fall Value Auto Correction’ function.

² Optional ‘Auto Pause for Deviation Alarm’ function.

² Optional ‘Target Batch Control’ function [With Target Batch Count or Target Batch Weight finished, the packing process will stop automatically].

² 2 Communication ports [RS232&RS485] for connecting Host IPC/PLC and LED Remote Display.

² With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.

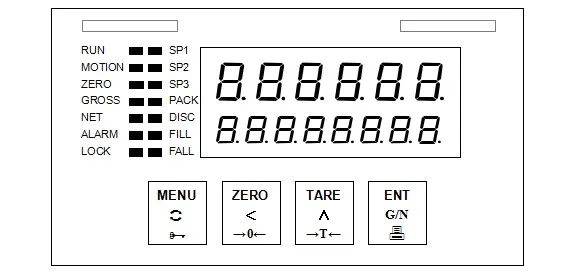

            Model Panel-mounting Operation Interface

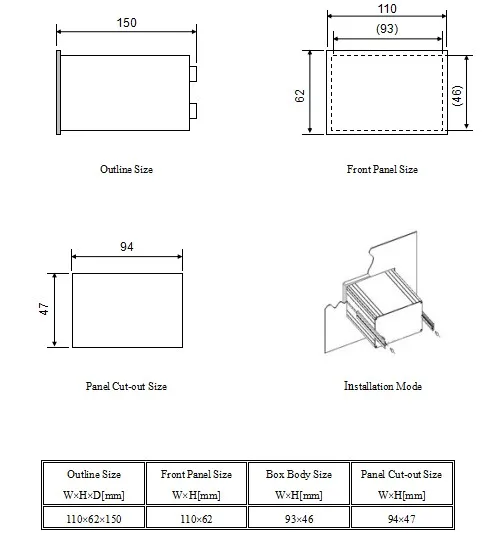

       Model Panel-mounting Installation

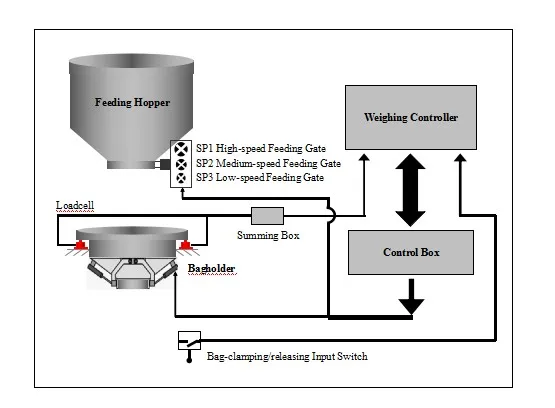

System Diagram for APP2 Bag-weighing Mode

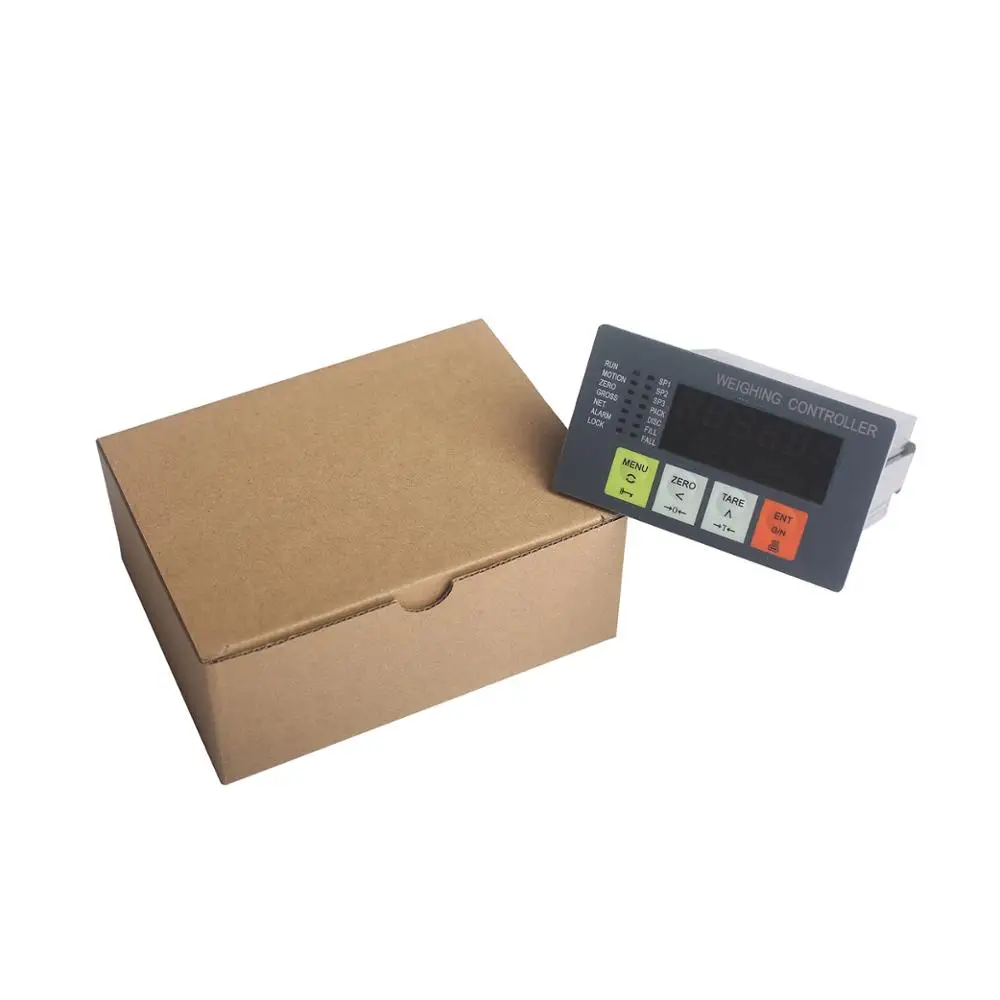

      Delivery
