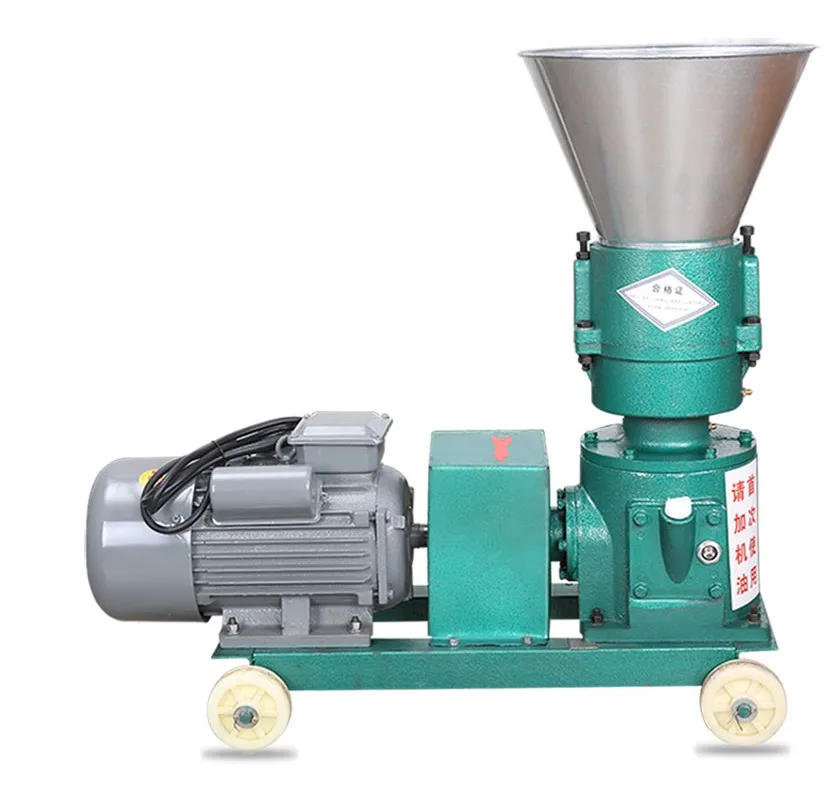

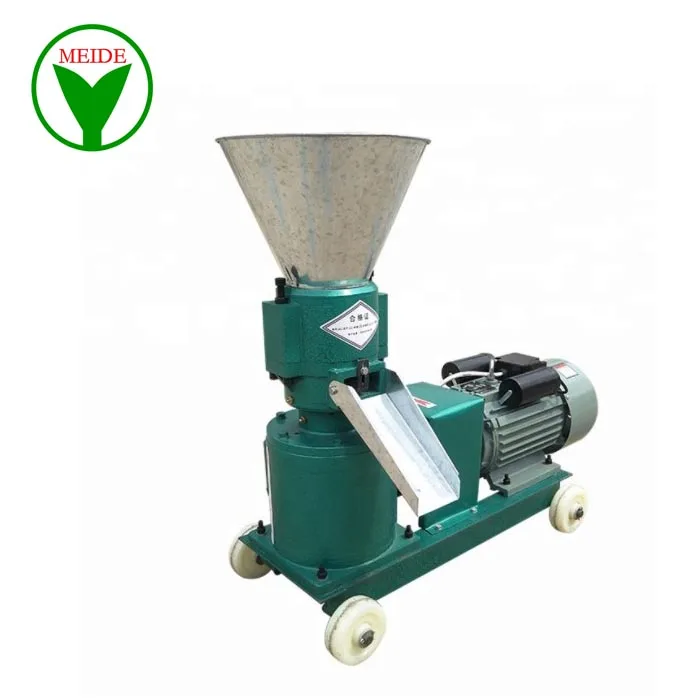

Flat die rice husk pellet animal feed granulator make machine for farm used
- Category: >>>
- Supplier: Qingdao Umeide Trade Co. Ltd.
Share on (60812247149):
Product Overview
Description
Low cost flat mould rice husk pellet animal feed granulator make machine for farm used
1. Product introduction :
The flat die pellet mill/ wood pellet machine can make flat die pellet mill machine is widely use corn, soybean, straw, grass, rice husk and other curshed substances in pellet feed as material , it can make both poultry feed pellets and grain/sawdust/grass/wood pellets.
2. Working principle of flat die pellet machine :
The machine's core component molds and press rolls are made of specially treated high-quality alloy steel. When the machine working, the spindle and the flat die mold drive the pressure roller to rotate under the action of friction. The high temperature generated by the pressure roller and the mold causes the starch to mature, the protein denatures and solidifies, and then is extruded from the flat die hole under the pressure roller extrusion.
3. Widely used range :
The pellet feed can be used to raise cattle, goat, pig, rabbit, chicken, duck, geese, fish, bird and so on. The flat die pellet machine is suitable for medium and small farming business. As its simple design, it is very easy to operate and maintain.
4.Technology parameter for different capacity
Model | Production (kg/h) | Power(KW) | Pellet Dia(mm) | Weight(kg) | Size(mm) |
UM-120 | 90-150 | 3 | 2-10mm | 90 | 630*270*750 |
UM-150 | 100-200 | 7.5 | 2-10mm | 110 | 720*290*780 |
UM-200 | 200-300 | 11 | 2-10mm | 180 | 850*350*910 |
UM-250 | 300-450 | 15 | 2-10mm | 260 | 980*380*940 |
UM-300 | 500-700 | 18.5 | 4-10mm | 350 | 990*400*960 |
UM-350 | 600-850 | 22 | 4.5-10mm | 550 | 1080*550*1350 |
UM-400 | 800-1100 | 30 | 4.5-10mm | 730 | 1200*610*1600 |

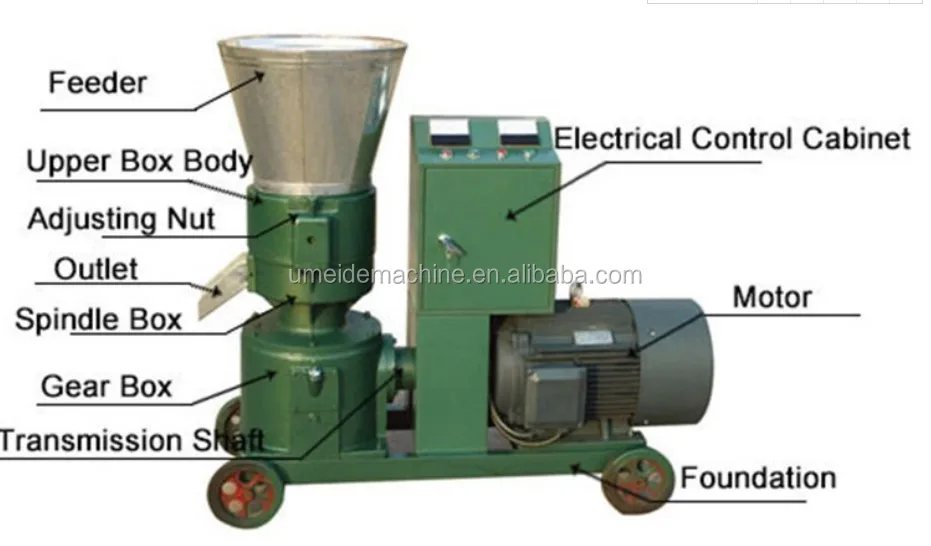

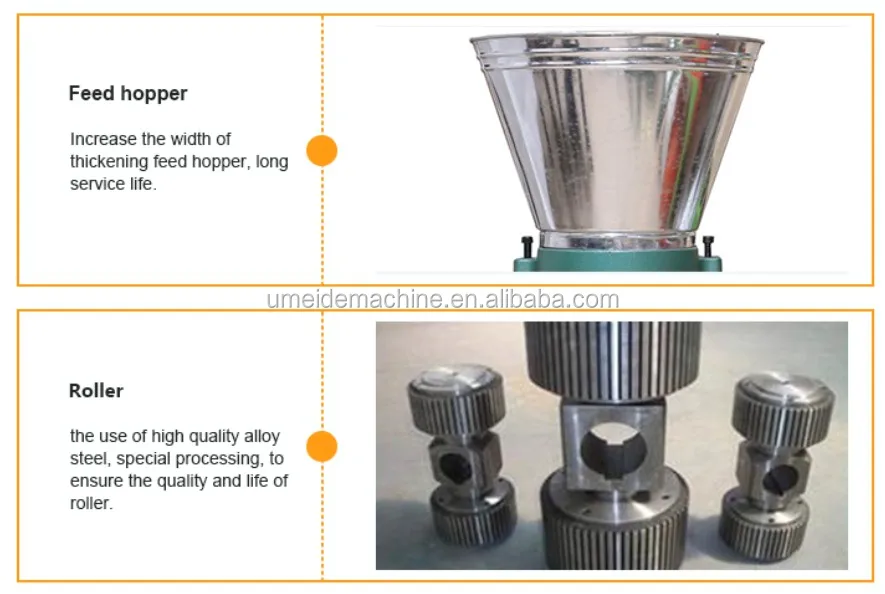

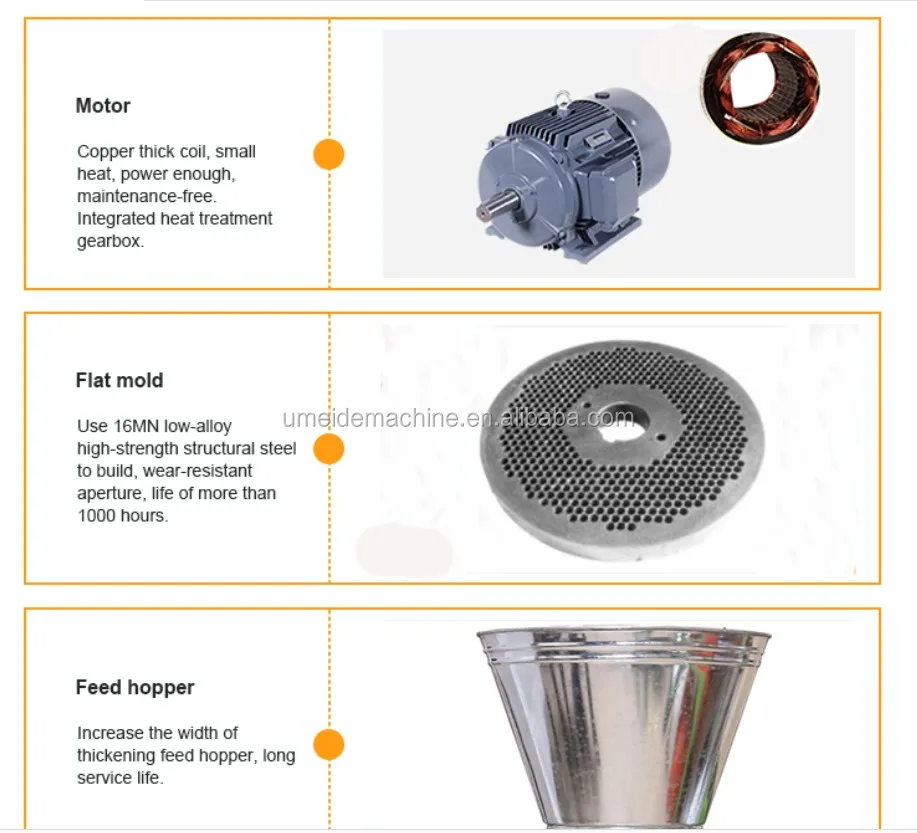

5.Main parts of flat mould feed pellet machine

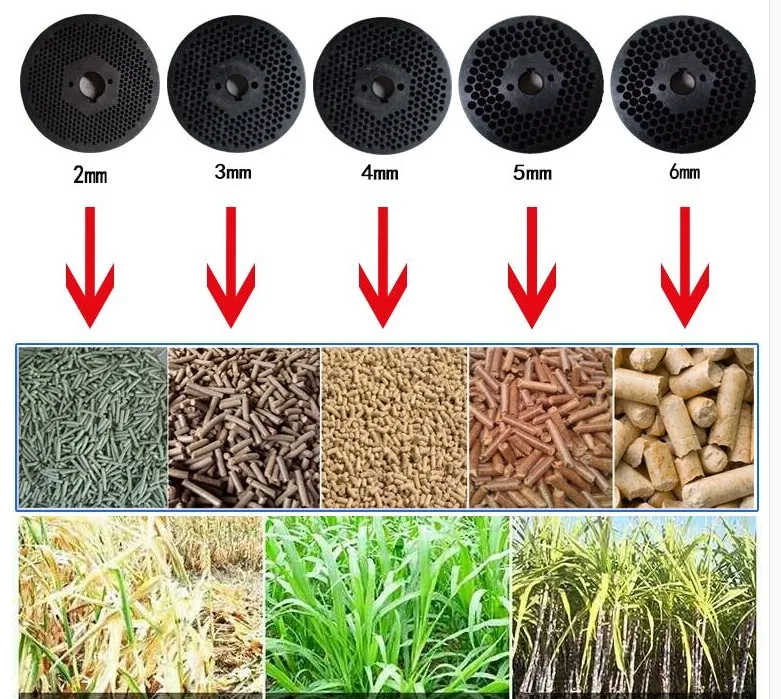

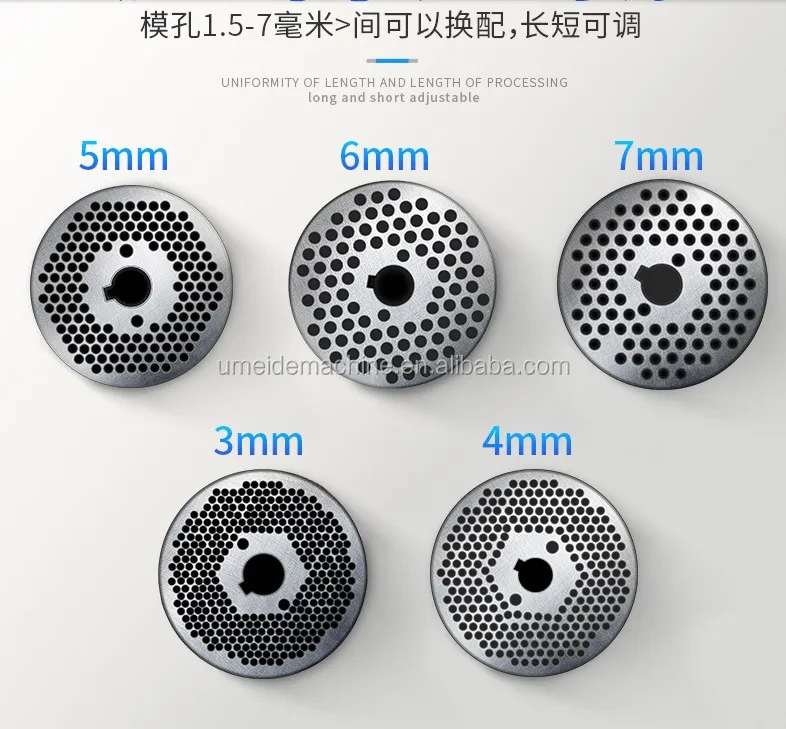

6.Different pellet size for choose by change moulds/dies

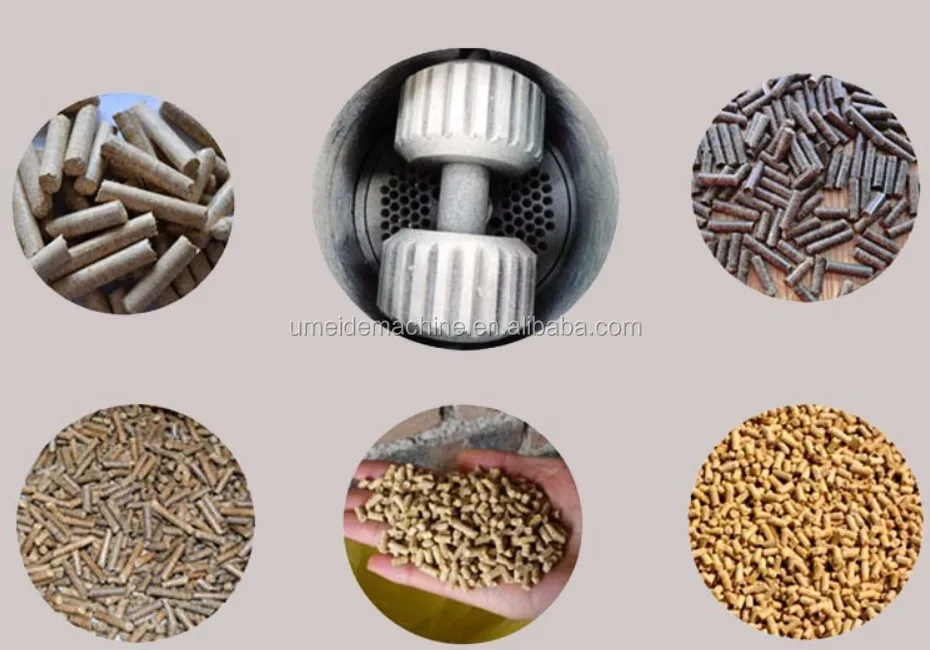

7.Finished products sample
Our Services
1• Before Purchasing: We will provide professional technical project and sales consultation service to solve the customers' question and worried;
2• During Production, timely updates the machine status for customer to ensure delivery time, and quality
3• After Production: Machine testing video and photos will be provided for inspection, if the customer can't come;
4• Before & During Shipment: The machine will be cleaned and packaged before transportation; All the documents will be provided for the seller;
5• Installation & Training: Providing professional and expert technical engineers to supply the training and installation service.
6• After Sales Service; Dedicated department and engineers for providing the timely and efficient service when the clients' need, such as formula, parameters setting, and spare parts;
Packaging & Shipping
Exported standard packing for shipping
For machine equipment normal inner use plastic film wrapping ,then outside use free-fumigation wooden case for packing again ,in order to suitable container shipment by sea .
Shipment by sea normally can choose LCL shipping , 20ft container or 40ft container for shipment .
1.Wooden case packing and loaded for shipment by sea
2. Packing and loading prepared shipment by air
(Normal international express have UPS, EMS ,DHL ,TNT ,FEDEX for choose )
