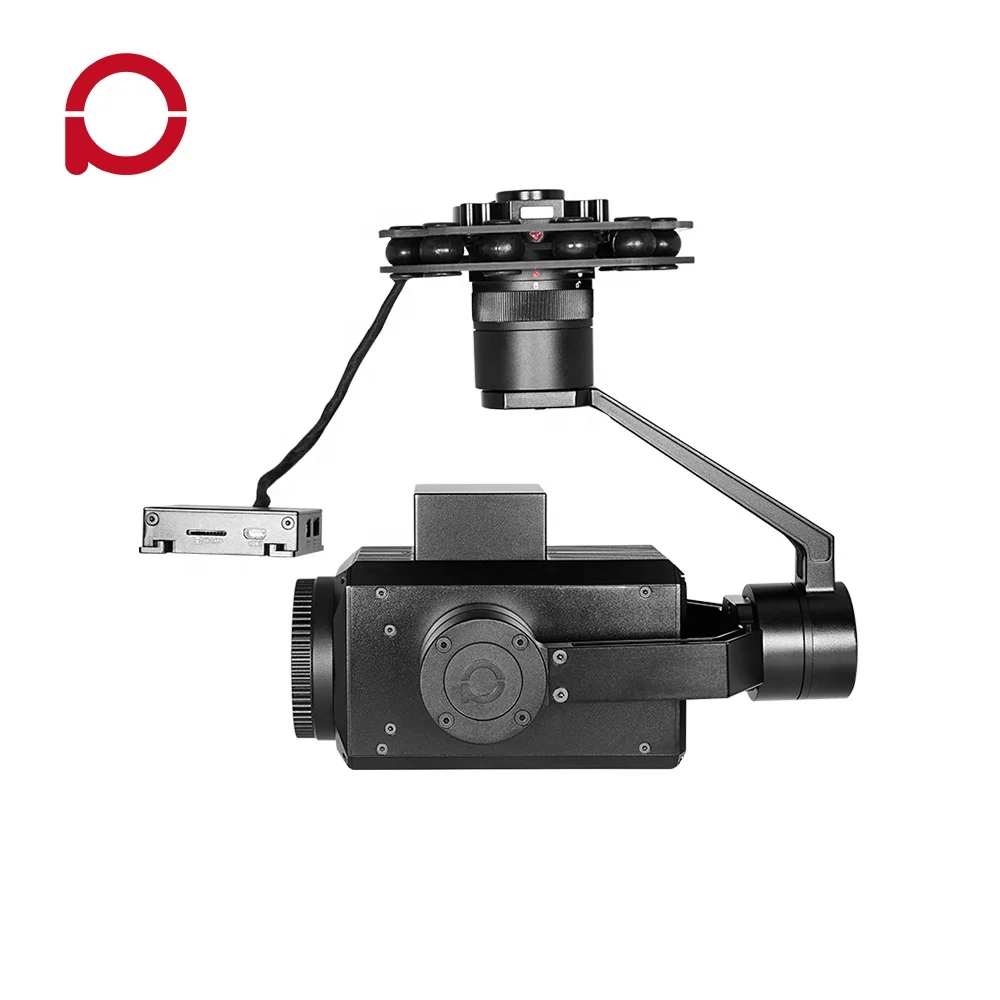

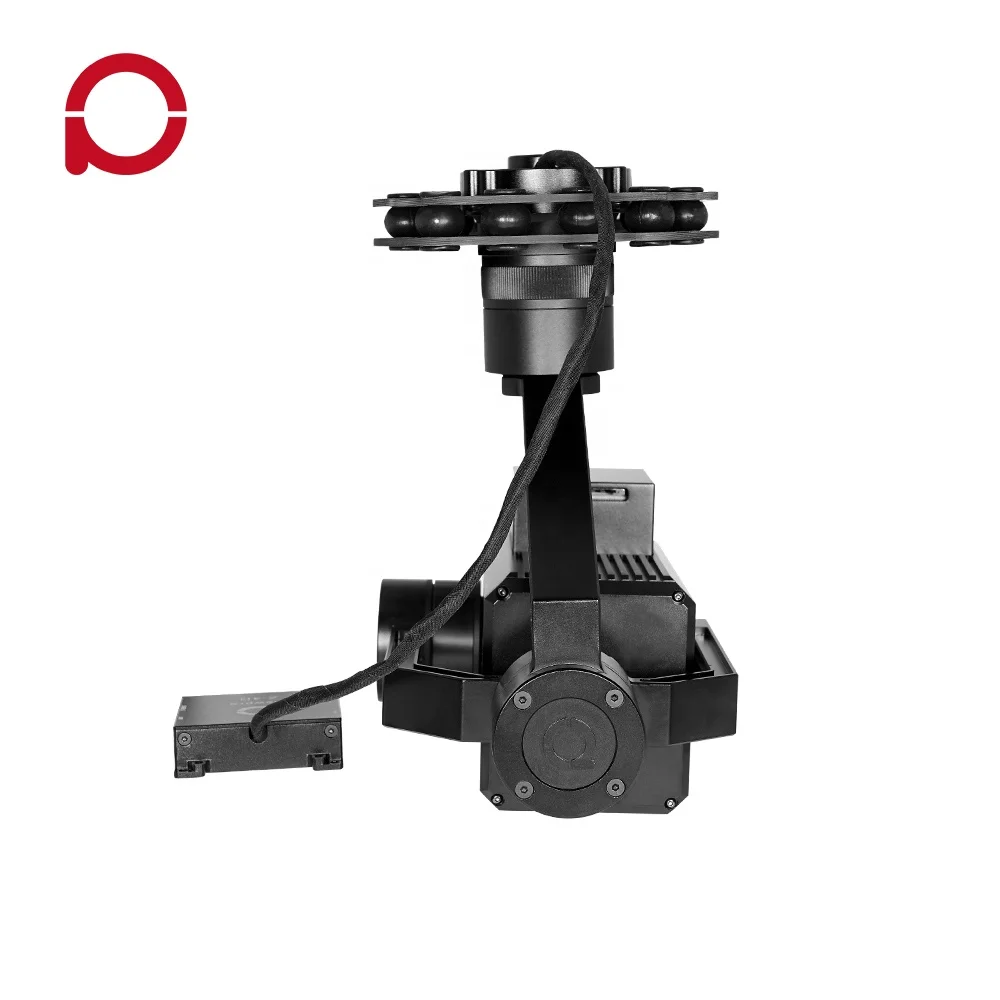

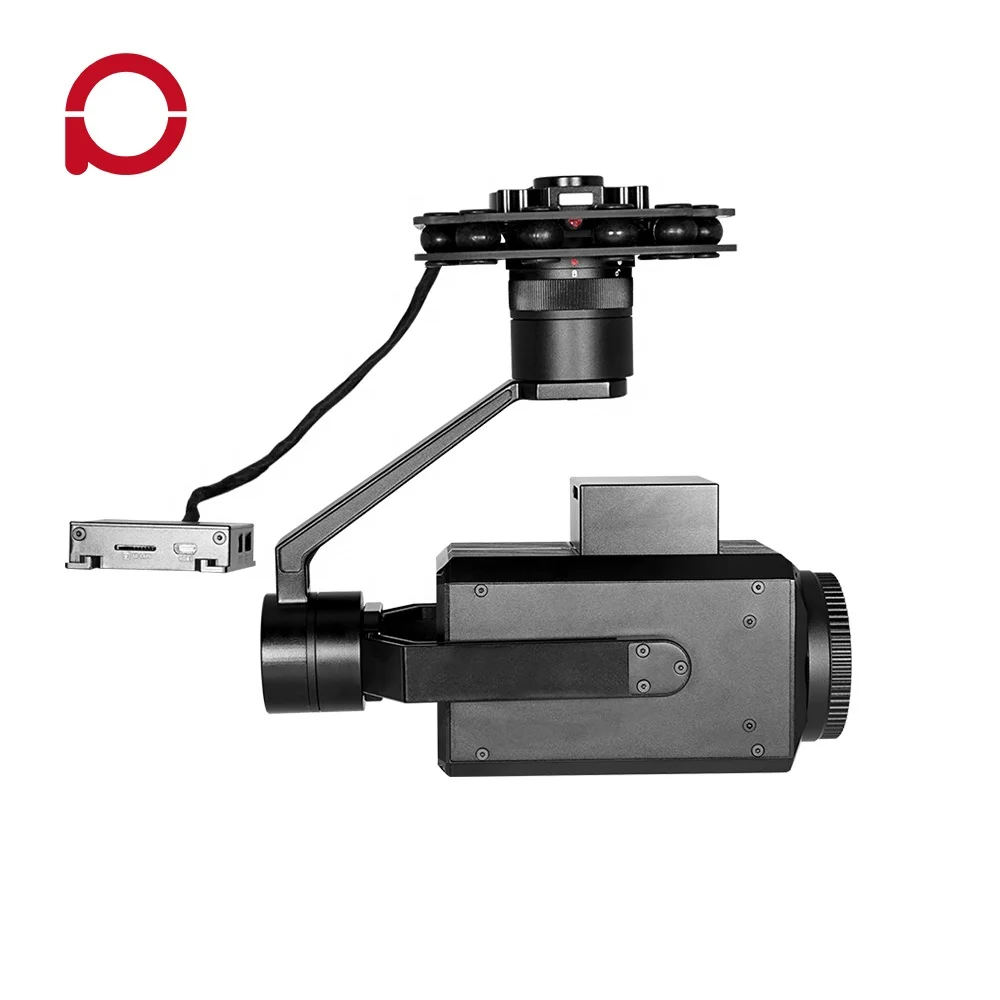

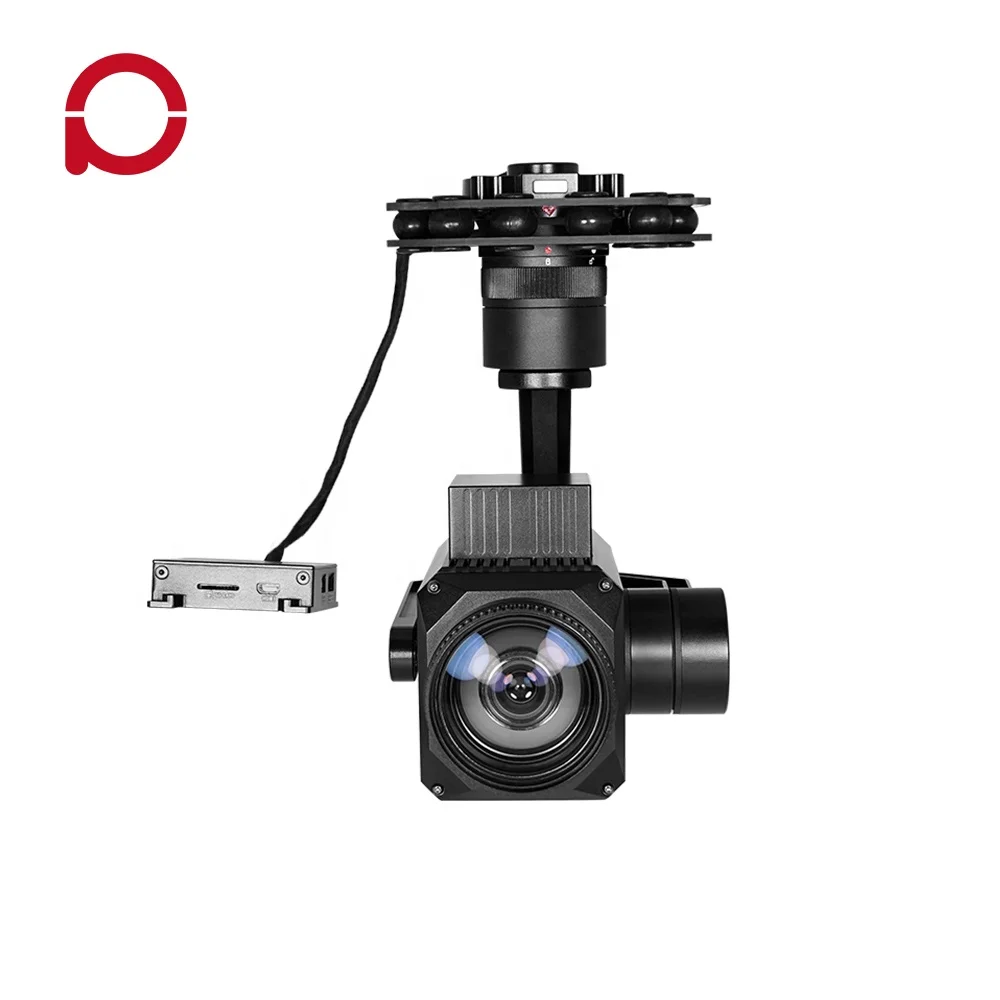

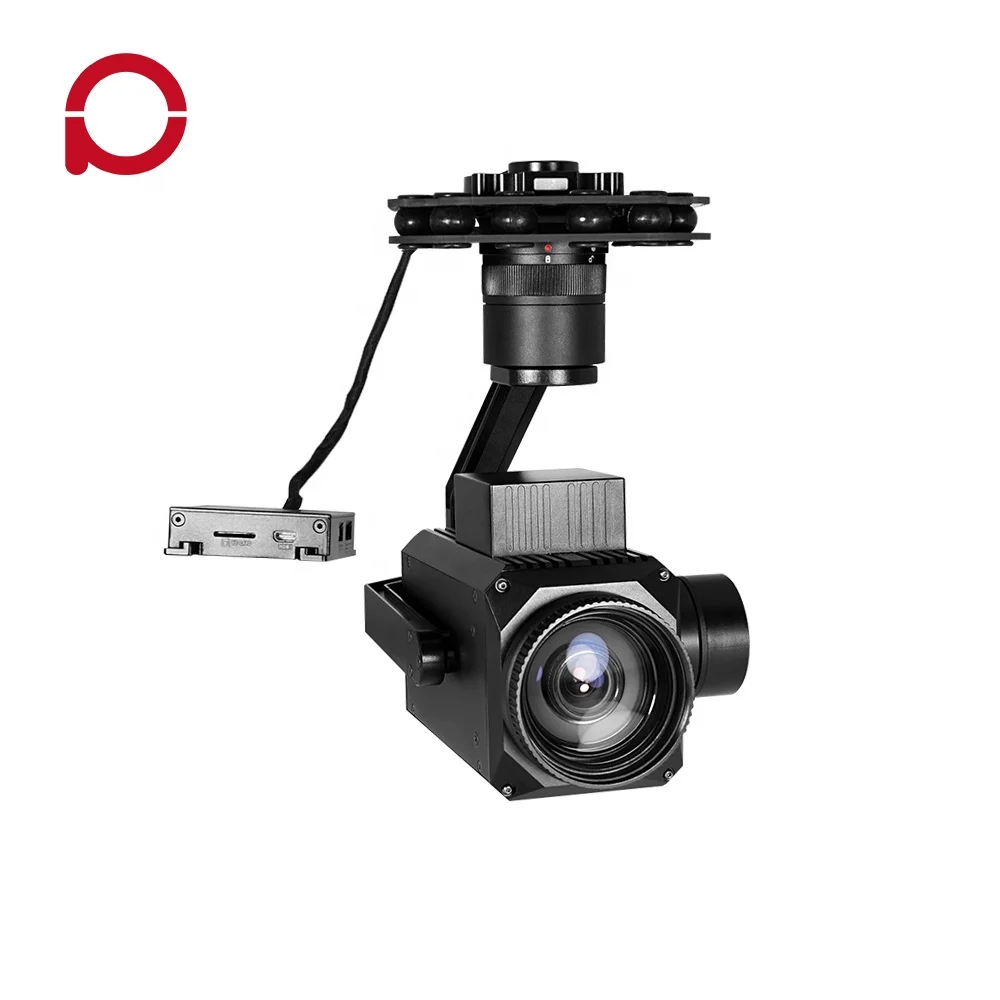

Industrial drone aerial electro optical gimbal 36x zoom 1080P HD starlight UAV Camera with 3 axis gimbal stabilizer
- Category: >>>
- Supplier: Viewpro Ltd.
Share on (60812259641):
Product Overview
Description
Product Description
Features high stability, small size, light weight and low power consumption suitable forfor UAV, helicopter, fixed wing plane and rotary wing aircraft, ect. Can be applied in various fields like public security surveillance, traffic monitoring, fire fighting, wildlife spotting, disaster management and rescue etc.
| Gimbal spec | |
| Pitch/Tilt | ±90° |
| Roll | ±85° |
| Yaw/Pan | ±170° / ±360° |
| Vibration angle | Picth/Roll: ±0.01°, Yaw:±0.01° |
| Camera spec | |
| Imager Sensor | 1/1.9 CMOS |
| Effective pixel | 2.38MP |
| Lens optical zoom | 36x, F=5.8~210mm |
| Min object distance | 8.5mm(wide end) to 1200mm(tele end). Default 300mm |
| Field of View | H: Wide 60.00°, Tele 3.70° ± 5% |
| V: Wide 34.58°, Tele 1.99° ± 5% | |
| Min illumination | Color 0.005lux at F1.5, Starlight level |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Defog | Yes |
| OSD | Yes |
| Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | <10ms |
| SNR | 4 |
| Object size range | 16*16 pixel ~ 160*160 pixel |
| Tracking speed | ±32 pixel/frame |
| Object memory time | 100 frames (4s) |
Device Measurement: 187.6*105.3*180.6mm
Wiring Box:
Packaging & Shipping
Packaging & Shipping
Packing: 1 unit/ Plastic box with foam protection
G.W.: 3127g
Package size: 360*300*250mm
Shipping: FOB Shenzhen, China
By express (DHL / UPS / FedEx) or by aire / sea
Lead Time: ≤ 5pcs, 3days
5~20pcs, 7 workdays
2000pcs/month
Certificates:
Please feel free to contact with us for any further information.
