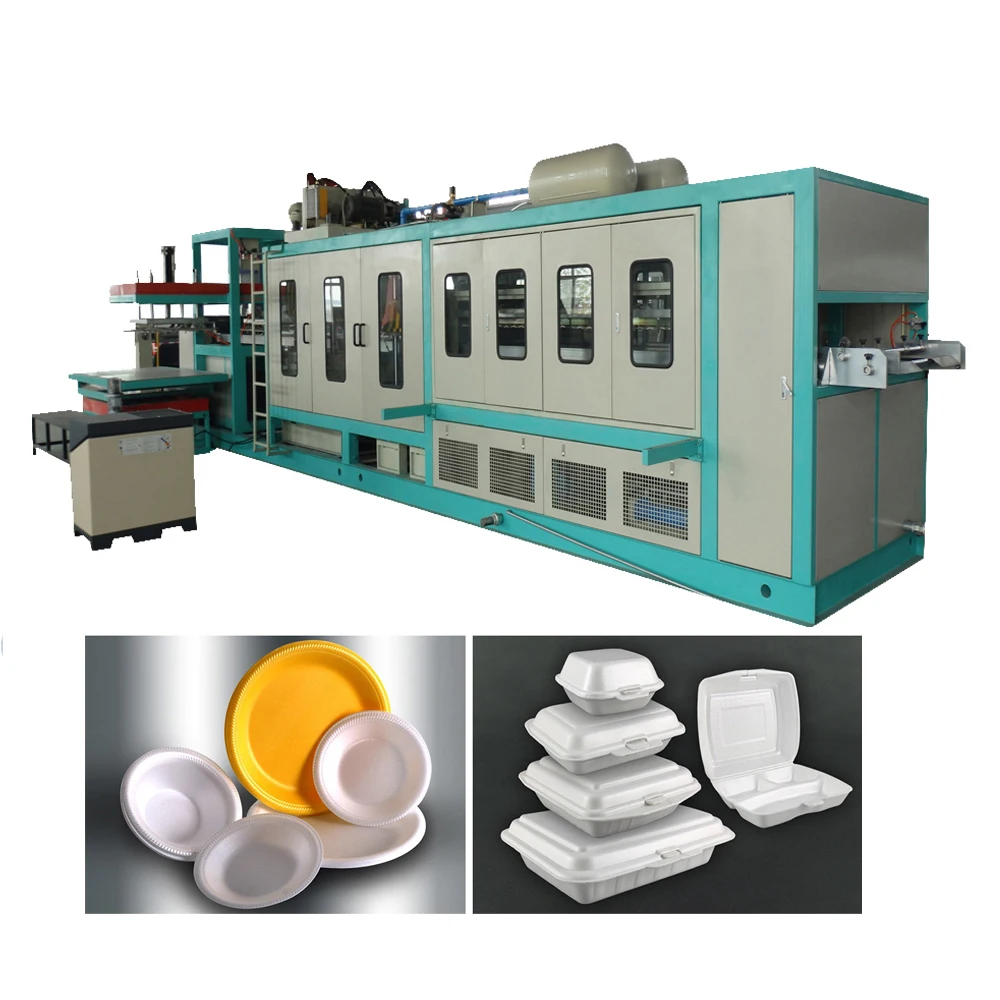

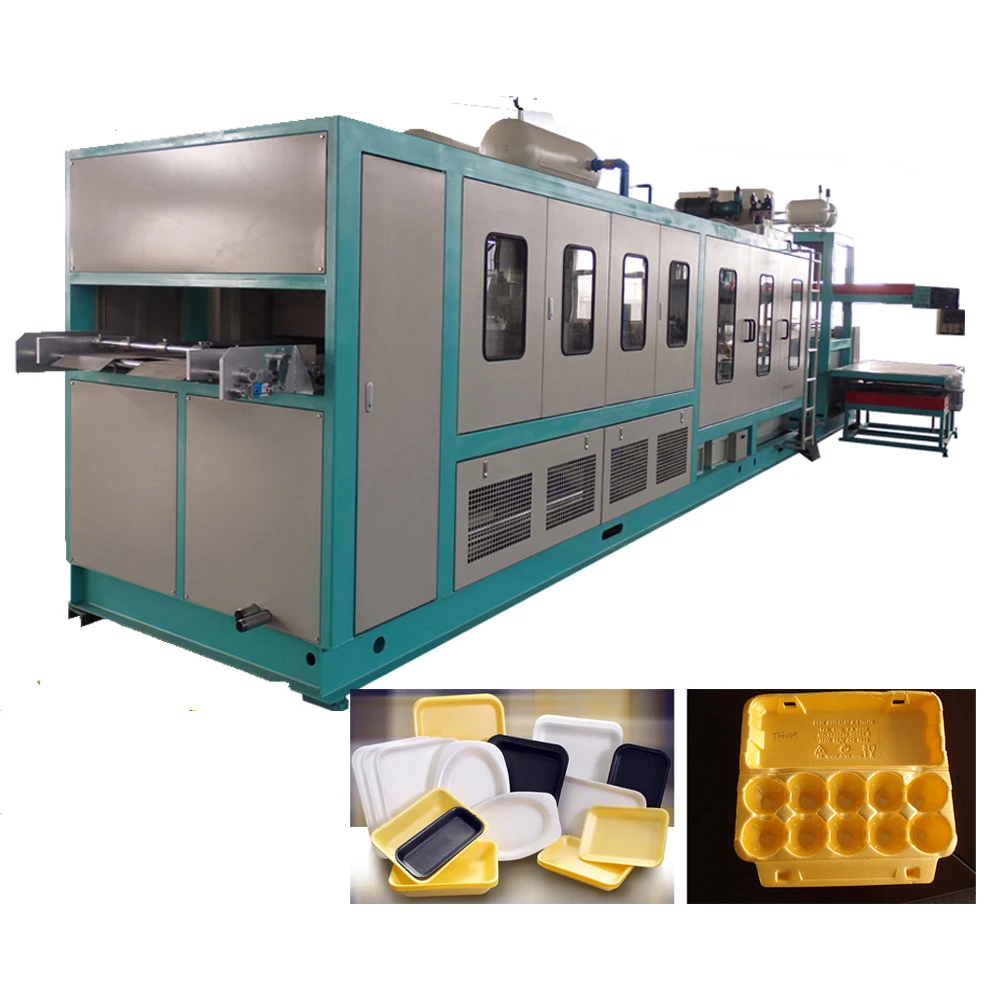

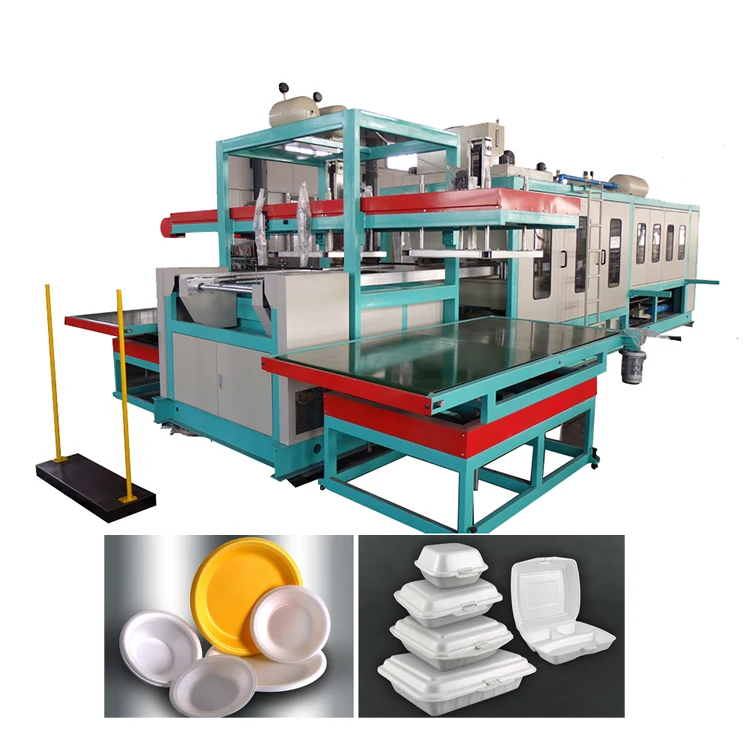

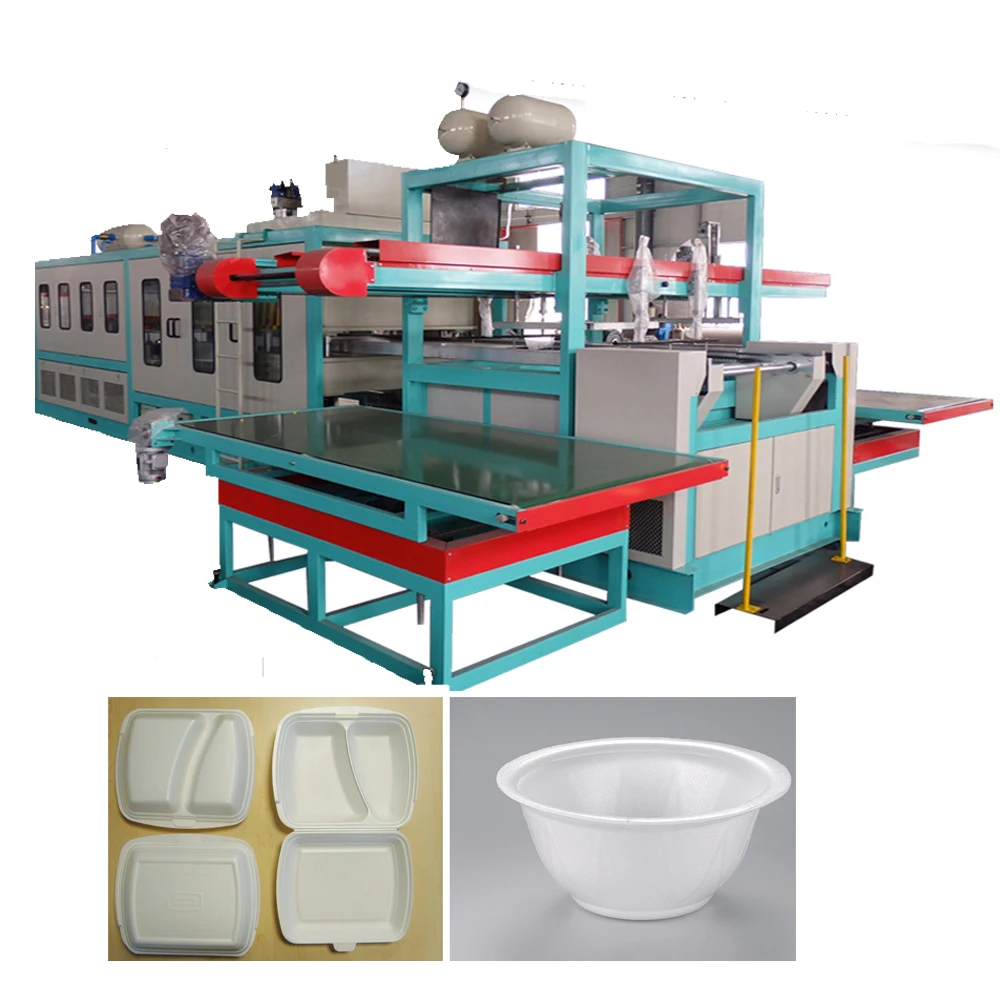

HONGRUN Automatic Disposable Thermocol Plate Making Machine

Product Overview

Description

HONGRUN Automatic Disposable Thermocol Plate Making Machine



Click here for free samples or unexpected surprise.

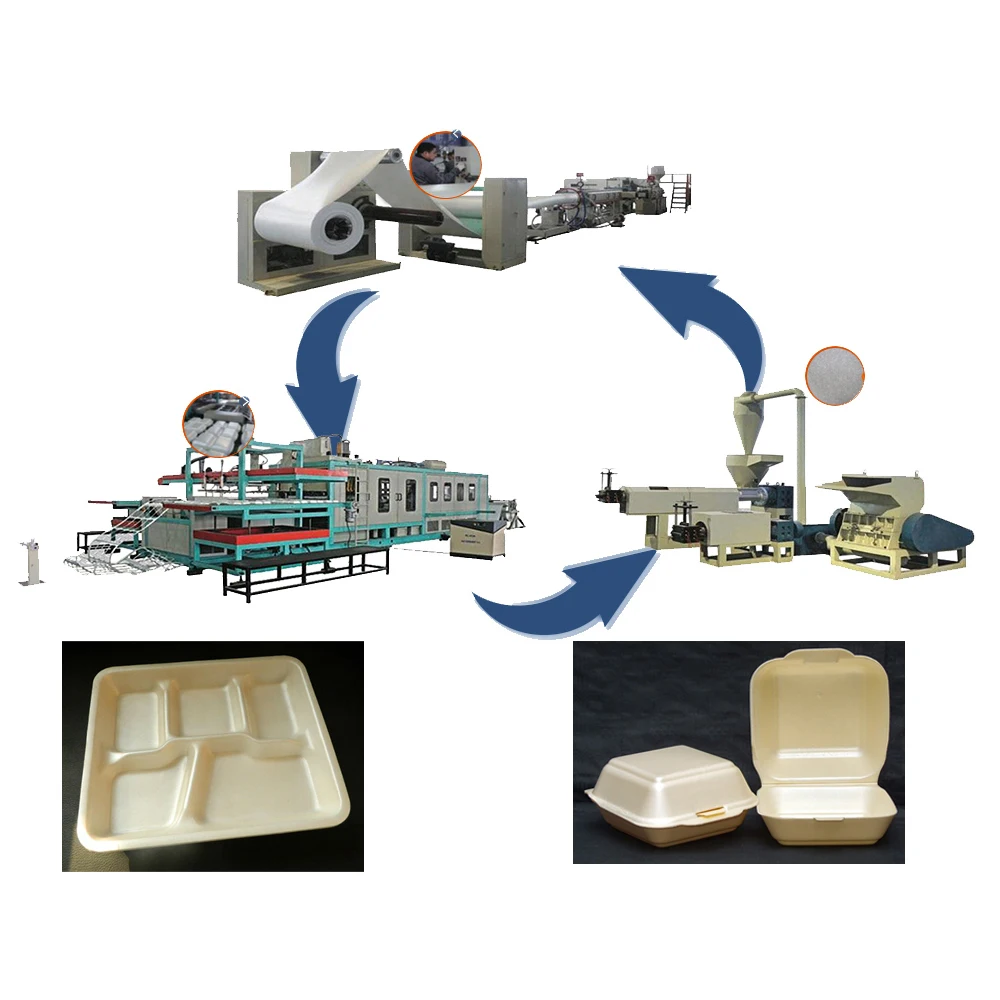

foam forming machine take away food box vacuum forming machine includes 3 PARTS:
(1) PS foam sheet extrusion line: make PS foam sheet from raw material
(2) Automatic Vacuum Forming and Cutting Integrated Machine: make PS sheet to finished products, such as PS foam tray, PS foam box etc. (we can design mold according to customer requirements)
(3) PS Crushing and Recycling Machine: recycle waste products to granules, the can mix with new material and put into PS foam sheet extruder again.

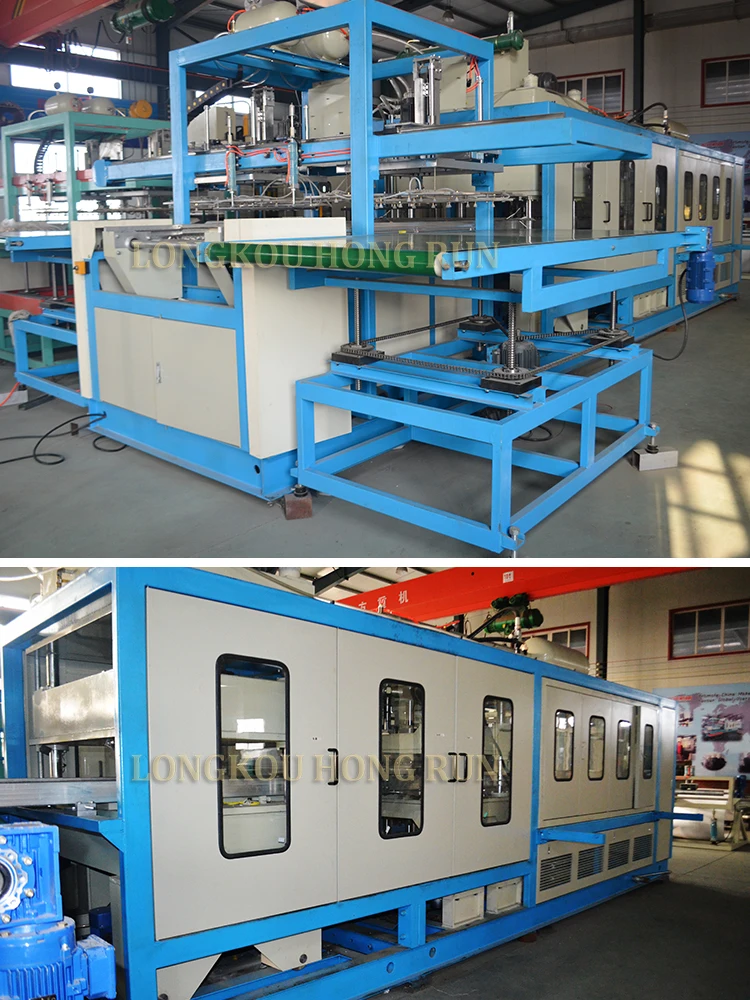

Features for Factory directly supply ps foam automatic fast food plastic container making machine

1. Suck and pull the food containers up. Even the containers don’t be sucked out successfully, this won’t affect next move.
2. There are one conveyor belt on each side, both can achieve automatically stacking, reduce labor intensity.
3. Heater box separate into three parts, hydraulic cutting speed is faster, and use mechanical arms to suck products, all above methods reduce the whole working time.
4. Extend mold length, making the forming mold area larger and improving the production efficiency.

  https://youtu.be/mlKoUKff9ok

  https://www.youtube.com/watch?v=86sXuz08_3c







Model	Unit	HR-S1800	HR-M1080
Collection method		Staking	Machanical arm
Max. forming area	mm	1000*750 1000*1100	1000×1250 1000*1400
Max. forming depth	mm	100	100
Production efficiency	s/die	4~5	2.8~5
Forming pressure	T	20	35
Mounted power	kw	170	200
Total weight	T	16	18
Installation size	m	15*3.5*3	15*6*3
