CJK22 Серии 220V Поворотный 3 позиции 22 мм селектор кнопочный переключатель
CJK22 Серии 220V Поворотный 3 позиции 22 мм селектор кнопочный переключатель
CJK22 Серии 220V Поворотный 3 позиции 22 мм селектор кнопочный переключатель
CJK22 Серии 220V Поворотный 3 позиции 22 мм селектор кнопочный переключатель

CJK22 Серии 220V Поворотный 3 позиции 22 мм селектор кнопочный переключатель

Share on (60812273074):


Price:

Quantity:


Product Overview

Description



Products Description

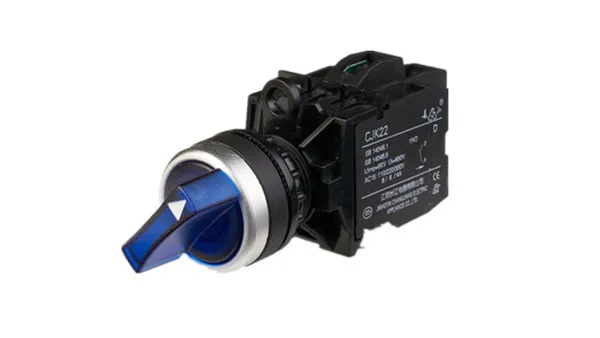

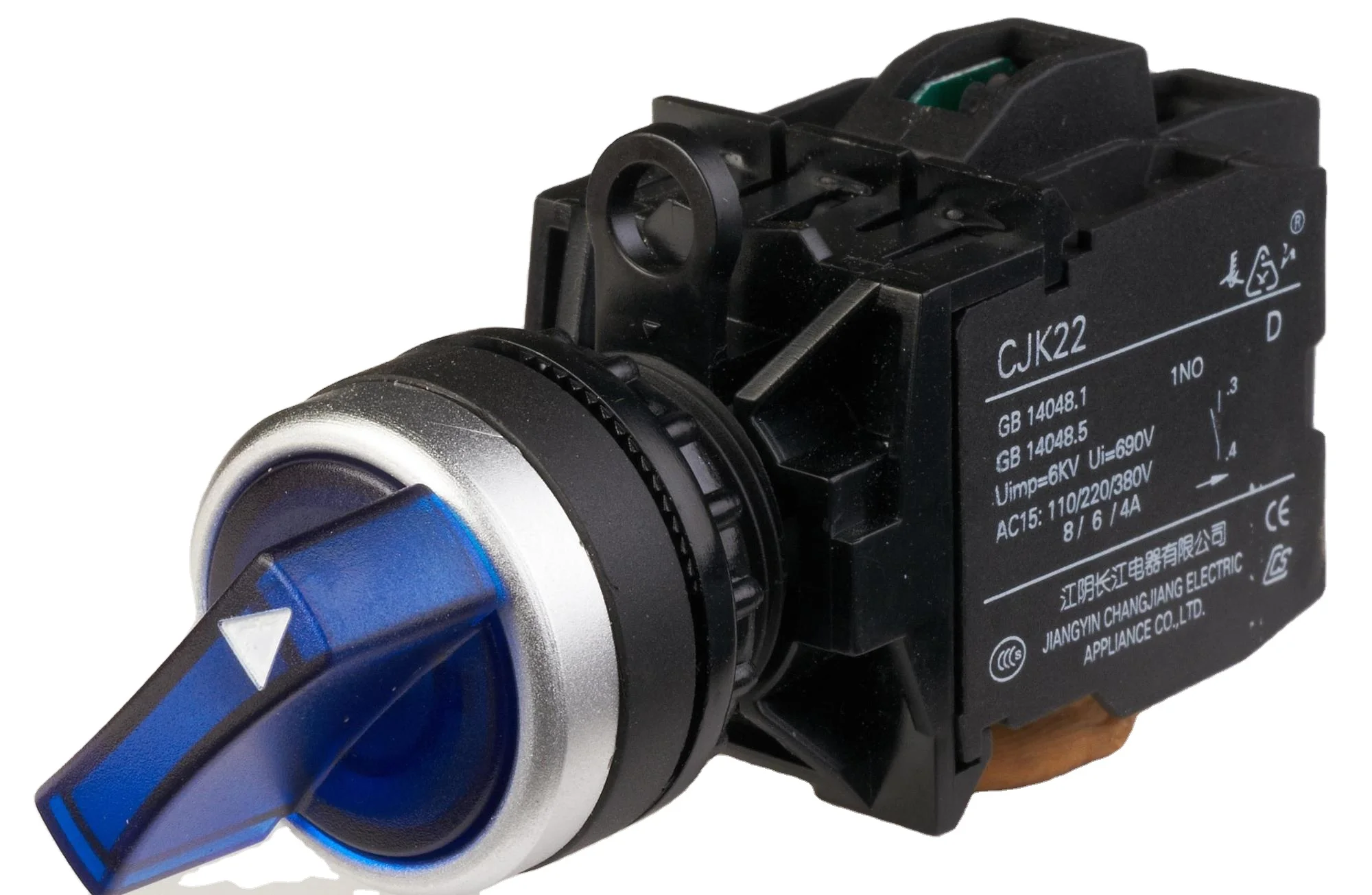

CJK22 series 220V rotary 3 position 22mm selector push button switch
CJK22 universal change-over switch is applicable to 50-60Hz NC program controlled machine tool with the voltage of 380V and below or the current of 220V and below for the conversion of electrical control, remote control of power distribution equipment, conversion of electrical measuring instrument and the
control of servo motor and micro-motor


Product Parameter


Type specification
CJK22-**X2(3)D
Name
CJK22 series 220V rotary 3 position 22mm selector push button switch
Products Standard
GB/T14048.5
Operation Condition
Altitude height
Environment temperature
Storage temperature
Relative humidity
Pollution class
Install type
≤2000m
-25℃~+70℃
-40℃~+70℃
≤90%
3
Ⅲ
Main technical index
Common parameter
Rated insulated Voltage
690V
Insulated resistance
≥50MΩ
Front protect class
IP65
Withstand Voltage
1.89KV/5S
Work Frequency
50Hz
Button parameter
Stipulated hot current Ith
10A
Contact resistance
≤50mΩ
Rated working Voltage /Current
AC-15
DC-13
110V/8A
110V/1 A
220V/6A
220V/0.6A
380V/4A
Electrical life
push button switch 500000times/ rotary button switch 200000times
Mechanical life
momentary push button switch 1000000times
illuminated push button switch 500000times
rotary push button switch 200000times
Lamps parameter
Rated working Voltage /Current
DC 6V/12V/24V/36V/48V/60V/110V/220V
AC 220V/380V
≤15mA
Life of signal lamps
30000h

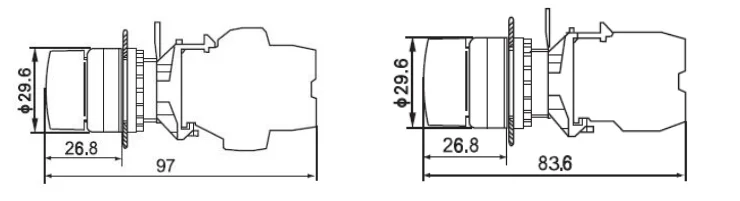

Size of mounding hole
φ22 hole


Die Cut




Related Products




Product packaging


Different box size
Professional packaging


FAQ


Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin City, Jiangsu province.

Q: How long is your delivery time?
A: Order amount less than $3000, or a single model less than 500pcs, delivery time is 7-10working days after confirmation.

Q: Do you provide samples ? is it free or extra ?
A: Free sample is available, freight collect.

Q: What is your terms of payment ?
A: Payment<=3000USD,we prefer the transaction via Alibaba Trade Assurance, 100% before delivery, order amount more than 3000USD, 30% T/T in advance ,balance before shippment.
