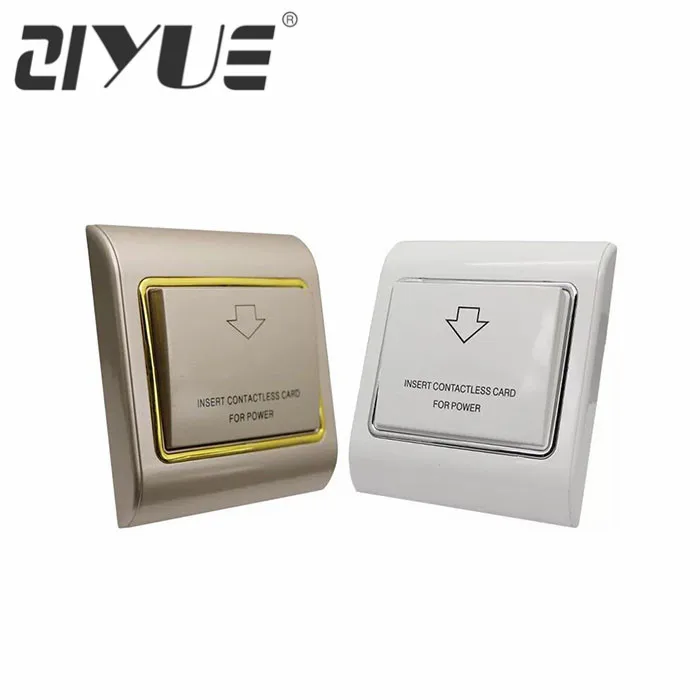

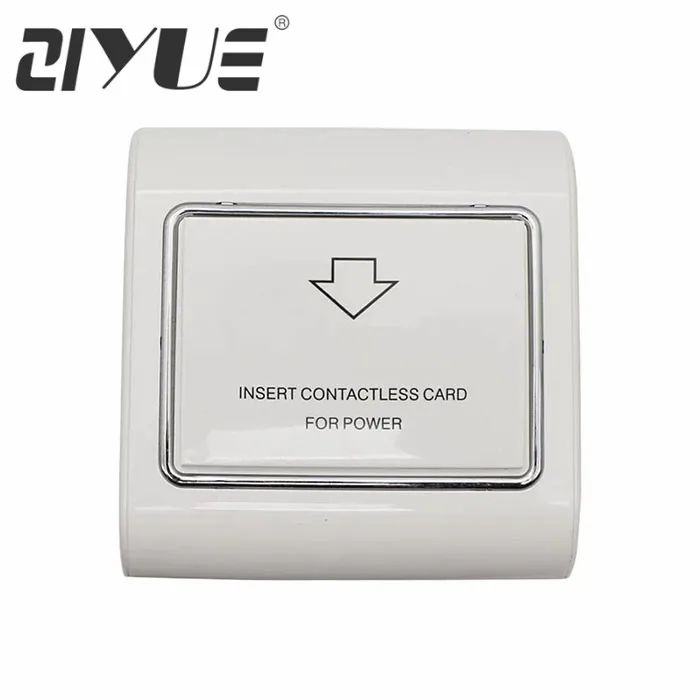

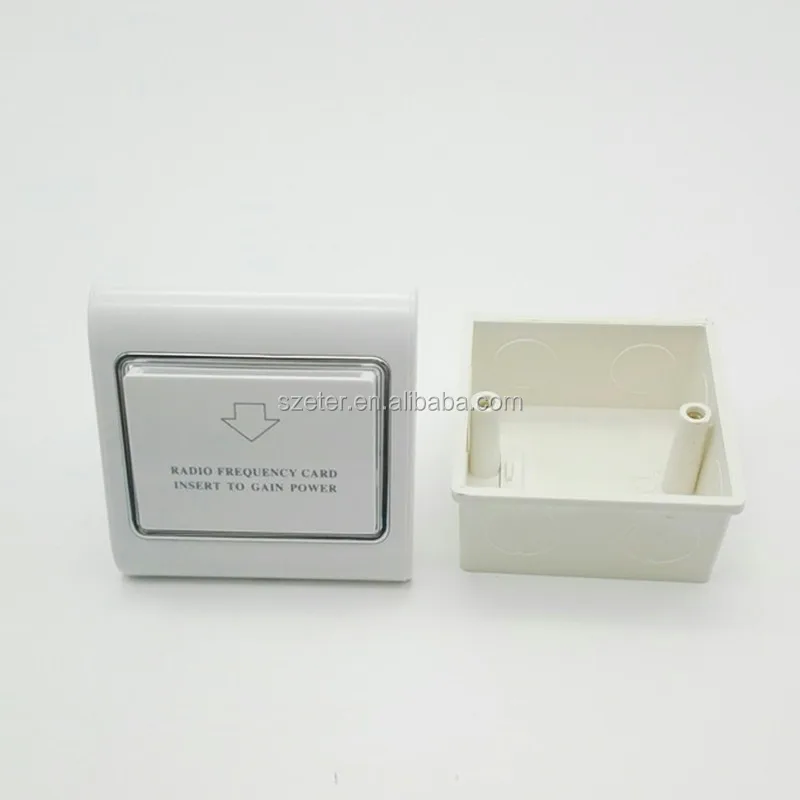

13.56mhz Smart Hotel Lock Energy Saver Switch Mf Card

 Technical parameters
Operating voltage: 50/60Hz   100-150v   180v-240VAC (other voltages can be customized)

Maximum load current: 30A
Maximum load power: 6000W
Quiescent operating power: 1W
Delay power-off time :10- 15 seconds
Non-working condition: light blue
Service life: When relay contacts 220V in the full load, life expectancy greater than 10 million
Operating temperature: -10 - 60
Working humidity: 50 10-95% RH
Overall dimensions: W86mm * H86mm * D35mm
Case Material: Imported fire retardant PC plastic

Shell Color: Gold, Silver, White, (other can be customized, your logo, your language)

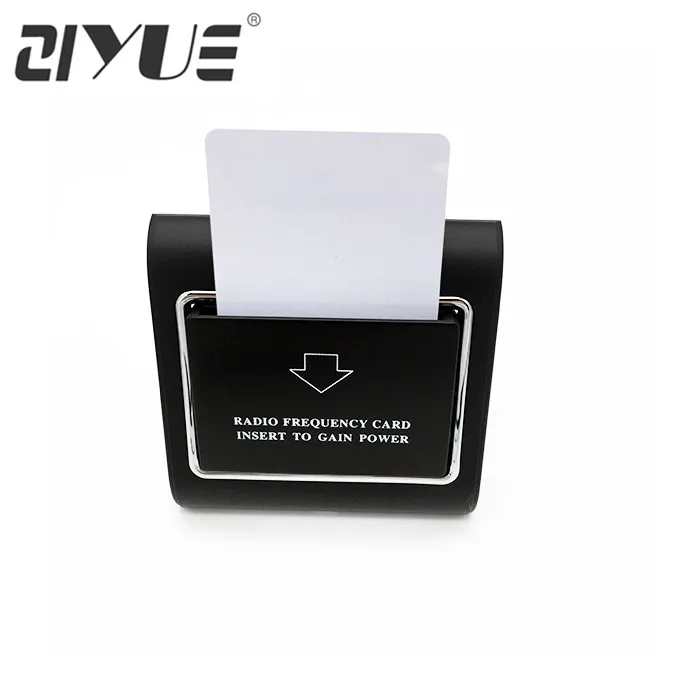

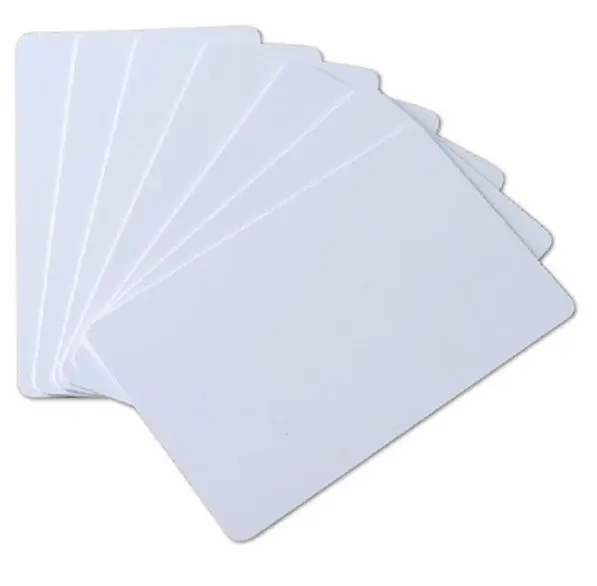

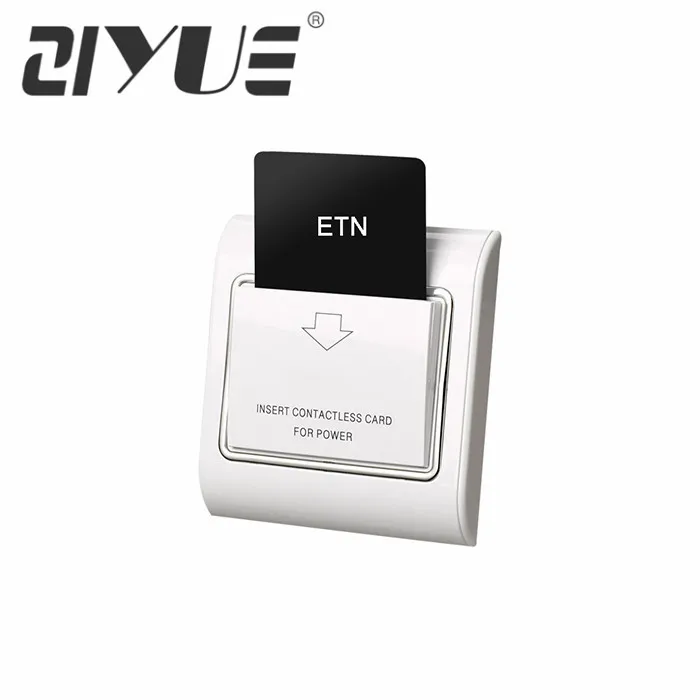

1 .With the special card, you can open the door, and just insert the same card, you can gain power of the room. Also there is option of our swiches which suitable for any kinds of the same size cards.


2. LED indicator design

LED indicator light-emitting design, more convenient to use at night.

3. Delay power off design
When leaving the room, the guest draw the key card, and then the general power supply can be automatically shut off within 15 seconds, convenience to guests, and also protect the electric device safety.

Saving energy saving money for you:

When leaving the room, the guest take the key card away (you have to pull out cards, because you would also like to use this card to open the door when you back),Energy saving switch will cut off the power within 15 seconds automatically. It can bring direct economic benefits (electricity savings) for the hotel, to extend the life of electrical equipment, to enhance guest safety factor of electricity, to achieve energy-saving effectively for hotel. Investing least cost to reach the effect "energy-saving emission reduction" for the hotel.

In accordance with the general standard guest room s appliance configuration
Right-left bedside lamp 25~40W*2     mirror front lamp 20 W      floor lamp25-40 W
                                            TV 120 W            desk lamp 25~40W       porch light 25W
Separate Air Conditioner 1000 W       Total power:1300 W=1.3KW
According to the power calculation, if there are 100 rooms in hotel, and 0.15 USD/ kWh. If we could saved one hours for each room daily power, then the hotel could be saving electric charge each year: 1.3 kilowatts × 100 rooms × 1 hours / day × 365 days × 0.15USD / kWh = 7117.5USD.

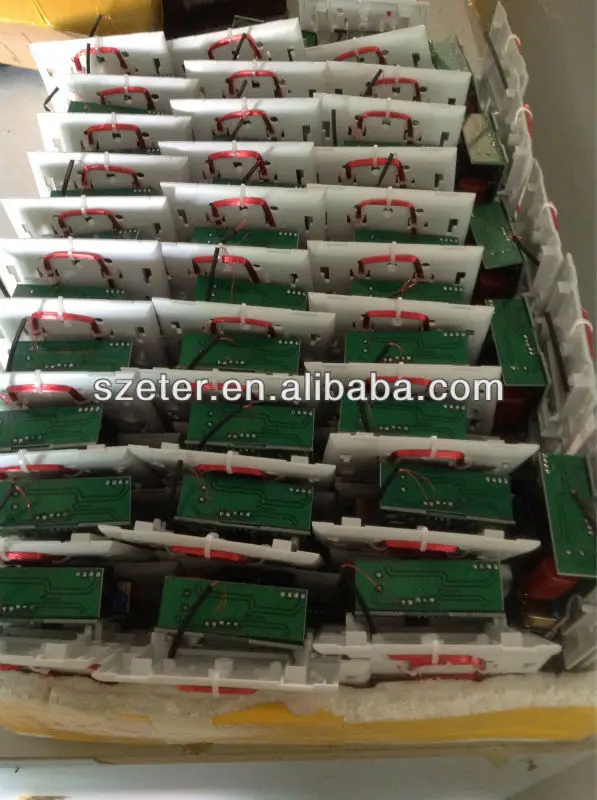

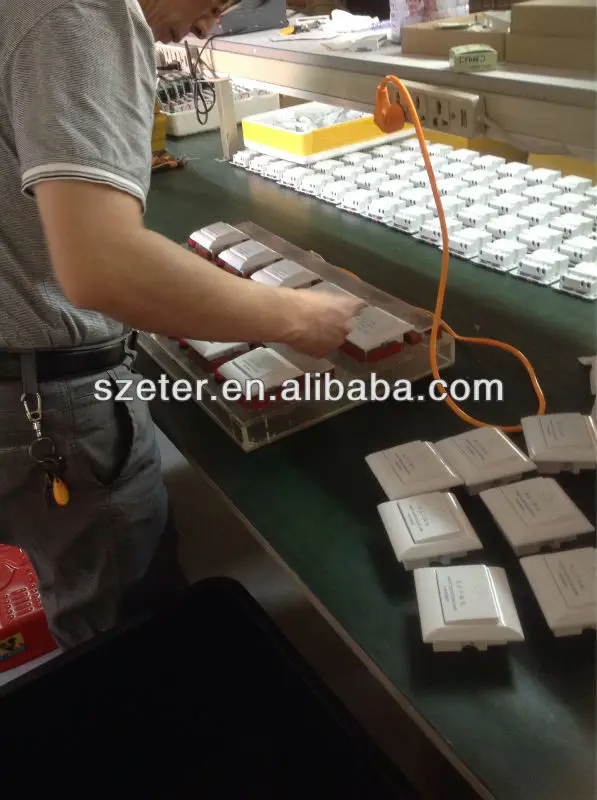

PCB in switch	Carefully Test before delivery	Our packing

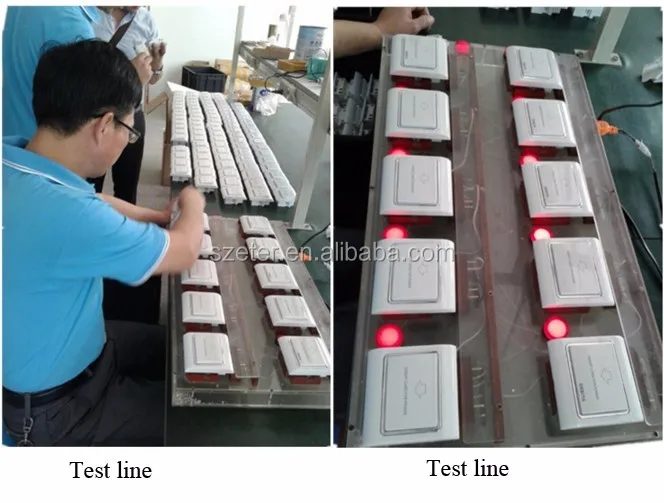

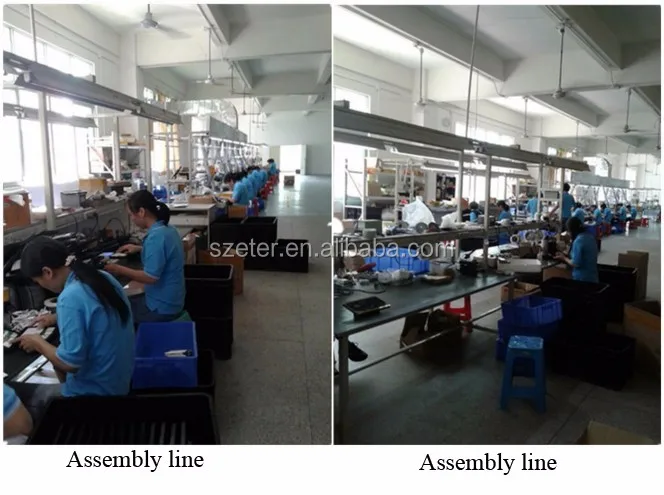

Assembly line and Test Line:
