Small ball mill Brief Introduction:



1. Ball Mill Machine is widely used in mining, building materials and chemistry industries.



 2. According to the milling way, Ball Mill Machine can be divided into dry and wet types. According to ways of discharge, the Ball Mill Machine can be divided into lattice and overflow types or center-discharge and side-discharge types.



3.In accordance with the different kinds of support, it can be divided into Bearing Mill Machine and Bushing Mill Machine.



4.In accordance with the different kinds of transmission, it can be divided into edge and center types. The mills with the diameter above 3m allocate jacking devices for easy maintenance. So the dynamical pressure bearing and the static pressure bearing can operate stable.






Small ball mill machine  Structure:



  • The machine consists of the main parts of the feeding part, discharging part, turning part, transmission part(reducer, small driving gear, motors, electrical control).
  • Motor through the pinion and ring gear transmission.
  • Center Drive, that is driven by motor through reducer hollow journal of the extension.
  • Directly mounted on the rotor of the motor cylinder or a hollow journal of the extension, the stator is fixed on the foundation,a so-called "no gear". At this time ,the low use of low speed synchronous motor, the speed is equal to the speed of the ball mill is suitable for transmission over power 7500kw.

ball milling  Spare Parts:



 photobank (20)lab ball mill 10

Small ball mill machine  Application:

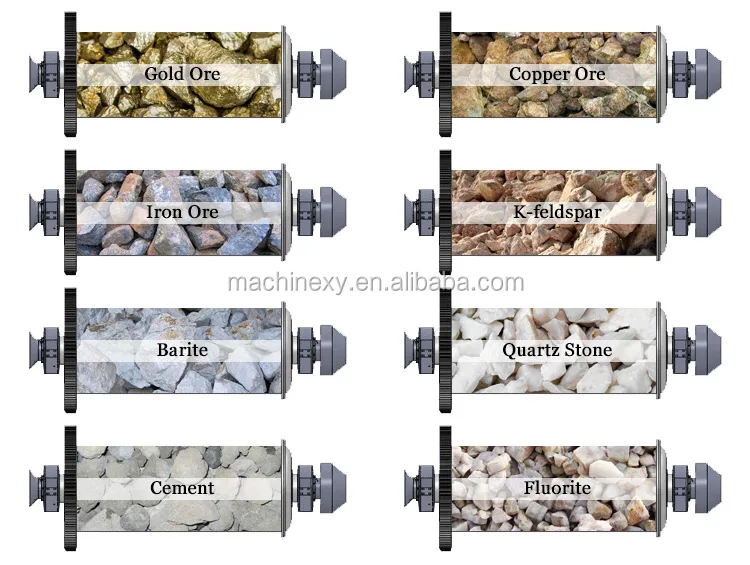

Ball Mill Machine is widely used in the manufacturing industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other gradable materials.



Small ball mill machine  Working Principle:



The ball mill machine is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

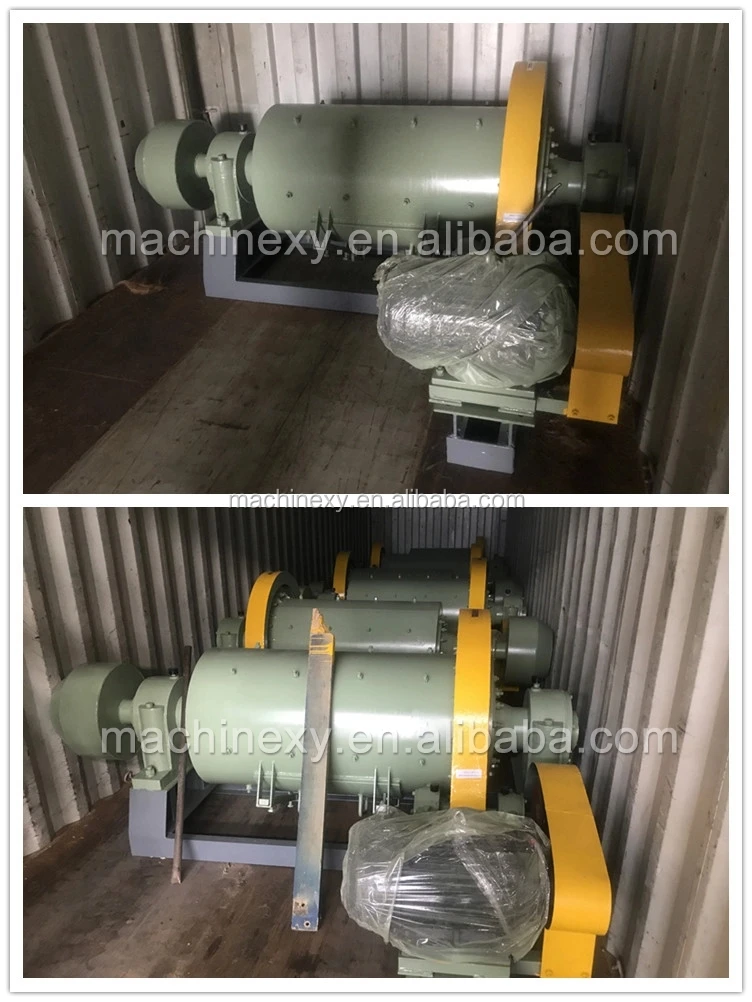

ball mill delivery 15.jpg

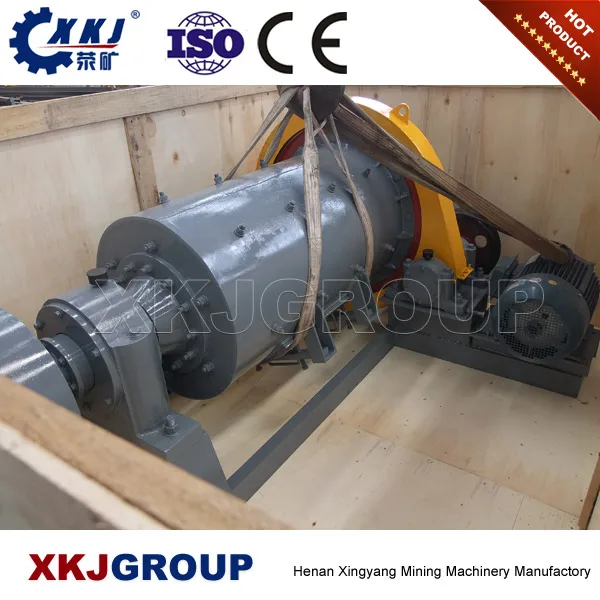

 Ball mill.jpg

Technical parameters:

Type

Rotational Speed(r/min)

Balls Weight (t)

Material-in Size (mm)

Material-out Size(mm)

Capacity(t/h)

Motor power(KW)

Weight(t)

Φ900*1800

38

1.5

≤20

0.075-0.89

0.65-2

18.5

3.6

 Φ1200*2400

32

3.8

≤25

0.075-0.6

1.5-4.8

30

11.5

Φ1200×2800

32

3.3-3.5

≤25

0.075-0.6

2-6

30

13

Φ1200×4500

32

7

≤25

0.074-0.4

1.6-5.8

45

13.8

Φ1500×3000

27

8

≤25

0.074-0.4

2-5

75

17

Φ1500×3500

27

6.75-8

≤25

0.075-0.4

3-7

75

17.5

Φ1800×3600

24

10.6-11.35

≤25

0.075-0.4

5-22

130

33.5

Φ1830×7000

24

25

≤25

0.074-0.4

7.5-17

210

36

Φ2100×3600

22

14-15.2

≤25

0.075-0.4

15-36

370

46.8

Φ2200×7500

21

33

≤25

0.074-0.4

16-29

380

56

Φ2400×3000

20.6

15.5-16.6

≤25

0.075-0.4

22-44

245

59

Φ2700×4500

20.7

48

≤25

0.074-0.4

12-90

430

102

Φ3200×4500

18

65

≤25

0.075-0.4

according to different technology

800

137










 ball mill site 4.jpg

Company Information



Henan Xingyang Mining Machinery Manufactory can as per the different raw material, discharge size, and client demand to design and manufacture it, we can supply you cone ball mill, energy saving ball mill, rod mill, raw material bal mill, slag ball mill, coal mill, cement mill, tube mill, ceramic mill etc.



Our Services





FAQ

  In order to give you a responsible quotation of Ball Mill, you can inform us the following information:
1.  What's the material you are going to deal with?
2.  What's the granularity of the material?
3.  What's the granularity of the final products are you going to achieve?
4.  What's the producing capacity per hour ?

5. Wet or dry type
