r2t288 lm561c s6 full spectrum Quantum LED Grow Light with IR 660nm for hydroponic system growing
- Category: >>>
- Supplier: Shenzhen R2T Electronic Limited
Share on (60812288089):
Product Overview
Description
r2t288 lm561c s6 full spectrum Quantum LED Grow Light with IR 660nm for hydroponic system growing
Specifications of products
1.Isolated standards isolated driver which is safety for everyone;
2.Full spectrum distribute most nutrient lights from vegetative growth ,flowering and fruit-bearing;
3.LM561C S6 RA:80, CCT option: 2700k/3000k/4000k/5000k/6500k
Epileds Blue: 460nm , Deep red: 660nm;
4.Customize wattages,chips ratio,logo,package available.
Initiator: | Russell | Date: | 2017-7-17 |
Project Name: | 100W LED boards | New Project Code: | R2T-288led boards |
Function Request | |||
Electronic Requirement): | Baord Sepc 173.6*285.8*2mm, HASL, 1oz,2.0w/m.k,288pcs 561c ,8in parallel 38 in series add 4in parallel 2in series XPE660nm chips, 46.8~58V/2000mA(Max) | ||
Optic Requirement: | 288pcs chips, 561C,3000Kevin,RA:80,S6 ,16 in parallel 18 in series4pcs single pin molex connectors | ||
Mechanical & Outline Request | |||
Circuit Board Requirement: | N.Layer: | Single side LAYER | |
substrate: | Aluminum | ||
Board thickness: | 2.0mm | ||
Copper thickness: | 1oz | ||
Finishing: | HASL | ||
Solder Mask: | White | ||
silkscreen: | Black | ||
Panel | No request | ||
Special Requirement | 2.0w/m.K thermal conductivity | ||
Silkscreen Design: | Black words | ||
Location hole: | Size: | M3*8 | |
location | N/A | ||
Others |
| ||

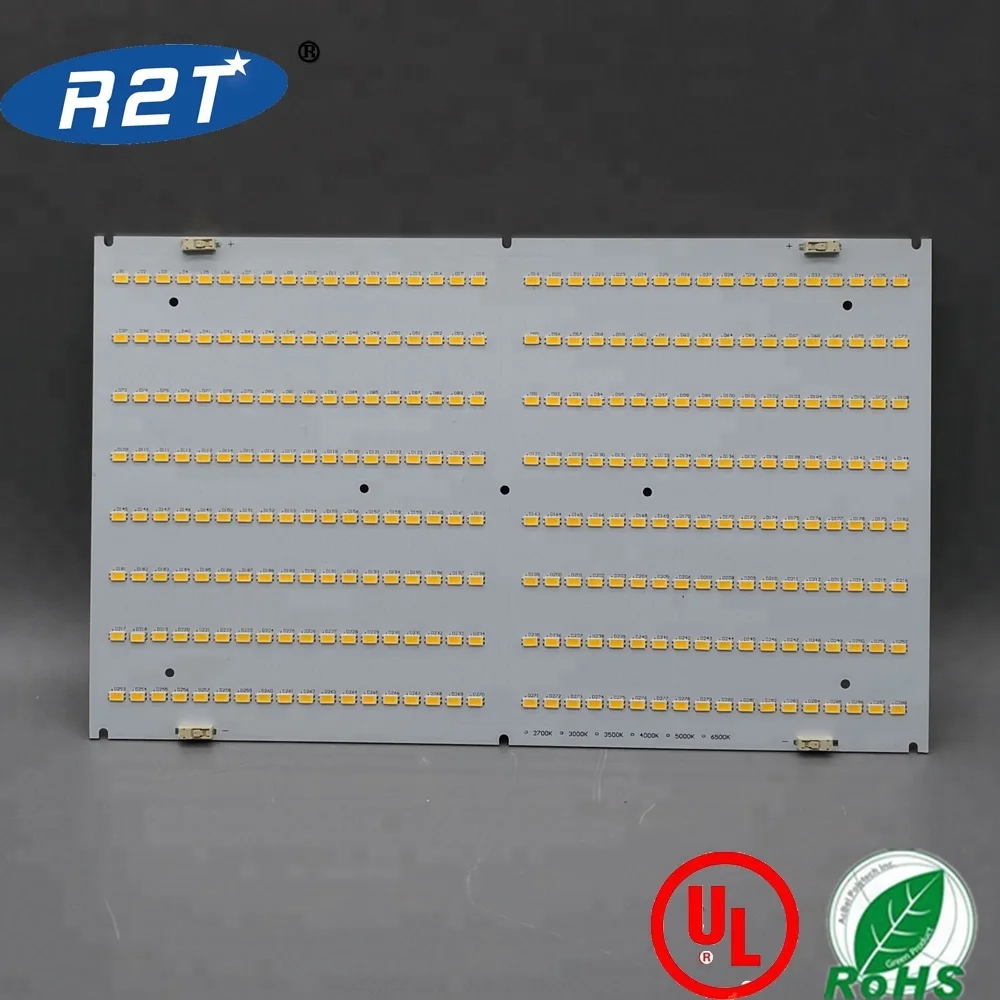

QB288 with LM561C S6 top bin chips
QB288 V2+ LM301B Top bin with or without XPE 660nm

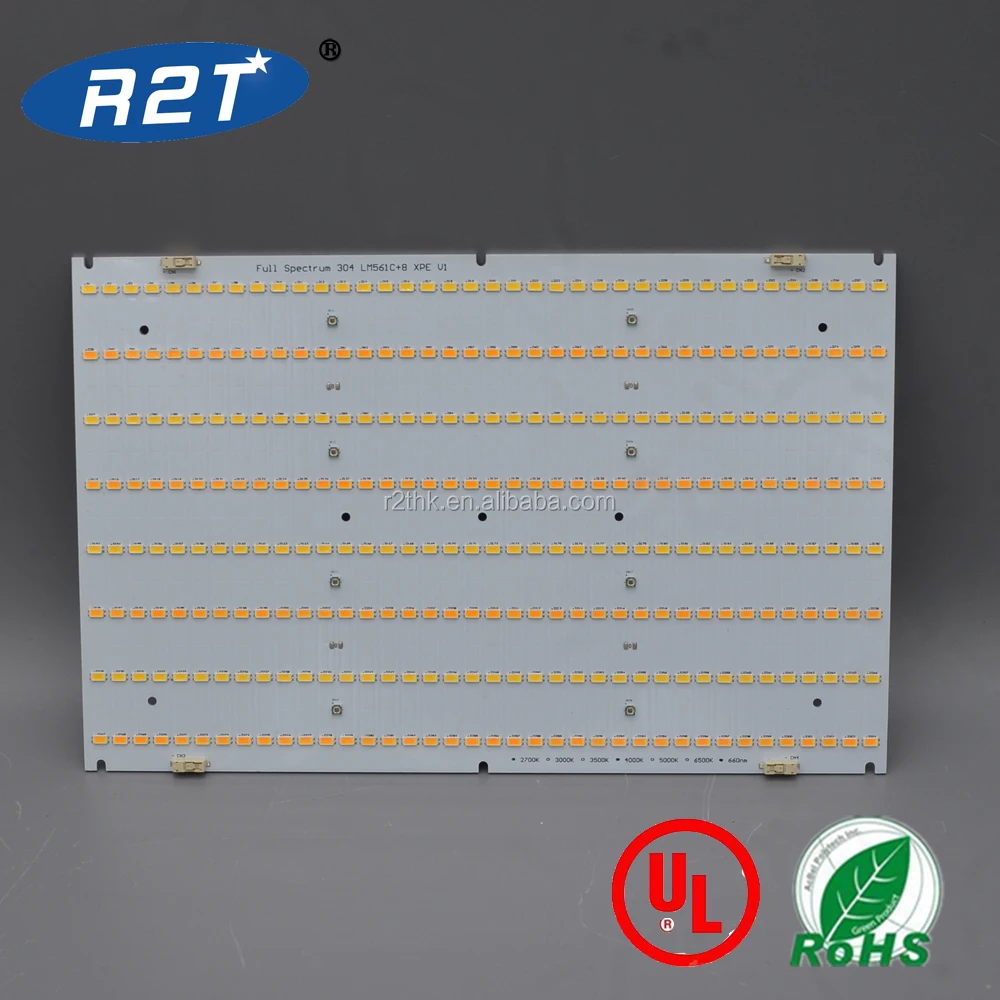

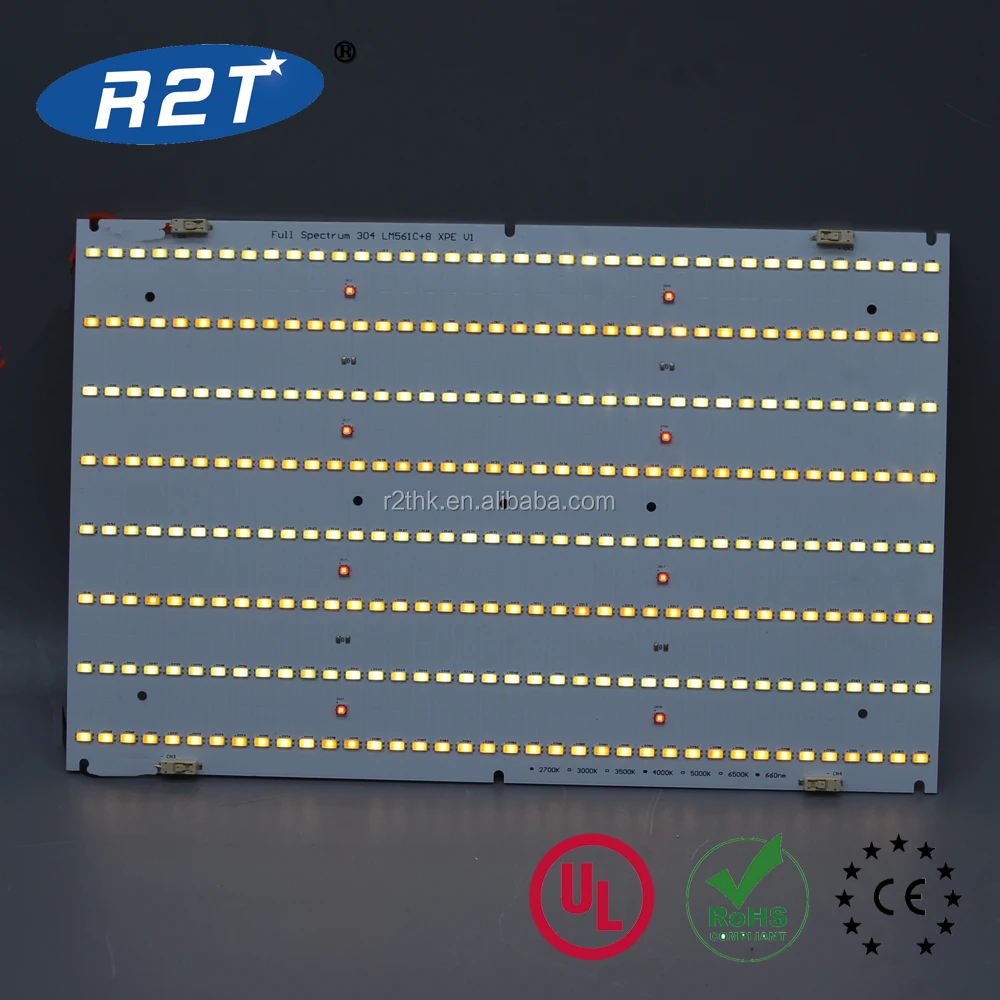

QB304+8Cree XPE

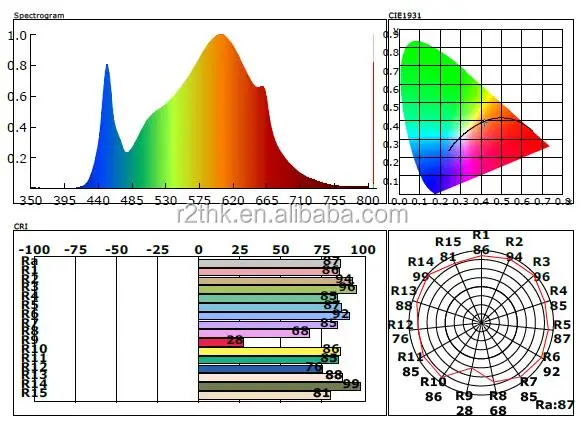

Testing Data for 2700K/4000K Mix +8pcs 660nm chips
Spectrum
Power :50W testing distance: 45cm

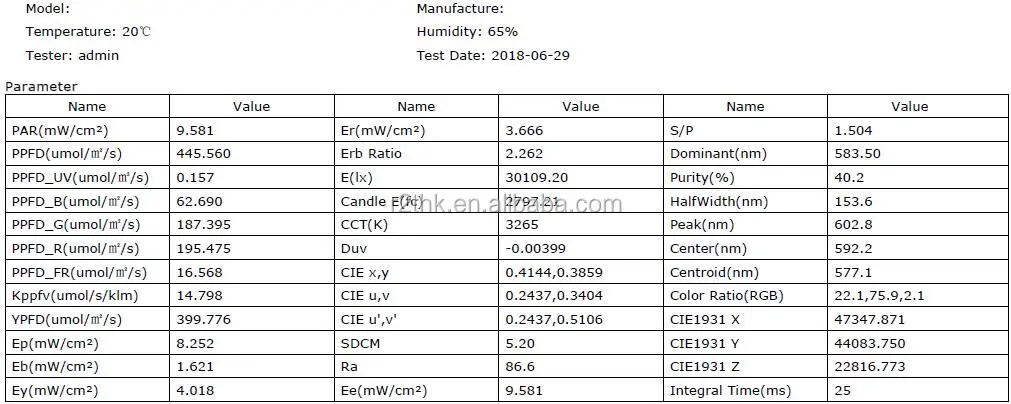

Power :100W testing distance: 45cm
304 Version
Testing Data---Testing height: 50CM, Temperature:20Degree Celsious,Humidity: 65%
Effectivity of Special Wavelength
Why and when need grow light
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-3 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
