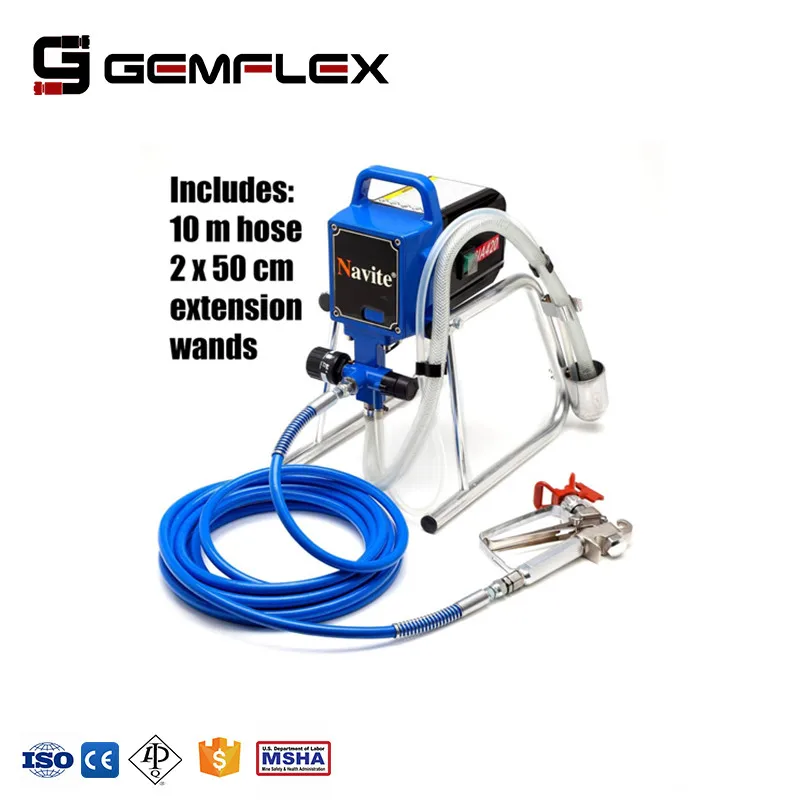

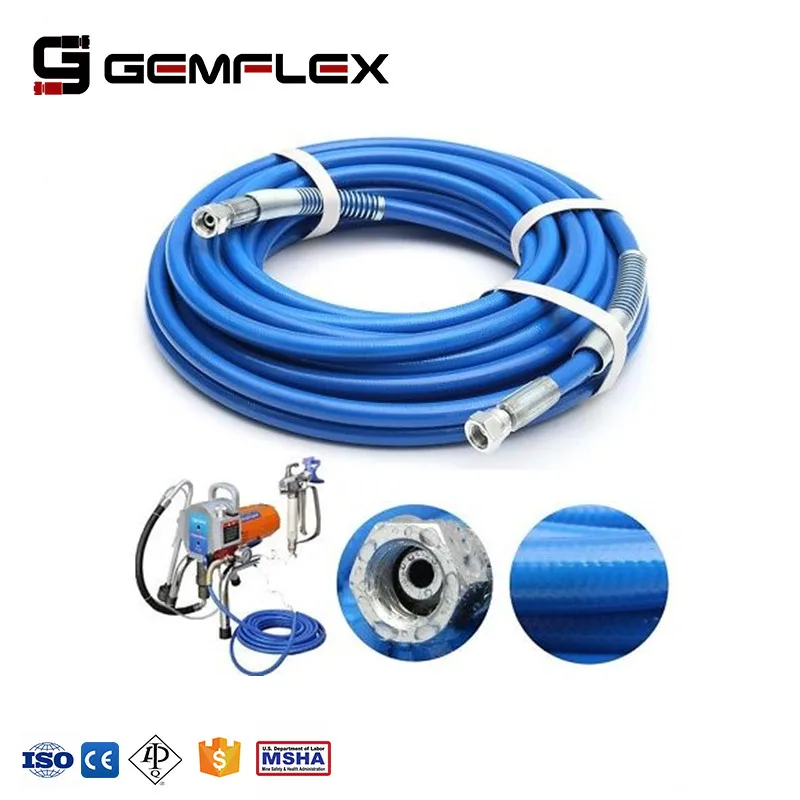

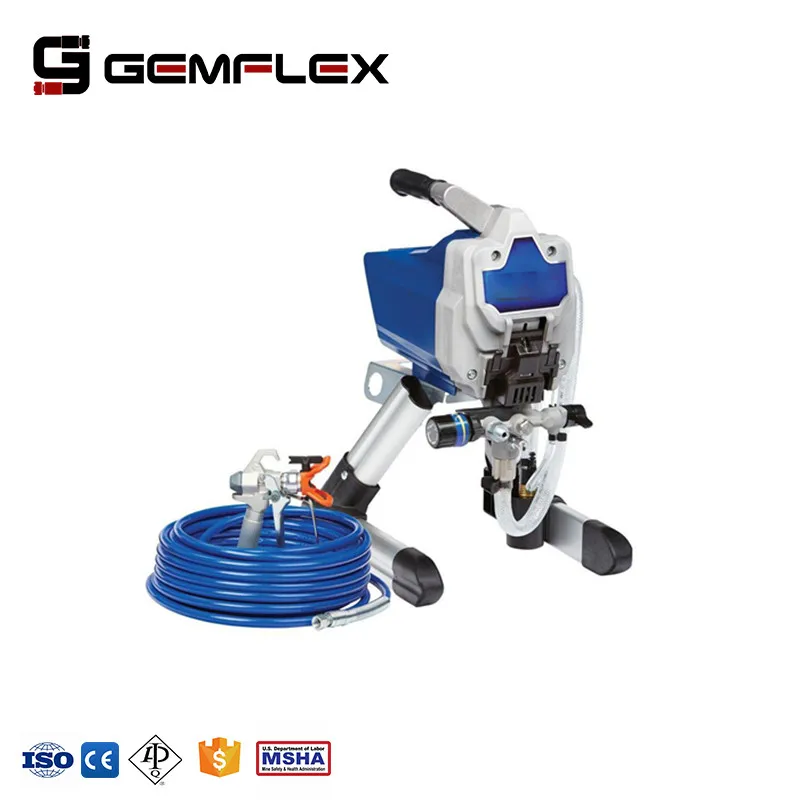

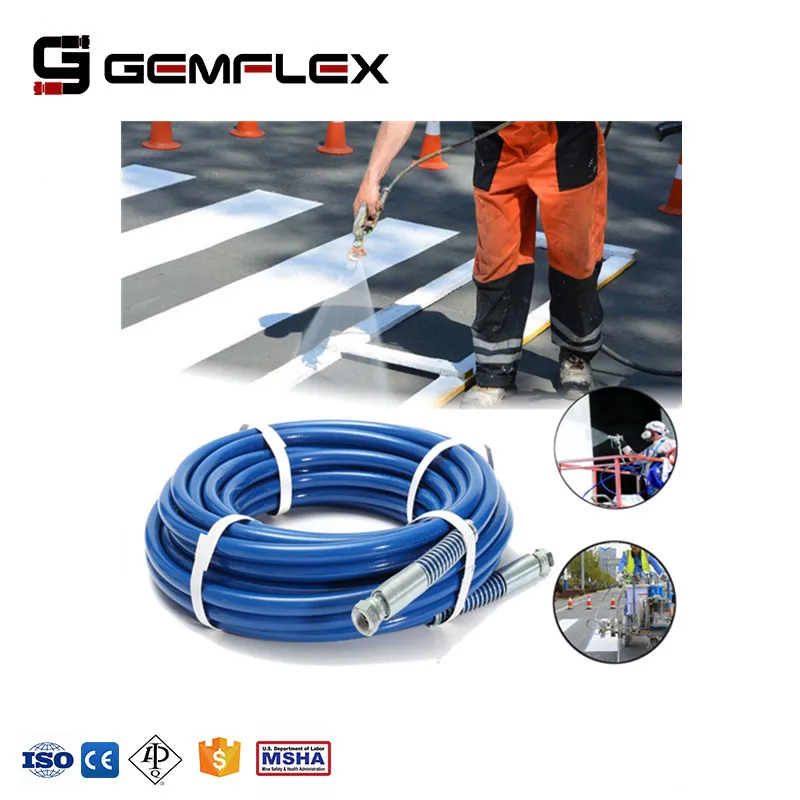

Gemflex airless paint sprayer hose is made of durable soft material and hard to bend or get deform which use good quality material guaranteed.
3300 PSI is the most popular type, 5800PSI,7200PSI or higher requirement is available too. Conductive interlayer in the hose will prevent the human injury and machine leakage. It greatly improved safety operation.

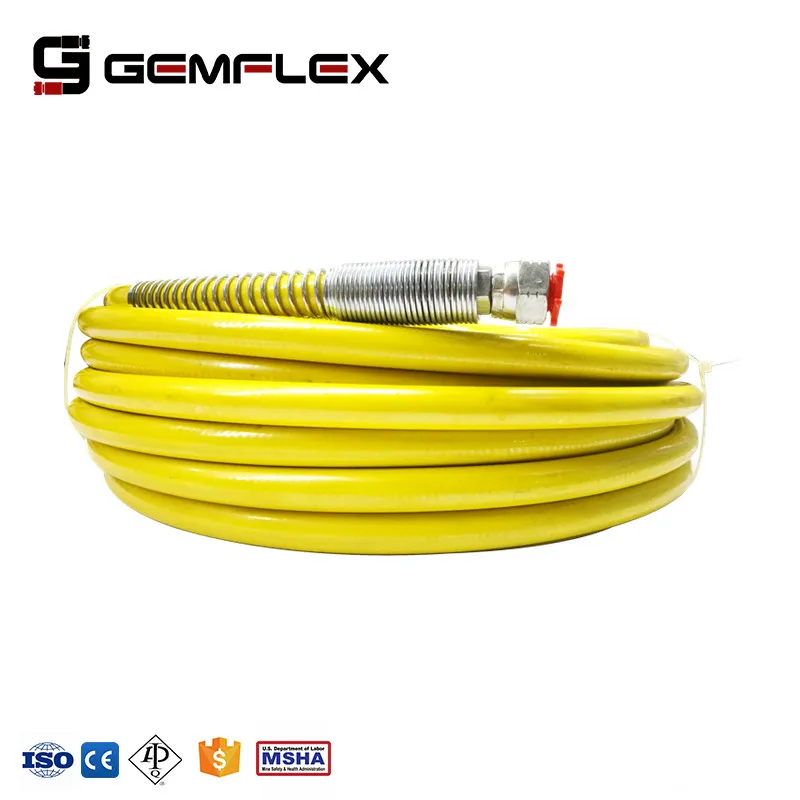

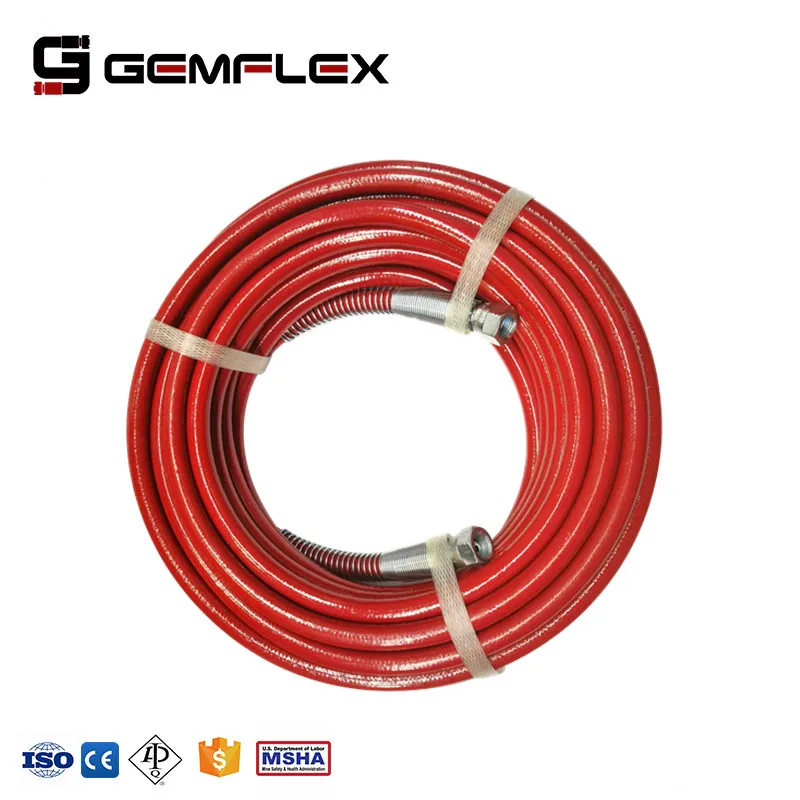

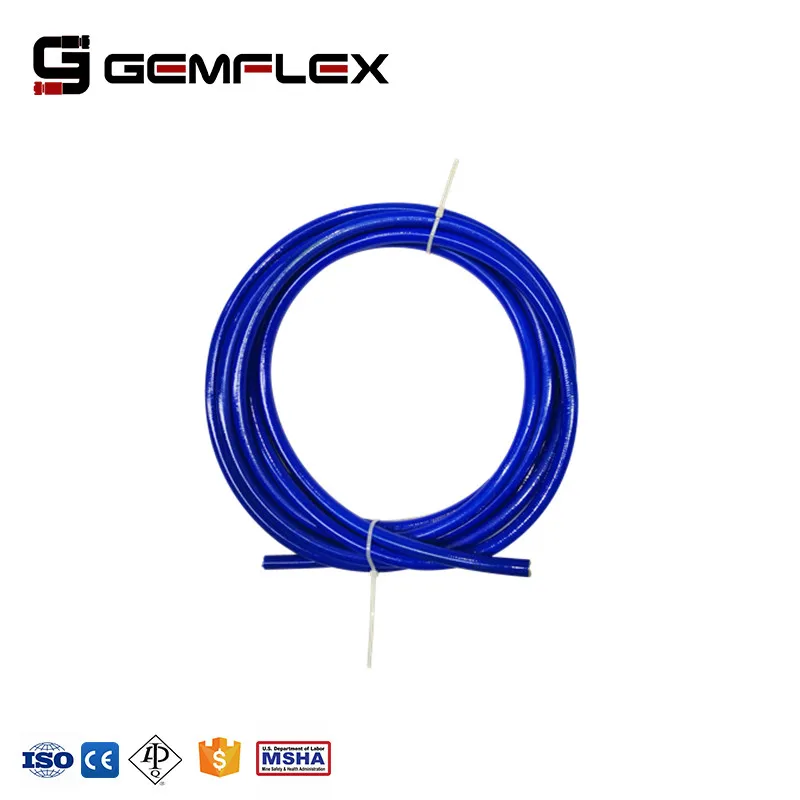

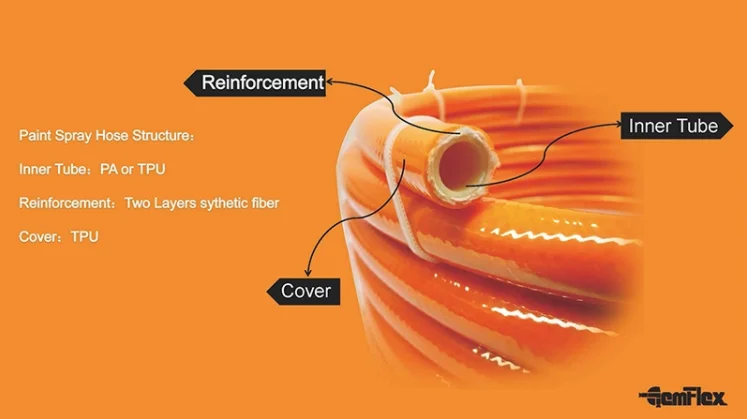

Length option: 7.6m/25ft, 15m/50ft, 20m/75ft, 30m/100ft Fitting option: JIC/NPSM/METRIC etc. Color option: Blue/Red/Black. Package option: Plastic film / Carton box / wooden box Material: Polyurethane Inner material: Nylon resin Hose assembly with zinc-plated spring guards is available
Data Sheet
Part No.
Nominal
Nominal
Working Pressure
Burst Pressure
Bend Radius
I.D.
O.D.
In.
mm
In.
mm
Bar
PSI
Bar
PSI
mm
GFPS4-04
6.3
1/4
0.49
12.5
300
4350
750
10875
30
GFPS4-05
8.0
5/16
0.53
13.9
300
4350
750
10875
75
GFPS4-06
10.0
3/8
0.62
16.0
300
4350
750
10875
80
Part No.
Nominal
Nominal
Working Pressure
Burst Pressure
Bend Radius
I.D.
O.D.
In.
mm
In.
mm
Bar
PSI
Bar
PSI
mm
GFPS5-04
6.3
1/4
0.55
13.0
400
5800
1000
14500
55
GFPS5-05
8.0
5/16
0.59
15.0
400
5800
1000
14500
90
GFPS5-06
10.0
3/8
0.75
18.5
400
5800
1000
14500
127
Part No.
Nominal
Nominal
Working Pressure
Burst Pressure
Bend Radius
I.D.
O.D.
In.
mm
In.
mm
Bar
PSI
Bar
PSI
mm
GFPS7-04
6.3
1/4
0.61
13.2
500
7250
1500
21750
70
GFPS7-05
8.0
5/16
0.65
15.3
500
7250
1500
21750
105
GFPS7-06
10.0
3/8
0.85
18.8
500
7250
1500
21750
135
Packaging & Shipping

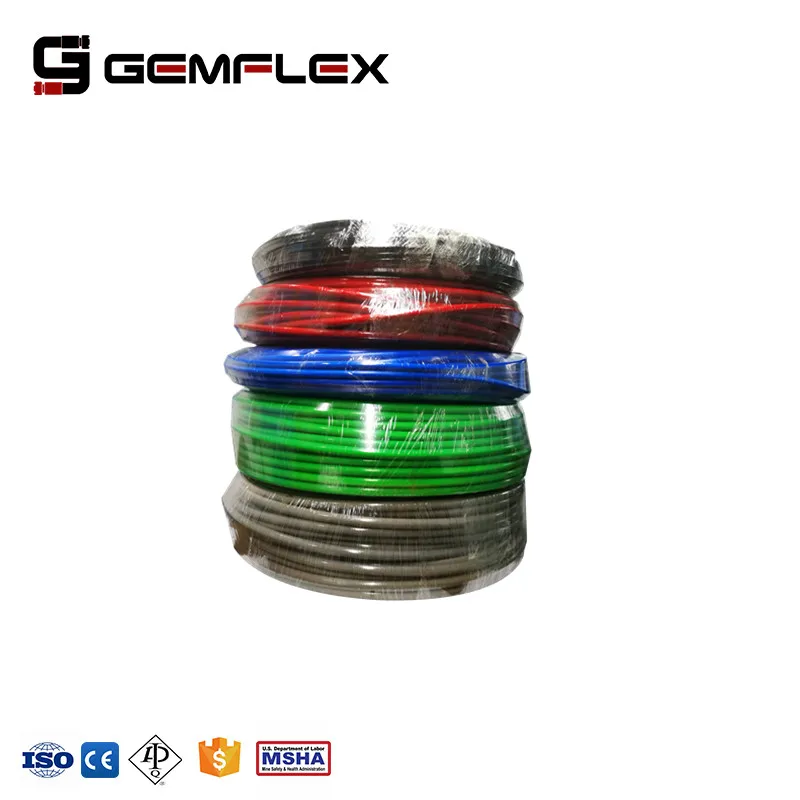

Package option: Plastic film / Carton box / wooden box
Company Information
Gemflex - is one of main manufacturers of wire braided,spiral and textile hoses for high and ultrahigh pressure.Located in North of China where take 100,000 square meters.Gemflex has passed ISO 9001 Certification and API 7K,MSHA,REACH etc.
Gemflex specializes in manufacture,distribution and sales of comprehensive range of high pressure hydraulic and industrial hoses,the company has developed a good reputation among domestic and abroad customers both in quality and services.Our mission is exceeding our customers’ and employees’ through continuous improvement driven by innovation,teamwork and integrity of our people and embracing change.
Gemflex products supplied to a wide range of industries,including mining,construction,marine,utilities,oil and gas.OEM and more.Gemflex continue to expand their own products range to meet growing needs of worldwide industry.
