PVC extrusion line consists of Conical twin-screw extruder, Vacuum forming equipment, Haul-off machine, Cutting machine, Stacker and other components, with good stability and high capacity, easy to operate, reliable. The production line can produce water supply and drainage pipe, the material is U-PVC, C-PVC, large diameter PVC. and small diameter pipe for electricity wire conduit pipe. Full automatic control by SIMENS PLC computer.
Machine Parameters
Pipe OD (mm)
16-32mm
32-63mm
Mould type
4 Outlet
4 Outlet
Extruder (Conical twin screw)
SJZ-65/132
SJZ-80/156
Driven Motor (kw)
37kw
55kw
Installation Power(kw)
about 81kw
about 130kw
Design Capacity(kg/h)
300kg/h
400-450kg/h
Installation Length
about 18m
about 23m
Vaccum Calibration Tank
5m
5m
Traction Speed
16m/s
16m/s
Cutter
Non-dust or Saw cutting
Non-dust or Saw cutting
Machinery Overview
Machinery Main Parts

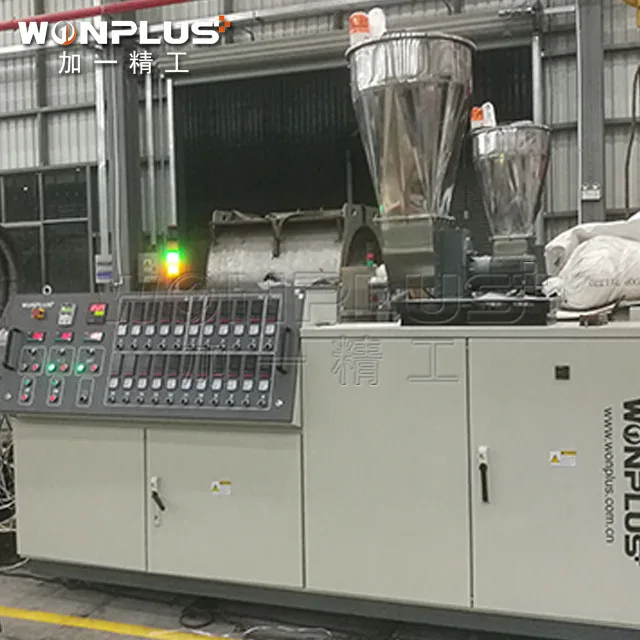

Conical Twin Screw Extruder
Driven motor: Siemens brand
Temperature control: Japan RKC, Omron, or Siemens computer
Inverter: ABB brand
Cotactor & Relay: Schneider brand
Circuit breaker: DELIXI

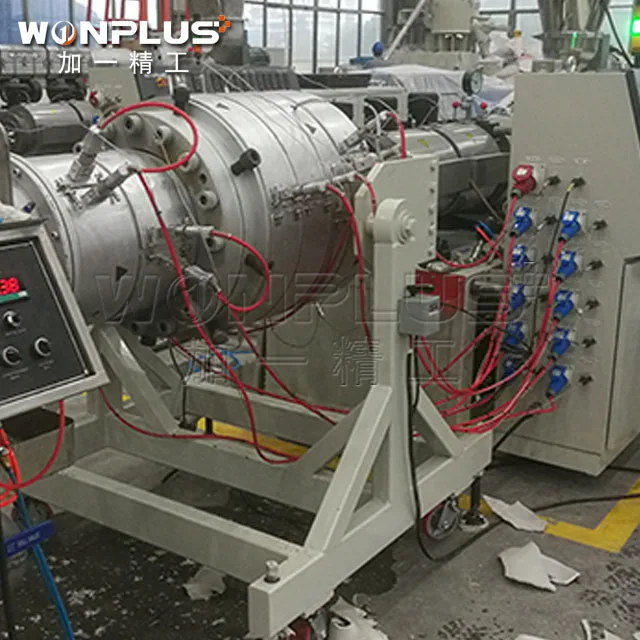

Extrusion Mould
Material: 40Cr Calibrator: Stainless steel The inner flow channel is plated with hard chrome, the outer surface is treated with high temperature paint, the corrosion resistance is strong.

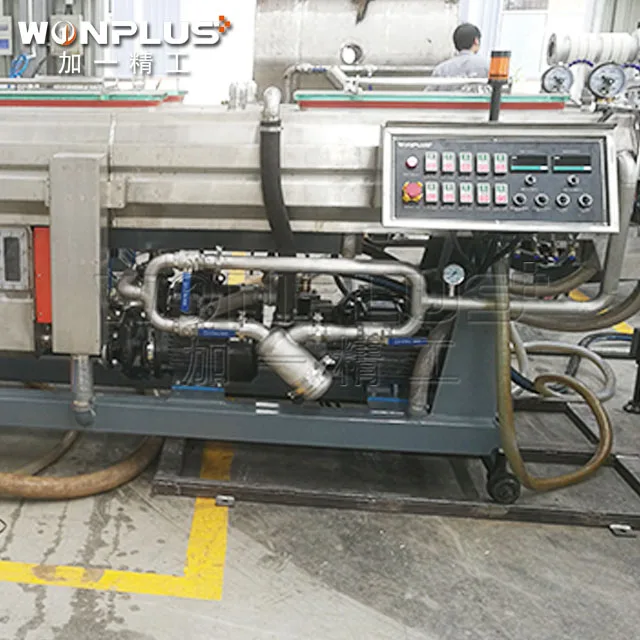

Calibration Tank
Material: Stainless steel Tank Movement : Forth and back by motor driven , Up and down by food screw adjust

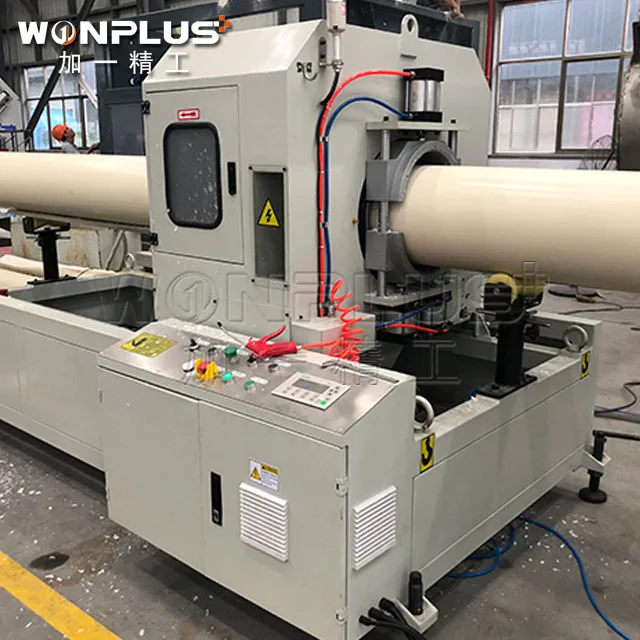

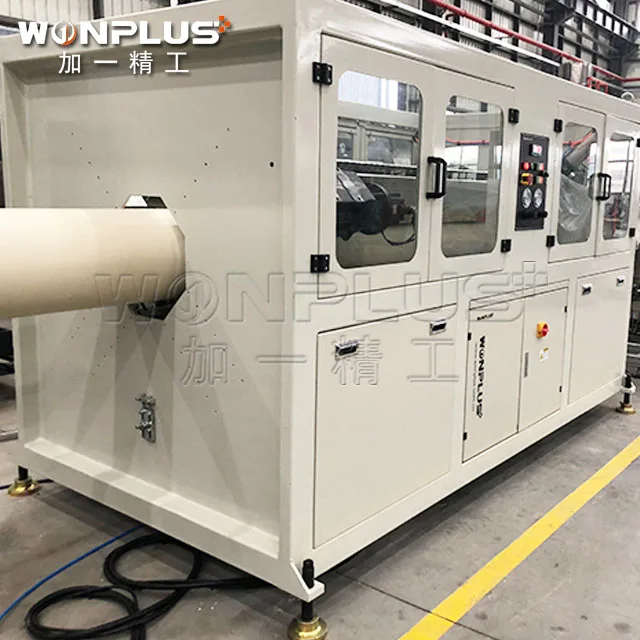

Hauler & Cutter
Four outlet PVC pipes Hauler and cutter are integrated.
Traction motor reducer: Servo motor, INNOVANCE brand
Electricity components: Schneider brand
Cutting control: SIEMENS PLC computer
Cutting type: Non-dust cutter, or Saw cutter.
Stacker
Humanized design, humanpower saving
Products Application
Four-outlet PVC pipe extrusion line normally make from OD 16-63mm, in this size range, most is widely used for electricity, such as conduit PVC pipe.The electric conduit PVC pipe has the performance of Non-conductive, Smooth surface, Fire resistant, Corrosion Resistance, Impact strength and so on.
