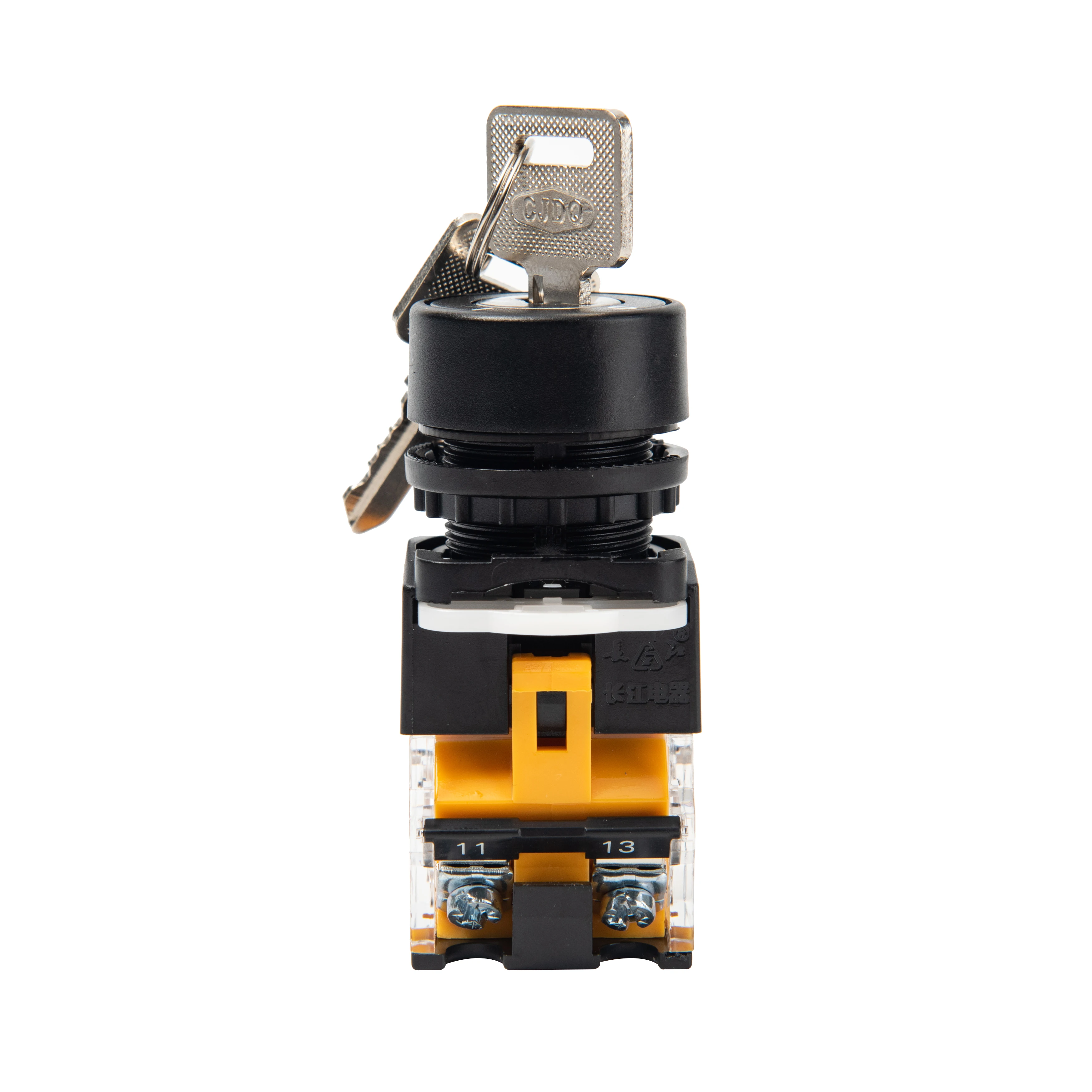

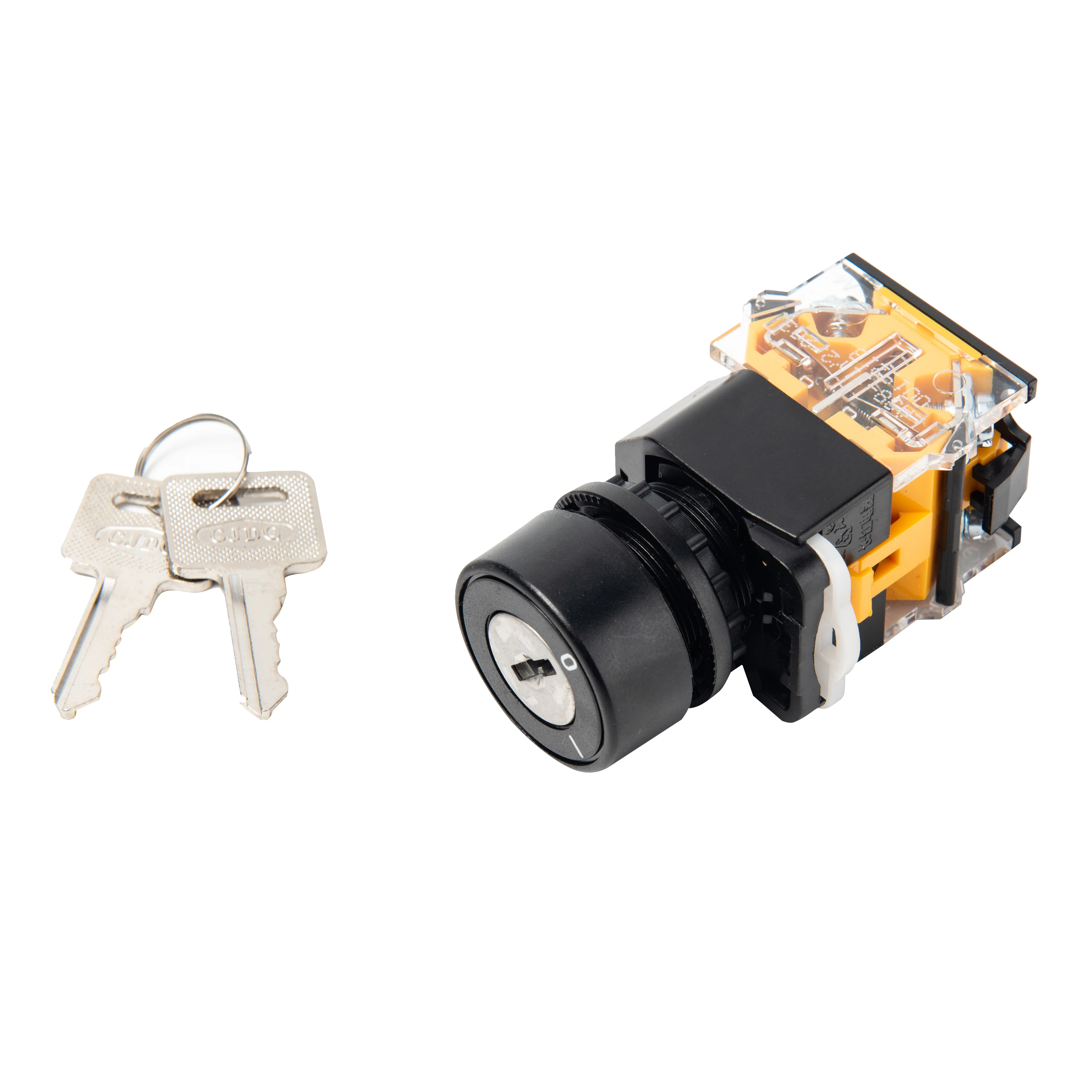

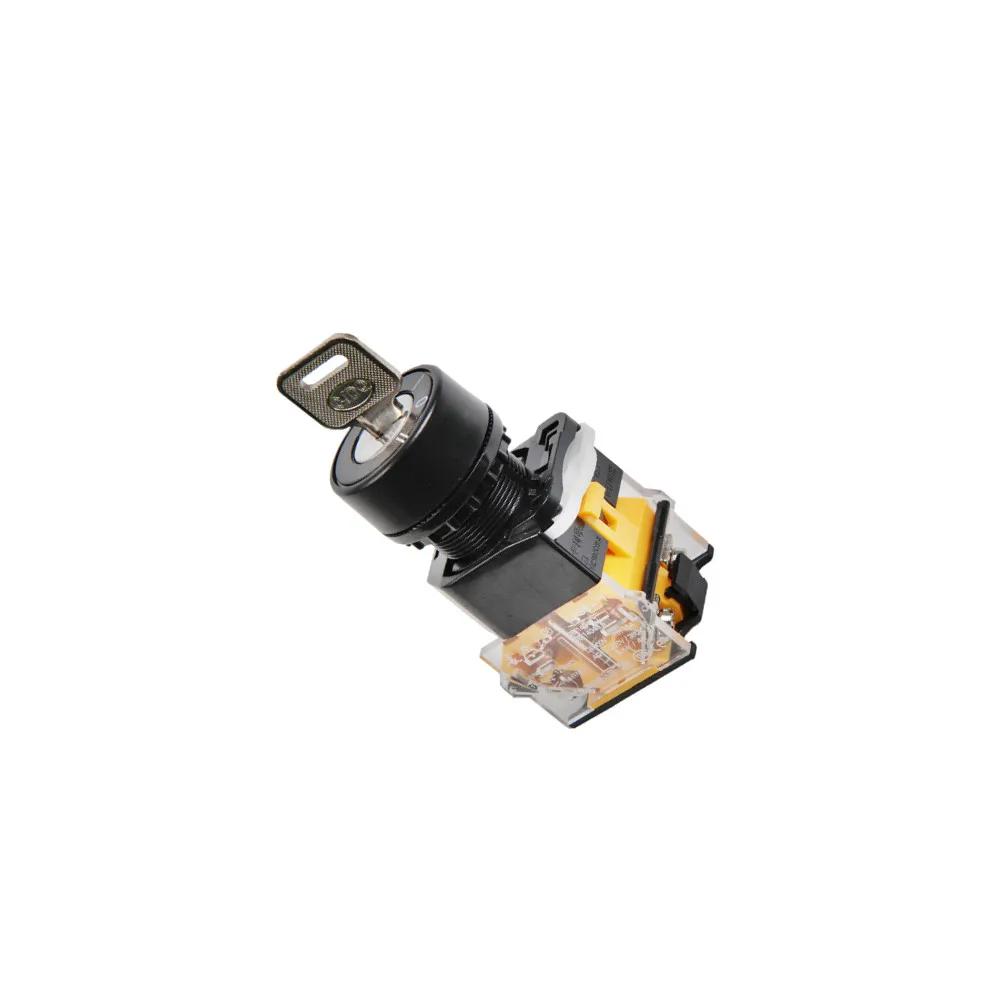

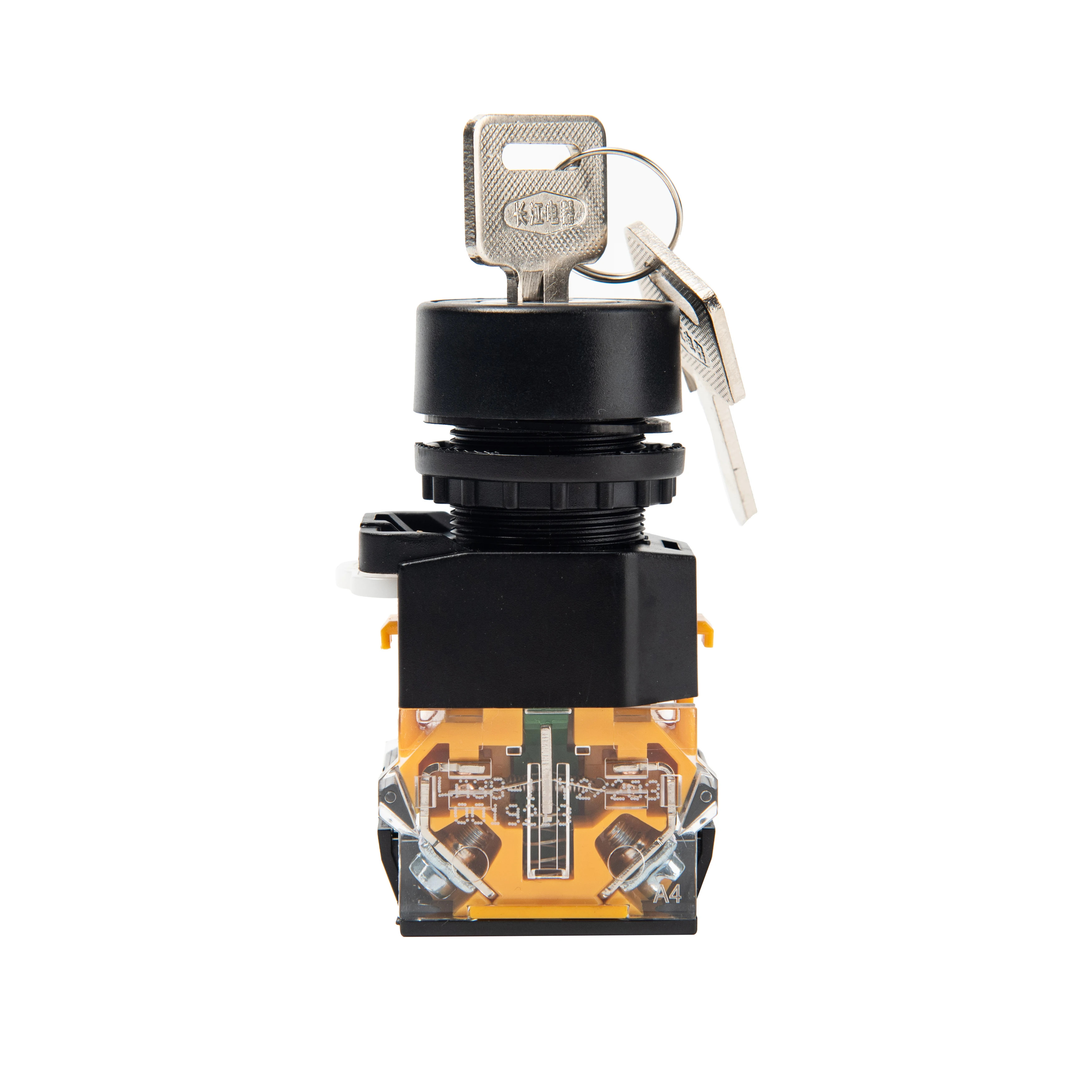

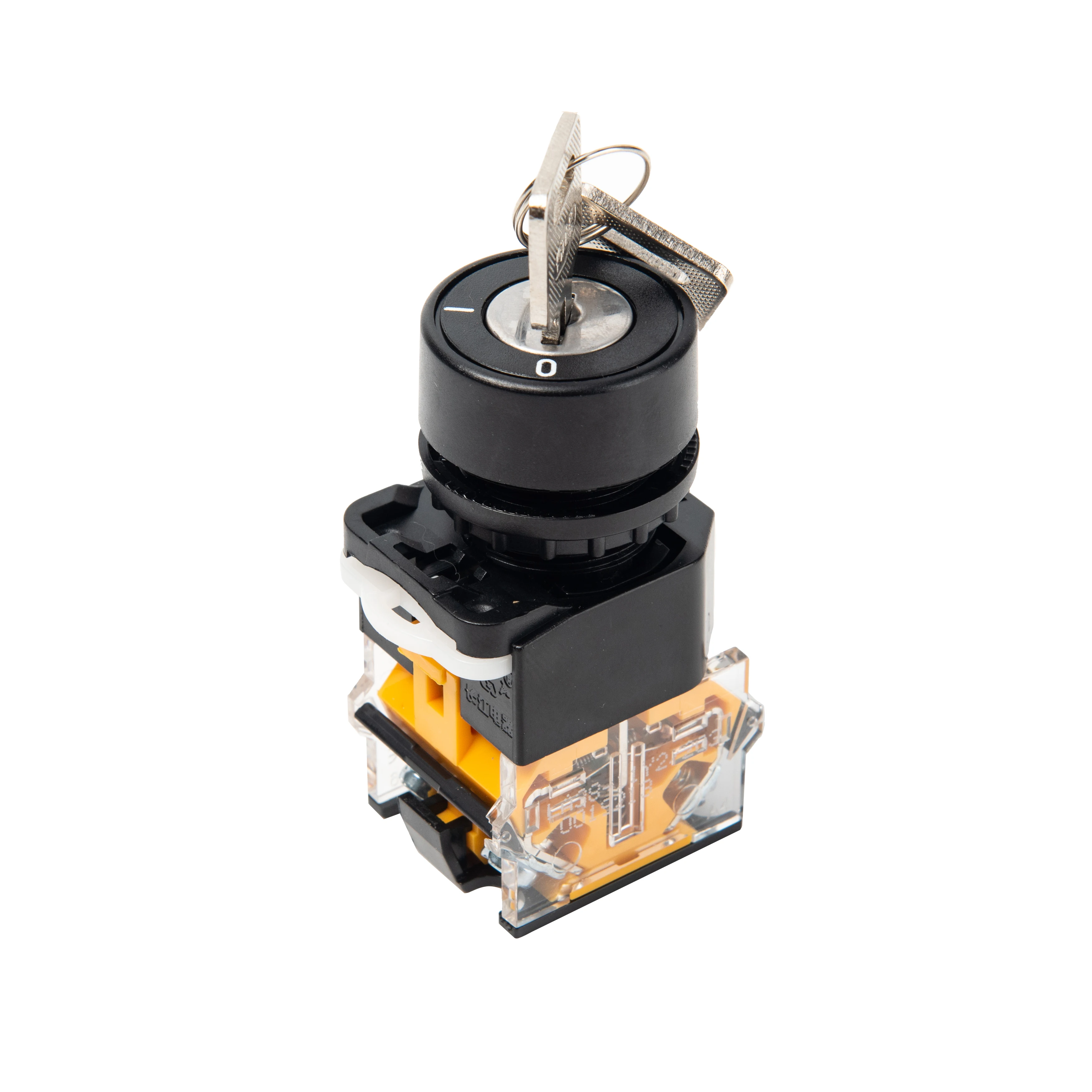

Manufacturer LA38 series 22mm 3 position key operated electrical switch
- Category: >>>
- Supplier: Jiangyin Changjiang Electric Appliance Co. Ltd.
Share on (60812450639):
Product Overview
Description
Products Description
LA38 series 22mm plastic selector rotary push button switch
LA38 Series Button Switch can be used for remote control in electromagnetic starters, contactors, relays and other electrical circuits with the voltage of 380V and below and the DC voltage of 230V and below, AC 50Hz (or 60Hz); The button with lamp is also suitable for the occasions where light signal indication is needed. It has passed the national CCC certification, CE certification and type approval of China Classification Society.
Details Images
Product Parameter
Type specification | LA38-**Y3/203 | ||||||||||
Product Name | 3 position key rotary switch | ||||||||||
Products Standard | GB/T 14048.5 | ||||||||||
Operation Condition | Altitude height | Environment temperature | Storage temperature | Relative humidity | Pollution class | Install type | |||||
≤2000m | -25℃~+55℃ | -40℃~+70℃ | 45-85%RH | 3 | Ⅲ | ||||||
Main technical index | common parameter | Rated insulated Voltage | 500V | ||||||||
Front panel protection degree | IP54, customizable IP65 | ||||||||||
Withstand Voltage | 1.89KV/5S | ||||||||||
working frequency | 50Hz | ||||||||||
Basic parameters | Stipulated hot current Ith | 10A | |||||||||
Rated working Voltage /Current | AC-15 | DC-13 | |||||||||
220V/5.5A | 380V/4A | 220V/0.45A | 110V/1A | ||||||||
Electrical life | 100000 times | ||||||||||
Mechanical life | 200000 times | ||||||||||
Related Products
Our Company
Company Headquarter
Jiangyin Changjiang Electric Appliance Co., Ltd. is a subsidiary of Jiangsu Xinchao Technology Group Co., Ltd. Today we have become a leading manufacturer in the lighting industry of low-voltage electrical appliances and construction machinery. Our products are widely used in power, machinery, industrial control, elevator, communication, rail transit, new energy and construction machinery. Its novel design and reliable product features have won the unanimous favor of the majority of users.
Workshop
The facotry of Jiangyin Changjiang Electric Appliance is located in Jiangyin Xu Xiake Town,covers an area of more than 6,000 square meters,and has several production lines,including signal lamp line,push button line,cam chang-over switch line,transformer line and electrical line.There are 30 excellent R&D staff in technology center and 300 workers in production workshop.Professional design and inspection support our products in best quality and in shortest delivery time.
Packing&Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 2-4 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we provide free sample for 1pcs/item, but the customers should take over the freight.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 2-4 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we provide free sample for 1pcs/item, but the customers should take over the freight.
Q: What is your terms of payment ?
A: Small online orders were 100% before delivery, order amount more than $3000, 30% in advance 70% before delivery.
