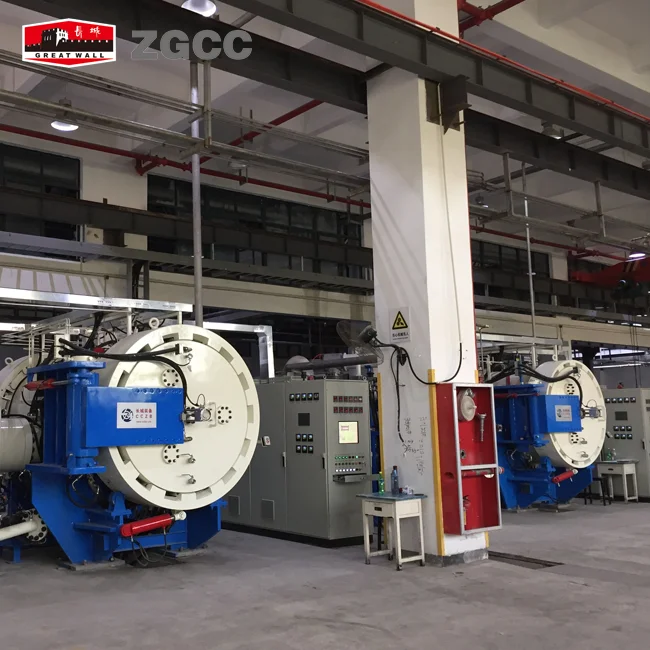

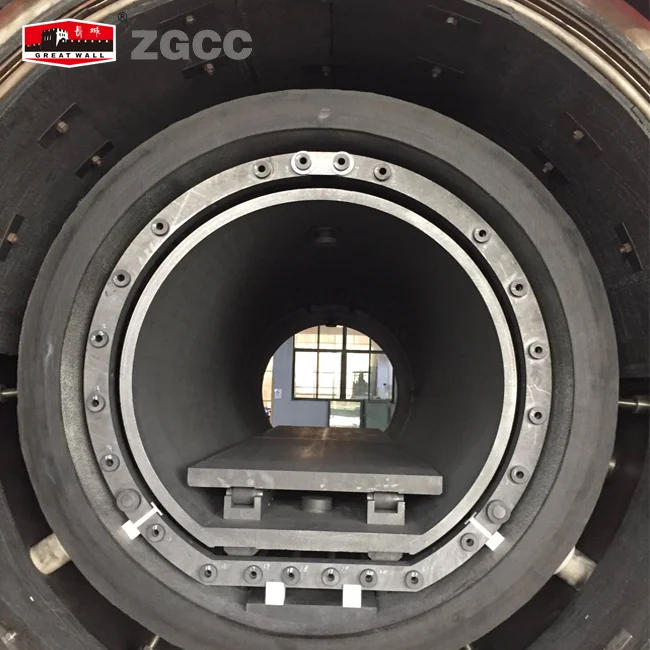

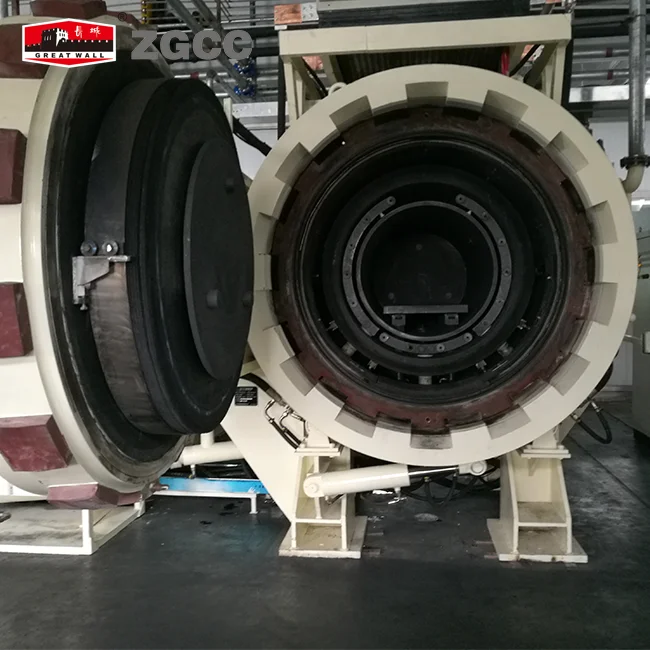

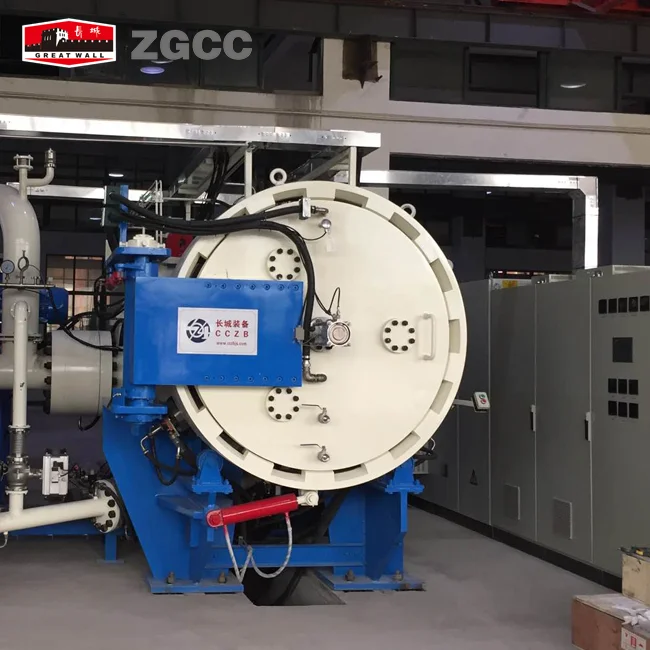

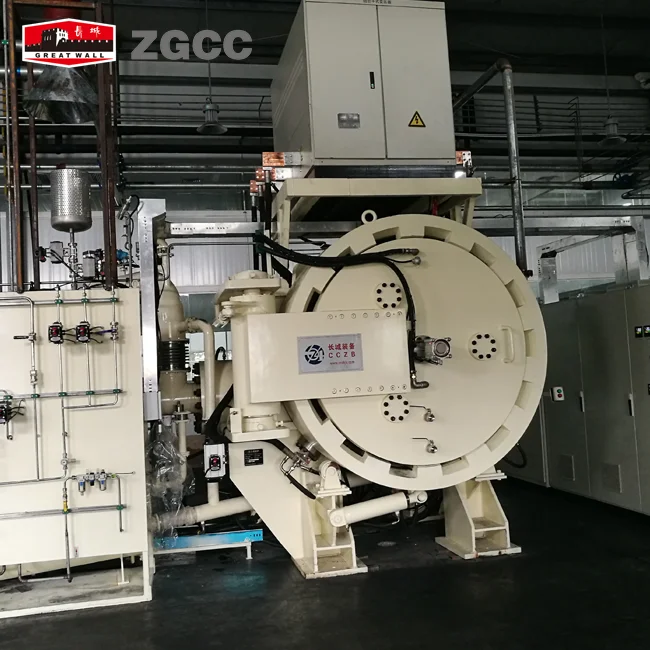

10 MPa cemented carbide pressure sintering furnace
- Category: >>>
- Supplier: Zigong Cemented Carbide Corp. Ltd.
Share on (60812457790):
Product Overview
Description
Product Description
Technical parameters | YSL30/30/100-10 | YSL50/50/150-10 | YSL50/50/180-10 | YSL50/50/240-10 | |||
Charge batch | 100-200Kg | 600-800Kg | 800-1000Kg | 1200-1500Kg | |||
Working space | 300×300×1000mm | 500×500×1500mm | 500×500×1800mm | 500×500×2400mm | |||
Designed pressure/maximum working pressure | 11MPa/10 MPa | 11MPa/10 MPa | 11MPa/10 MPa | 11MPa/10 MPa | |||
Ultimate vacuum/ pumping speed | Less than 10Pa , 2Pa/30min | ||||||
Pressure increasing rate | 4 Pa/h | ||||||
Rated temperature | 1600℃ | ||||||
Working temperature (vacuum/pressure) | 1550℃/1500℃ | ||||||
360℃ Temperature Uniformity | ±6℃ | ±8℃ | ±8℃ | ±10℃ | |||
1420℃ Temperature uniformity ( PTCR) | ±5℃ | ±7℃ | ±7℃ | ±7℃ | |||
Product magnetic force/cobalt magnetic | ±0.5 KA/m /±0.25% | ±0.5 KA/m /±0.25% | ±0.5 KA/m /±0.25% | ±0.7 KA/m /±0.3% | |||
Cooling speed (full furnace cools from 1400℃ to 80℃ or below) | ≤5小时 | ≤7小时 | ≤8小时 | ≤10小时 | |||
Pressure difference for differential pressure degreasing box (Air inflow below 800L/H) | ≥500Pa | ≥500Pa | ≥500Pa | ≥500Pa | |||
Temperature control mode/Deviation | Three zones ±2℃ | Three zones ±2℃ | Three zones ±2℃ | Six zones ±2℃ | |||
Heating power | 360KVA | 580KVA | 700KVA | 750KVA | |||
Total power | 400KVA | 650KVA | 770KVA | 820KVA | |||
Wax collecting rate | 97% | 97% | 97% | 97% | |||
High-pressure Argon consumption | 55m3/h | 115m3/h | 120m3/h | 160m3/h | |||
Cooling water consumption | 16m3/h | 22m3/h | 26m3/h | 40m3/h | |||
Emergency water supply | 9m3/h | 12m3/h | 15m3/h | 16m3/h | |||
Compressed air pressure | 0.48~0.7MPa | 0.48~0.7MPa | 0.48~0.7MPa | 0.48~0.7MPa | |||
Floor space | 7.1×6×4m | 8.6×7.3×4m | 8.6×7.6×4m | 9×9×4m | |||
Total weight | 25000Kg | 41000Kg | 45000Kg | 50000Kg | |||
