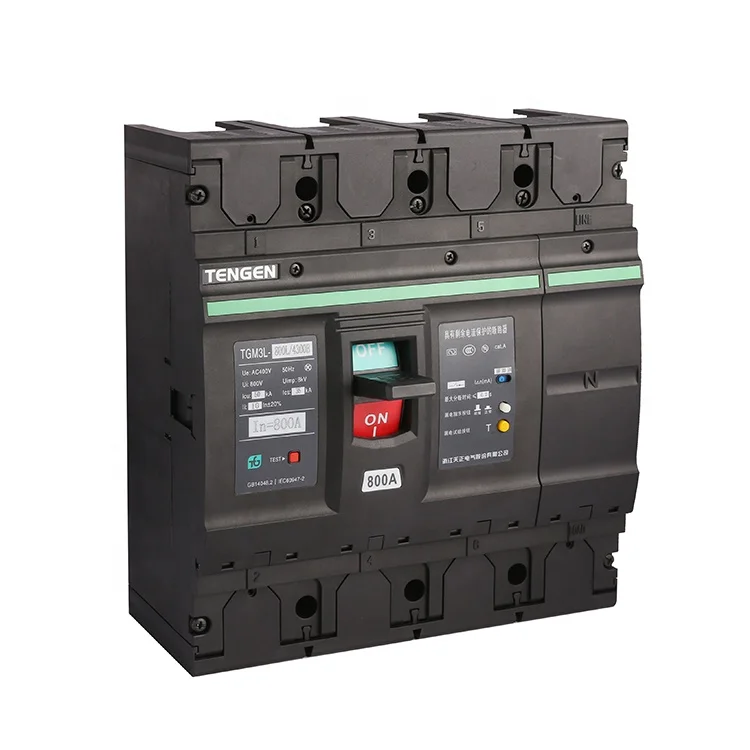

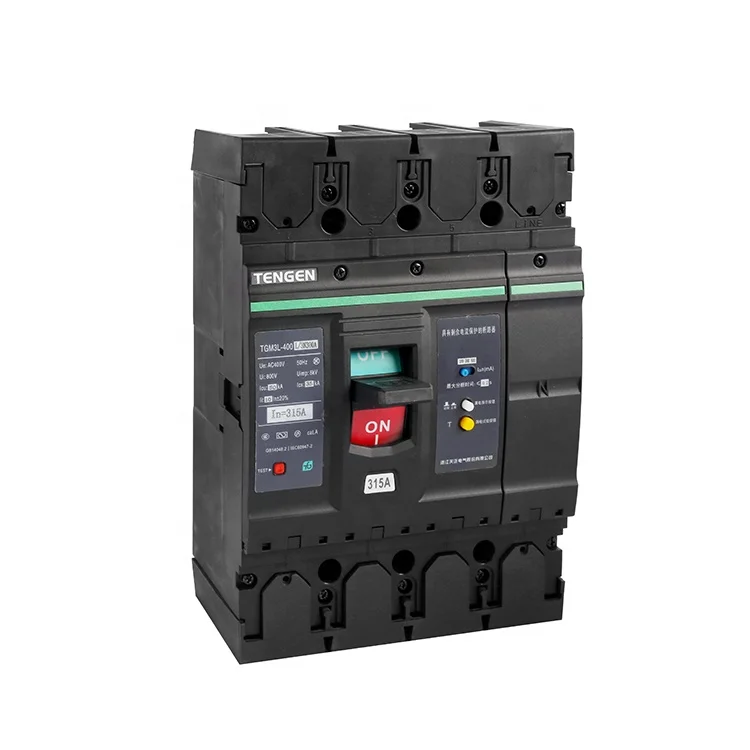

CE Certification High Voltage TGM3L 200 Amp 3 Pole Moulded Case DC MCCB Circuit Breaker

Product Overview

Description

CE Certification High Voltage TGM3L 200 Amp 3 Pole Moulded Case DC MCCB Circuit Breaker

dc MCCB circuit breaker

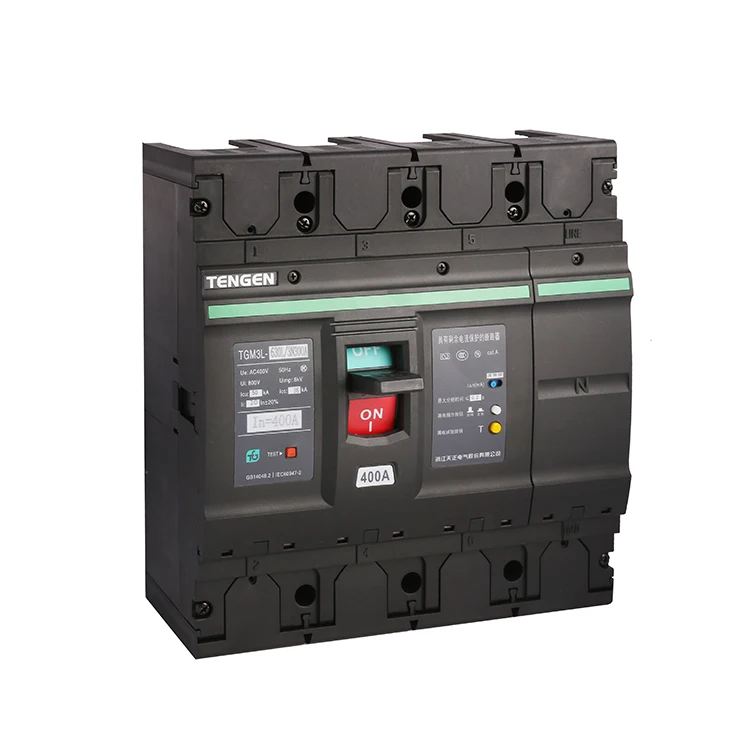

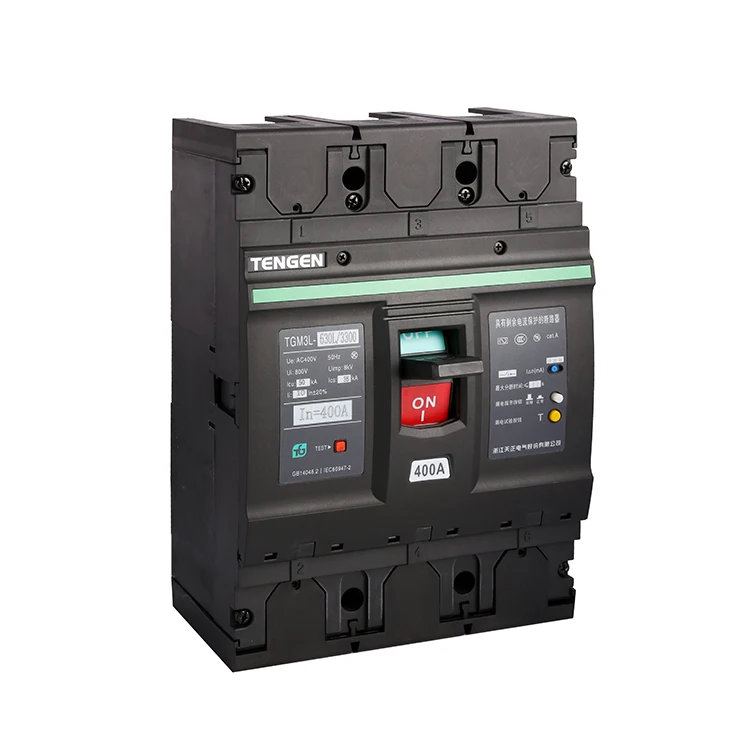

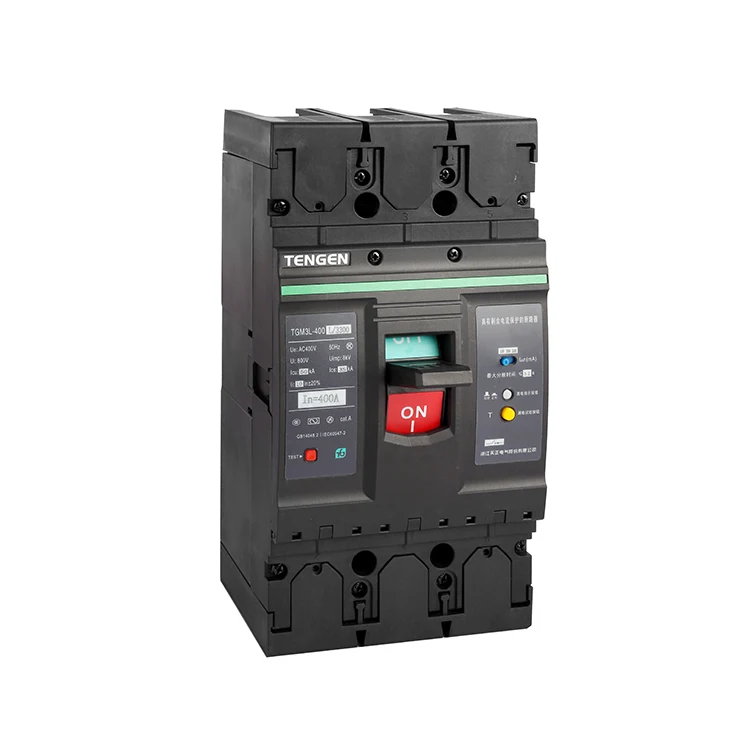

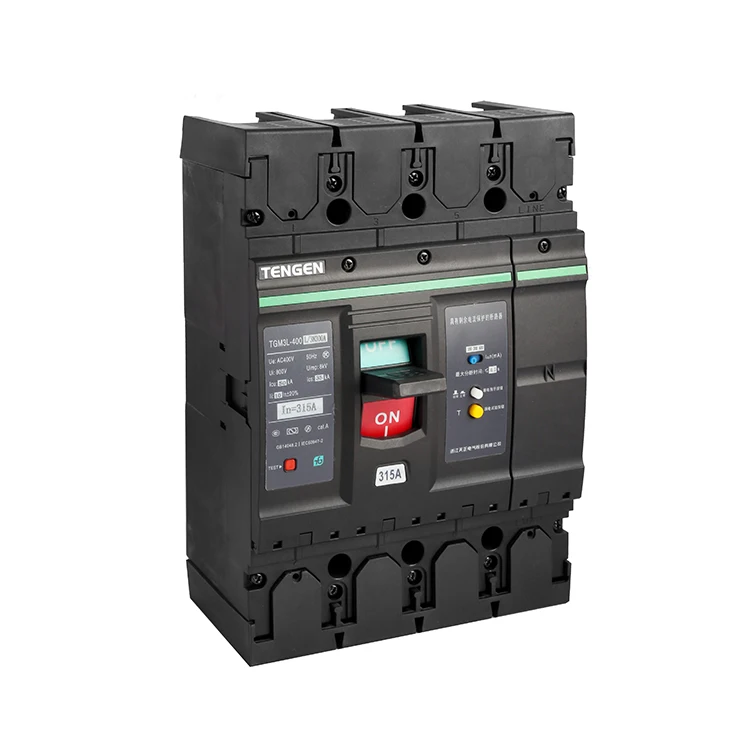

TGM3 series moulded case circuit breaker is one of products developed and manufactured by adopting international advanced technology. It is supplied with rated insulating voltage 550 and 800V and used for circuit of AC 50/60Hz, rated operating voltage AC 400V (or below), rated operating current up to 1600A for infrequent changing over and starting of the motors.The products conforms to IEC60947-2 standard.

Type	Rated	Polenum-ber	Ratedinsui-atingvolt-age(V)	Rated	Arcing-	Ultimate	Servies	Operation		Utiliza-tioncat-egory
	current (A)			operat-ingvolt-age(V)	over	short	short	perform-
					distance	circuit	circuit	ance
					(mm)	breaking	breaking
						capacity	capacity
						(KA)	(KA)	Load	Unload
TGM3L-63L	(6),10	3, 4	500V	400V/690V	0	25	18	1500	8500	A
	16,20
	25 ,32
	40,50
TGM3L-63M	63				0	50	35
TGM3L-125L	(10),16		800V		0(≤50)	35	22
	20,25
	32,40
TGM3L-125M	50,63				0(≤50)	50	35
TGM3L-125H	80,100				0(≤50)	85	50	1000	7000
TGM3L-250L	100,125				≤50	35	22
TGM3L-250M	160,180				≤50	50	35
TGM3L-250H	200,225				≤50	85	50	1000	4000
TGM3L-400L	225,250				≤50	50	35
	315,350
TGM3L-400M	400				≤100	65	42
TGM3L-630L	400,500				≤100	50	35
TGM3L-630M	630				≤100	65	42
TGM3L-630H					≤100	100	65
TGM3L-800M	630,700	3			≤100	75	50
TGM3L-800L	800				≤100	100	65
TGM3L-1250M	10,001,250				≤100	100	65
TGM3L-1250H					≤100	125	75











Tengen Group Co., Ltd. is one of the largest scale enterprises of industrial equipment. Our general headquarters lies in "China Electric Appliance Capital", Liushi, Wenzhou. We have successively won honorary titles such as national large-scale enterprise, national level enterprise, China's electric top 100 enterprise, China mechanical top 100 enterprise, and China's top 100 manufacturer.The product quality of Tengen Group has been strictly controlled in each working procedure, and many kinds of internationalization standard quality guaranteed systems can be highly effective under our company's strict monitoring.

Q:What’s the payment terms?
A:We accept T.T, Paypal, Western Union, LC at sight.



Q:What’s the delivery time?
A:Usually it will take about three weeks for production.



Q:What’s the standard of package?
A:Export standard package or special package according to custome



Q:What kind of product quality your factory offer?
A:We offer most competitive prices with best quality.



Q:Which market do you already sell?
A:We already ship to North America, Europe, Middle East, Southeas



Any problem, please don't hesitated to contact us!
