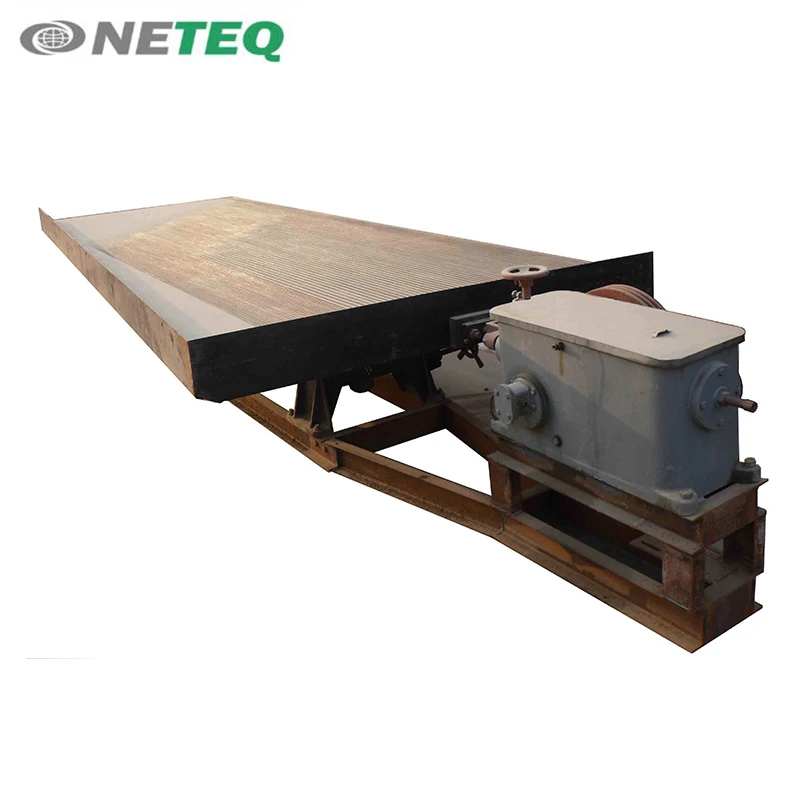

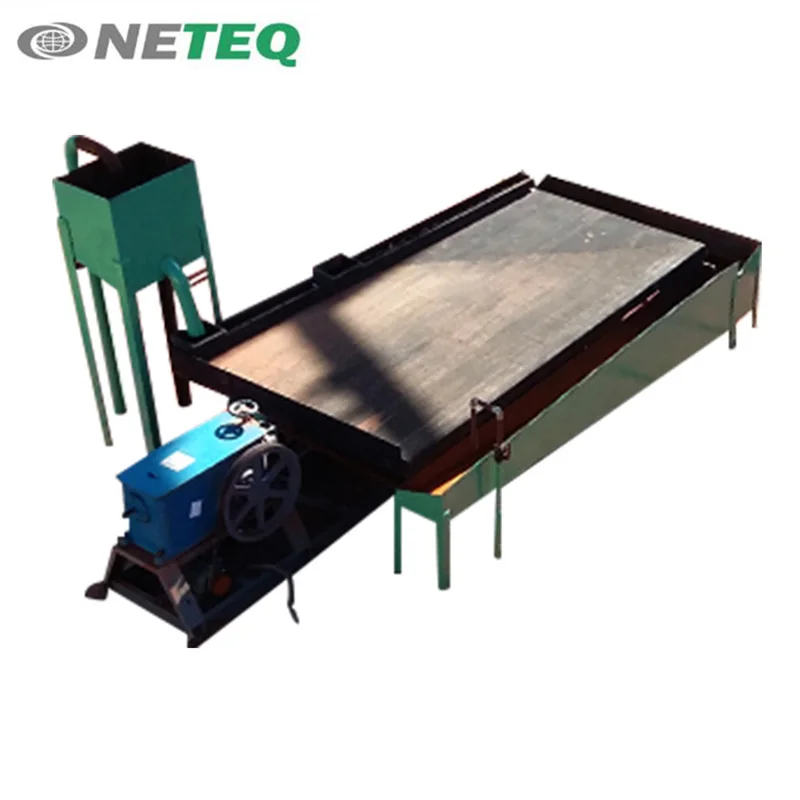

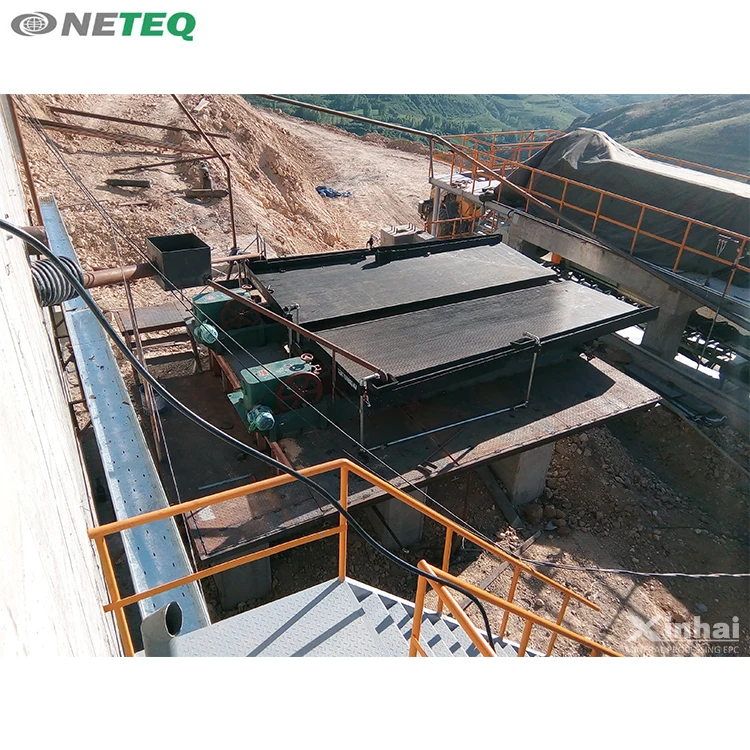

Shaker Table Gold Machine Sale , Small Shaking Table For Gold
- Category: >>>
- Supplier: Shandong Xinhai Mining Technology & Equipment Inc.
Share on (60812526489):
Product Overview
Description
Products Description

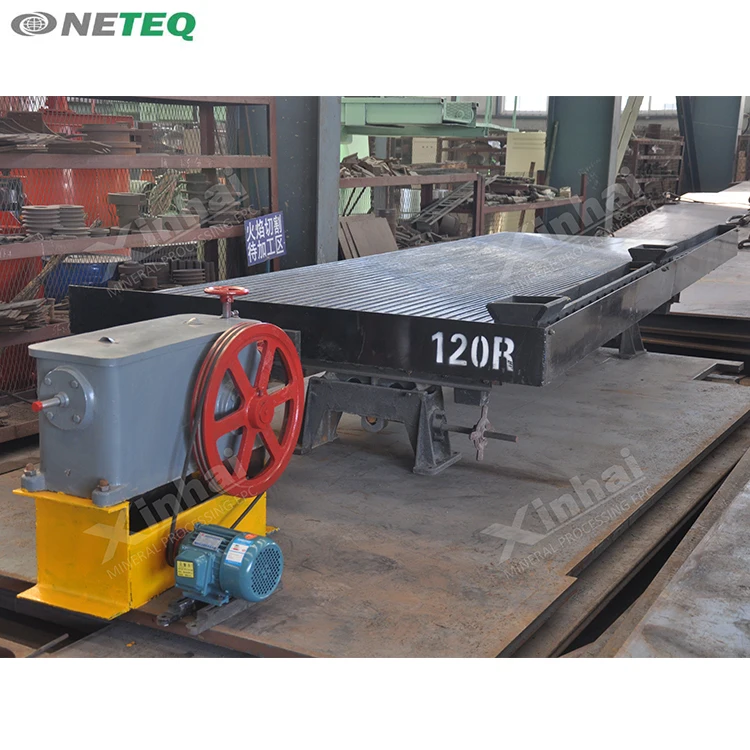

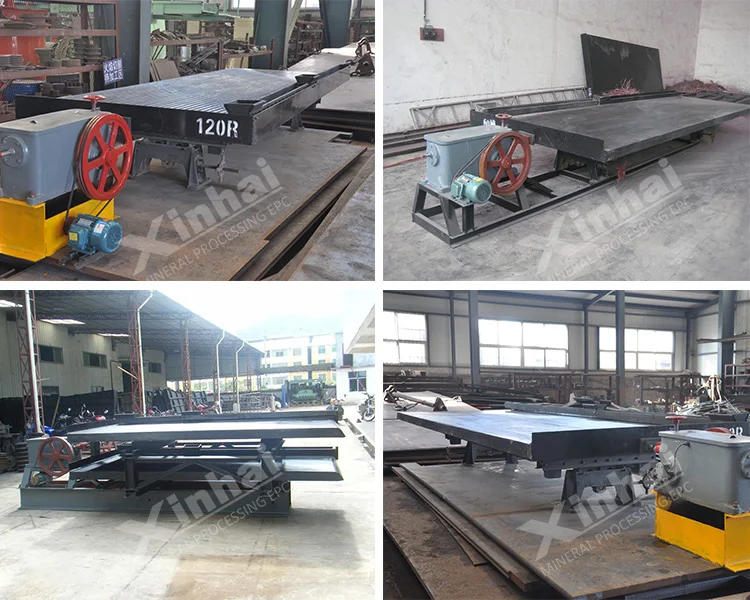

Gold Shaker Table---Product Description
【Introduction】:Concentrating table (shaking table) is a gravity separation equipment of separation different weight mineral by asymmetric reciprocating motion
【 Capacity 】:0.1～1.8 t/h
【Improvement】:The cam lever type head is adopted; the stroke is adjusted by changing the position of sliding head on rocker arm;jig frequency is controlled by the smoothing motor pulley.
【 Capacity 】:0.1～1.8 t/h
【Improvement】:The cam lever type head is adopted; the stroke is adjusted by changing the position of sliding head on rocker arm;jig frequency is controlled by the smoothing motor pulley.
Product Advantages
Gold Shaker Table---Product Advantages
Keep the stably operation when change the transverse slope and stroke;
Spring is arranged in the case with compact structure;
Without reagents consumption, little electricity consumption

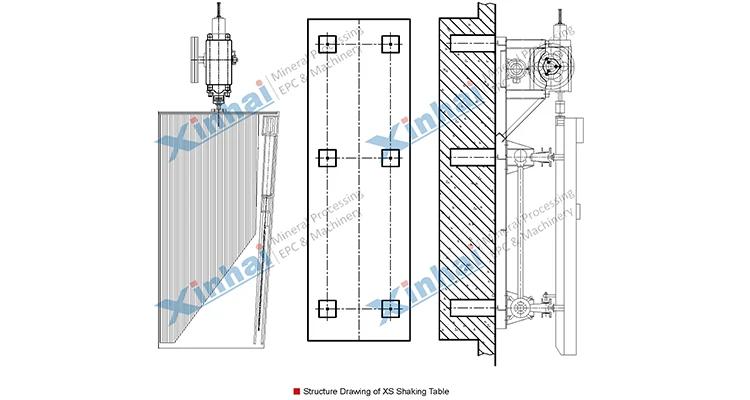

Product Structure
Gold Shaker Table For Sale---Product Structure
The working principle of gold concentrating table (shaking table) is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.

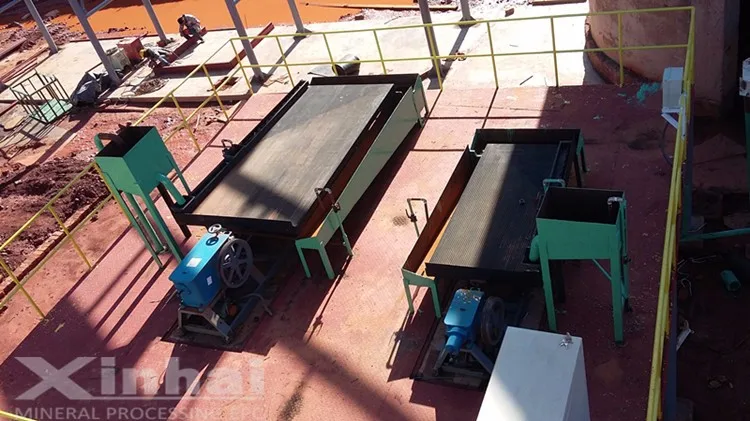

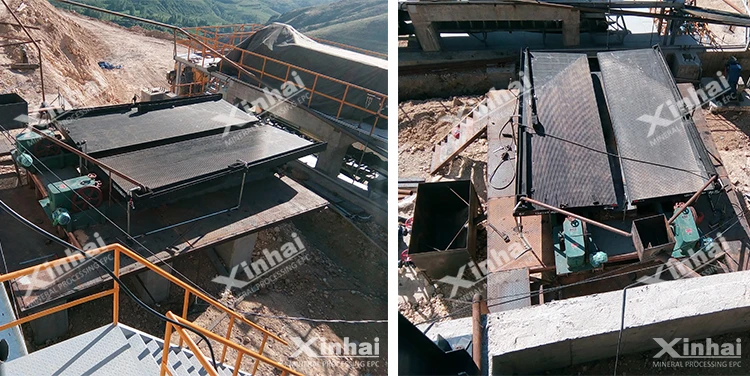

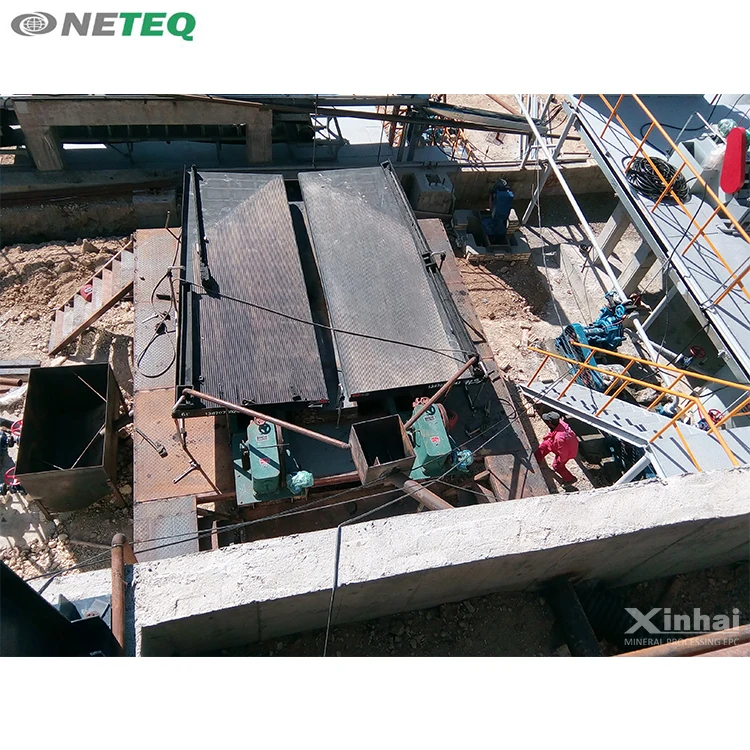

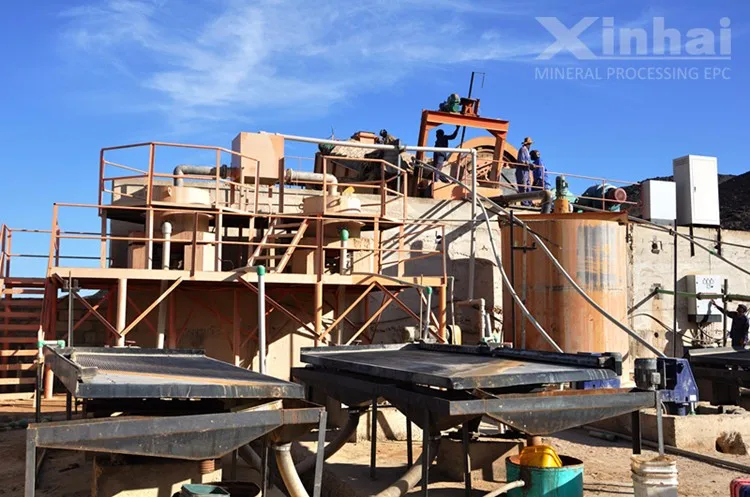

Successful Case
Technical Parameters
Model | XS 7.6 | XS 4.08 | XS 1.95 | XS 0.5 | ||||||
Bed Surface Type | Coarse Sand Bed Surface | Fine Sand Bed Surface | Slurry Bed Surface | 3 Kinds Of Bed Surfaces Selectable | ||||||
Beneficiation Area of Bed Surface (m2) | 7.6 | 7.6 | 7.6 | 4.08 | 1.95 | 0.5 | ||||
Bed Surface Dimension | Length (mm) | 4500 | 4500 | 4500 | 3000 | 2100 | 1100 | |||
Width of Driving End (mm) | 1850 | 1850 | 1850 | 1320 | 1050 | 500 | ||||
Width of Concentration End (mm) | 1550 | 1550 | 1550 | 1100 | 850 | 430 | ||||
Max. Feed Size (mm) | 2 | 0.5 | 0.074 | Ore Sand -2 Slurry -0.1 | Ore Sand-2 Slurry -0.074 | Ore Sand -2 Slurry -0.074 | ||||
Capacity (t/h) | 1 ~1.8 | 0.5 ~1 | 0.3~0.5 | 0.4~1.5 | 0.3~0.8 | 0.05~0.2 | ||||
Feed Density (%) | 20 ~30 | 18 ~25 | 15 ~20 | 10~30 | ||||||
Stroke (mm) | 16 ~22 | 11 ~16 | 8~16 | 6~30 | 12 ~28 | 9~17 | ||||
Jig Frequency (r/min) | 220 | 250 | 280 | 210~320 | 250~450 | 280~460 | ||||
Water Consumption (t/h) | 0.7 ~1 | 0.4 ~0.7 | 0.4 ~0.7 | 0.3~1.5 | 0.2 ~1 | 0.1~0.5 | ||||
Notch Groove Section Shape | Rectangle | Sawtooth Wave | Triangle | Rectangle, Sawtooth Wave and Triangle Selectable | ||||||
Motor Power (kW) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 0.55 | ||||
