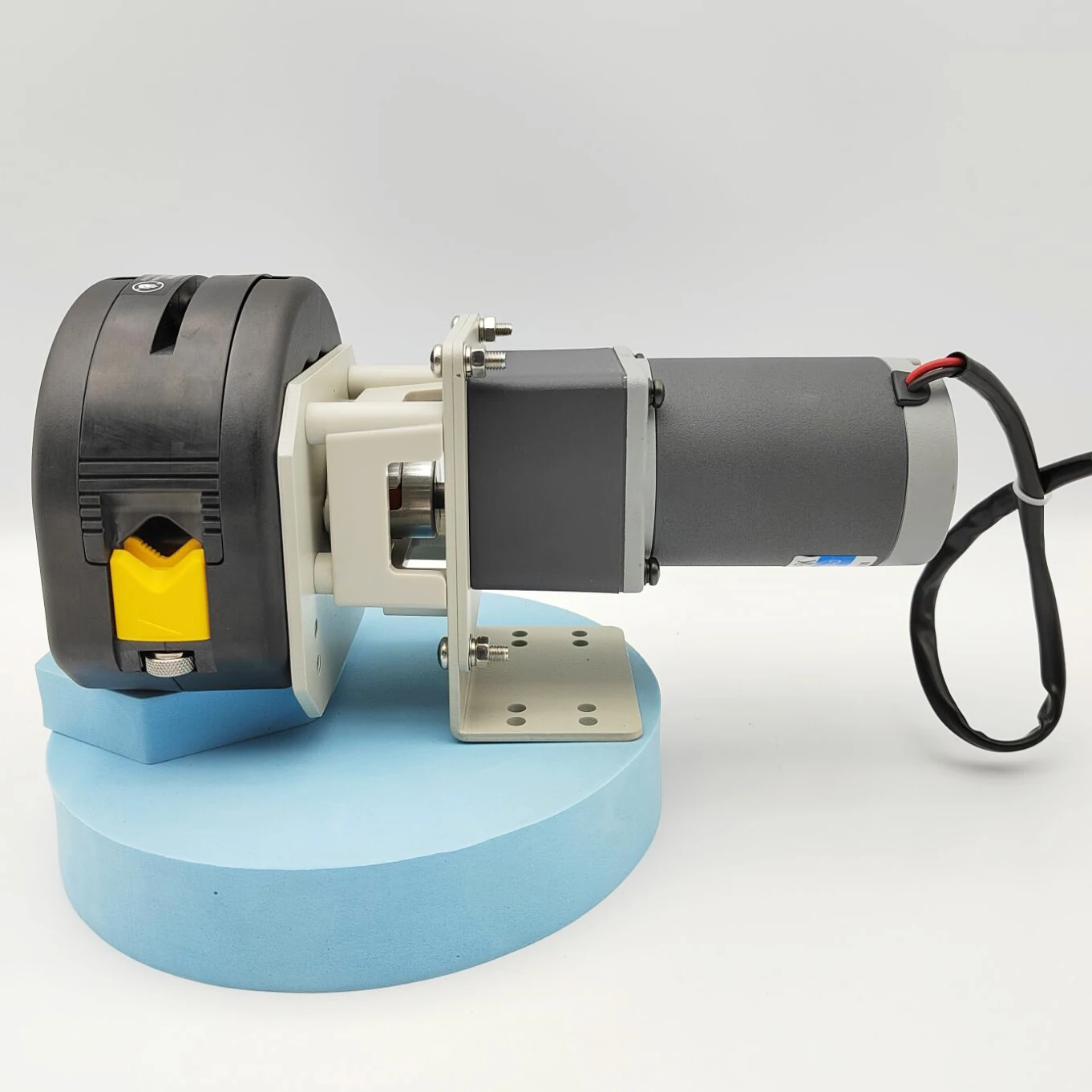

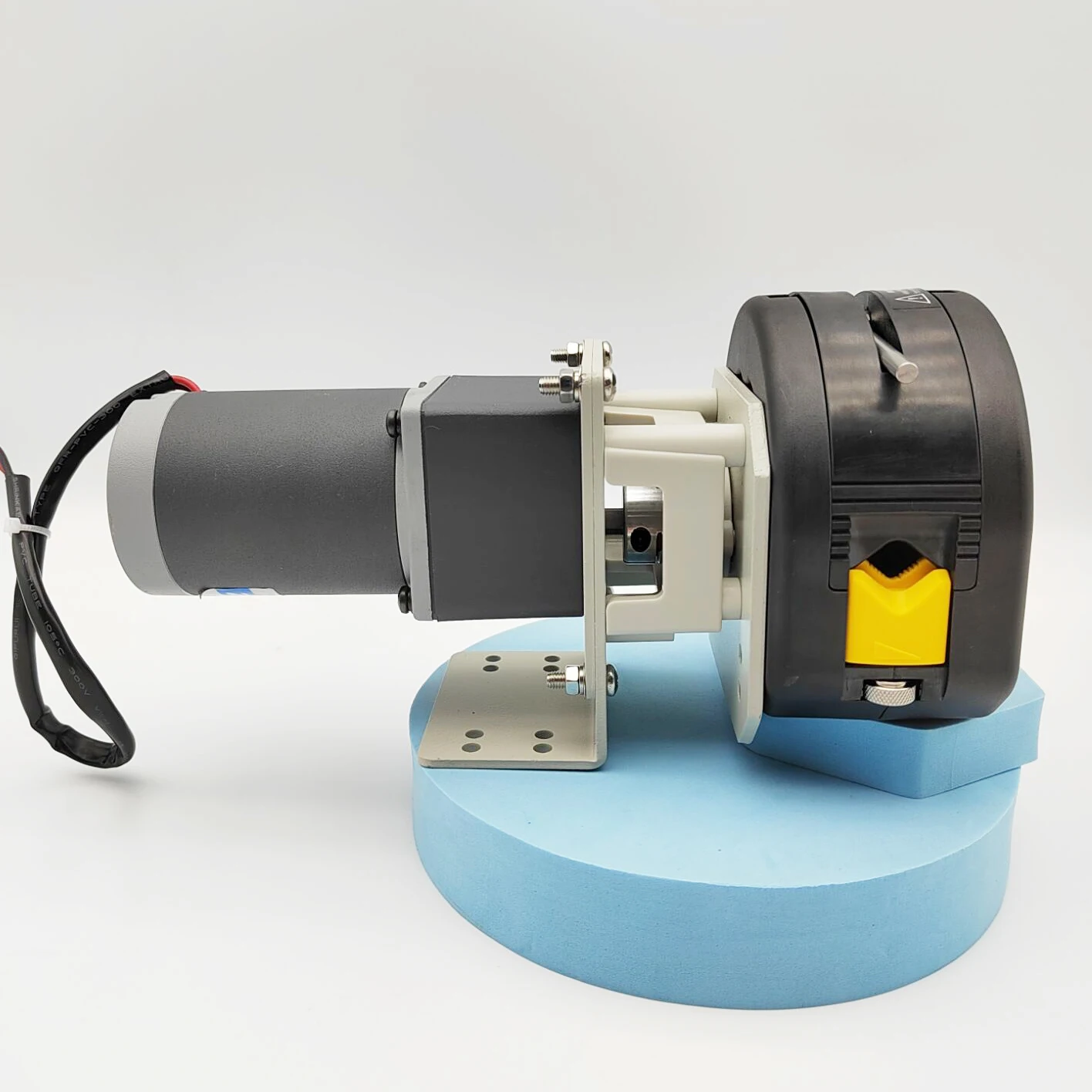

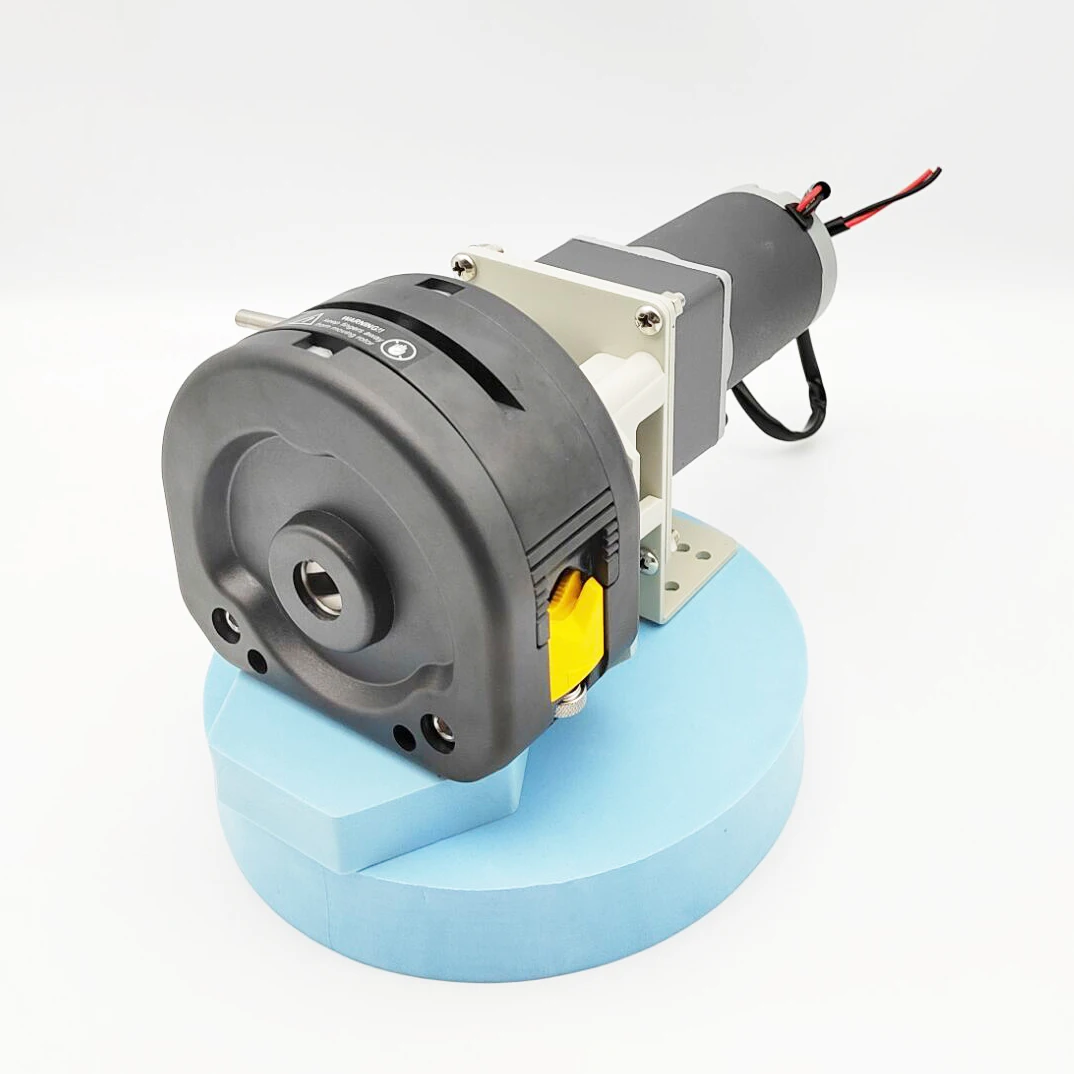

DC Gear Motor Peristaltic Pump For Oil Transfer Equipment Matching Peristaltic Pump
- Category: >>>
- Supplier: Baoding Chuangrui Precision Pump Co. Ltd.
Share on (60812534381):
Product Overview
Description
Customized OEM Peristaltic Pump

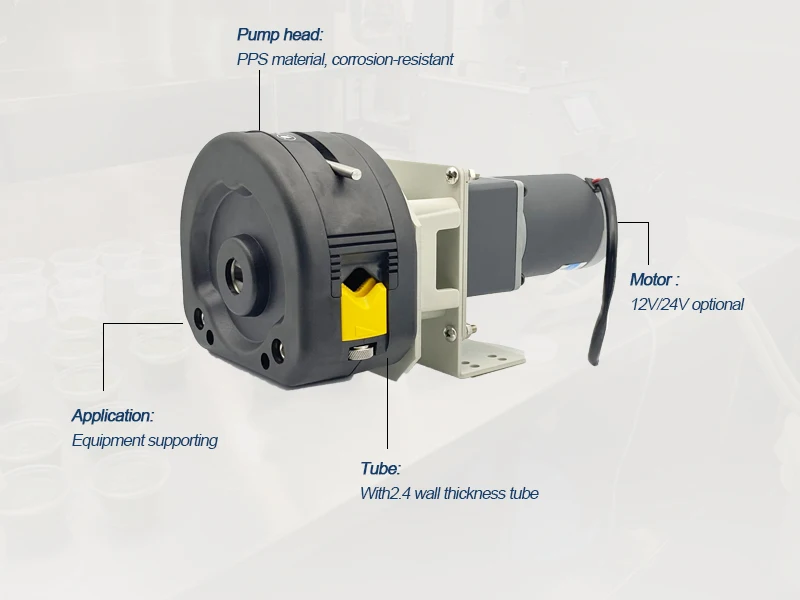

The OEM peristaltic pump model OEM208/KZ25 with Compact structure design, simple installation design, and good working performance, widely used in various liquid processing equipmentCustomize mounting brackets available. Ideal for fluid transfer applications.
OEM208 with 4 different tube size options and with adjustable speed motor speeds. It is one of the top selling OEM pumps. You will often find these peristaltic tubing pumps in vending machines, soft serve ice cream machines, printers and other ink machines.Model | OEM208 |
Channel | 1(default) or customizable |
Speed range | Max 600 rpm |
Max Flow | 6000ml/min |
Motor | DC 12V/24V Optional |
Tube Model | ID (mm) | Wall Thickness (mm) | Max Flow (ml/min) | Speed（rpm） |
15# | 4.8 | 2.4 | 1800 | 600 |
24# | 6.7 | 2.4 | 3000 | 600 |
35# | 7.9 | 2.4 | 4200 | 600 |
36# | 9.6 | 2.4 | 6000 | 600 |
Kindly reminder:
All the data in the Above chart is based on the water.
If your liquid is viscous or corrosive, then this selection guide is not suitable for you.
The above data is for reference only. | ||||||||||
Application：Vending machine
Model：OEM210
Flow：Max 3.4L/min
More detail
Flow：Max 3.4L/min
More detail
Application：Laundry machine
Model：OEM206
Flow：Max 1L/min
More details
Flow：Max 1L/min
More details
Application：Automatic mixing machine
Model：OEM204
Flow：Max 1.7L/min
More details
Flow：Max 1.7L/min
More details
Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
CR Peristaltic pump is easy to maintenance
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precision
The calibration function can ensure the filling accuracy for each dose. The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
CR peristaltic pump is non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristaltic pump is easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
CR peristaltic pump with good sealing: It has the good self-priming ability and can be idling to prevent back flow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precision
The calibration function can ensure the filling accuracy for each dose. The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
CR peristaltic pump is non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristaltic pump is easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
CR peristaltic pump with good sealing: It has the good self-priming ability and can be idling to prevent back flow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids
