Высококачественная лучшая дисковая борона для продажи
- Category: Other Farm Machines >>>
- Supplier: Yucheng,Yili,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
jieshao
Company Introduction
Yucheng Yili Machinery Co., Ltd. is the manufacturer of agricultural machinery with employs 65 people and equipment 40 sets.
Main products: disc plough, disc harrow, share plough, rotary tiller, rotary stubble crusher, wheat planter, corn planter, cultivator, soil ridger, soil loosener, wheat and rice harvester, wheat and corn thresher, tractor trailer, slasher, gearbox, plough and harrow discs, cultivation chisels and points, hand tools,etc.In addition, our company can according to customer's sample design and processing, to accept incoming commission processing.
The company’s annual output of agricultural machinery is 10,000 sets,which have been exported to more than 30 countries and regions such as the South America, Africa,Russian and the Southeast Asia.
Our company will provide thorough services and look forward to your cooperation.

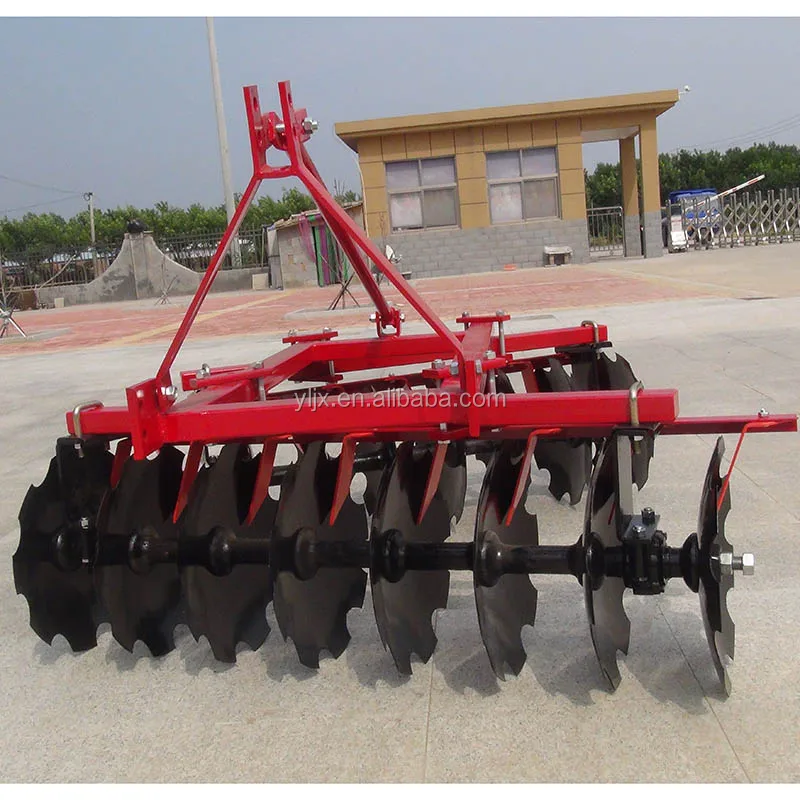

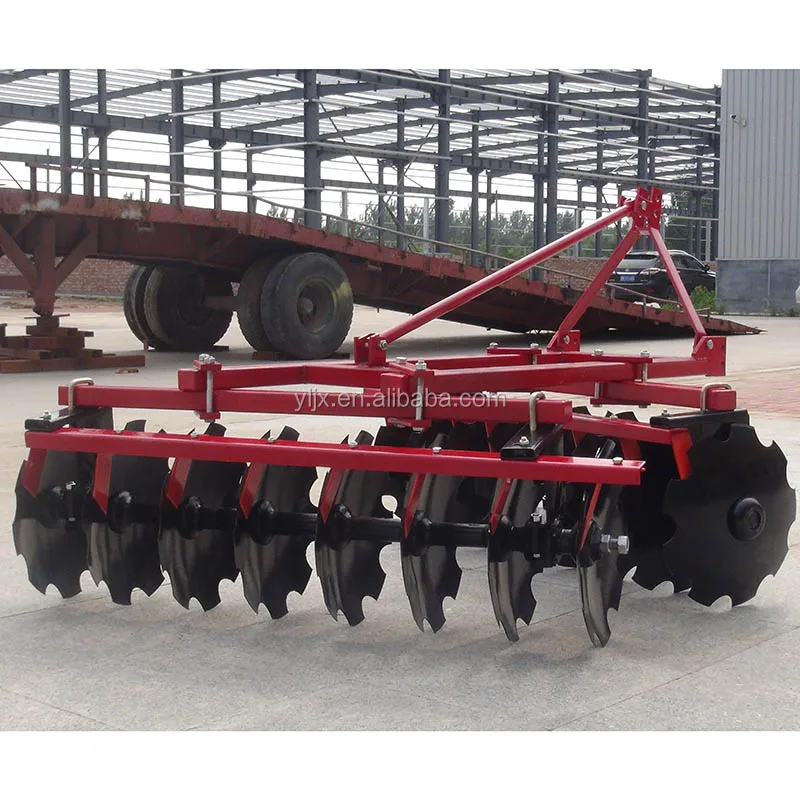

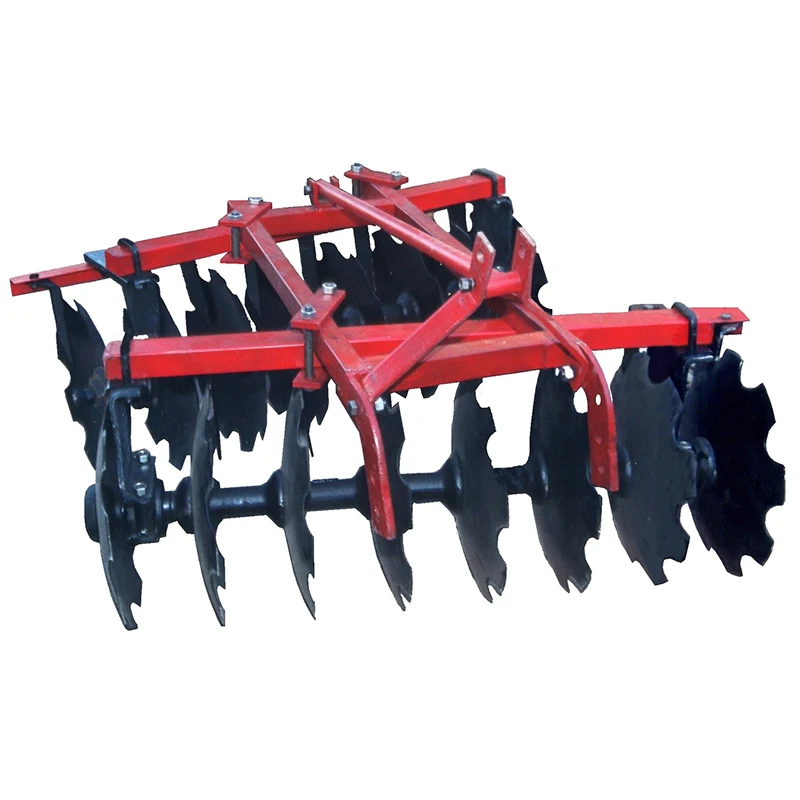

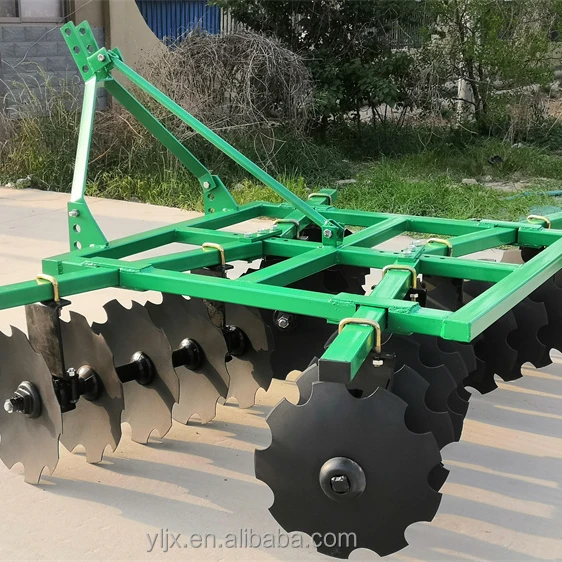

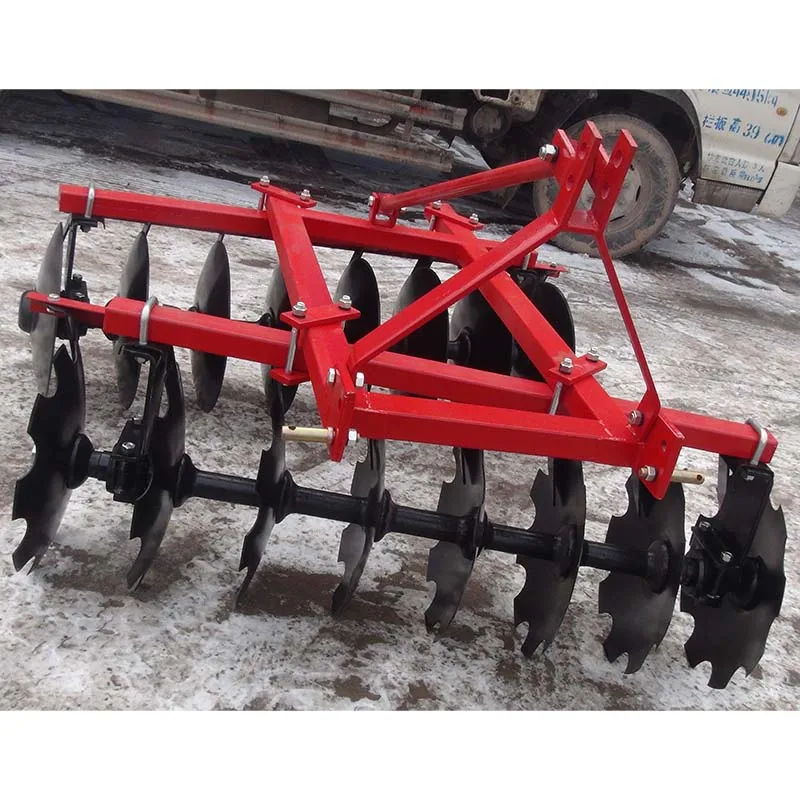

Disc Harrow
The product is mainly applicable for breaking up the clods of farmland, light and medium soil after furrow and loosening soil and fertilizer before sewing. With the reasonable structure, the machine is durable in service, easy to be operated and maintained.
Main Specifications
Model | 1BQX-1.1 | 1BQX-1.3 | 1BQX-1.4 | 1BQX-1.5 | 1BQX-1.7 | 1BQX-1.9 | 1BQX-2.3 | 1BQ-3.3 | 1BQ-3.4 | 1BQ-5.0 |
Working width(m) | 1.1 | 1.3 | 1.4 | 1.5 | 1.7 | 1.9 | 2.3 | 3.3 | 3.4 | 5.0 |
Working depth(mm) | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| 12 | 14 | 16 | 16 | 18 | 20 | 24 | 40 | 42 | 60 |
Dia. of disc(mm) | 460 | 460 | 460 | 460 | 460 | 460 | 460 | 460 | 460 | 460 |
Weight(kg) | 200 | 220 | 230 | 240 | 260 | 310 | 360 | 1090 | 1108 | 1520 |
Fitted power(hp) | 12 | 15 | 15 | 25 | 28 | 30 | 50 | 80~100 | 80~100 | 120 |
Linkage |
Standard three-point mounted |
Trailed | ||||||||
