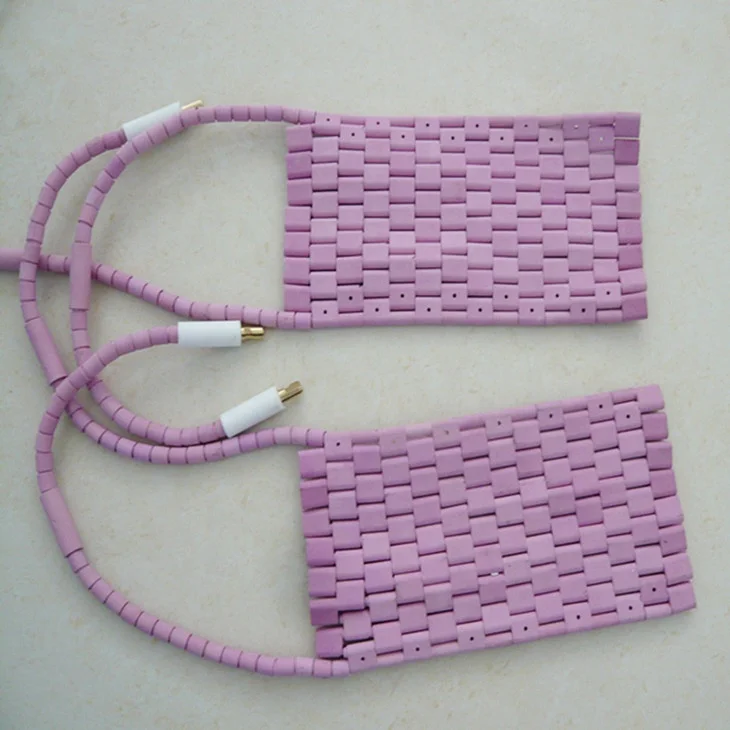

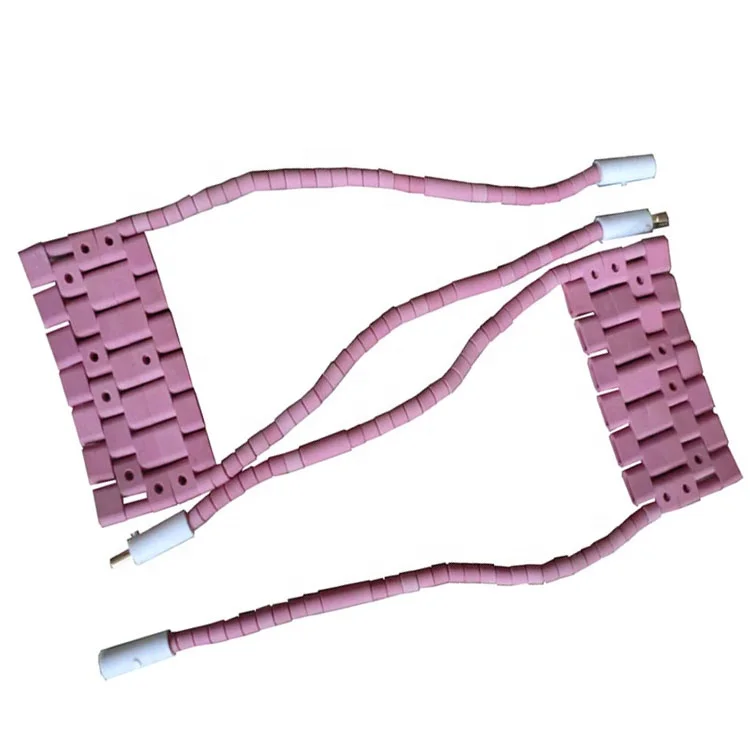

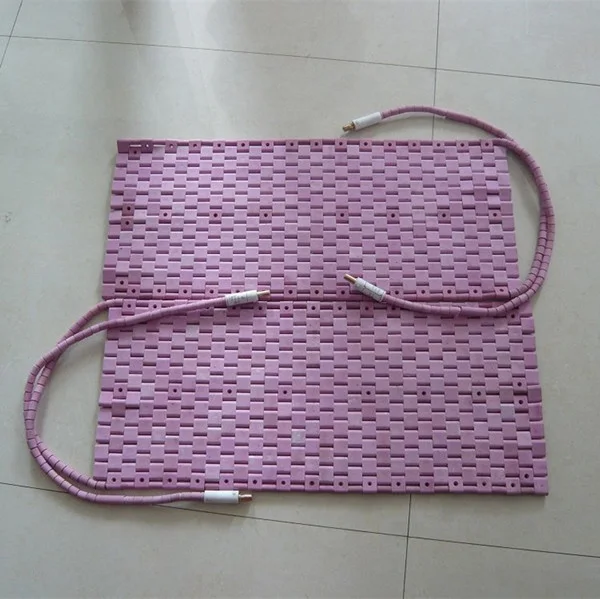

PWHT Alumina Ceramic Heating Element Flexible Ceramic Pad Heater
- Category: >>>
- Supplier: Yancheng Hongtai Alloy Electric Apparatus Co. Ltd.
Share on (60812565461):
Product Overview
Description
Product Description

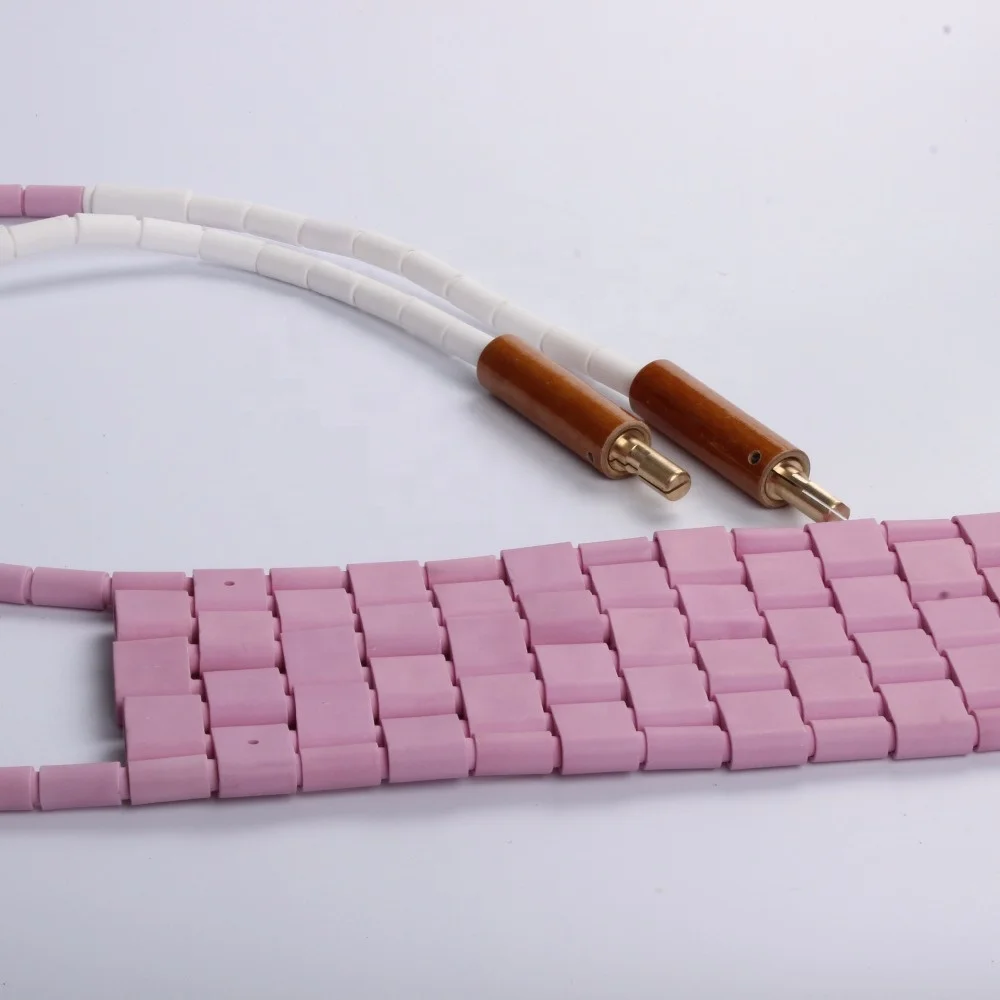

PWHT Alumina Ceramic Heating Element Flexible Ceramic Pad Heater (FCP pad heater) are mainly used for Weld Preheating and Post Weld Heat Treating.

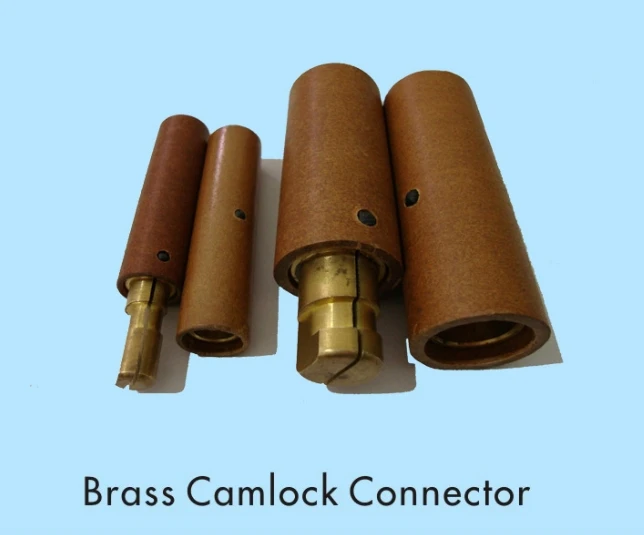

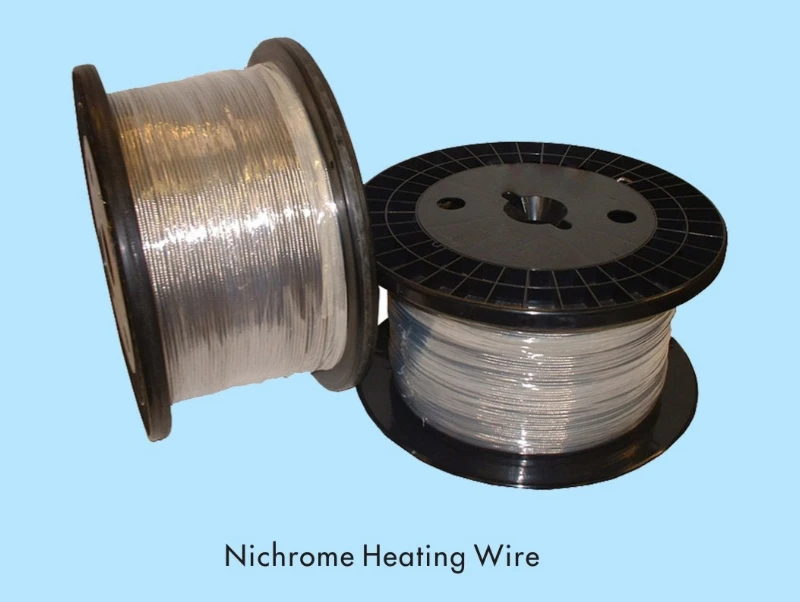

Ceramic pad heaters are made of ceramic beads,nickel chrome wire 80/20 strand with cold tails(Nickel 212 wire)and make 60 amp twistlocks with insulated covers.
Forms of Delivery

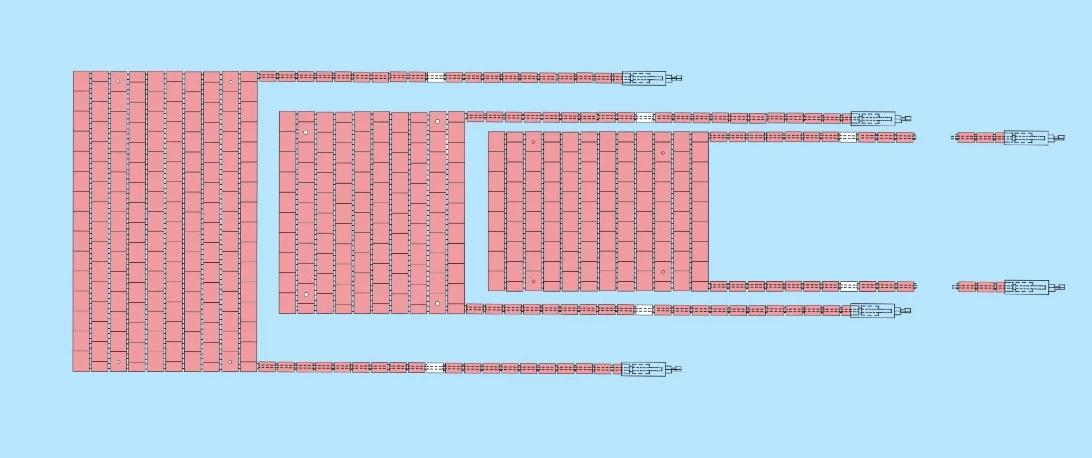

The mats are commonly made of 95% Al2O3. Their modular design permits a variety of element shapes, sizes, and thermal capacities to choose from. Most common elements are as follows:
Main Body Beads
Female End Beads
Male End Beads
Tail Beads
Main Body Beads with Holes
Product Name | PWHT Alumina Ceramic Heating Element Flexible Ceramic Pad Heater |
Material | alumina ceramic and nickel chrome wire |
Insulator Color | pink or white |
Standard | CP6, CP8, CP10 and so on |
Voltage | 60V/ 80V/220V |
Operating Temperature | Maxi 1000℃ |
Operating Life-UP | 20000 hrs |
Warranty | one year/12 monthes |

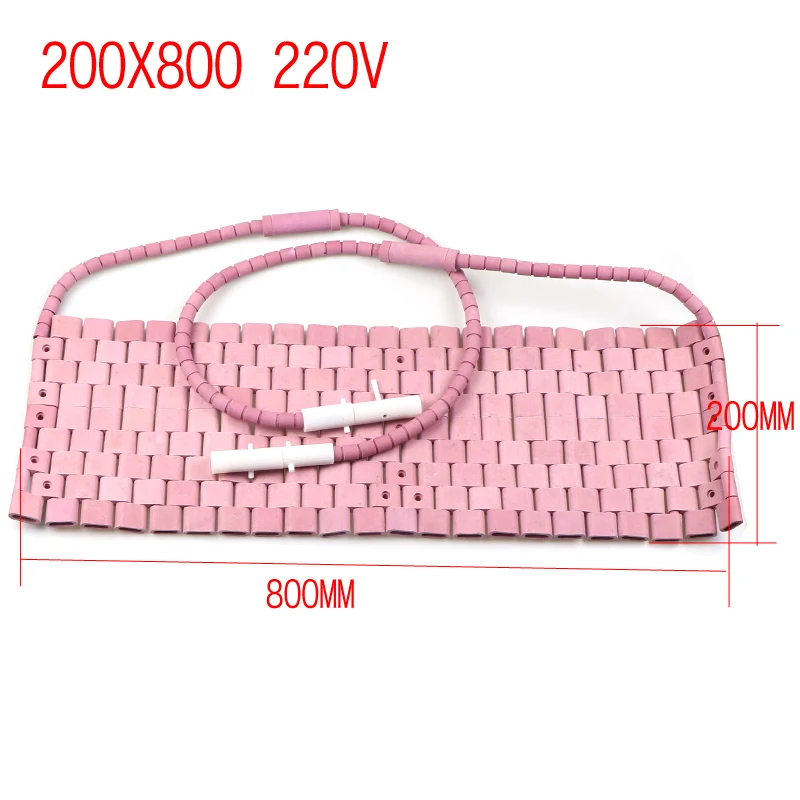

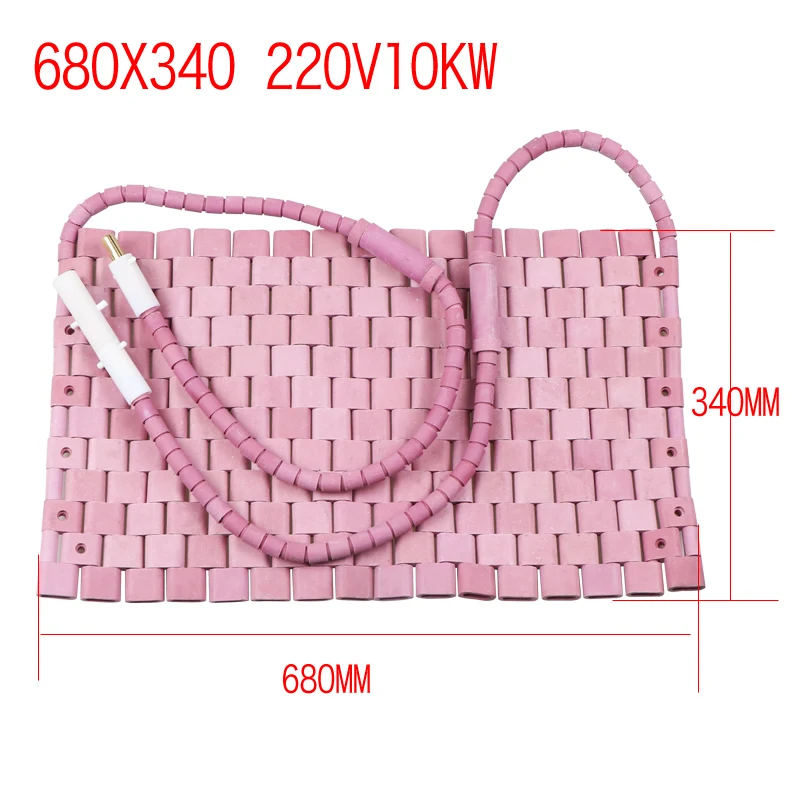

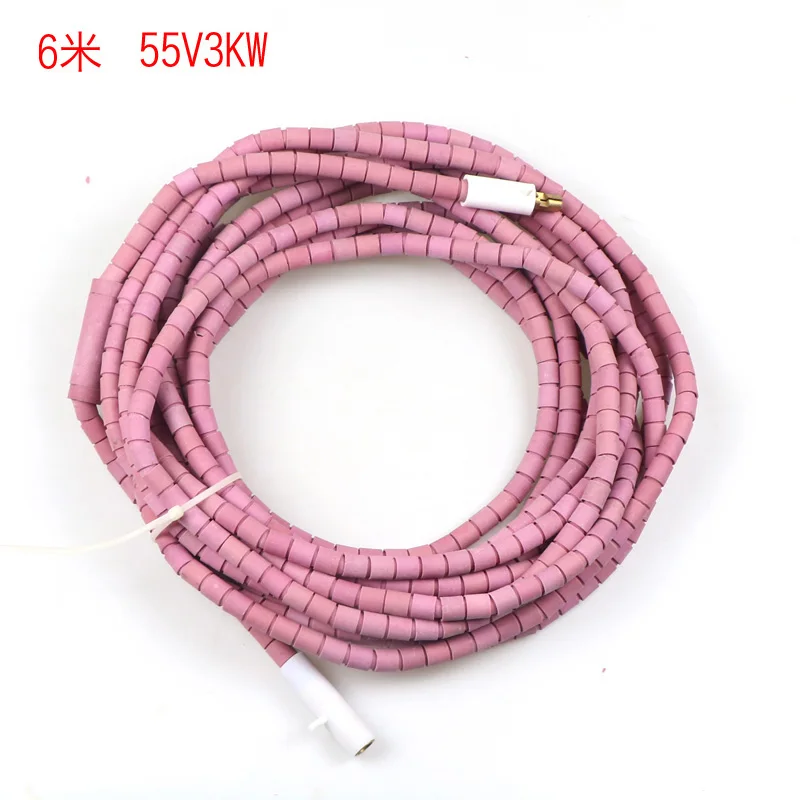

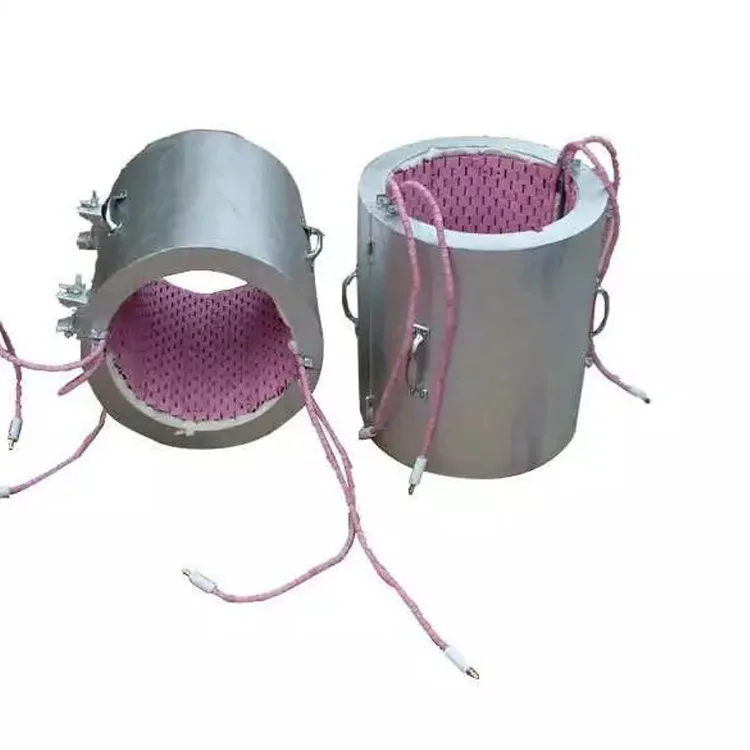

Products Show
60Volts ceramic pad heater, 45 Amp | ||||||||
List Reference | Power | Current | Description | Size Inches(approx) | ||||
CP3-60V | 2.7KW | 45amp | Preheater | 3*29 | ||||
CP4-60V | 2.7KW | 45amp | Preheater | 4*21 | ||||
CP6-60V | 2.7KW | 45amp | Thick Wall Pad | 6*15 | ||||
CP8-60V | 2.7KW | 45amp | Pad Element | 8*11 | ||||
CP10-60V | 2.7KW | 45amp | Pad Element | 10*9 | ||||
CP12-60V | 2.7KW | 45amp | 3”Diameter Pipe | 12.7 | ||||
CP15-60V | 2.7KW | 45amp | 4”Diameter Pipe | 15*6 | ||||
CP18-60V | 2.7KW | 45amp | Strip | 18*5 | ||||
CP21-60V | 2.7KW | 45amp | 6”Diameter Pipe | 21*4 | ||||
CP26-60V | 2.7KW | 45amp | Long Strip | 26*3 1/2 | ||||

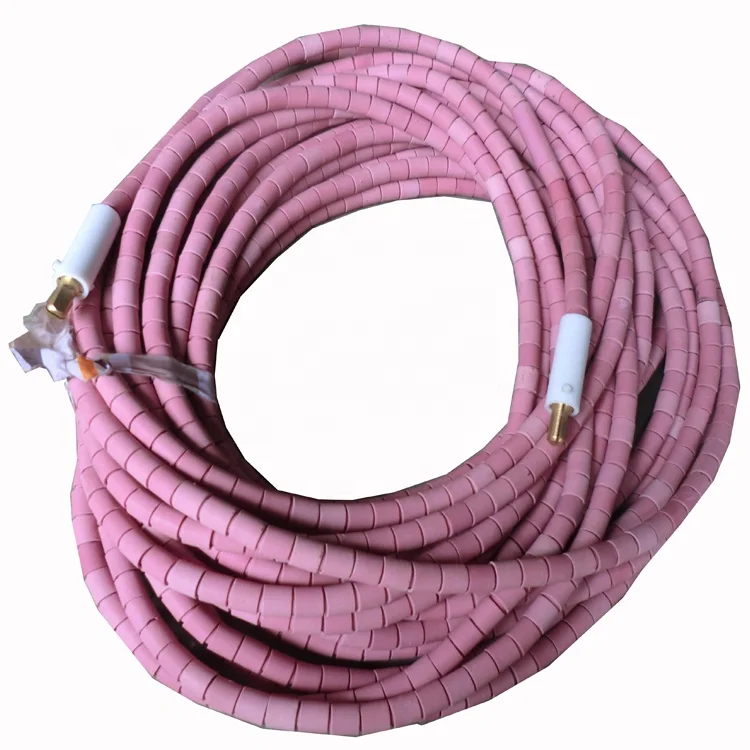

CP50-60V | 2.7KW | 45amp | Snake | 50*2 | ||||
80Volts ceramic pad heater, 45 Amp | ||||||||
CP3-80V | 3.6KW | 45amp | Preheater | 3*39 | ||||
CP4-80V | 3.6KW | 45amp | Preheater | 4*29 | ||||
CP6-80V | 3.6KW | 45amp | Thick Wall Pad | 6*20 | ||||
CP8-80V | 3.6KW | 45amp | Pad Element | 8*15 | ||||
CP10-80V | 3.6KW | 45amp | Pad Element | 10*12 | ||||
CP12-80V | 3.6KW | 45amp | 3”Diameter Pipe | 12*10 | ||||
CP15-80V | 3.6KW | 45amp | 4”Diameter Pipe | 15*8 | ||||
CP18-80V | 3.6KW | 45amp | Strip | 18*7 | ||||
CP21-80V | 3.6KW | 45amp | 6”Diameter Pipe | 21*6 | ||||
CP24-80V | 3.6KW | 45amp | Strip | 24*5 | ||||
CP29-80V | 3.6KW | 45amp | Strip | 29*4 | ||||
CP36-80V | 3.6KW | 45amp | Long Strip | 26*31 1/2 | ||||
CP72-80V | 3.6KW | 45amp | Snake | 72*2 | ||||
How to order ?
Pls provide this informations:
1.Vottage :60V, 80V and other can be customized.
2.Wattage :1000W, 1500W, 2000W and other can be customized.
3.Heater Width.
4.Heater Length.
5.Lead Wire Length.
6.Other special requirements if you have.

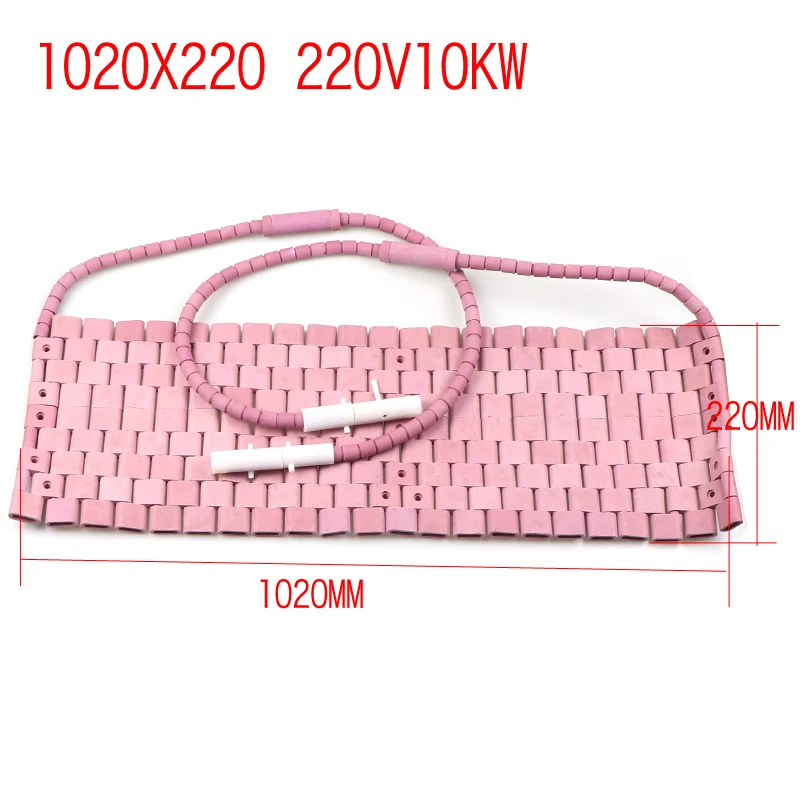

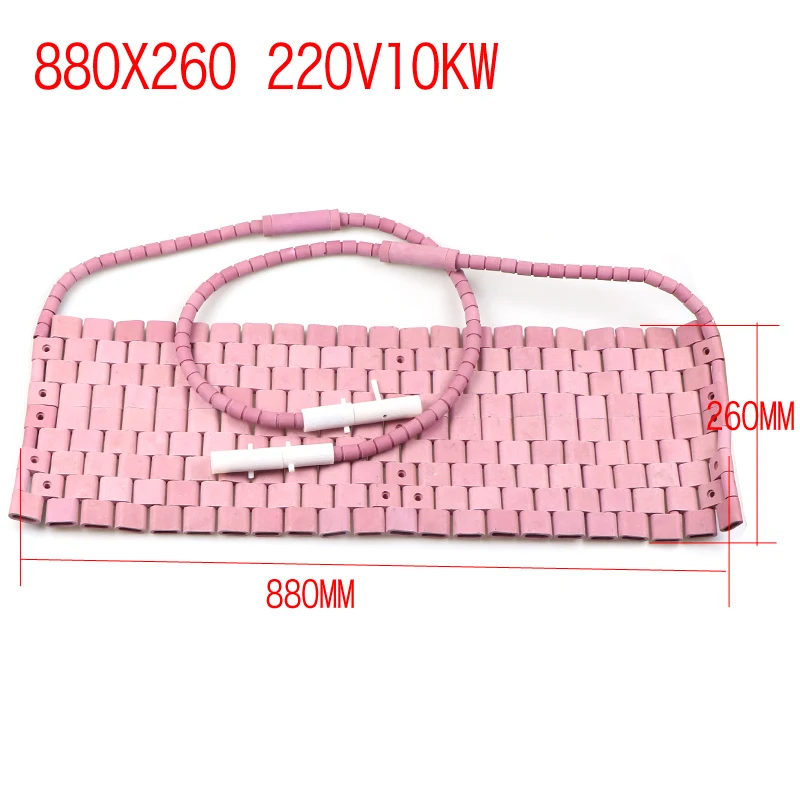

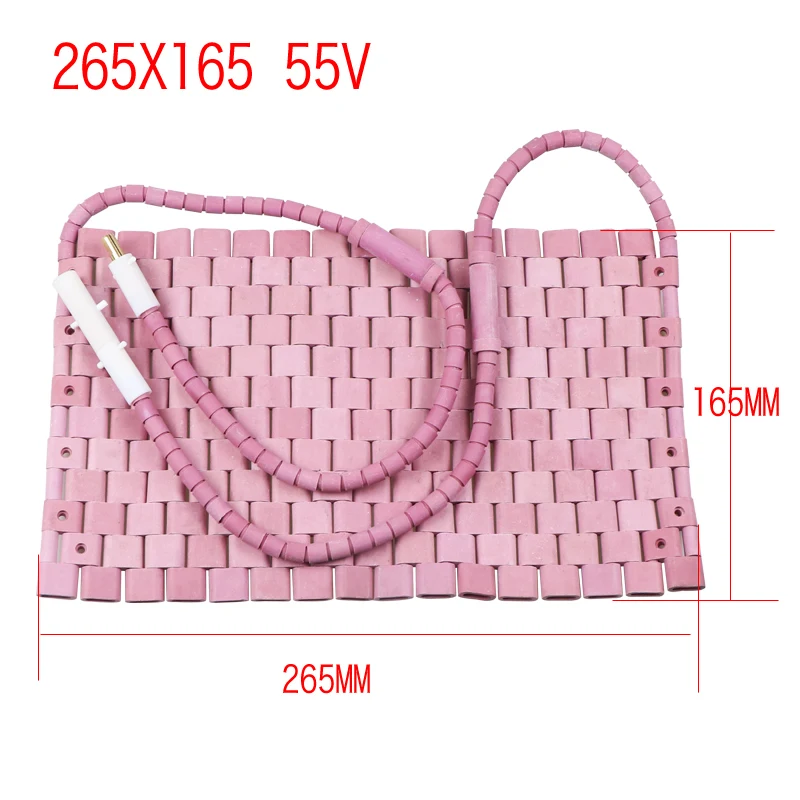

Following is some example:

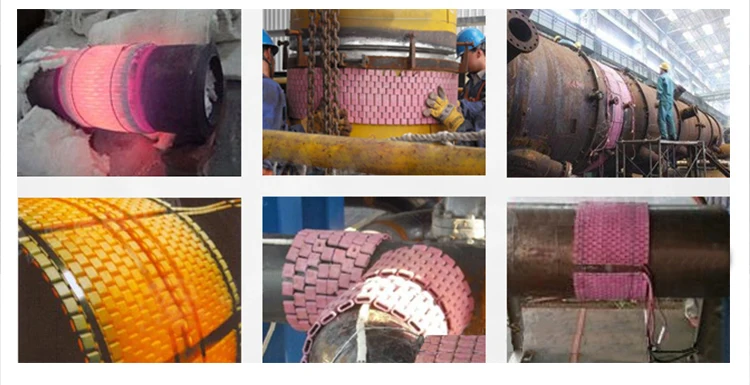

Application

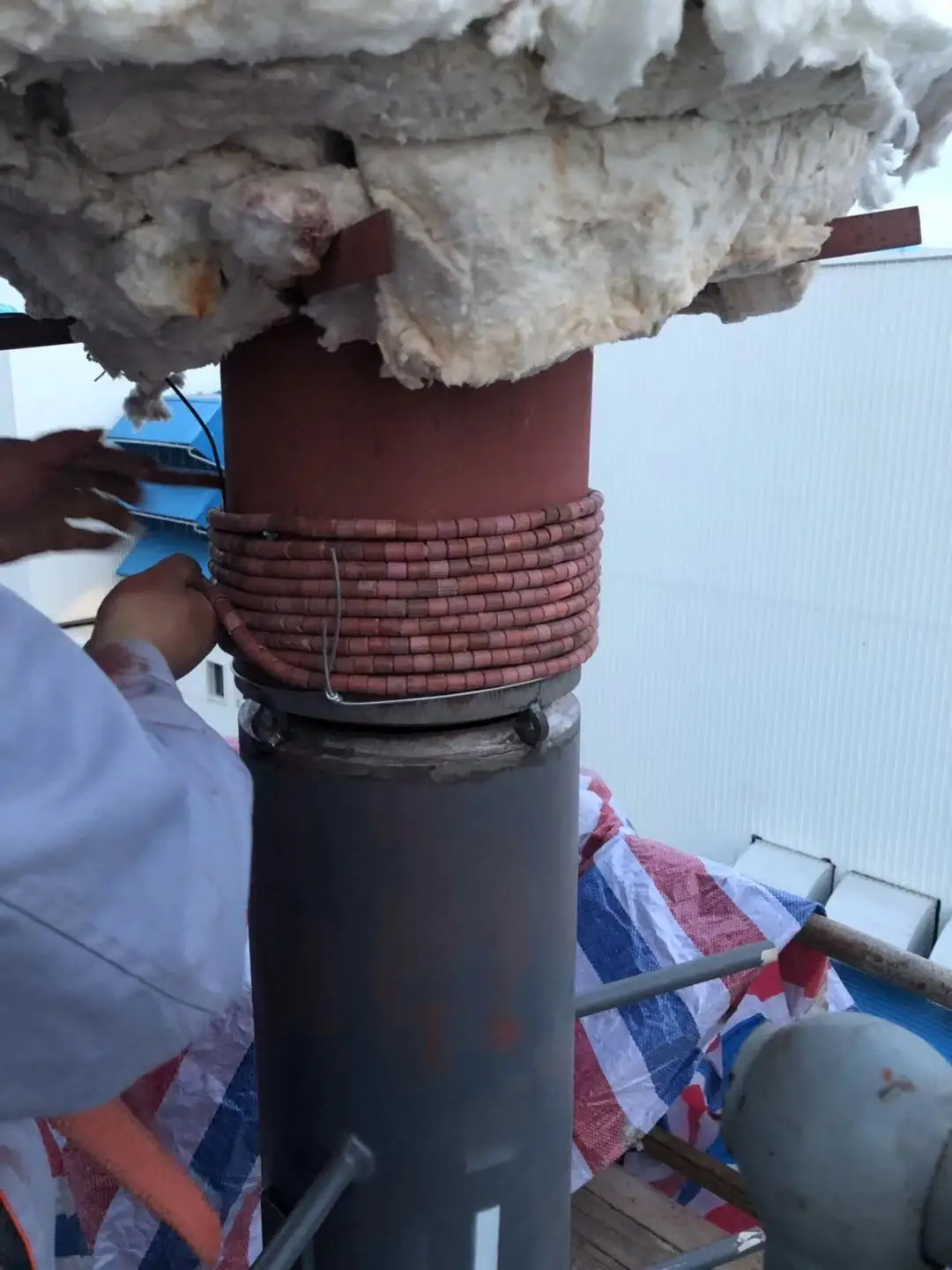

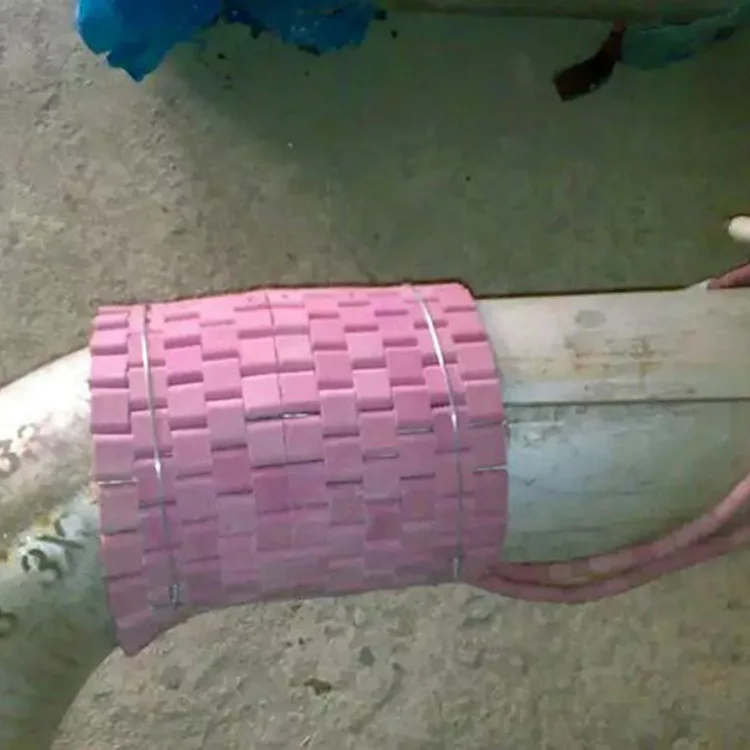

*All kinds of metal components, sucs as the large tower, pressure vessels, bridges, high pressure pipeline welding preheating,welding preheating, welding stress relief.
* Piping, vessels of auxiliary heating
* Longitudinal-seam welded bends
* Area heating
* Piping, vessels of auxiliary heating
* Longitudinal-seam welded bends
* Area heating
Related Products
Our Company
Factory
Office
Sales Team
Engineer Team
Our Certifications
Packing & Delivery
Packaging for heater
1) plastic bag + carton for ceramic pad heater

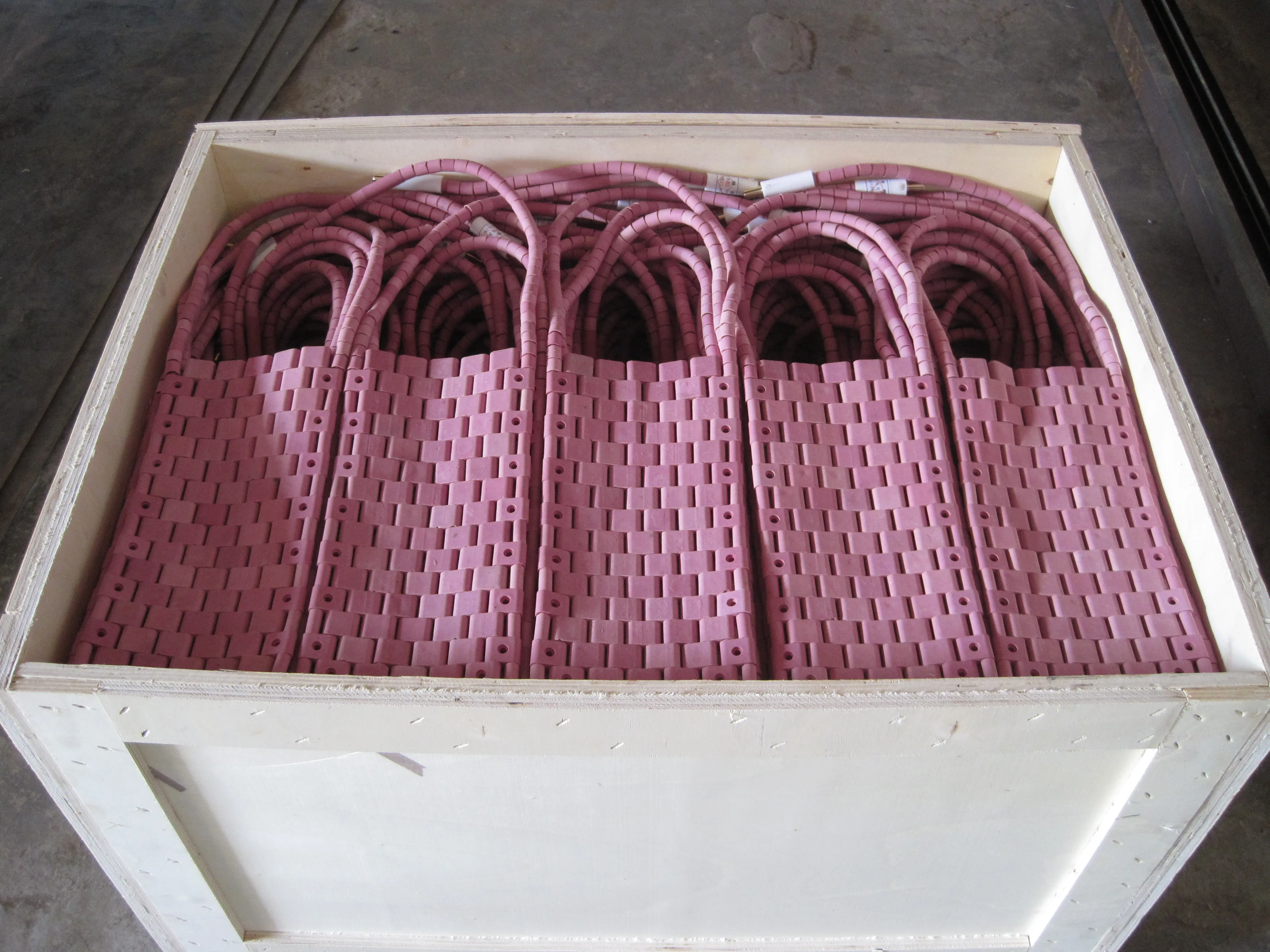

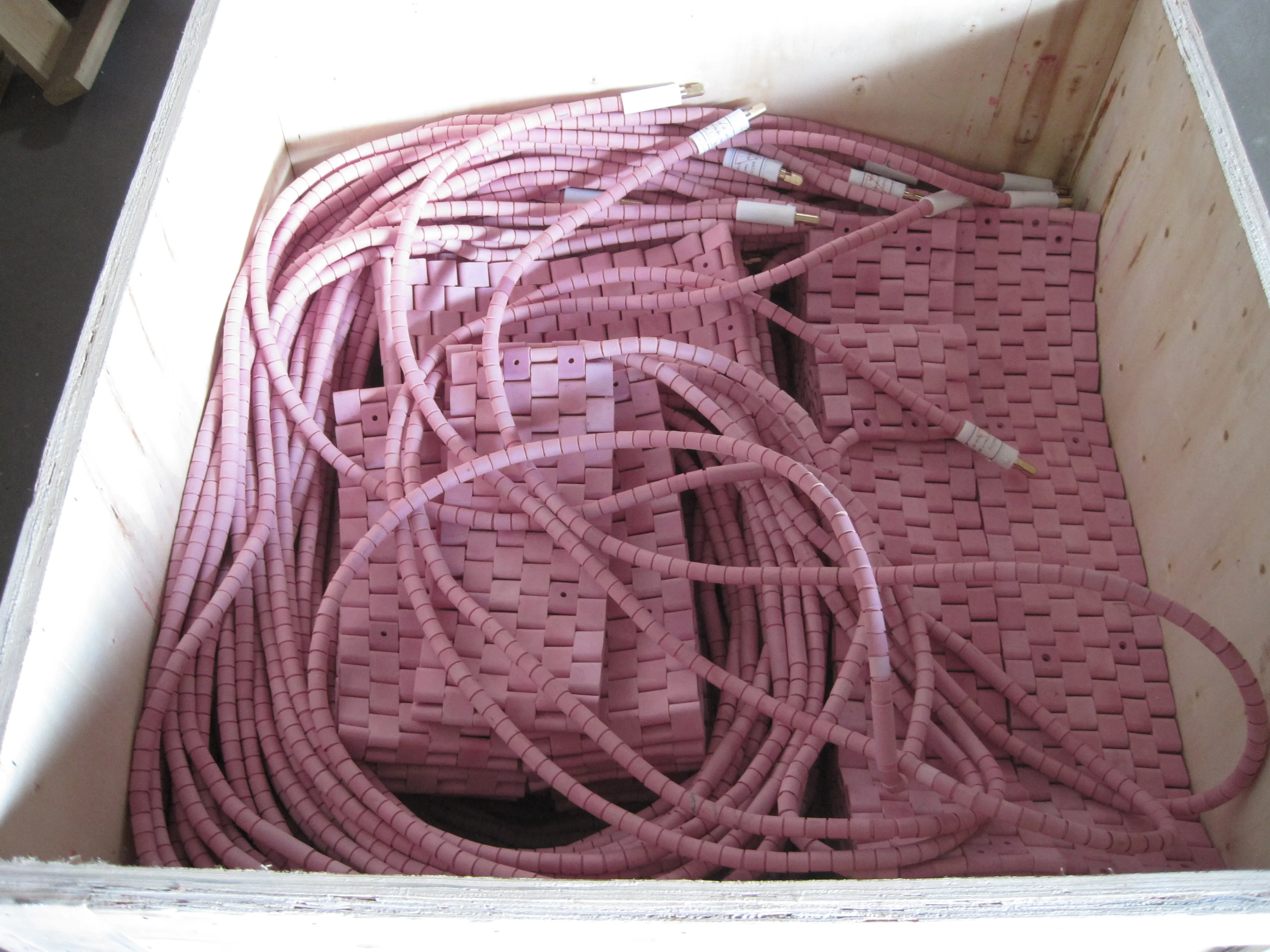

2) wooden box for ceramic pad heater
Shipping for heater
1) shipping by express (sample order) or by sea(bulk order)
2) worldwide shipping service available
