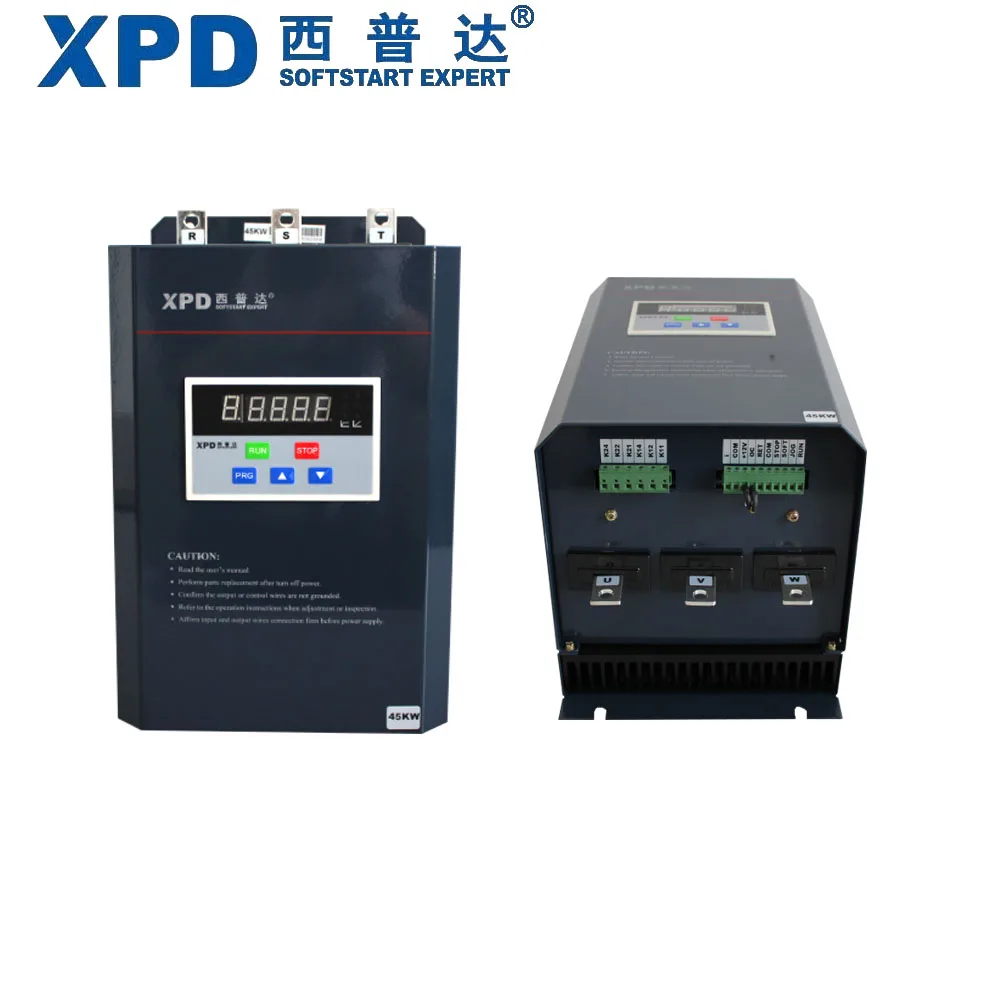

75 hp soft starter 55KW 75 hp soft starter (XPD055C 3)

Product Overview

Description

75 hp soft starter 55KW 75 hp soft starter (XPD055C-3)

Product Introduction



XPD series of digital AC motor soft starter is a new international advanced level equipment which adoption of power electronics technology, micro-processing technology and modern control theory design and production.

The product can effectively limit the starting current when the asynchronous motor starts.

Widely used in fans, pumps, transport class and the compressor and other load-type machinery.



Character:

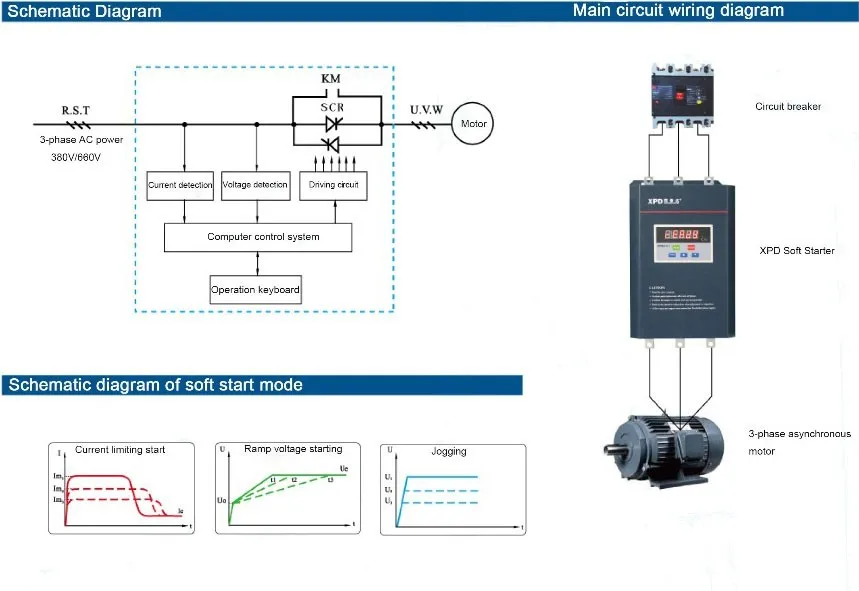

Starting mode

Different starting mode and parameter setting can be selected according to characteristics of the load. The softer starter can optimize the starting effect of the motor to the most extent.

High technology performance

The control circuit is simplified by adopting high performance microprocessor and powerful software support function. Consistent, accurate and quick speed of execution can be obtained without adjusting the circuit parameters.

High reliability

All electric elements of the XPD series  smart soft starter are filtrated strictly, and the master control board has been circle tested for 72 hours at high temperature and vibration tested, and thereby the high reliability of the product can be guaranteed.

Structure optimized

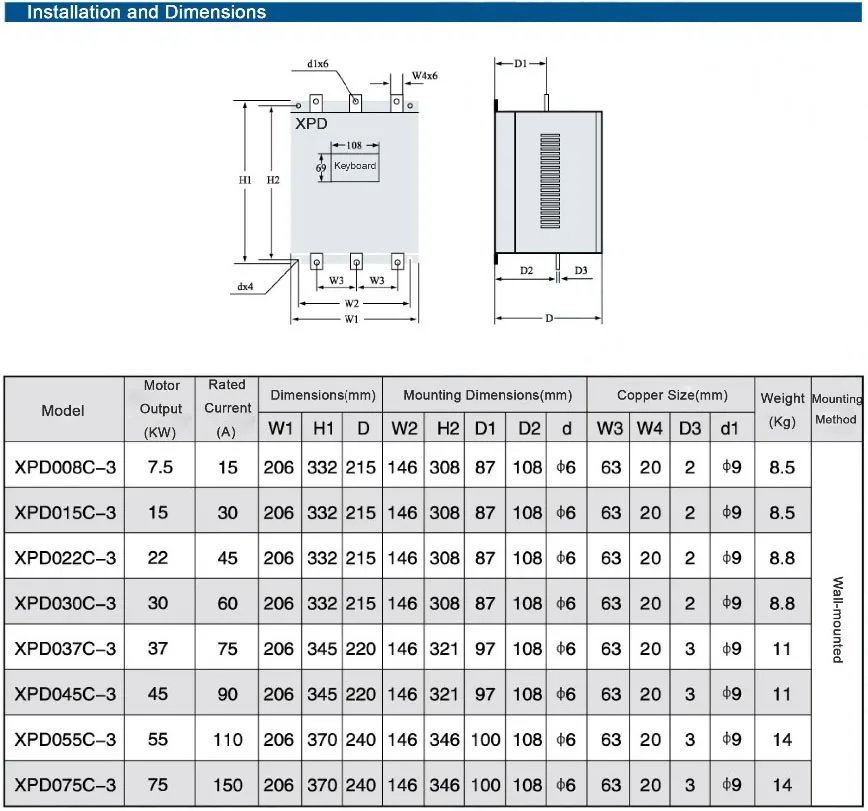

Unique compact modular structure and connecting mode of upper inlet wire and lower outlet wires make the starter more compact and it facilitate the integration and mating of starter.

Set up function of keyboard

Convenient and visualized operation display keyboard can be used to set up and modify the start, stop, operation and protection parameters according to different loads.

Functional description

The XPD series smart soft starter can provide the motor with protective functions of open-phase, overload, over current,excess starting time and three phase current balance degree and so on. Build in 12v power supply,simulating 4-20mA current output,setting up the function of soft stop.

Rated power supply outputted

Actual output current of the smart soft starter can be adjusted within a certain range to make the actual output current of the smart soft starter match with the actual load current if the nominal power of the smart soft starter is larger than the actual load power, and thereby to guarantee the output power of the smart soft starter match with the actual load power.



Function:

* Reduce starting current of the motor and decrease capacity of power distribution to avoid investment in the capacity increase.

* Reduce starting stress and prolong service life of the motor and relevant equipments.

* With Multi-starting mode, wide range current and voltage, the smart soft starter can adapt multi-loading condition and can improve technology.

* Powerful and complete performance,guarantee the reliable operating of load equipment

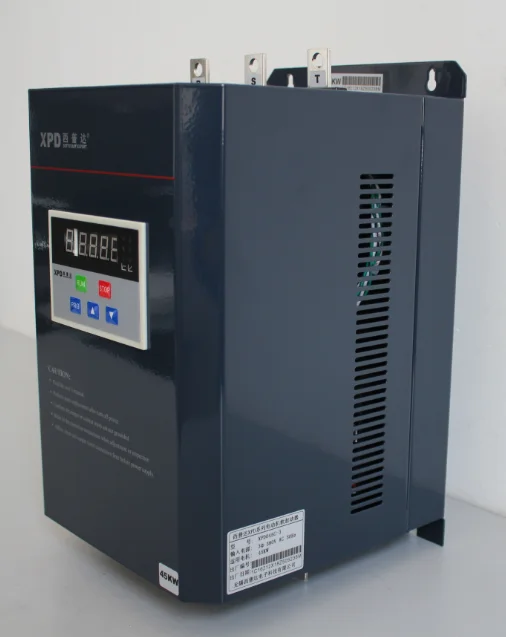

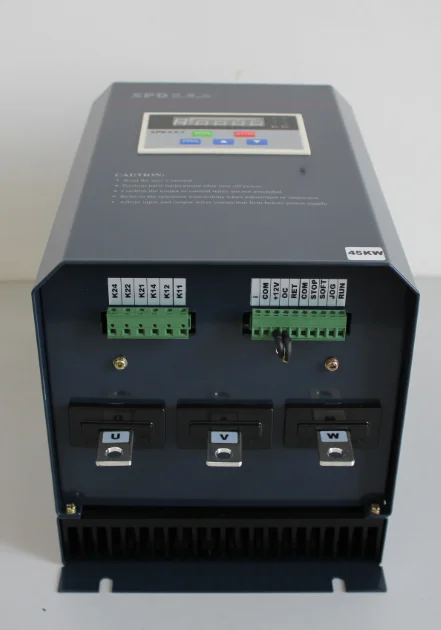

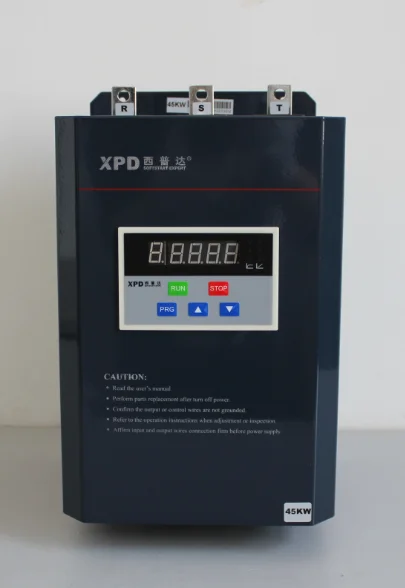

Product Show:

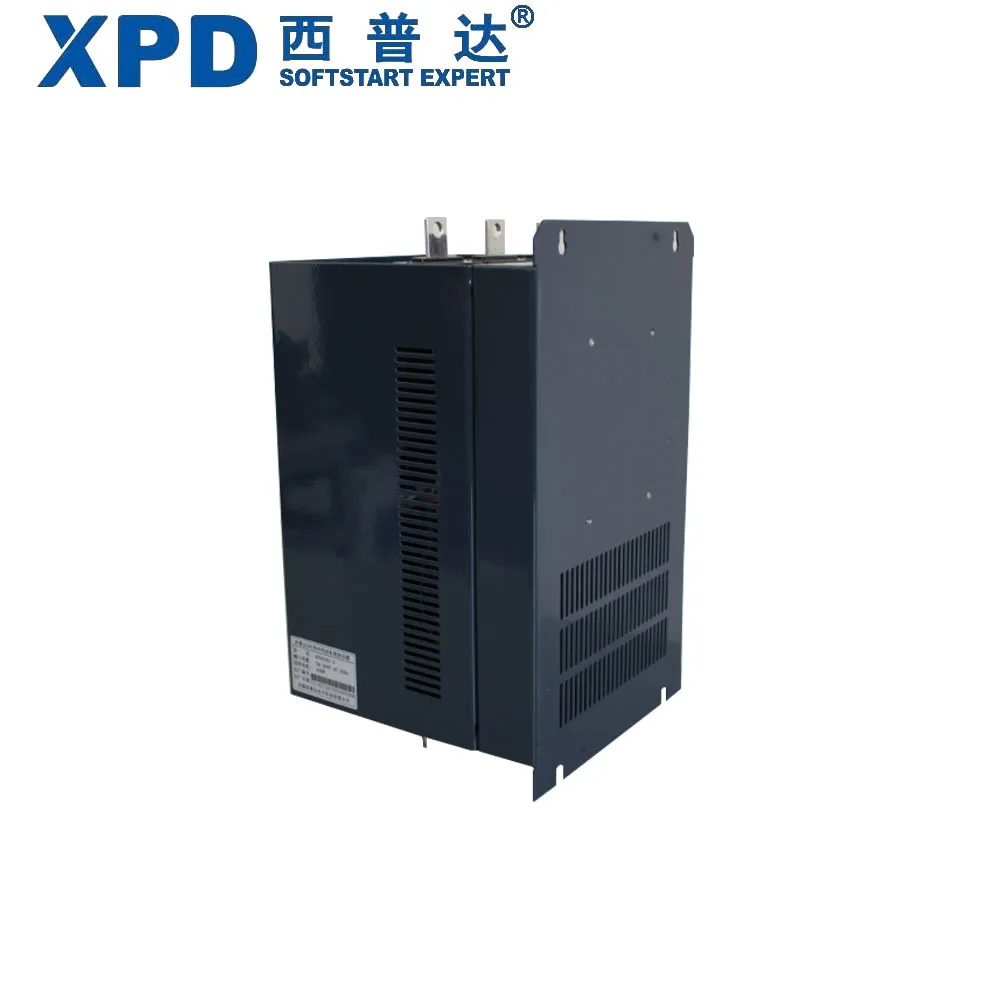

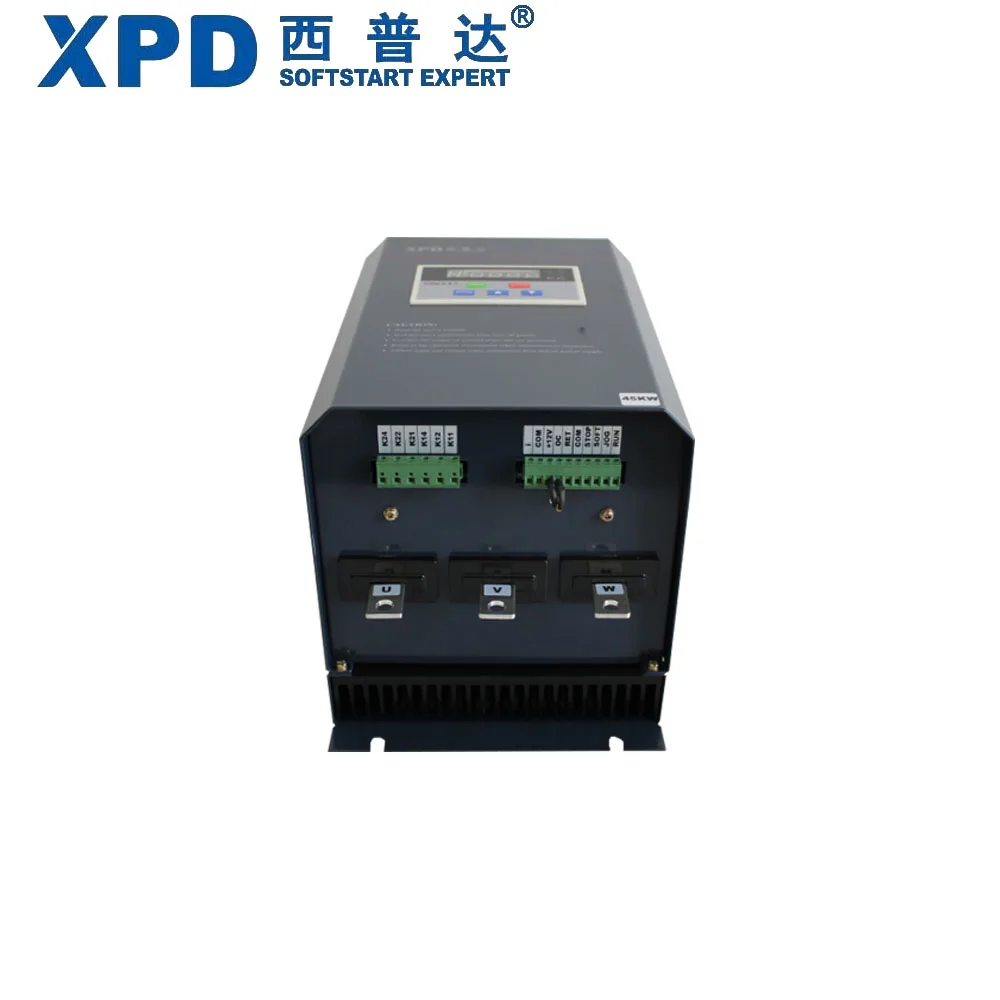

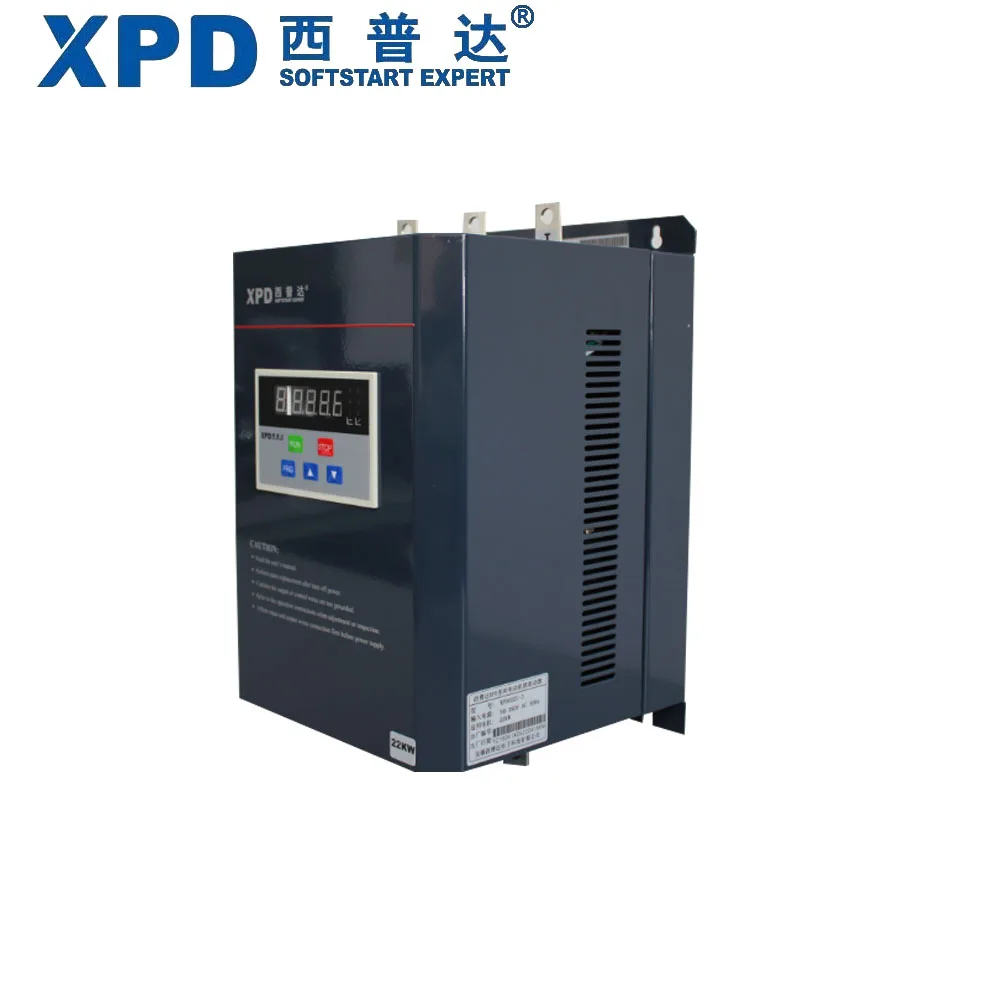

75 hp soft starter 55KW 75 hp soft starter (XPD055C-3)











Application:

75 hp soft starter 55KW 75 hp soft starter (XPD055C-3)

Blower-pump load: have current limited fuchtion, so it can control the current and reduce stress and  the pressure drop of  matchine to save the cost of maintaining.

Ball mill load: Xipuda soft sater have slope start function, it reduce the abration  between belt and gear torque, monitor the operating condition after starting.

Water-pump load: Reduce the start current availably, avoid the pressure drop, use the soft stop fuction and reduce the water hammer efect. adapt the control panel with protective coating, ensure operating safly and availably in the humid enviroment.

Compressor load: have current limited fuction,realize smooth start up. reduce the machine stress and engine heating, increase the service life.



Band carrier load: Realize starting smoothly and gradually, reduce the machine stress,avoid the material shifting, ensure the band carrier work normally.
