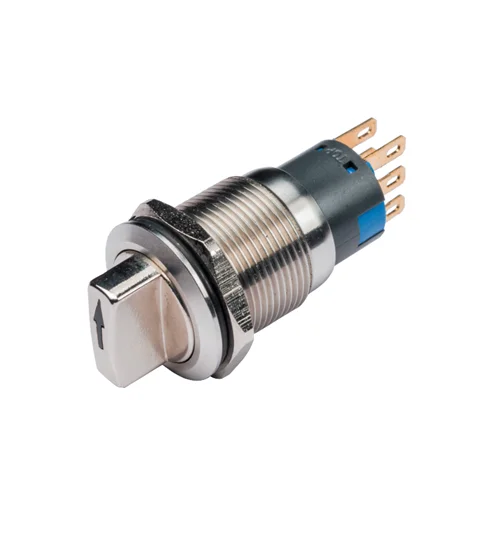

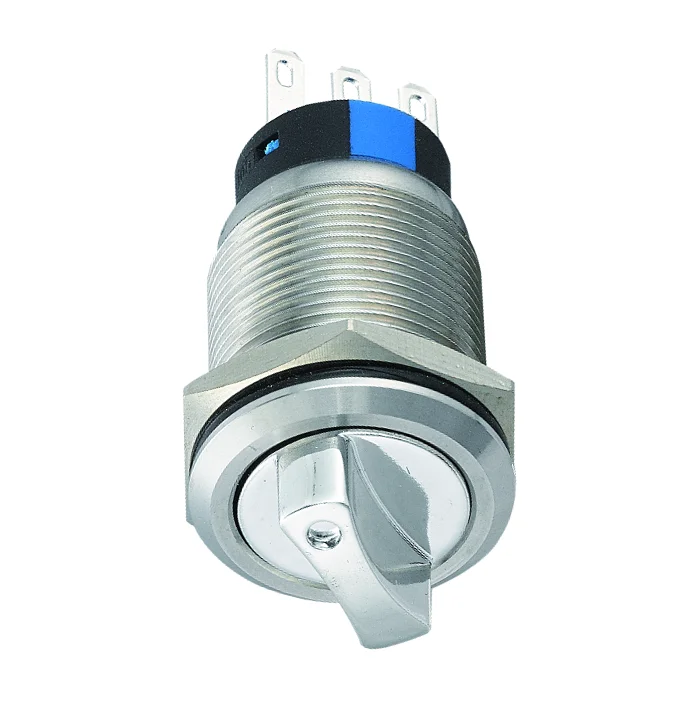

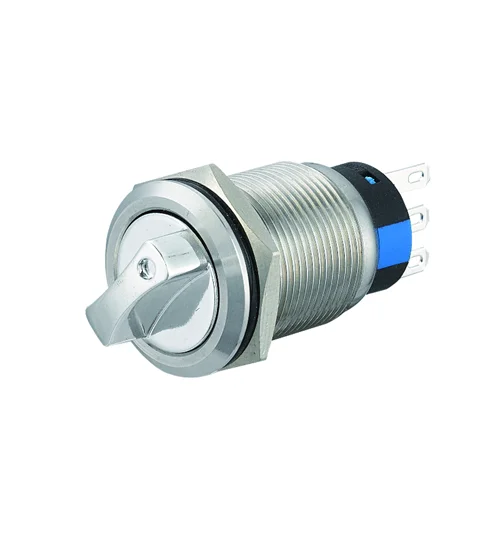

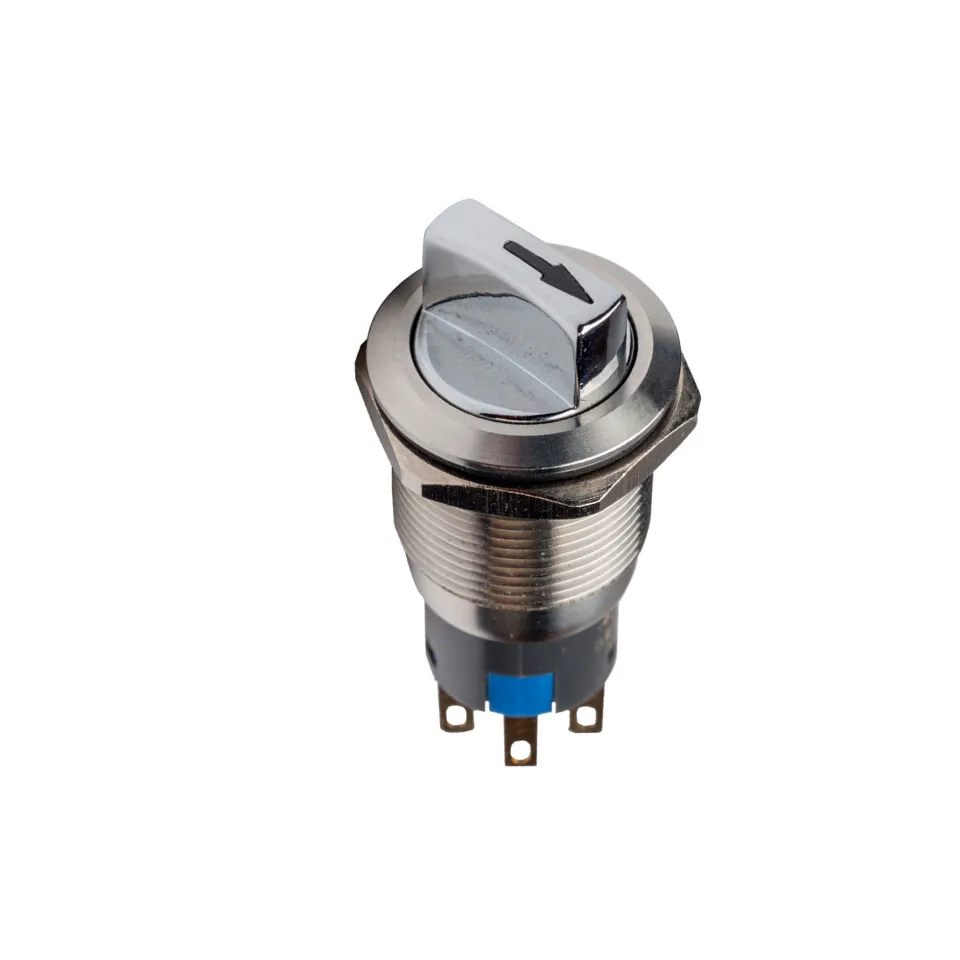

LA38 series 3 position metal 19mm metal selector switch stainless steel button
- Category: >>>
- Supplier: Jiangyin Changjiang Electric Appliance Co. Ltd.
Share on (60812620566):
Product Overview
Description
Product Overview

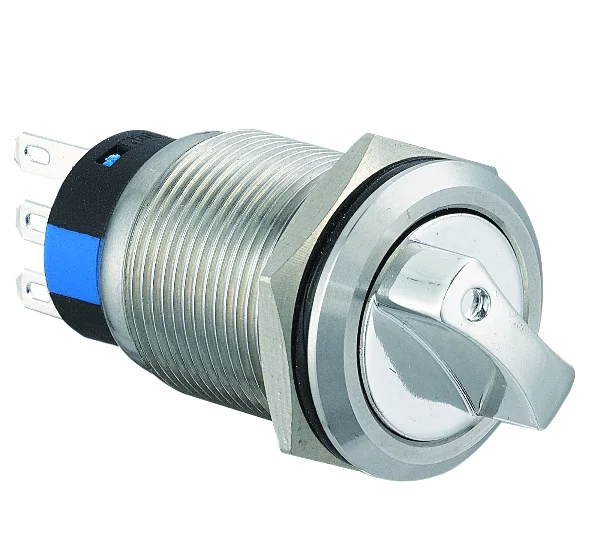

LA38-22X3/10E 19mm stainless steel 3 position selector button switch
LA38-*0E(F)series metal buttons with complete functions, all metal shell, metal keys, can fully meet the needs of domestic and foreign numerical control, program device,electronic and electrical control, widely used in voltage 220V and below,DC or AC 50Hz machine tool, textile, shipbuilding, aviation, automobile, tobacco, electric power, telecommunications, medical equipment and other fields for control circuit, signal, interlocking and other supporting applications.
Features
-CE/RoHS
-Mounting hole size:Φ19.2mm
-Contact configuration: 1NO 1NC/2NO 2NC
-Can be equipped with international universal socket (2.8×0.5mm) connection
Product Specification
Product Name | stainless steel 3 position selector button switch | ||||||||||
Product Type | LA38-#X3/10E (# means contact code) | ||||||||||
Contact code meaning | 11: 1NO+1NC 22: 2NO+2NC | ||||||||||
Products Standard | GB/T14048.5 | ||||||||||
Operation Condition | Altitude height | Environment temperature | Storage temperature | Relative humidity | Pollution class | Install type | |||||
≤2000m | -25℃～+55℃ | -40℃~+70℃ | ≤90% | 3 | Ⅲ | ||||||
Main technical index | Common Parameter | Rated insulated Voltage | AC 250V | ||||||||
Insulated resistance | ≥1000MΩ | ||||||||||
Protection grade | IP40 | ||||||||||
Power frequency withstand voltage | 1.89KV/5S | ||||||||||
Work Frequency | 50Hz | ||||||||||
Switch Prameter | Rated thermal current Ith | 5A | |||||||||
Contact resistance | ≤50mΩ | ||||||||||
Rated working Voltage /Current | AC-15 | DC-13 | |||||||||
220V/0.5A | 220V/0.1 A | ||||||||||
110V/1A | 110V/0.2A | ||||||||||
24V/3A | 24V/0.7A | ||||||||||
Electrical life | 100,000 times | ||||||||||
Mechanical life | 500,000 times | ||||||||||

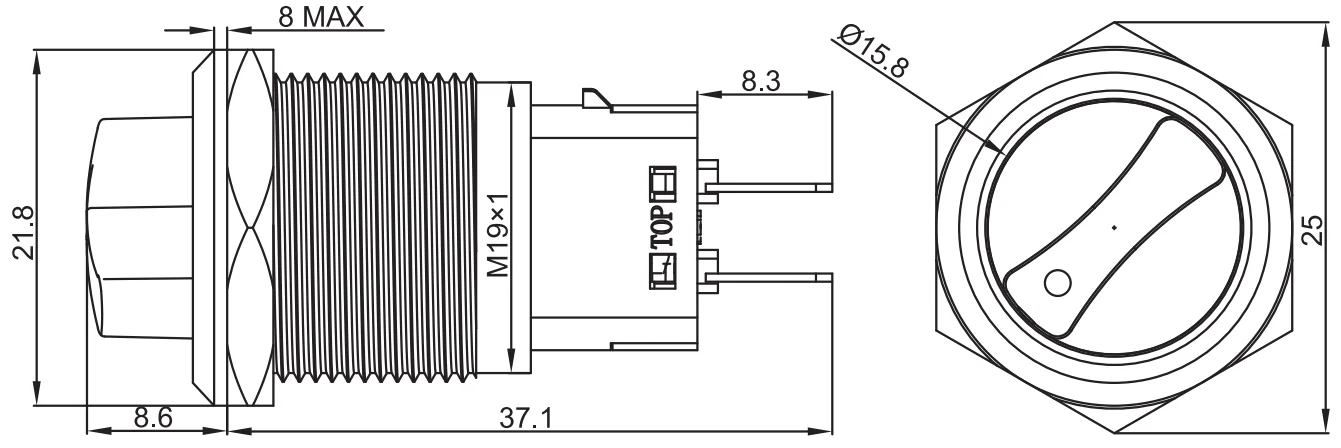

Outline drawing of button(mm)

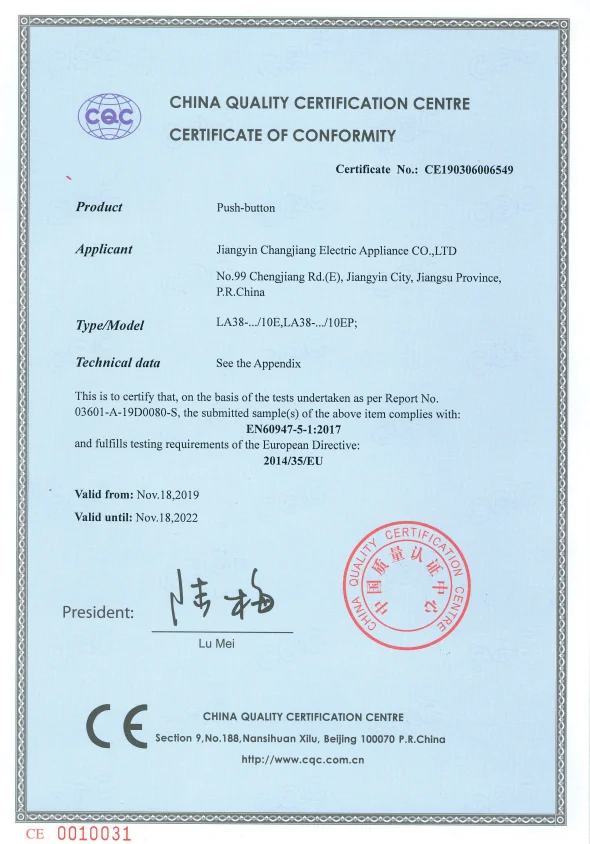

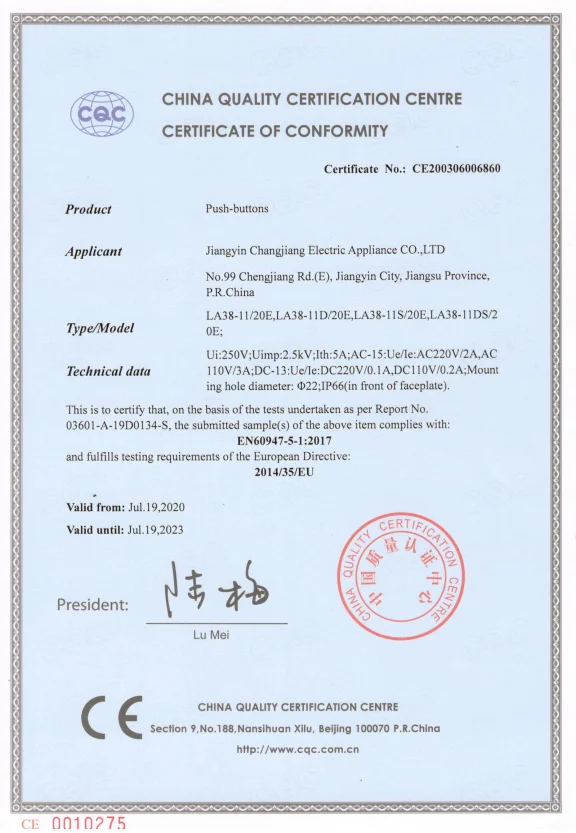

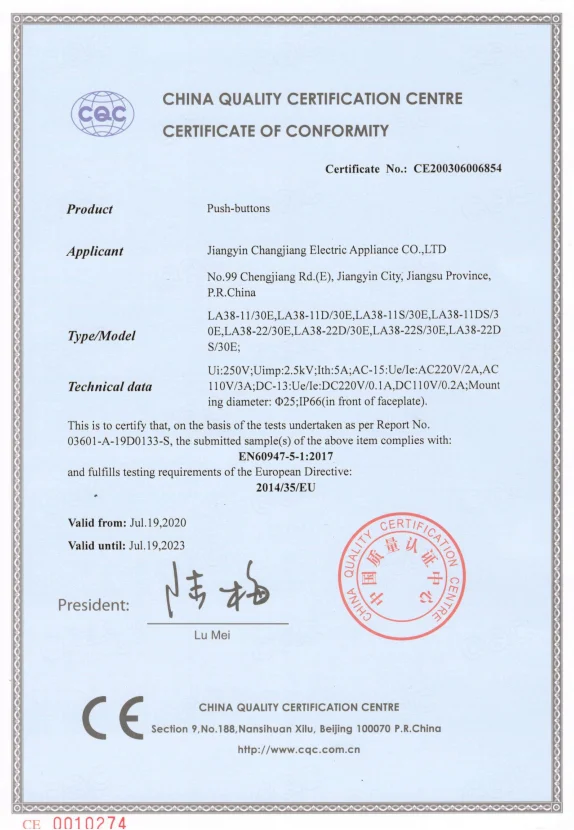

Certifications
Successful Application
Our Company
Company Headquarter
Jiangyin Changjiang Electric Appliance Co., Ltd has become a leading manufacturer of low-voltage electrical appliances and lighting of construction machinery. Our products are widely used in power, machinery, industrial control, elevator, communication, rail transit, new energy and construction machinery. Its novel design and reliable product features have won the unanimous favor of the majority of users.
Workshop
The facotry of Jiangyin Changjiang Electric Appliance covers an area of more than 6,000 square meters,and has several production lines,including signal lamp line,push button line,cam chang-over switch line,transformer line and electrical line.There are 30 excellent R&D staff in technology center and 300 workers in production workshop.Professional design and inspection support our products in best quality and in shortest delivery time.
Product Packaging
Different box size
Professional packaging

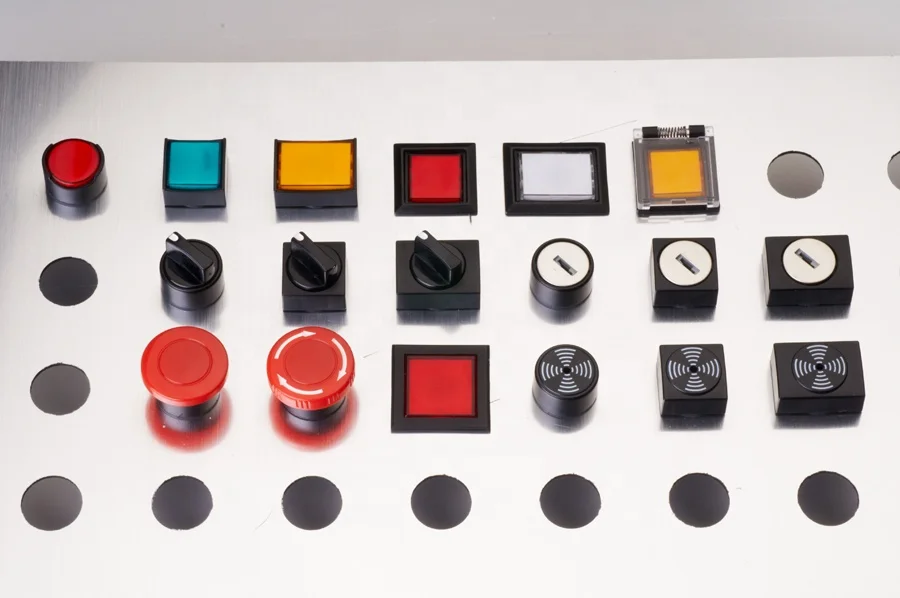

Related Products
