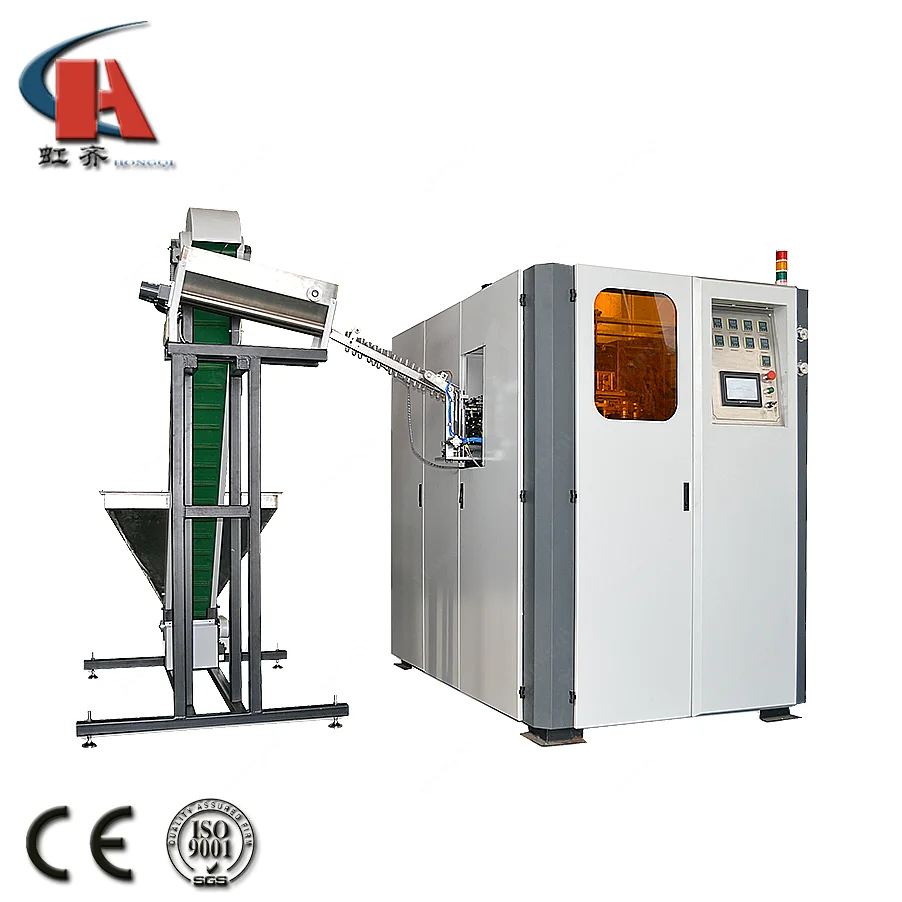

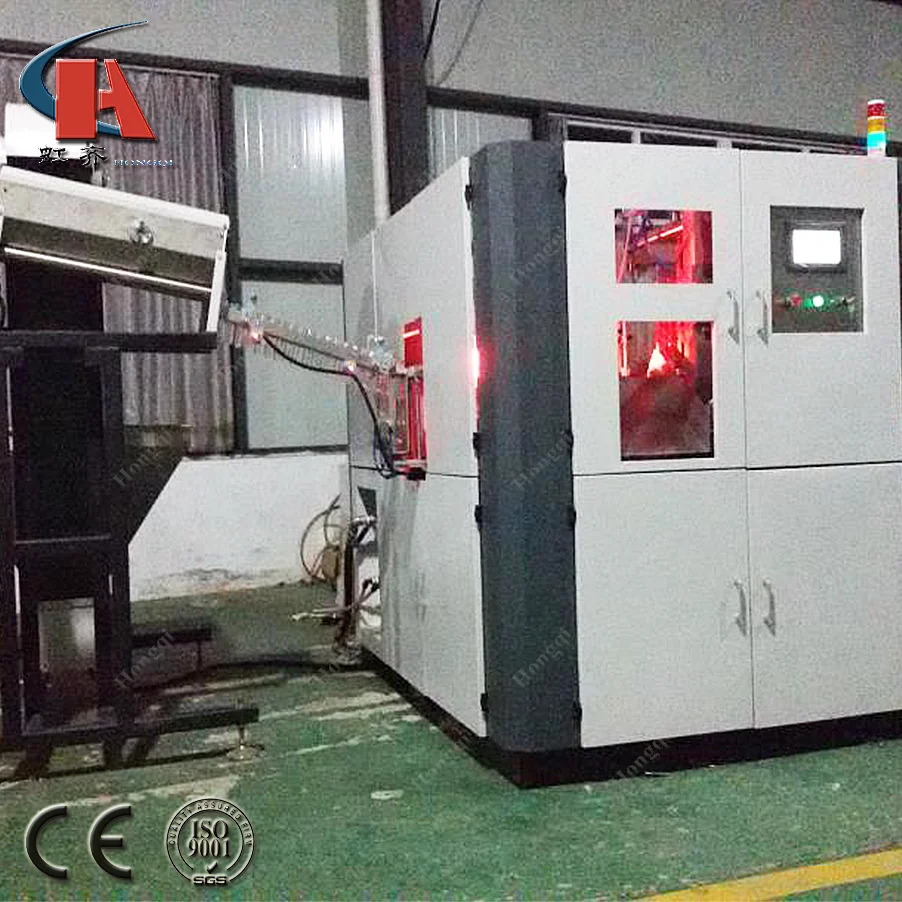

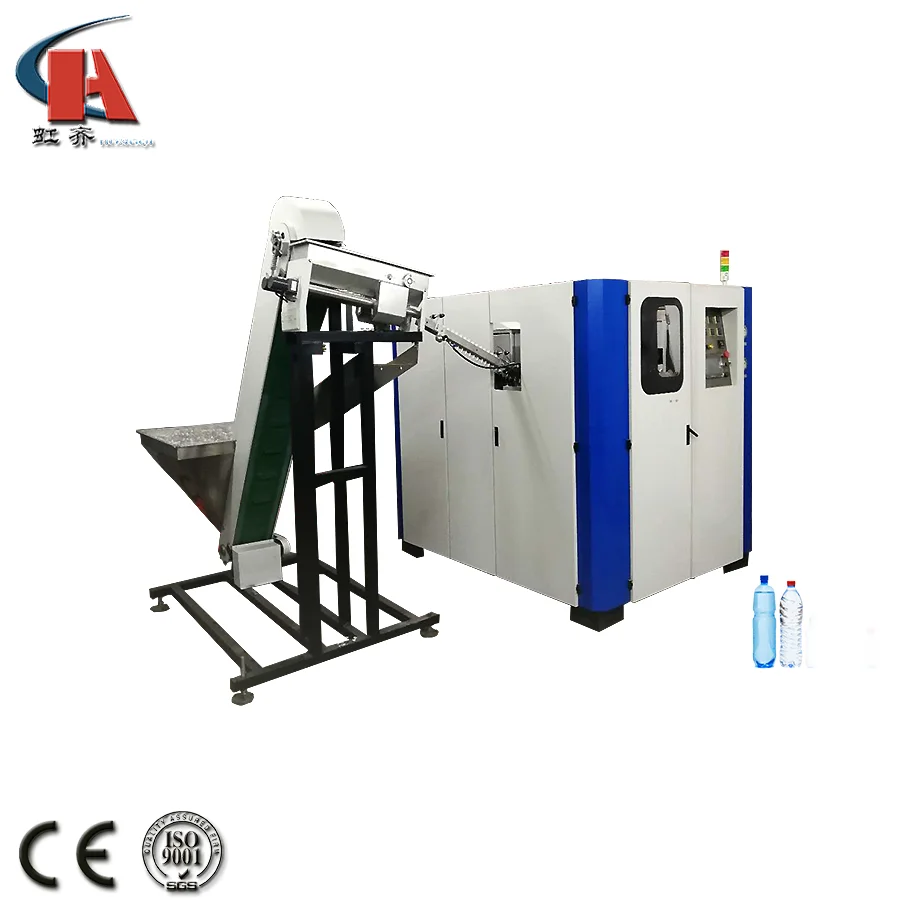

Machine name: Fully automatic 1-2 cavity PET bottle blowing machine
Prefrom material : PET,
Bottle volume:0.1L-5L

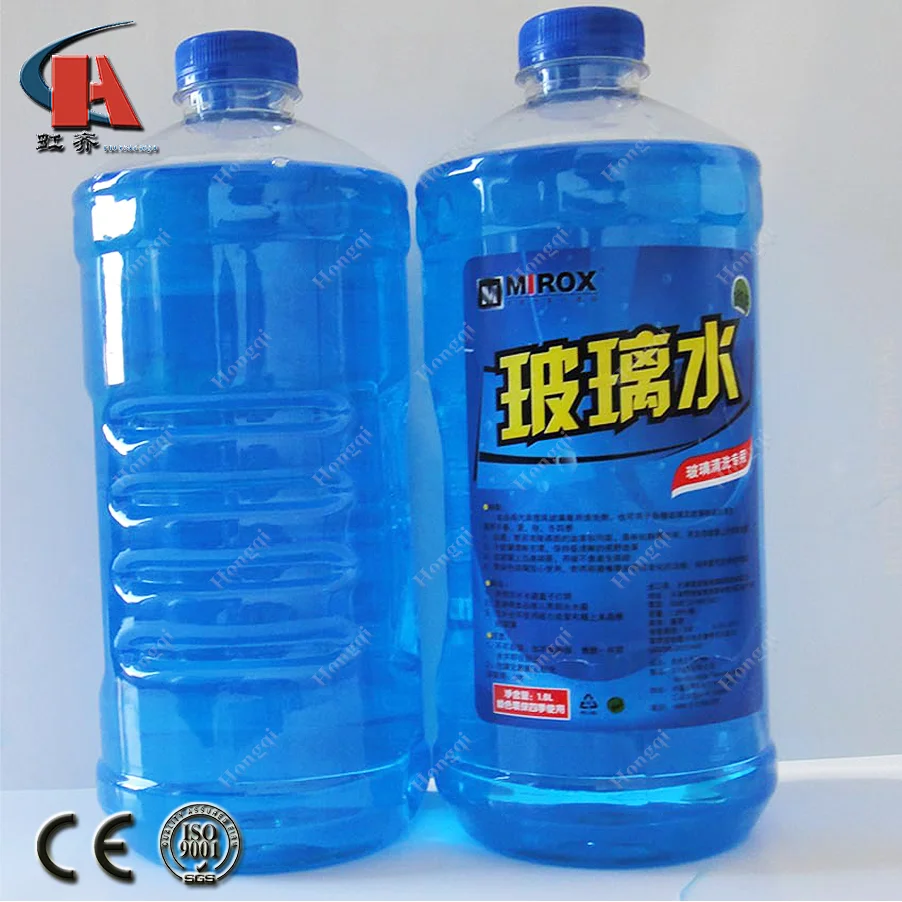

Product: PET bottle, Plastic bottle ,
Producing capacity: 500-1000Bottles per hour based on 500ml
Technical Parameter
Model
HQ-5L-750
HQ2-5L-1500
CONTAINER
Number of cavity
cavities
1
2
Output
BPH
500-600
1000-1200
Max Container Volume
L
12-38
12-38
Max Neck Diameter
mm
12-38
12-38
Max Container Diameter
mm
180
180
Max Container Height
mm
350
350
ELECTRICAL SYSTEM
Number of Lamp
pcs
24
48
Max Heating Power
Kw
36
62
Installation Power
Kw
36
62
Actual Power Consuming
Kw
20
32
MACHINE
Machine Dimension
m
3.25*1.65*1.8
4.2*1.8*1.9
Machine Weight
T
2.2
3.4
Product Description
HQ-L Fully automatic PET bottle blowing machine is the most stable two step blow down equipment of our factory, from one cavity to six cavity and can blow bottles of different capacity, from 0.1 L to 5 L, used for the production of PET/PP bottles of various shapes, such as mineral water bottle, cosmetic bottle, beveage bottles, cooking oils bottles, pesticide bottles, hot-filling bottles and other plastic containers. The Automatic PET bottle blowing machine shows the advantage of power saving, low defective rate, high speed, stability and easy operation.
Feature
1. Have the function of auto alarm, auto problem checking and judgement.
2. This automatic bottle making machine can install many different kinds of blowing craft parameter, when changing different mould and perform, can readjust the statistics from computer,easy operation.

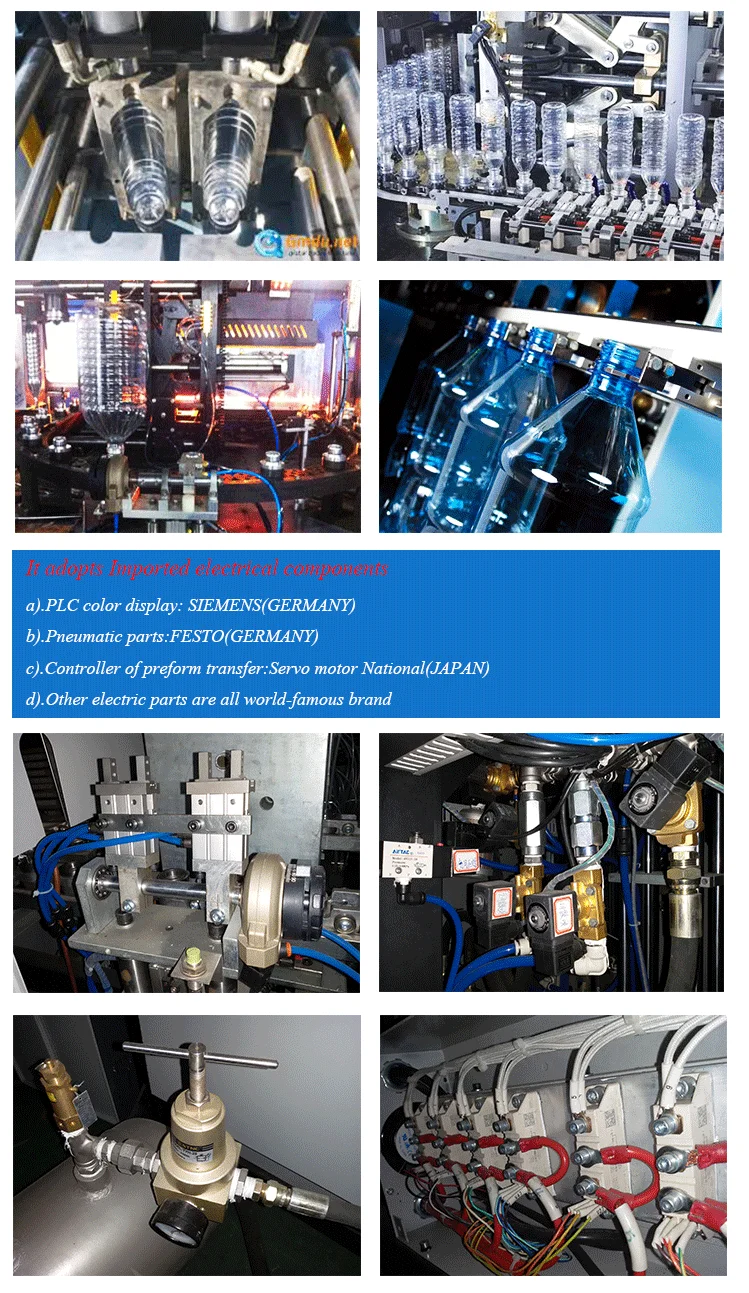

3. Adopts Germany, Japan, Taiwan pneumatic components, ensure the machine with low problem .
4. The blowing machine have the characteristics of high sensitivity, fast speed switch ,low problem,stable and safety operation. The whole machine adopts standard Anti vibration structure, can reduce the vibration to the lowest when high speed operation,enrich the life of spare parts
5. Air passage design the action and blowing air with two parts, to ensure the different action with different pressure when blowing bottles.
6. The automatic blowing machine adopts double crank shaft, main connecting rod linkage with strong clamping force, have the function of mould close boost pressure when high pressure blowing bottles, the action stable and reliable.
7. The moving parts of opening and closing mold of the automatic blowing machine adopts high speed inline guide track, have the characteristics of high durable, high speed no shaking when opening and closing mold.

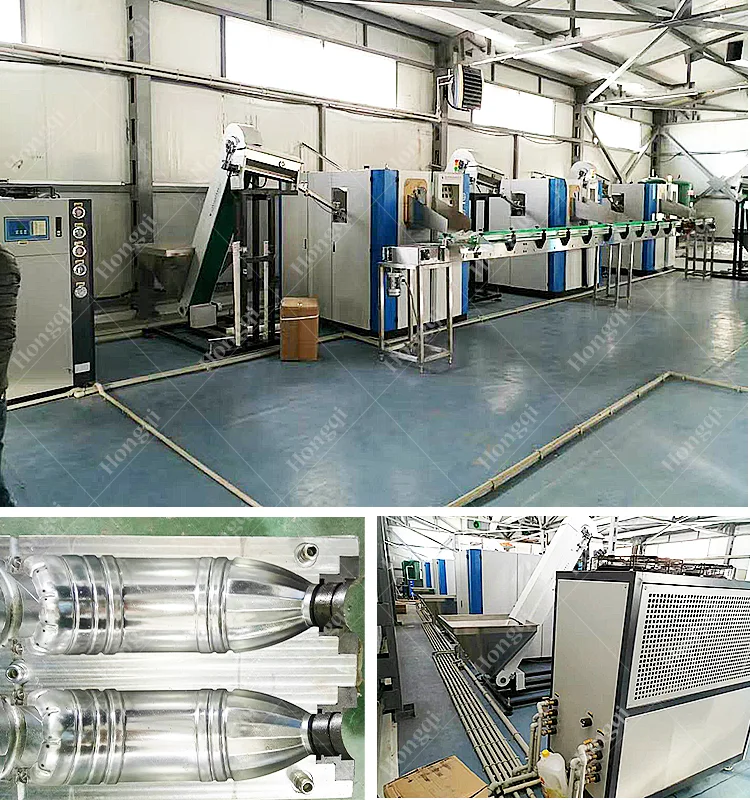

Accessories
The Function Of The Auxiliary
High Pressure Air Compressure: The air in a free state is compressed into a clean and odorless high-pressure gas, and the preform is blown at a high speed, and the preform is formed into a bottle.
Low Pressure Air Compressure : Pre-blowing and low-pressure blowing, and blowing with high pressure to ensure one-time bottle forming rate.
Chiller: Rapidly cool the water, cool the mold of the blow molding machine, protect the mold of the blow molding machine, and simultaneously cool the product quickly, improve the product and quality.
Dryer : The main function is to filter out the oil, water, impurities and other wastes contained in the compressed air and work with the dryer.
COMPONENT LIST
NO
Name
Model
Brand
Country of Origin
1
High pressure valve
321H-35-2995
Paker
America
2
Low pressure valve
7321BAN00-DC24V
Paker
America
3
Check valve
9C800S
Paker
America
4
Action solenoid valve
AirTAC
Taiwan
5
Host Power
NES-200-24V
MEANWELL
Taiwan
6
PLC
FX1N-60MR
Mitsubish
Japan
7
Touch screen
TK6070IH
WEINVIEW
Taiwan
8
Standard Cylinder
SC100X135-S
AirTAC
Taiwan
9
Thin cylinder
SDAS25X43-B
AirTAC
Taiwan
10
Pneumatic processing elements
GR20008-F1
AirTAC
Taiwan
11
Swing cylinders
DSR-25-180-P
FESTO
Germany
12
Quick exhaust valve
SEU-3/8
FESTO
Germany
13
Proximity Sensor
Autonics
Korea
14
Photoelectric switch
OPTEX
Japan
15
Module
SEMIKRON
Germany
16
Ruby lamp
CR30-15DN
HAICHUANG
China
(This is just the general configuration of our machine, we can replace the higher configuration according to customer needs.)
All the products are sold well both at home and aboard. We've exported to more than 20 countries, and built stable business relationships with foreign customers.
Related Product
Our Services
Sample
Before starting to manufacture the machine it is neccessory for us to get the bottles samples according to which we can design the preform and bottles mold. The shape of the PET bottles can be various according to client. We can help to sculpt the bottles and confirm with client before making bottle moulds.
Check and Test
When finished the machine ,you can come to your factory to check the machine,and we also can send the checking video to you if you do not plan to our factory
Installation Services Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Traning Services We can train your staff to use our machine properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
After Sales Service We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period and lifelong technical support!

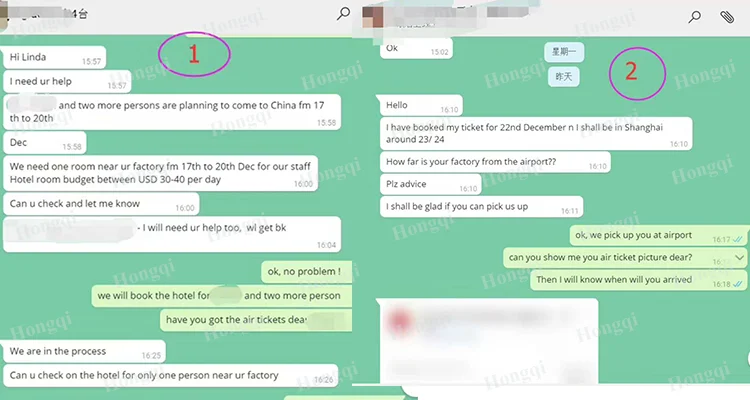

Buyer Feedback
FAQ
Q: How long need to ship the machines after order A: All machines can be ready and shipped in 20-60 days after order!
Q: What's the payment you prefer? A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.
Q:Why should you choose our bottle blowing machine and liquid production line ? A:We have been specialized in filling and bottling machine for more than20 years,and until now have exported mahcines to more than 180 countries.
Q:Can you provide after-sale service ? A:Yes ,sure.We have engineers available to service overseas .one year global guarantee and life- long technical support.
Q:Can i visit your factory and send team for learning and inspect ? A: Yes,sure.We will do our best to teaching you how to use the machine.welcome to visit our factory!
Q:What is our advantages? A: 1.Competitive price 2. Excellent technical support 3.Best service
