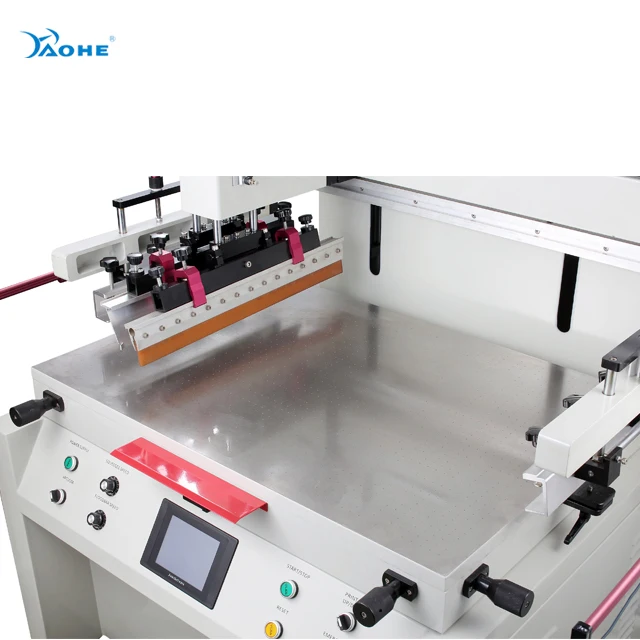

Industrial Vertical Flat Screen Printer Flatbed Silk Screen Printing Machine
Product Description
Specification:

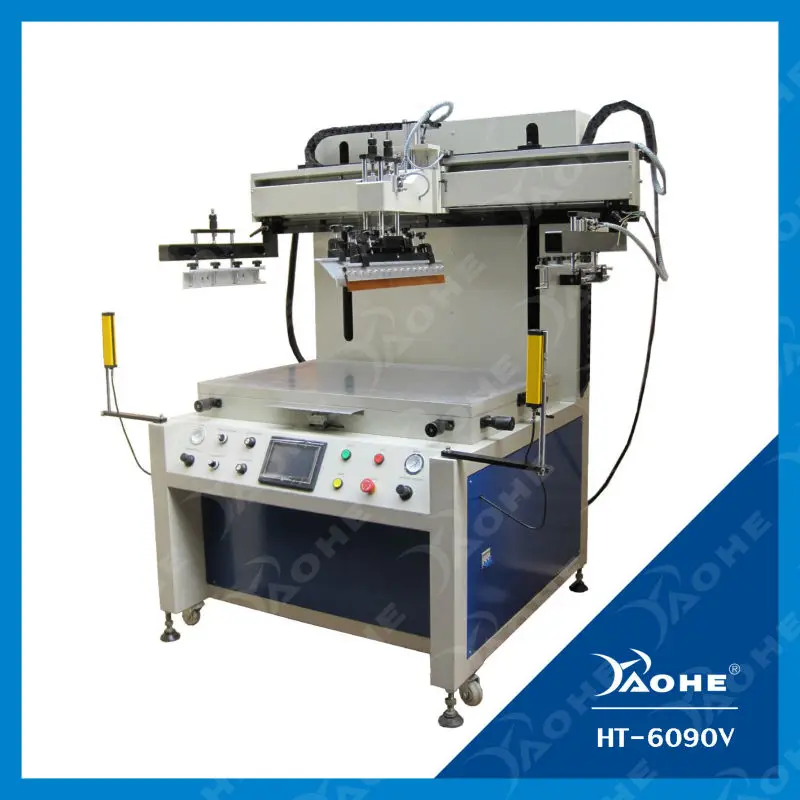

| Model No. | HT-6090V |
| Drive System | Electric AC motor |
| Control system | OMRON PLC,WEINVIEW touch screen |
| Max.printing area | 600*900mm |
| Worktable size | 700*1000mm |
| Vacuum Table Dimension | 600*900mm |
| Max.screen frame size | 800*1300mm |
| Screen frame thickness | 20-50mm |
| Prinitng capacity | 660cycles/hr |
| Max.print heigt | 180mm |
| Left/Right Stroke | 900mm |
| Up/Down Stroke | 200mm |
| Registration Accuracy Tolerance | ≤0.05 mm |
| Squeegee Pressure | 2 - 4 Bar |
| Voltage | 240-380V 60-50Hz 3phase |
| Air Pressure Input | 4-6 Bar |
| Machine Weight | 490 kg |
| Gross weight | 600kg |
| Dimensions (L x W x H) | 1500x1100x1700 mm |
Standard Features:
1. Vertical structure, Compact & space-saving. PLC control, easy operation and good stability.
2. Special cushion cylinder installed on the left/ right buffer gear

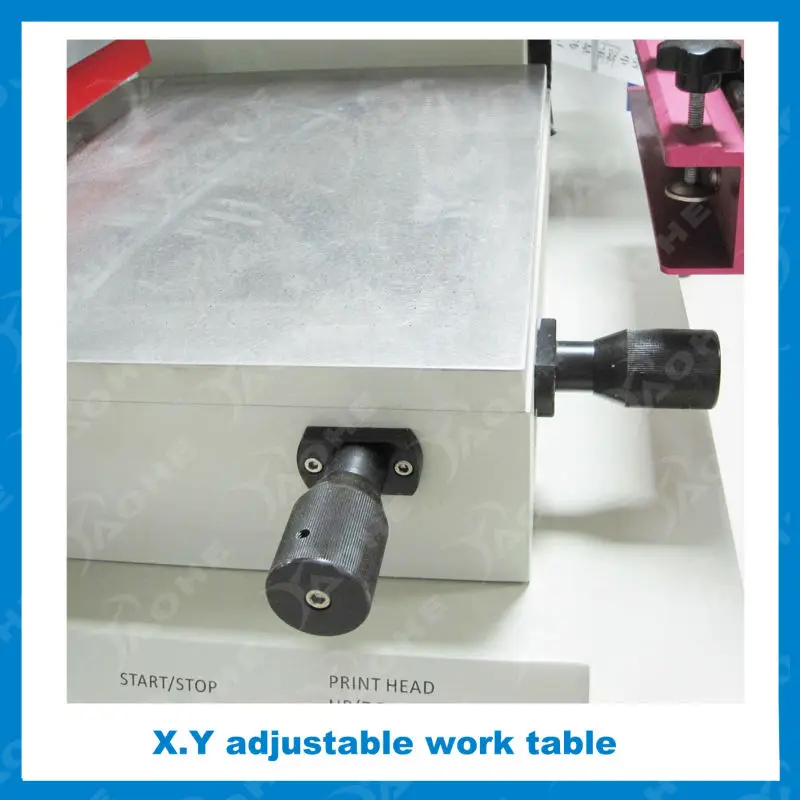

3.Printing angle/ printing pressure and spacing between screen frame and table are adjustable

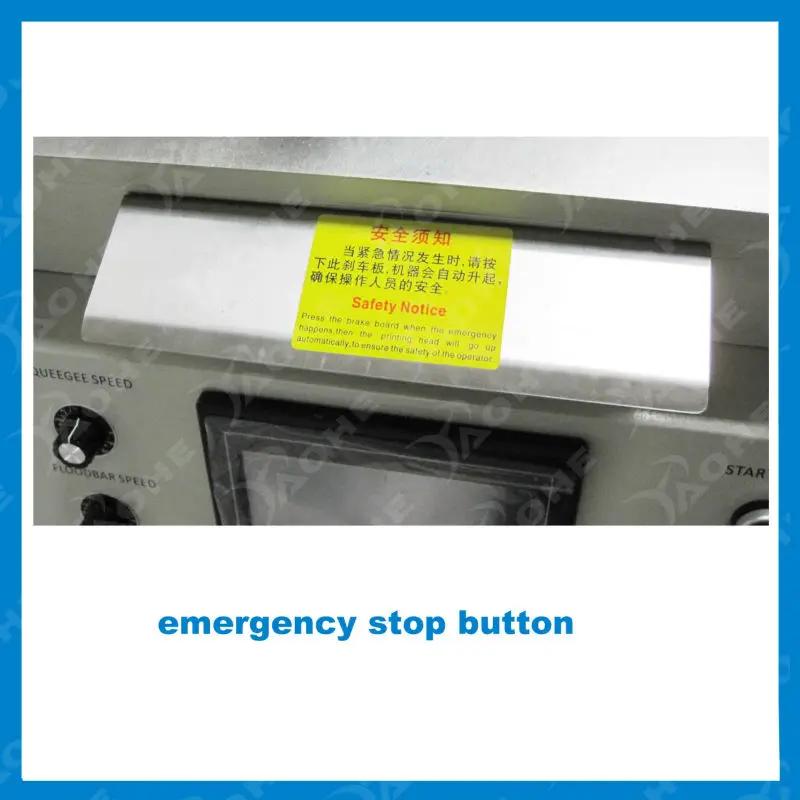

4.Reliable safety device is installed according to CE standard

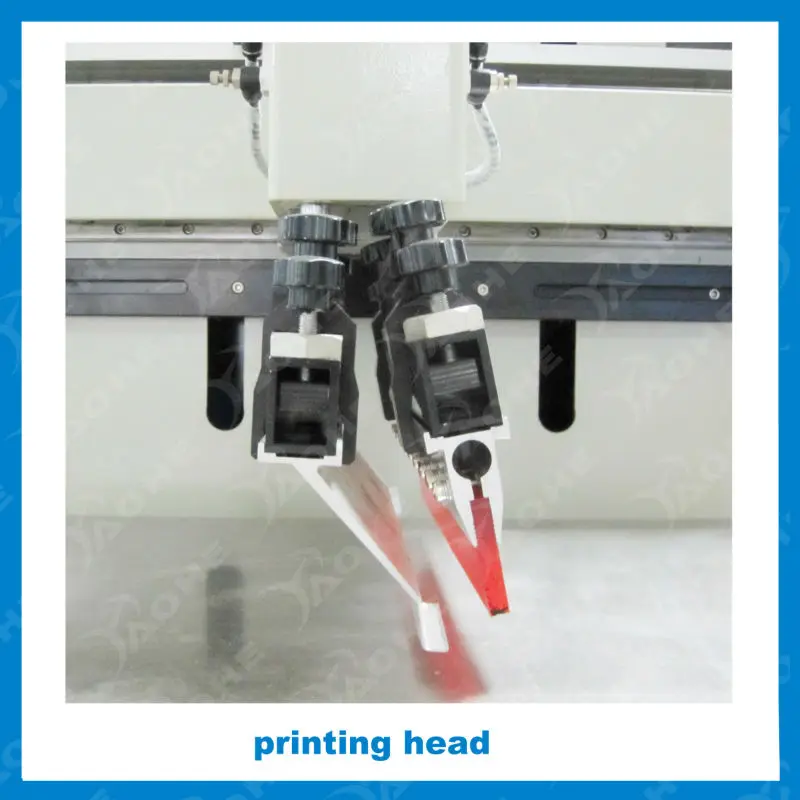

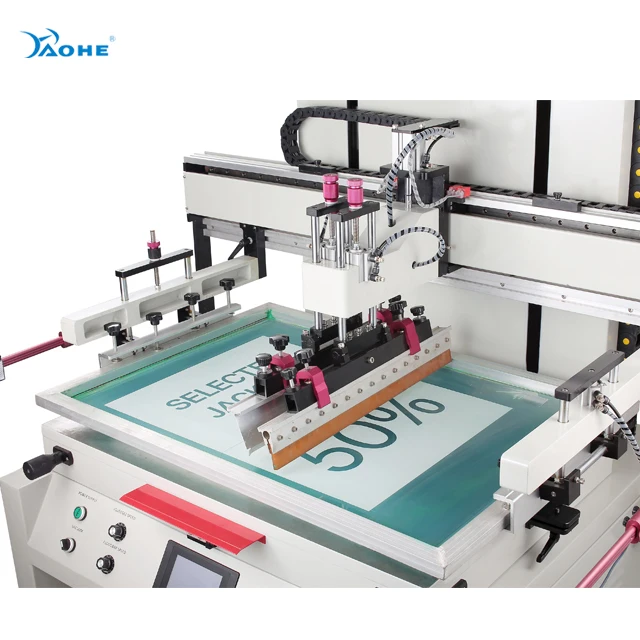

Machine Pictures
Flat Screen Printing Machine of Application:
Suitable for high-precision printing on any smooth flat surface of various materials such as metal, plastic, ceramic, glass, wood etc.
Be widely used in photoelectricity display, micro-electronic industry, advertising, packing & printing, sports equipment, toy, stationery, gifts, industrial arts fields etc.
customer visiting
Company Information
1. we are manufacturer in this area for more than 15 years, with strong design and service team.
2. precisely machining and production.
3. Experienced and Professional installation.
