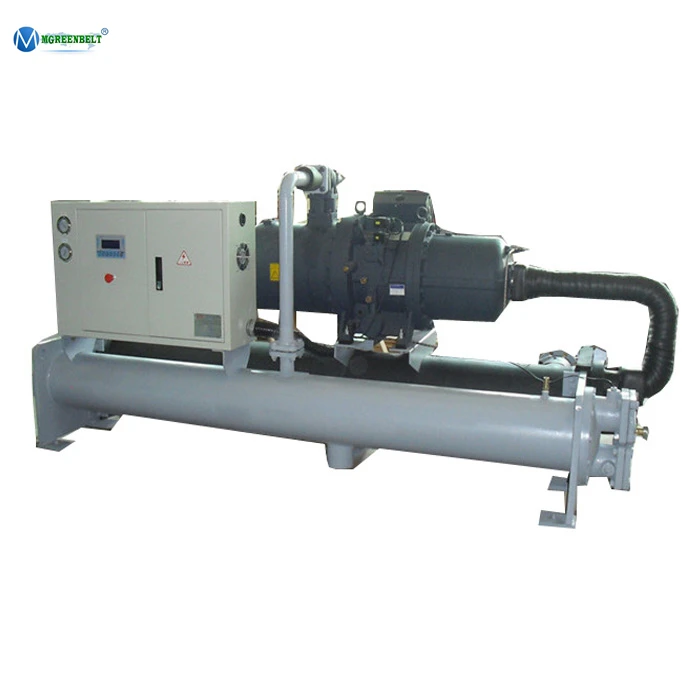

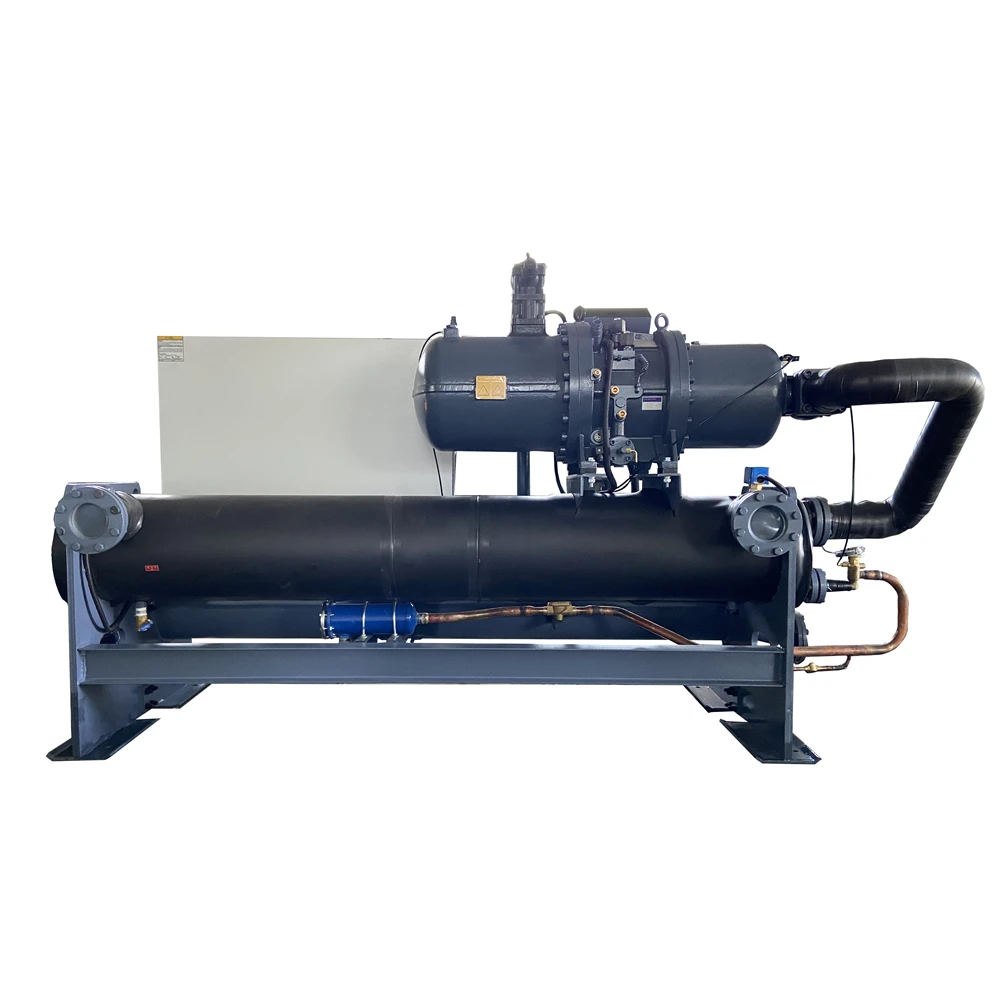

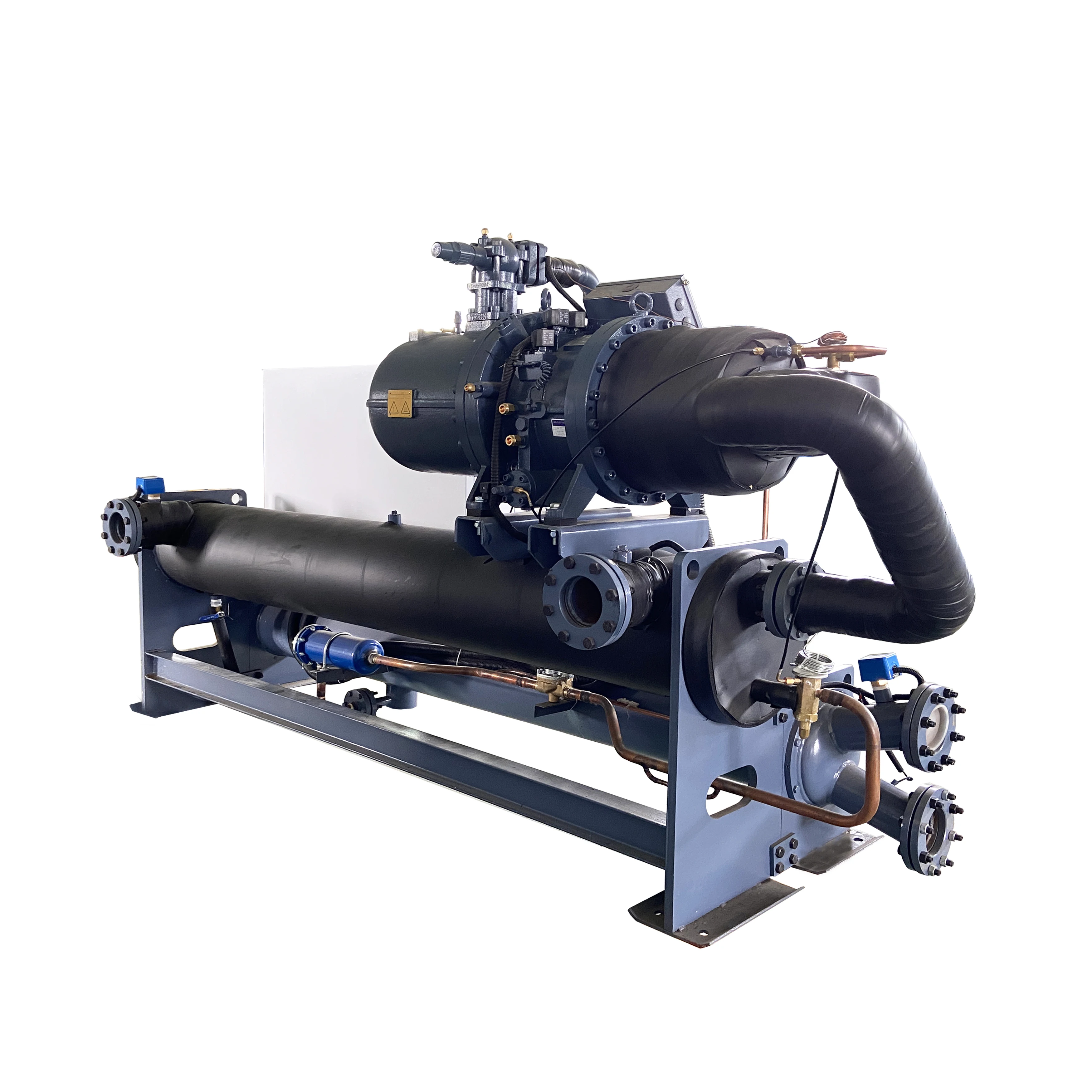

Single / Two Compressor 50 Ton Industrial Water Cooled Screw Chiller

Features:

• Shell and tube evaporator and condenser, high efficient thread red copper tube (material change on request).
• Siemens PLC control, LCD touch screen interface, easy operation, Standard design charged.
• R22, CFC free R407c, R134a for option.
380V-415V-480V/50/60HZ, 3PH for standard design. Chiller unit can be supplied according to diffierent requirements.

Advanced Compressor:

• Unit adopts Germany BITZER or Taiwan HANBELL brand semi-hermetic screw compressor. The latest 5 to 6 patented screw rotor profile with excellent efficiency for energy saving purpose
• Adjustable infinite or closely stepped capacity control, features energy efficient, stable and quiet running.
• Most advanced patented highest precision manufacturing process.
• Built-in full intelligent monitoring and protection including thermal motor temperature monitoring, phase sequence monitoring, manual reset lock-out, oil temperature sensor.
Microcomputer Control System:
• Industrial PLC centralized control combined with compressor capacity control system, precisely monitor.
• Integrated protection for low temperature, high/low pressure, anti-freezing, phase missing, anti-phase, overload, motor over temperature, oil differential, flow switch, start up latency.
• Optional operation language, menu leading, unit running state easy to adjust.
• Easy Installation, Reliable Running

\t
Single / Two Compressor 50 Ton Industrial Water Cooled Screw Chiller Parameter
\t
Model
\t
MG-180WS
\t
MG-220WS
\t
MG-240WS
\t
Cooling capacity
\t
50.3Tons
\t
62.3 Tons
\t
67.1 Tons
\t
177 kw
\t
219Kw
\t
236 kw
\t
Power supply
\t
3 Phase -220V/380/415/440V/400V/460V/480V-50HZ/ 60HZ
\t
Refrigerant
\t
R22 / R407c / R410a /R134a /R404a
\t
Compressor Power
\t
42kw
\t
54 kw
\t
57.5 kw
\t
Compressor type
\t
Semi-hermetic screw
\t
Chilled water flow( m3/h)
\t
30.3
\t
37.5
\t
40.5
\t
Inlet / Outlet Dia
\t
DN 80
\t
DN 80
\t
DN 80
\t
Cooling water need(m3/h)
\t
41.3
\t
51.5
\t
55.3
\t
Protection System
\t
Compressor overheat protection, High/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection
\t
Dimension(mm)
\t
2500*750*1500
\t
2800*800*1500
\t
2800*800*1500
\t
Weight (kg)
\t
975
\t
1000
\t
1150

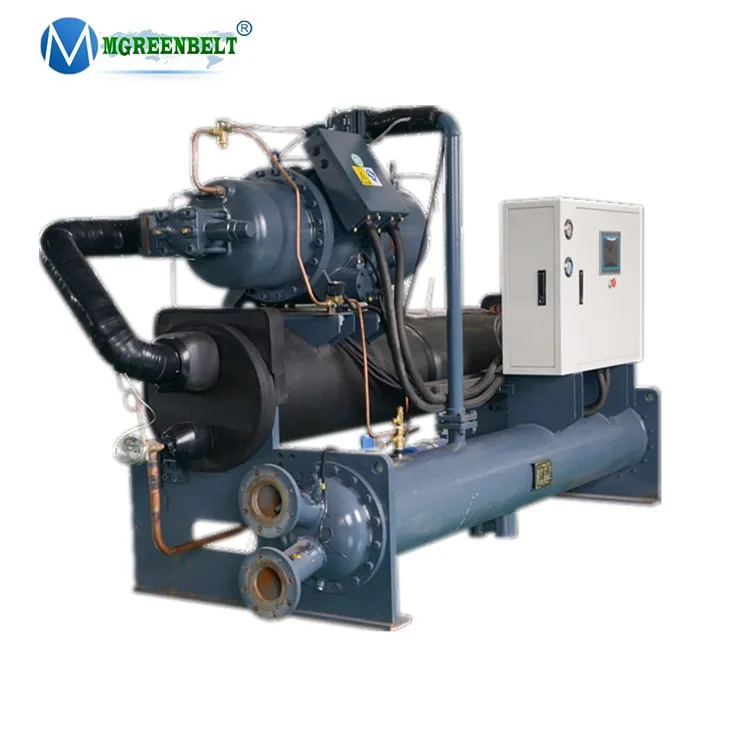

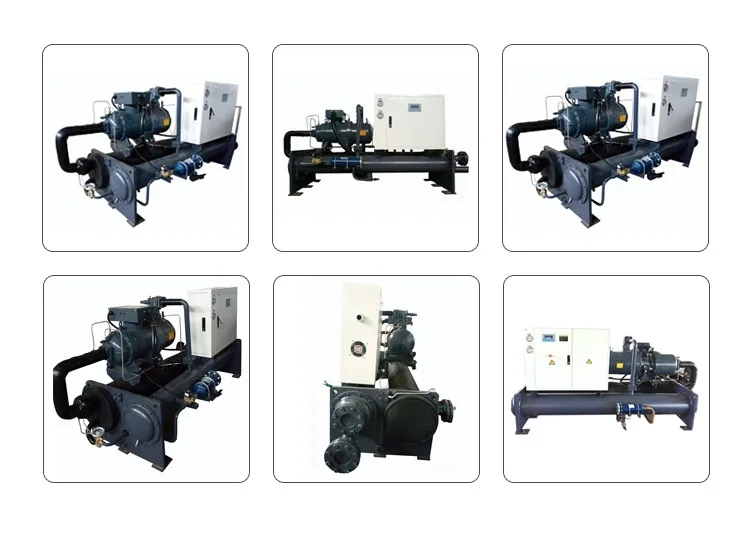

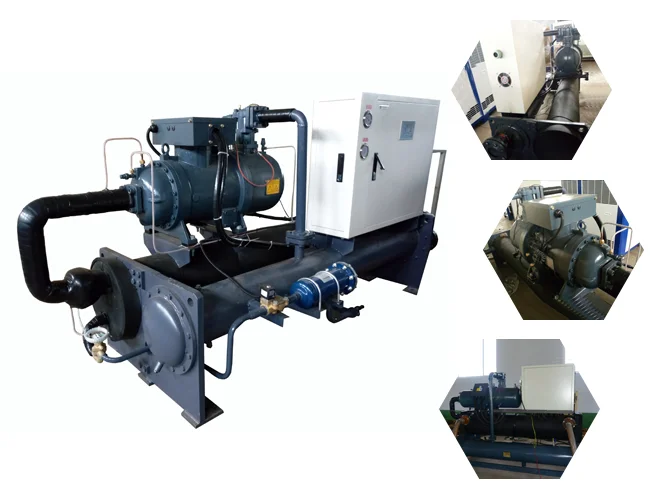

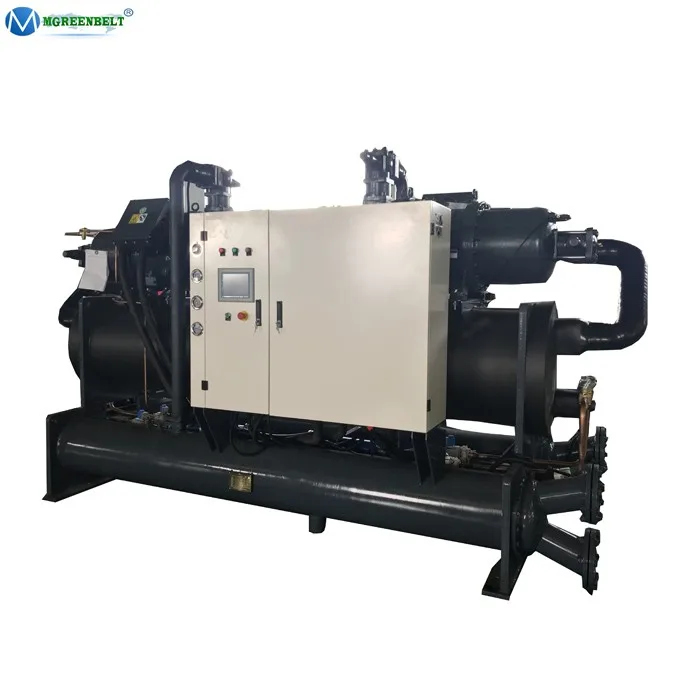

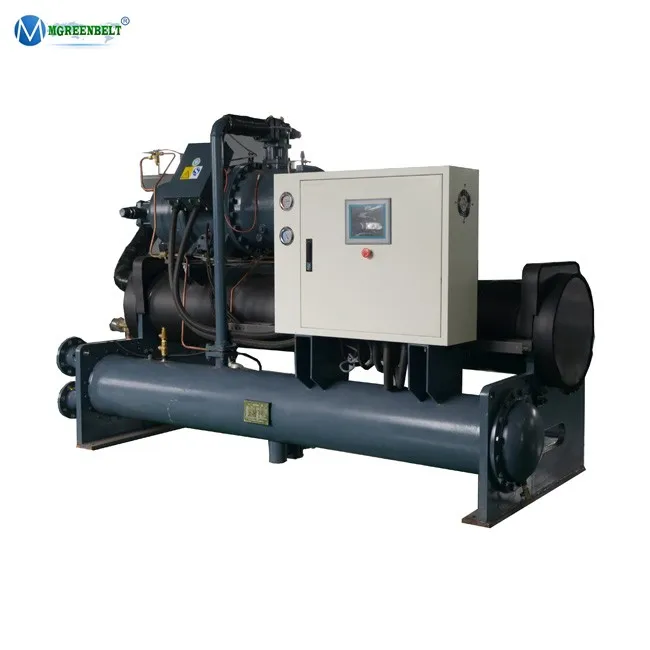

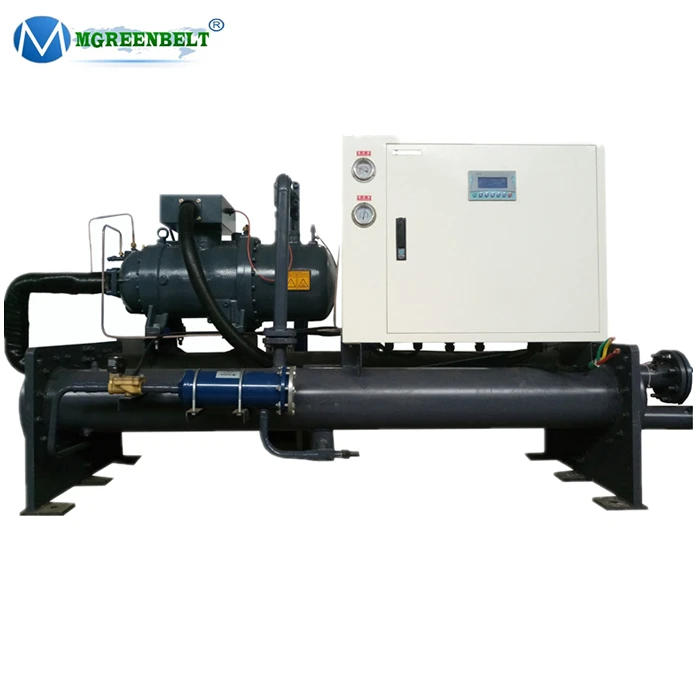

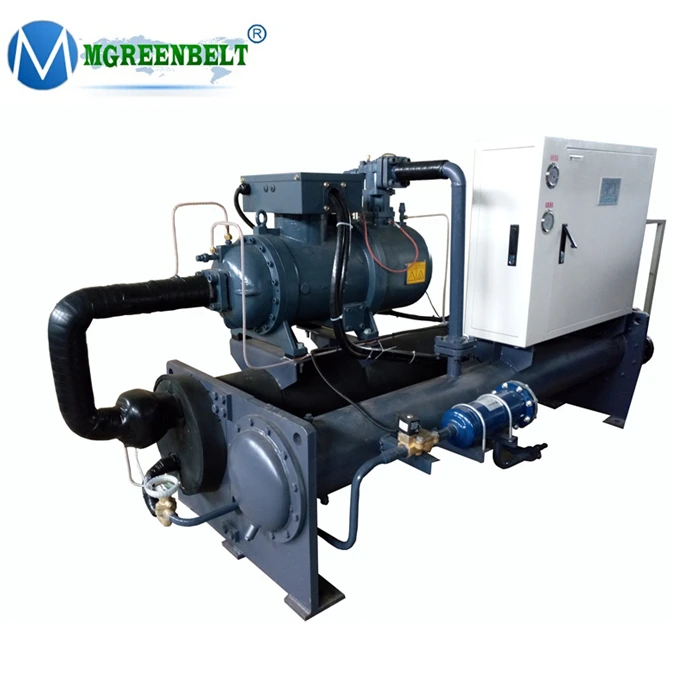

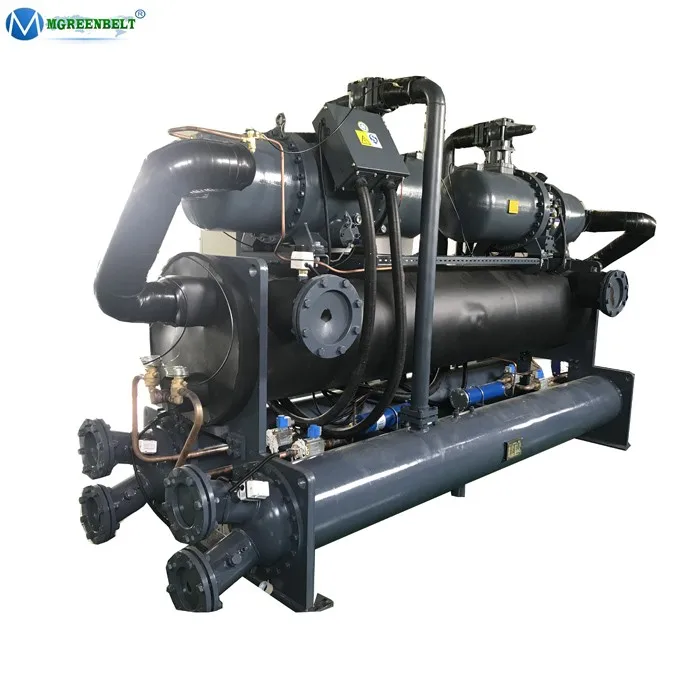

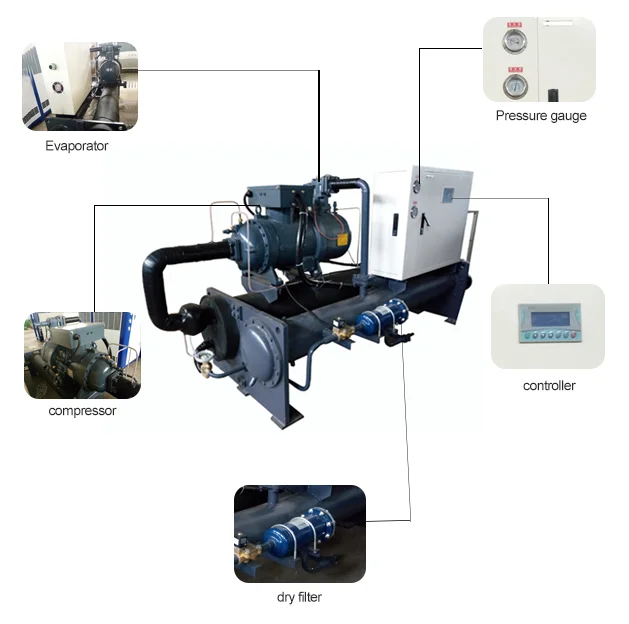

Detailed Images
Application

Industrial water chiller can be used in cooling processes like mold in plastics industry, plating solutions in electroplating industry, electronic industry, chemical industry, pharmaceutical industry, food industry, fresh-keeping industry and cooling system in air-conditioners.
Besides, they can also be used in laser, chemical industry, electroplating oxidation, precise machinery, printing ink, printing, medical equipment, injection molding, blister, food, refrigeration, boiler roller interlining, electronic circuit board industry; or wave soldering and reflow soldering, space of purification treatment, hardware, ultrasonic cleaning, heating or cooling bath, medical storage, welding,bottle blowing, casting, surface treatment, paper making, aluminum, grass crafts, jewelry processing, leather, aquaculture etc.

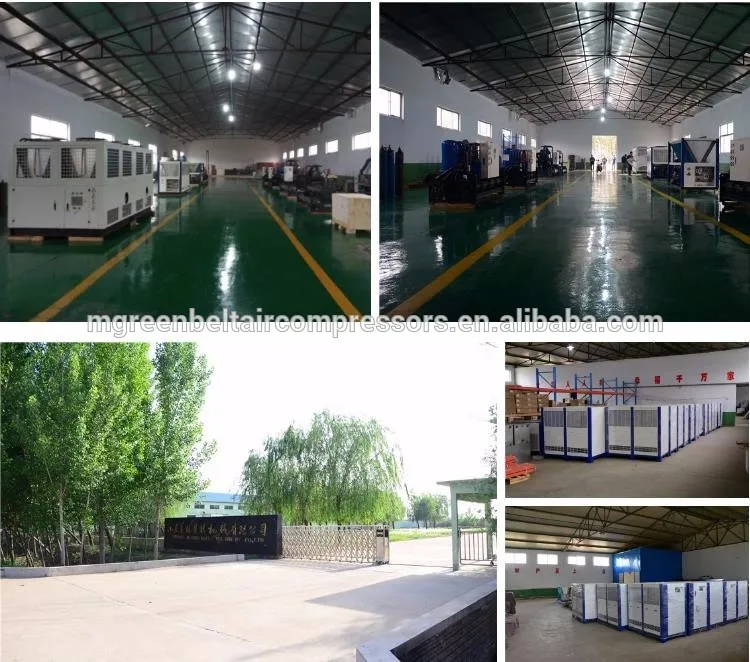

Our Company
