smart electric garment hanger rack

Product Overview

Description

Product Description

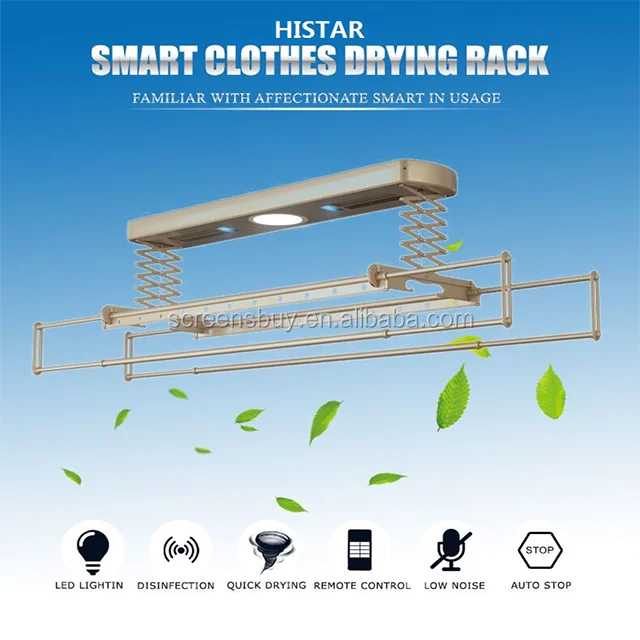

This product is mainly used for drying clothes, costumes, garments, sheets at home. Its innovative design, multi-function, stable performance, the selection of environmental-friendly materials, exquisite workmanship along with its high-end positioning have all made it one of the most ideal smart electric clothes dryers currently in the market.



In addition to the function of controlling rising or falling and lighting by remote, this intelligent electric clothes dryer also has the following unique functions:



1.Wireless remote control:

It can be controlled by using the wireless remote control within a distance of 30 meters.

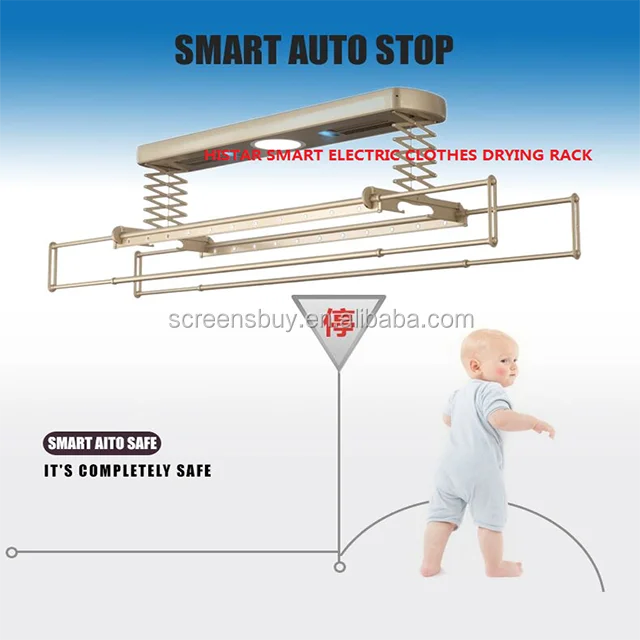

2.Overload protection:

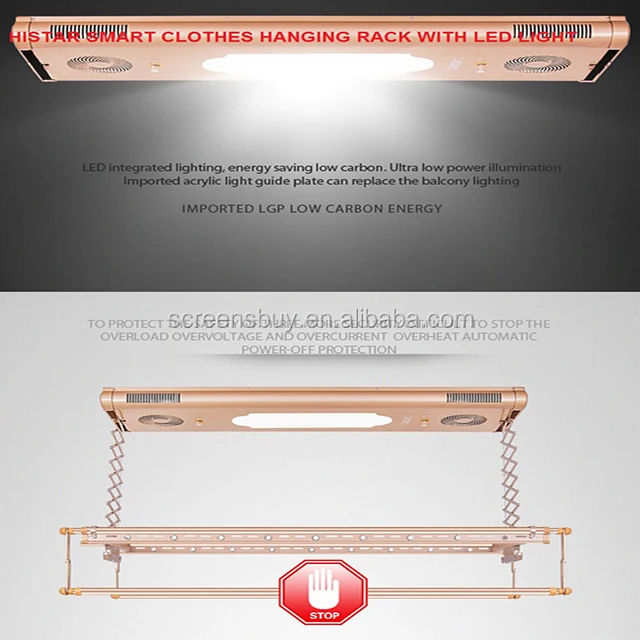

When the pole of the rack encounters obstacles while rising or it is overloaded (No more than 35kg), the controlling system will automatically detect the overload and automatically stop working to protect the engine and also to protect the wire rope from breaking up so as to ensure the safety.

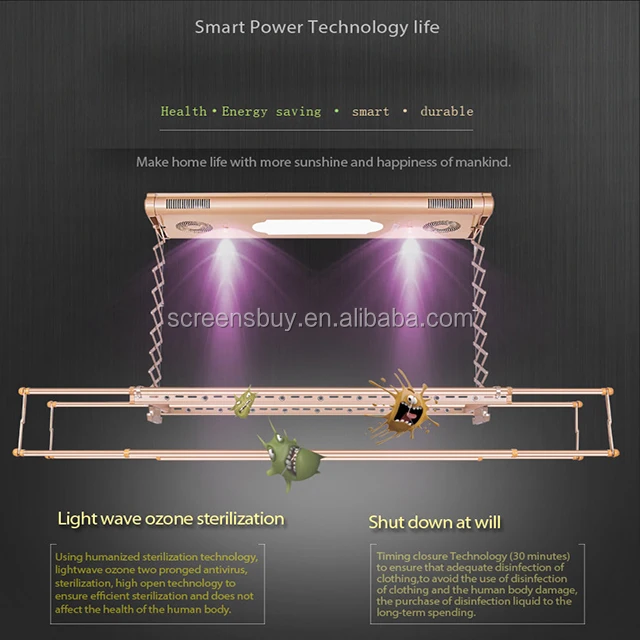

3.UV disinfection and sterilization function (Only for disinfection and sterilization models):

When you start UV disinfection function and set it working for 30 minutes and it will kill bacteria in an environmental-friendly and energy-conserving way, thus avoiding possible damage to clothes fibers.

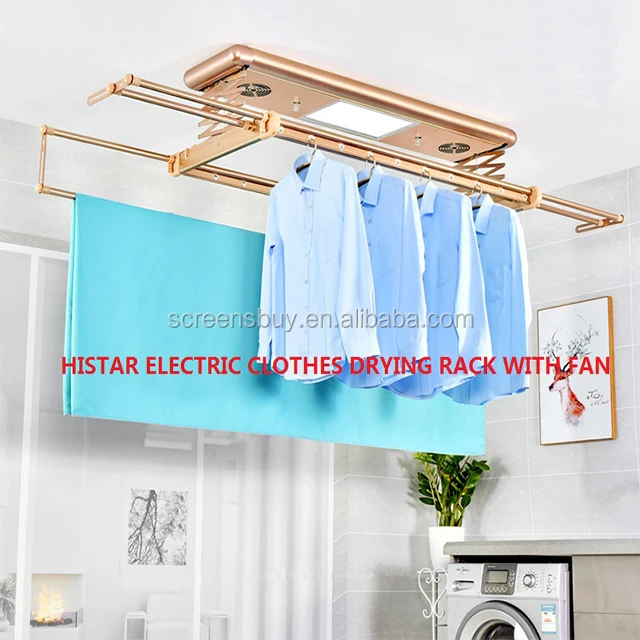

4.The timing air drying and drying function (Only limited to air drying and drying models):

On rainy days when air humidity is relatively high, start the air drying function to increase the mobility of the wind so that clothes can be dried much quickly. Set the working time for 3 hours and it will shut down automatically by that time. In this way, it will be more energy-saving and easy to be operated.



Packaging & Delivery

Selling Units:

Single item

Single package size:

135.5X37X18 cm

Single gross weight:

15.5-17.5 KG/PC

Package Type:

Standard paper carton

Lead Time :

Quantity(Pieces)	1 - 10	11 - 20	>20
Working Time(days)	3-5	5-8	To be negotiated



Technical data



Electric smart clothes drying rack with remote control



Product name	Smart clothes drying rack
Model	HISTAR0001
Gross weight	17.5KG
color	rose golden
motor brand	doya motor
Material	aviation aluminum
LED lighting power	15W
Hole distance	130mm
Hanging rod length	2.1M-2.4M
Packing size	1355x370x180mm
Function	lighting ,air drying ,warm drying ,sterilization
Voltage frequency	22V/50HZ
Remote distance	30M
Switch	remote control
20GP	310 set
40HQ	755 set



Ambient temperature	30 ℃ to 40 ℃
Working voltage	220V / 50Hz
Disinfection capacity	6W / 14W
Fan motor capacity	30W
Heating dryer capacity	800W
LED lighting	20W
Motor Power capacity	121W / 50W
Heavy weight capacity	35kg
High of lift	1.3 M



Operation of the remote control



1) Up and down movement: press the uplink key, the buzzer movement prompts, the clothes pole goes up. Press the down button, and the buzzer prompts the drying bar to descend. Press stop button, buzzer hint, stop movement.



2) Lighting function: press the lighting key, the buzzer prompts, and the lighting opens. Again, according to the key, the buzzer prompts the light to turn off.



3) Airing dryer: press the air dry key, the buzzer reminds, the air drying fan opens. Press the air dry button again, and the buzzer prompts the fan to turn off.



4) Heating dryer: press the Heating dry key, the buzzer reminds, the heating drying fan opens. Press the heating dry button again, and the buzzer prompts the heating to turn off., Or it can automatically stop after 30 minutes.



5) Disinfection function: press the disinfection key, the buzzer prompts, the disinfection function opens. Press the disinfection key again, the buzzer prompts, the disinfection ultraviolet lamp turns off.



6) Maximum operation time: up and down movement time in 60 seconds, disinfection time in 30 minutes, air drying time in 120 minutes, heating time in 90 minutes.

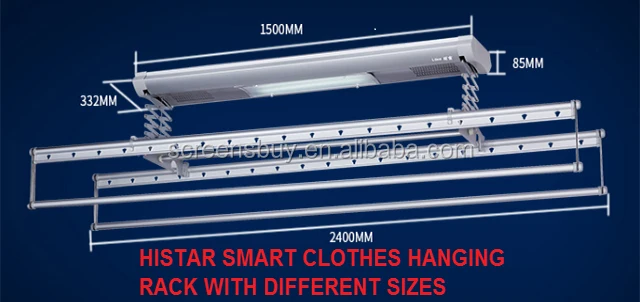

MODEL



NO.	MODEL	FUCTION	NO. OF POLE	LENGTH RACK	LENGTH OF POLE	TYPE OF POLE	COLOR
1	HSD001	ECONOMIC(LIGHTING)	2	1.3	2.1M	STRAIGHT ROD/TELESCOPIC	CHAMPAGNE/PURPLE GOLD
2	HSD002	FASHIONABLE(LIGHTING)	4	1.3	2.1 M	STRAIGHT ROD/TELESCOPIC	CHAMPAGNE/PURPLE
3	HSD003	ECONOMIC(LIGHTING)	2	1.6	2.4 M	STRAIGHT ROD/TELESCOPIC	CHAMPAGNE/PURPLE
4	HSD004	FASHIONABLE(LIGHTING)	4	1.6	2.4 M	STRAIGHT ROD/TELESCOPIC	CHAMPAGNE/PURPLE
5	HSD005	LUXURY(LIGHTING, ,AIR DRIED,DISINFECTED)	4	1.6	2.4 M	STRAIGHT ROD/TELESCOPIC	CHAMPAGNE/PURPLE
6	HSD006	SUPREME(LIGHTING, ,AIR DRIED,DISINFECTED)	4	1.6	2.4 M	STRAIGHT ROD/TELESCOPIC	CHAMPAGNE/PURPLE
