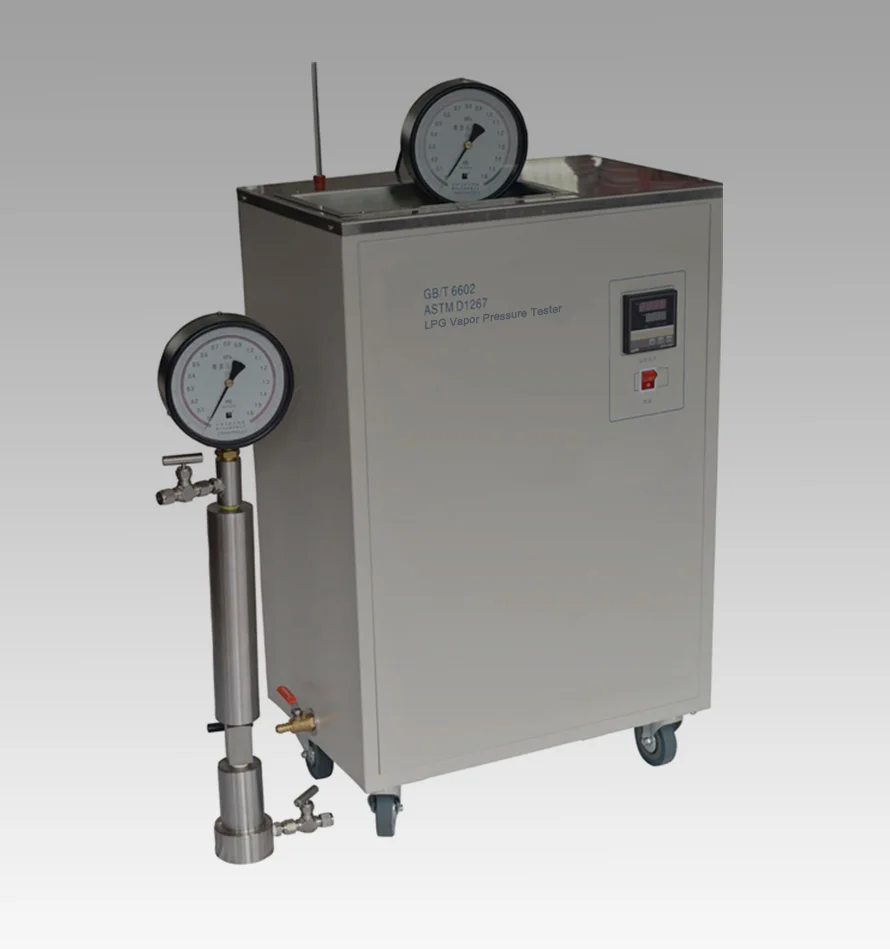

Vapor Pressure Tester, LPG method for Liquefied petroleum gas, ASTM D1267

Product Overview

Description





Applicable Standard
GB/T 6602
ASTM D1267



Performance Characteristics

1. The tester consists of the constant temperature water bath, intelligent digital display temperature control , magnetic pump cycle stirring, which could do two tests at the same time.


2. Advanced intelligent digital display temperature control could work under automatically control constant temperature level between 37.8±0.1℃ by automatic control


3. The constant temperature bath agitation system uses magnetic pump to circulate, and the water flows evenly.


4. Test container made of stainless steel, consists of pressure gauge, exhaust valve, the room, pass valve, the room and the inlet valve.


5. The volume ratio of upper and lower rooms is 4±0.05.Made of stainless steel ball valve. The middle is connected by stainless steel ball valve, which could bear the test of 3.5Mpa pressure.


6. The valve switch is convenient to turn on or off.


7. Standard interface is provided.


8. The operation of the tester is very easy.

Technical indicators
1. Temperature control range: room temperature ~ 70 ° C
2. Temperature control accuracy: below 50 °C ± 0.1 °C;
3.- Heating power: 1.8KW
4. Vapor pressure body pressure: 3.5Mpa does not leak, 7Mpa does not deform
5. Bomb: 2 pcs
6. Dimensions: 520×330×900(mm)





Accessories:



Thermometer 0~50°C	1 pc
Thermometer stopper	1 pc
Test projectile	2 pcs
Nylon tube	1 meter
Pressure gauge 1.6Mpa Y150/.04 level	2 blocks
fuse	2 pcs
power cable	1 pc
Manual, certificate	1 each
