Product Overview

Description

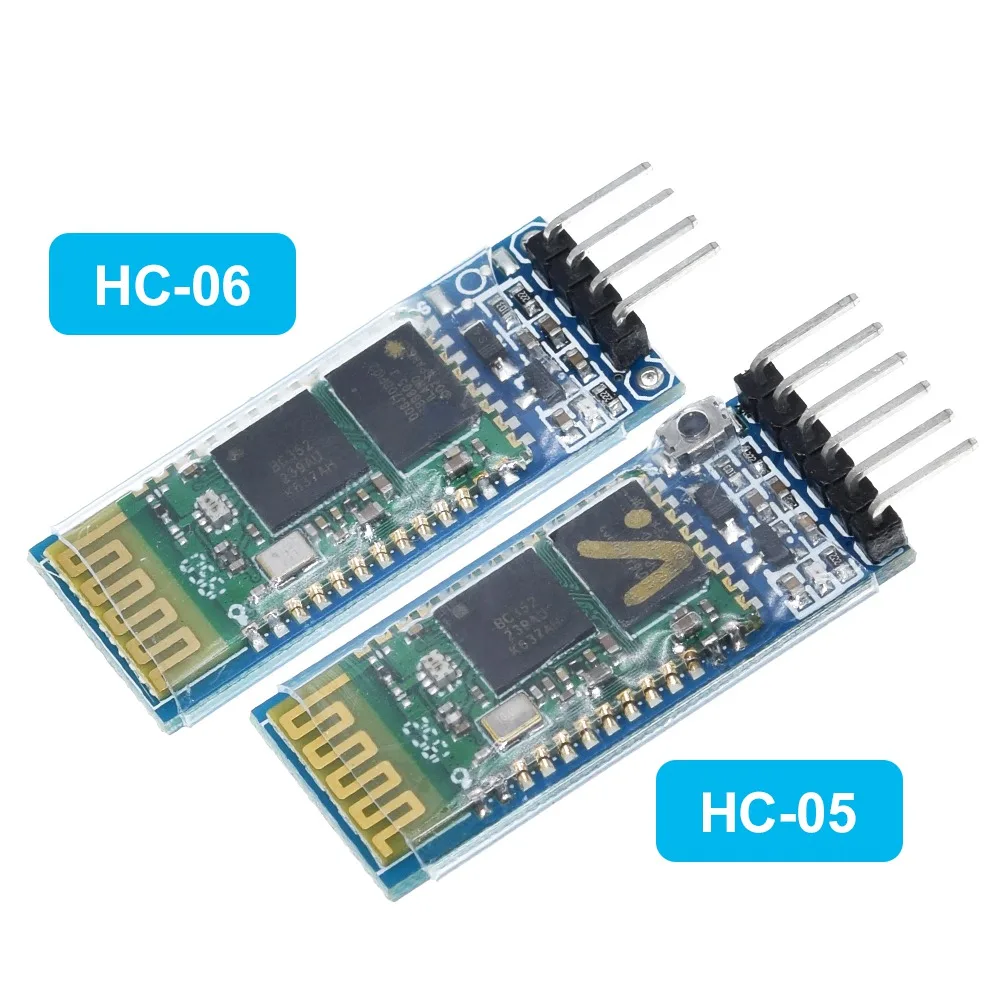

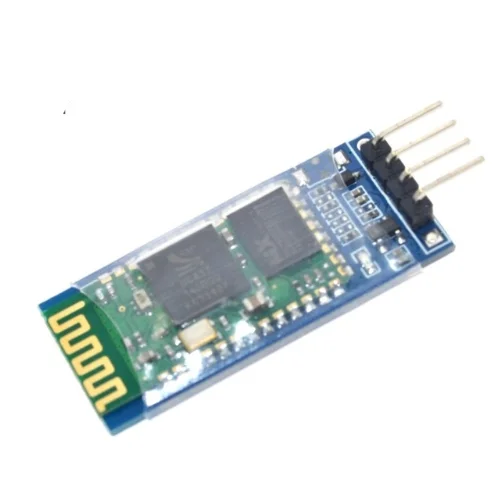

 hc-06 HC 06 RF Wireless Bluet00th Transceiver Slave Module RS232 / TTL to UART converter and adapter



Allows your device to both send or receive the TTL data via Bluet00th technology without connecting a serial cable to your computer.

Works with any USB Bluet00th adapters.

Default Baud Rate: 9600,8,1,n.

Built in antenna.

Coverage up to 30ft.

Bluet00th version: V2.0+EDR

Operating voltage: 3.3V

Default Baud Rate: 9600,8,1,n.

Signal coverage: 30ft

Item size: 4.3 * 1.6 * 0.7cm

Item weight: 3g

Package size: 9 * 3 * 1cm

Package weight: 8g

Commercial Series: Bluet00th module board Series

With LED indicator light, use 150mA and 3.3V regulation chip.

With VCC.GND.TXD.RXD foot for the Bluet00th

With "Re-seach" button(ON/OFF/WAKE foot for it , external MCU outinput "High level" can control module to re-seach)

Compatible with bluet00th master module".slave module"or master-slave(whole) module.

Input voltage: 3.3~6V

Size: 1.55cm*3.98cm

 Note:

input power supply 3.3~6V, Prohibit more than 7V

No "Automatically prevent power supply peversing func", so please correctly connect power supply
We advise to install "Bluet00th master module"
The "State" is output foot for LED status, when bluet00th "Unconnected", output "Pulse" ; when bluet00th "connected", output "High level", we can determine the states from "MCU"
If only the board , No any "Bluet00th Function "



Package Included:

1PCS*HC-06 bluet00th module with backboard
