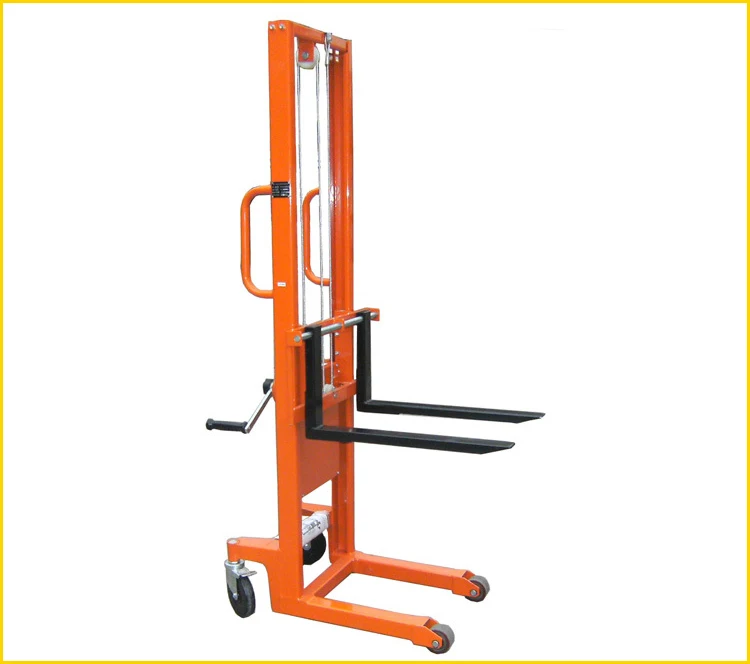

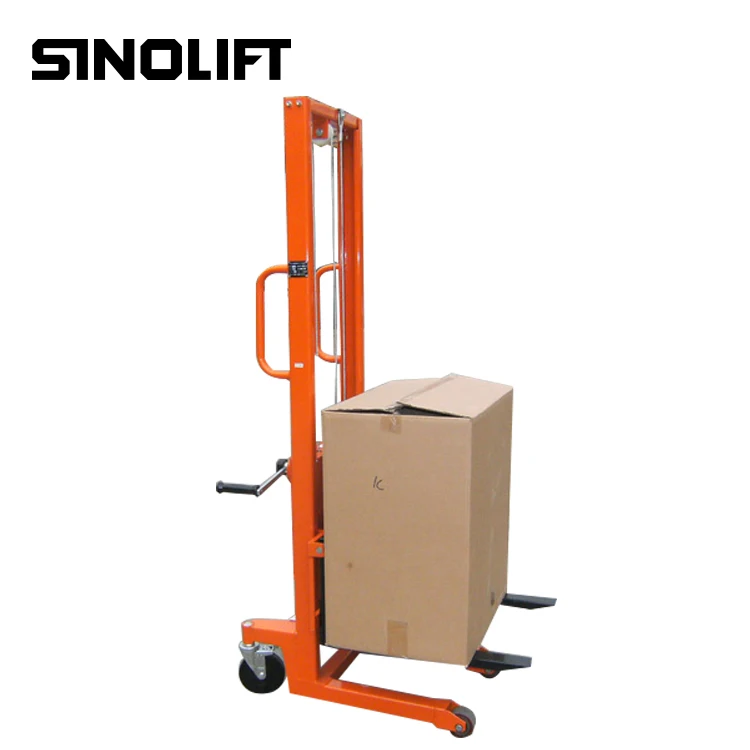

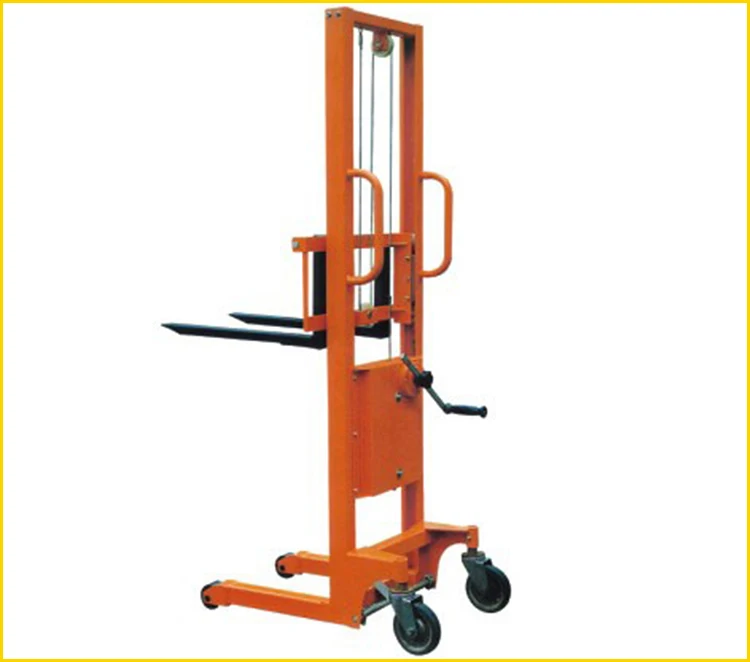

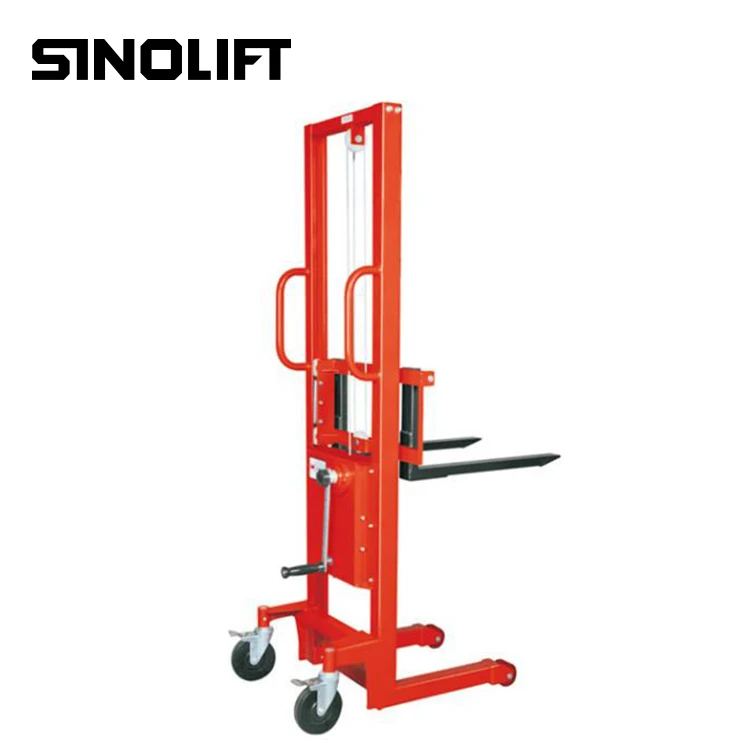

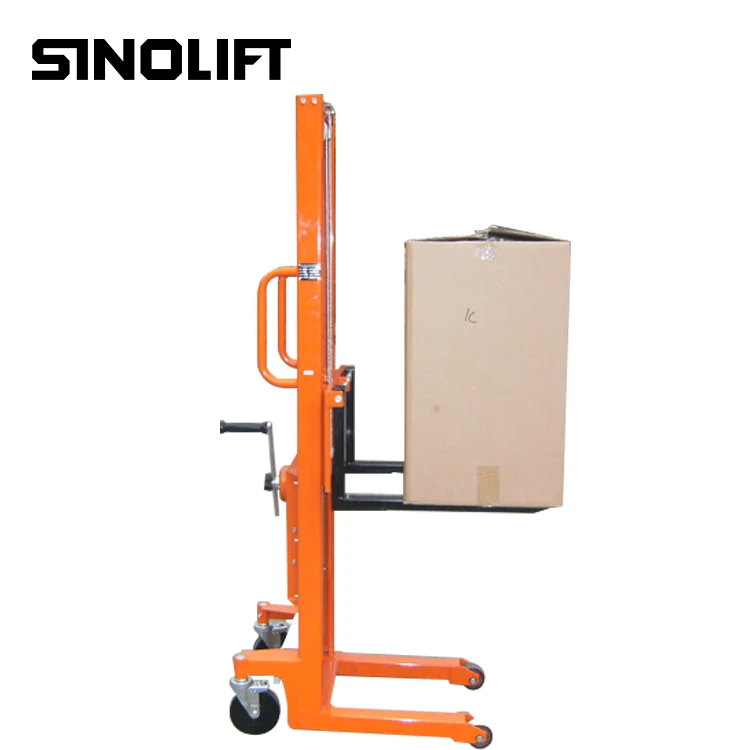

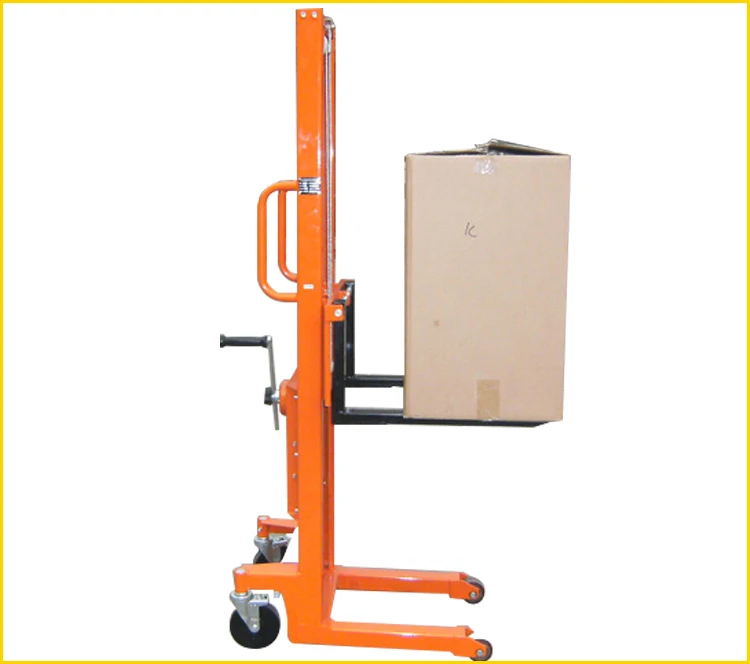

SINOLIFT LS350 hand winch stacker with adjustable width forks
- Category: >>>
- Supplier: Shanghai Sinolift Mechanical and Electrical Equipment Co. Ltd.
Share on (60812758918):
Product Overview
Description
SINOLIFT
LS350 hand winch stacker with adjustable width forks
Features
Simple, easy way to lift, lower and transport heavy loads with minimum effort.
Features adjustable width forks and outrigger legs.
Low effort hand winch equipped with automatic brake systems and adjustable length handle.
Swivel casters feature foot brake to prevent movement.
Optional Steel Platform - Solid steel construction, Fits over forks. Easily removed.
Optional High strength anchor chain – Stronger, self-locking system.
Specification
| MODLE | LS350 | |
| Capacity | kg | 350 |
| Load Center | mm | 300 |
| Lifting Height | mm | 90-1500 |
| Turning Radius | mm | 790 |
| Circles No. of Handle Rotating | 45 | |
| Handle Resistance | N | 70 |
| Fork Length | mm | 600 |
| Fork Width | mm | 60 |
| Fork Thickness | mm | 30 |
| Overall Length | mm | 960 |
| Overall Width | mm | 635 |
| Overall Height | mm | 1855 |
| Fork Width | mm | 140~620 |
| Outrigger Height | mm | 80 |
| Outrigger Outside Width | mm | 490 |
| Load Wheel | mm | 80X55 |
| Steering Wheel | mm | 150X40 |
| Overall Net. weight | kg | 75 |
