3d printer motorized translation stage 3 axis linear slide table 2 axis linear motion xyz positioner linear motor stage
- Category: >>>
- Supplier: Tianjin Erin Joy Technology Co. Ltd.
Share on (60812778828):
Product Overview
Description
Company Information
Specification
we can customize any models products according to your sizes or quality requirements
•Uses the high quality ball screw, linear bearing guide rail, key parts like bearing motor adopt famous manufacturers’ products, insure the high and stable quality
•Convenient for connected with our PMC series controller, the end is equipped with a hand wheel, can be manually adjusted, hand wheel, can be manually adjusted.
•Base has standard pitch of the thread holes and hole, easy for mounting.
•Features: small volume, low noise, conventional transmission, high cost performance.
•Operation place: medical instrument transmission, conventional measurement, the rational experiments, the teaching demonstration for common transmission
Model | ETS-50 | ETS-100 | ETS-150 | ETS-200 | ETS-300 |
Travel(mm) | 50 | 100 | 150 | 200 | 300 |
Screw Leading (mm) | 4 | 4 | 4 | 4 | 4 |
Main Material | Aluminum | ||||
Surface Treatment | Black Anodized | ||||
Lead Rail | Linear Bearing Guide | ||||
Maximum Speed (mm/s) | 30 | ||||
Resolution (8 subdivide)(μm) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
Repeated Positioning Accuracy (μm) | 5 | 5 | 5 | 5 | 5 |
Drive Motor | 42 Stepper Motor | ||||
Step Angle | 1.8° | ||||
Central Loading (kg) | 10 | 10 | 10 | 10 | 10 |
Product Show
Our cases
We not only manufacture the nanopostioning stages or mircopositioning stages , we also provide the precision position control solutions for clients , here are our successful cases for our valued clients .
CASE 1:
Sample rotation axis: beating 6 m, resolution 0.0005 degrees, repeatability accuracy 0.001 degrees
Sample size: diameter 150mm, length 1.2m, maximum weight 100kg.
X ray source moving stage: stroke 1.5m
The utility model is suitable for the horizontal helical scanning control system of various types of cores, such as ores, cores, etc. the utility model has the characteristics of large load, large size, and high precision helical scanning

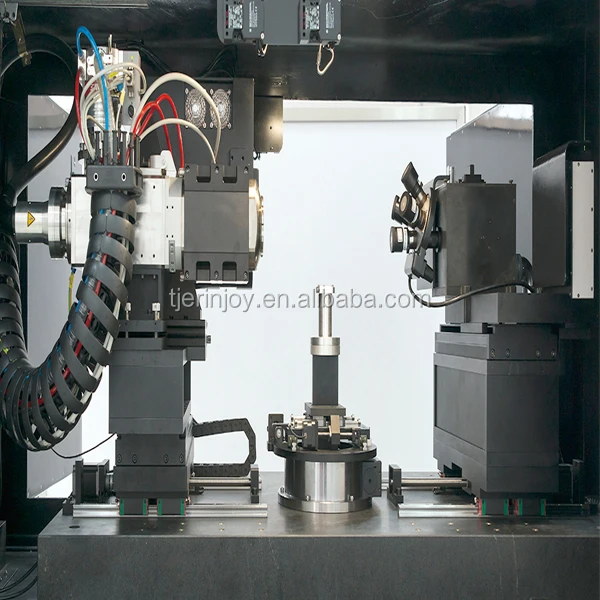

CASE 2:
3-axis sample table: Travel 20 * 100 * 100, resolution 50nm.
Scanning rotating stage : stroke 360 degrees, resolution 0.0001 degrees, accuracy 0.003 degrees, beating: 4 m, medium hole diameter 175mm.
Detector switching platform: Travel 300mm, resolution 50nm, repeatability: 0.5 m.
Other positioning stages : stroke 150mm, repeatability 2 mu m
Suitable for various power X ray scanning, internal imaging systems, and other high-precision optical scanning system
Our contact methods :
Miss Agnes (Exporting manager)
Office number: 0086 22 27280773
Mobile: 0086 131 161 84042 (ALSO WHATSAPP&WECHAT ID )
Skype: msalex010203(at)outlook.com
Email: ejchina(at)tjerinjoy.com
QQ: 3272208461
Certificate&Exbit
FAQ
Question 1: Can i do the customized for special usage ?
Yes , we can do the customized according to your special needs or different usage for the size and spec .
Question 2:How long is the warranty ?
All the products guarantee period is 1-2 years .
Question 3:Do you have the after-sale service ?
Yes , we have 24/7 service .That's to say ,anytime any moment to serve when you need us .
Question 4: How can you ensure the product quality ?
All our products has the CE ,RoHS AND ISO certificates .
