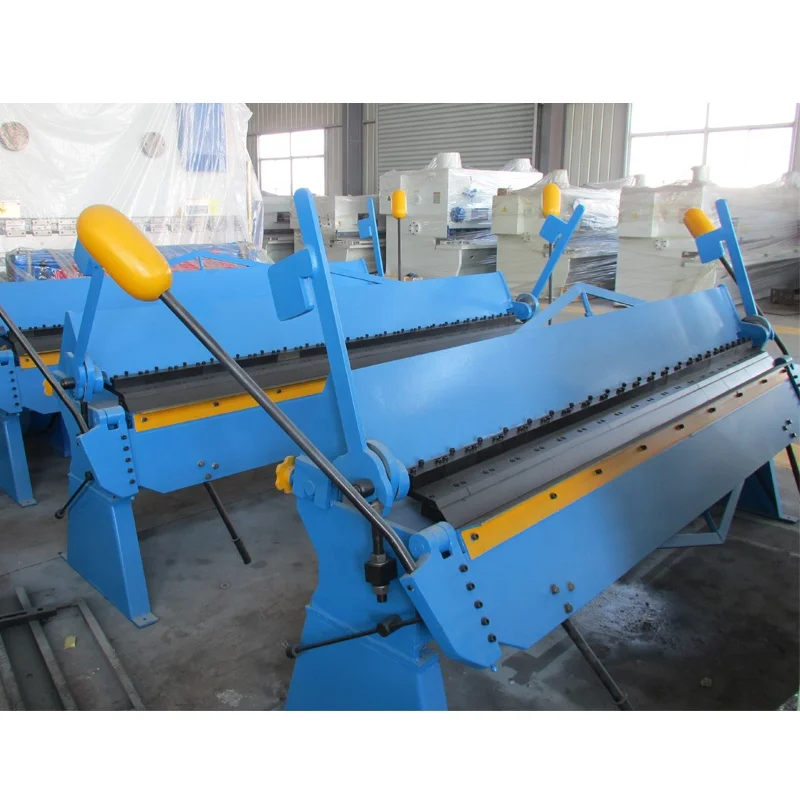

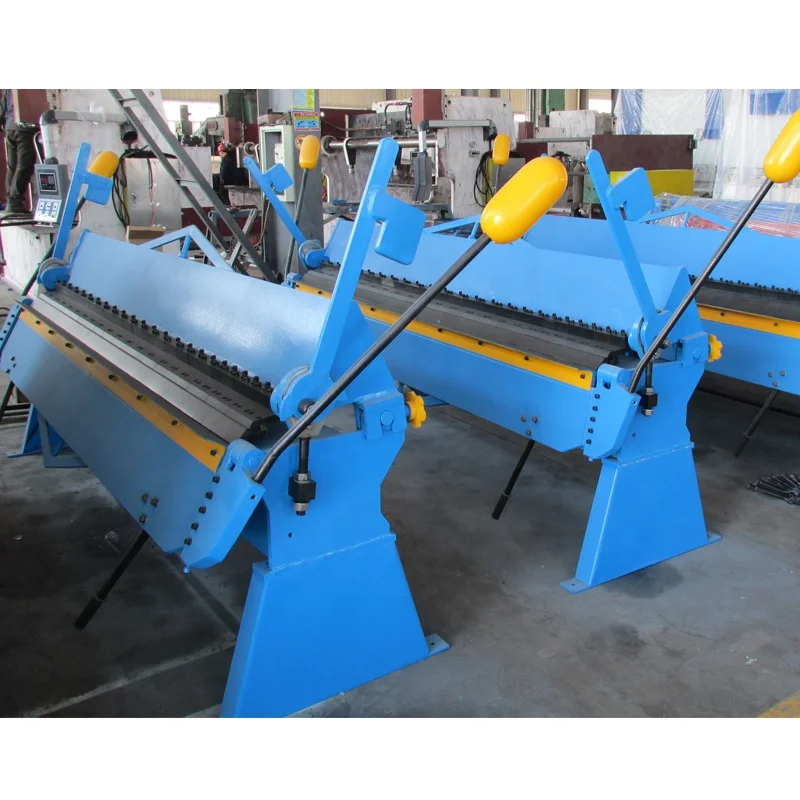

JG67 Series Manual Pan Brake Hand type manual plate bending machine Manual Sheet Metal the iron hand folding machine

Share on (60812795486):


Price:RUB 137,718.36

Quantity:


Product Overview

Description


Hand type manual plate bending machine Manual Sheet Metal the iron hand folding machine

Product Description

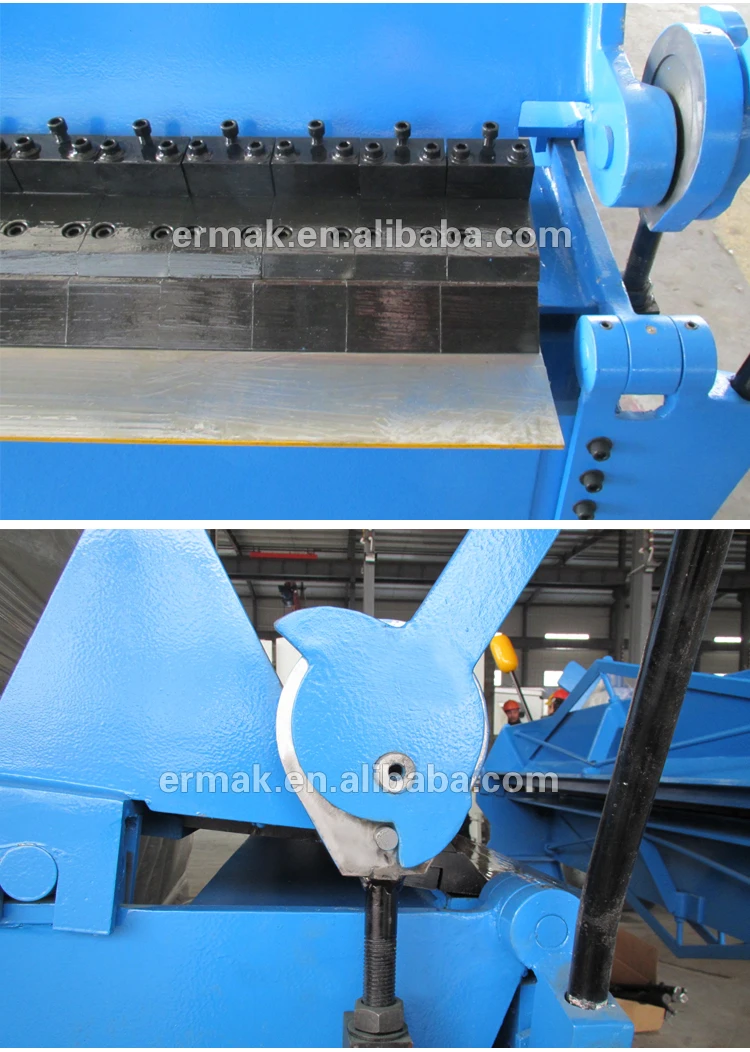

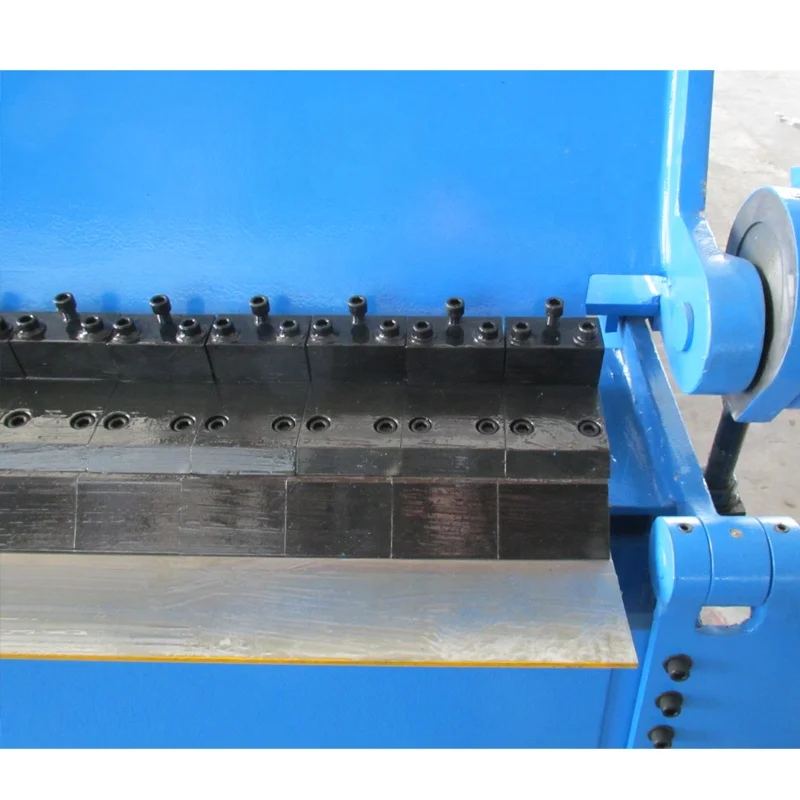

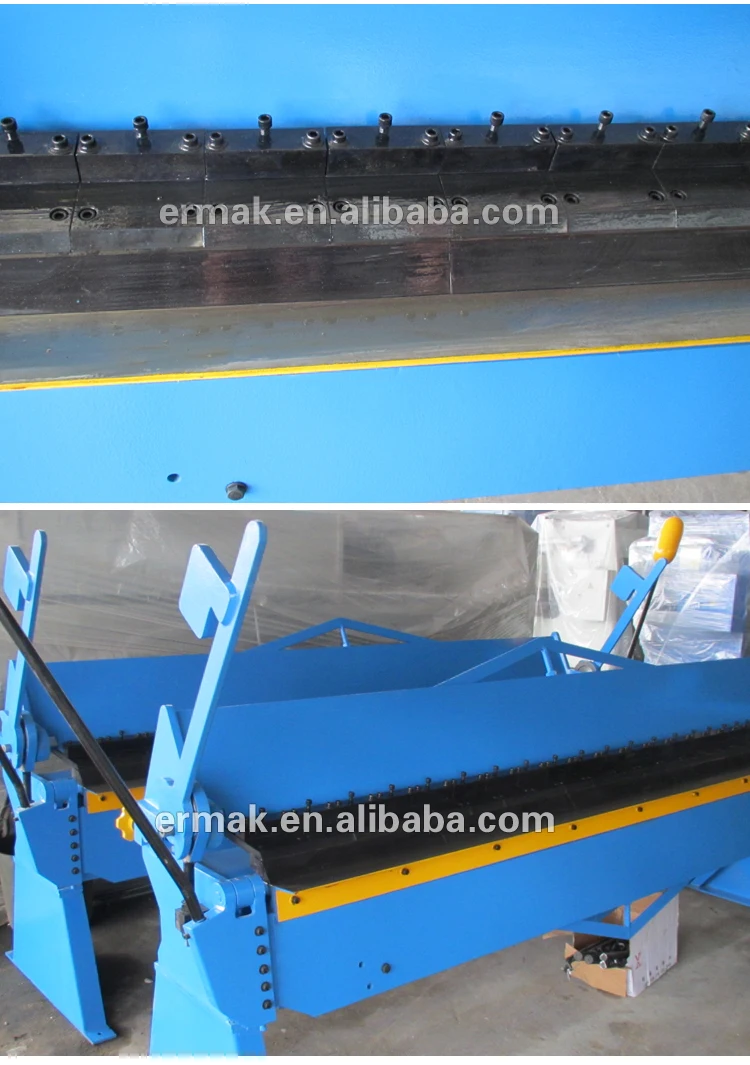

  • Segmented top blade .

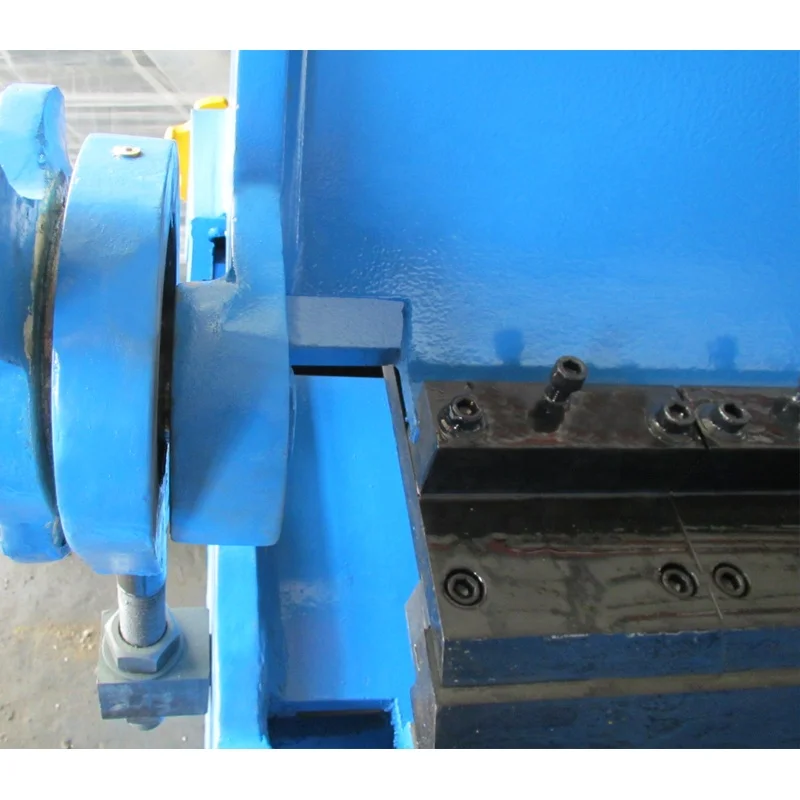

  • Clamping blade has adjustments for clamping pressure and materials thickness.
  • Heavy duty steel fabricated construction .

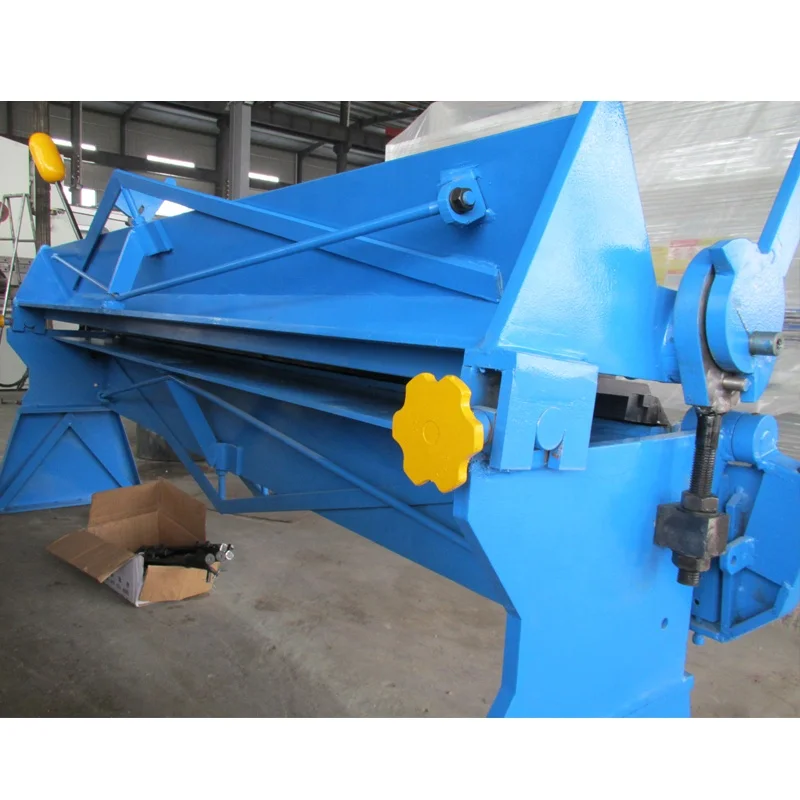

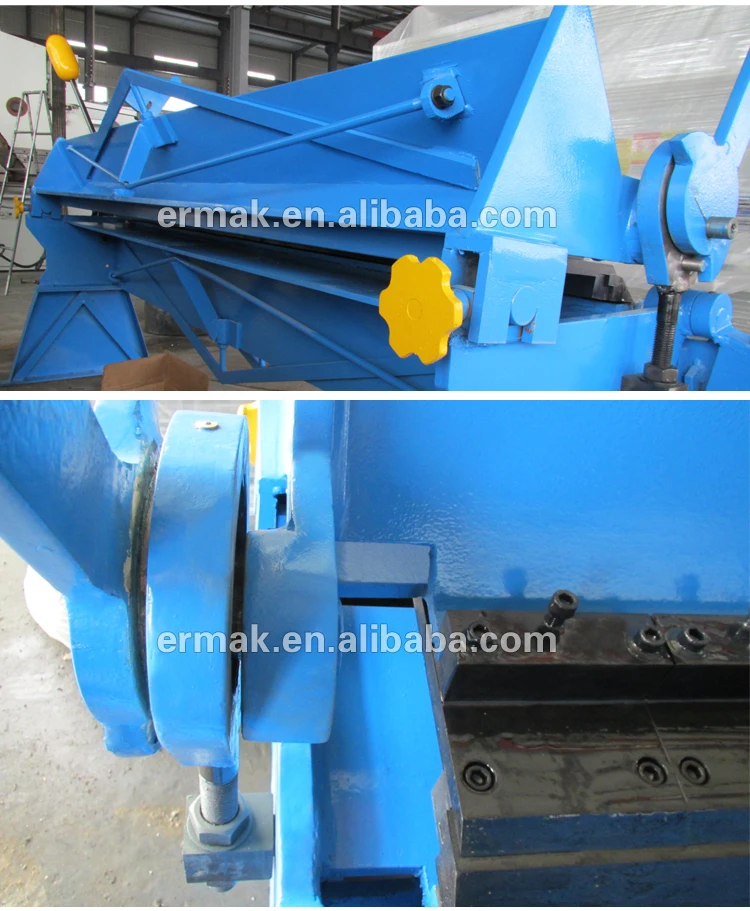

  • Adjustable clamping pressure beam and apron to prevent distortion during bending .
  • Has a range of finger widths to enable the bending of pans or boxes.

 Technical parameter

Model Bending length(mm) Bending thickness(mm) Evolving angle(°) Machine Size
JG67-1X1000 1000 1 0-135 1430X710X1620
JG67-1X1250 1250 1 0-135 1700X710X1620
JG67-1X2040 2040 1 0-135 2600X710X1620
JG67-1X2540 2540 1 0-135 3050X710X1620
JG67-1.5X1000 1000 1.5 0-135 1500X710X1620
JG67-1.5X1250 1250 1.5 0-135 1750X710X1620
JG67-1.5X2040 2040 1.5 0-135 2540X710X1650
JG67-1.5X2540 2540 1.5 0-135 3040X710X1650
JG67-2.0X1000 1000 2 0-135 1600X710X1630
JG67-2.0X1250 1250 2 0-135 1810X710X1630
JG67-2.0X2040 2040 2 0-135 2700X710X1630
JG67-2.0X2540 2540 2 0-135 3200X710X1630
JG67-2.5X1000 1000 2.5 0-135 1700X710X1630
JG67-2.5X1250 1250 2.5 0-135 1950X710X1630
JG67-2.5X2040 2040 2.5 0-135 2740X710X1630
JG67-2.5X2540 2540 2.5 0-135 3240X710X1630

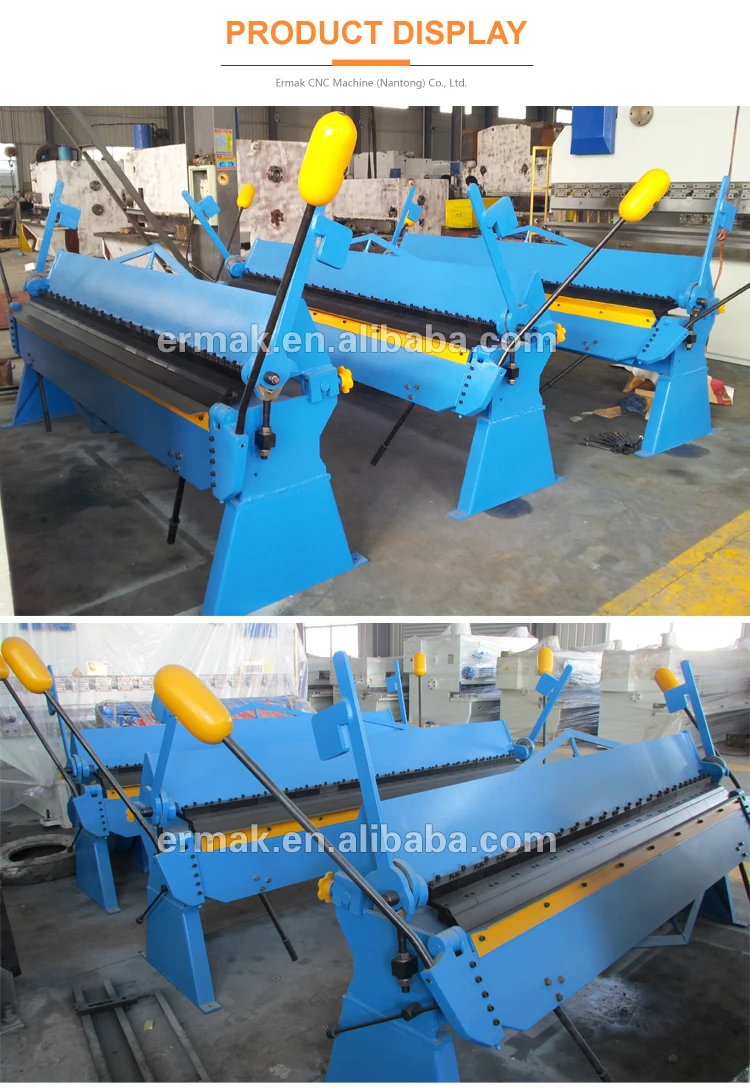

.jpg




shipping

Guarantee period:
Our product quality guarantee period is 12 months from B/L date. During guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by customers’ incorrect operations, we will provide customers spare parts at cost price. We also can offer flexible extended warranties according to the actual situation.
After-sales services:
Our engineer can go to your factory for installation and showing operation details on condition of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to our factory for learning the installation, operation and maintenance for free.
Why Choose Us:
1. We will run the machine for a few days, and use your materials to do the test. Only guarantee the machine shows best performance, and then we will ship out.
2. Our elite teams can provide you professional, customized, and all-round services around the clock.

How can we provide you efficient services (metal processing solution):
There are Three Steps as following:
1. Gather your requirements based on your real working situation.
2. Analyze your information and provide our feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional recommendations; reg. non-standard products, we can offer professional designing.
