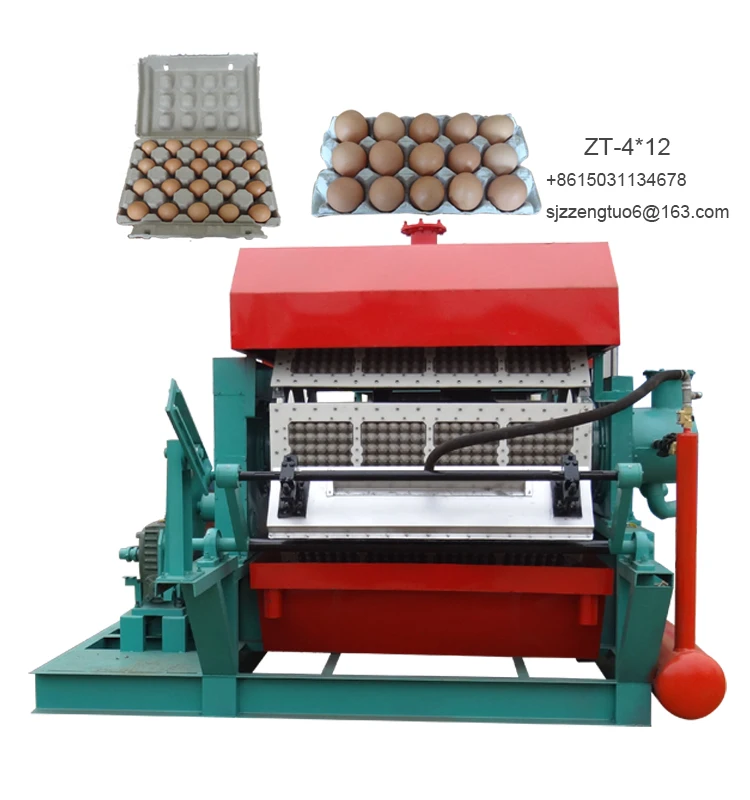

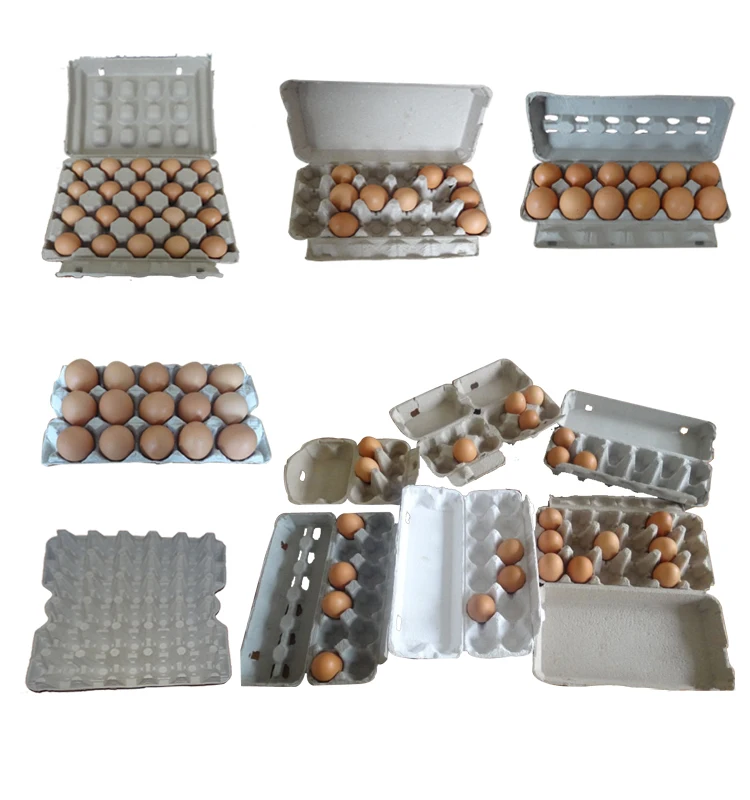

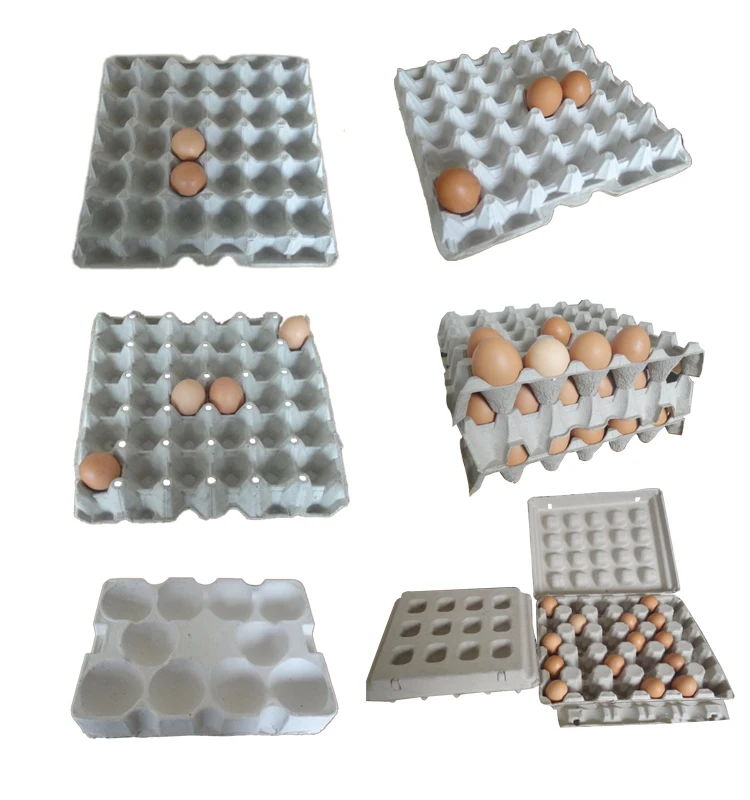

Pulp Moulding Process Type and Egg Use 6 hole /12 hole paper egg tray production line
Egg tray forming machine is a kind of machine which absorbs paper pulp-the raw material, on the surface of mould by vacuum to get various shape and ratio of wet and dry by regulating time. After such working procedure as transferring moulds, releasing moulds to complete paper tray production. Our forming machines selecting of high quality electronic devices and pneumatic components,high performance and long service life
There are various types and output of egg tray making machines can be supplied by our company ,such as 800-1000pcs per hour ,2000pcs per hour,2500pcs,3000pcs per hour ,3500pcs,4000pcs per hour ,and so on .You only can tell me what capaicty machine do you want,our professional engineer will design the most suitable machine for you!
Model | Capacity psc/h | Mold | Total Power | Labor force | Paper consumption/h | Vacuum pump | Pulper | Drying equipements |
ZT-F1000 | 1000 | 3 | 33kw | 3-5 | 60kg | 7.5kw | 7.5kw | 5.5kw |
ZT-F1500 | 1500 | 4 | 37kw | 4-6 | 87kg | 7.5kw | 7.5kw | 7.5kw |
ZT-F2000 | 2000 | 6 | 49kw | 4-6 | 120kg | 11kw | 7.5kw | 16kw |
ZT-4*3 | 2000 | 12 | 40kw | 4-6 | 100-200kg | 18kw | 7.5kw | 15kw |
ZT-4*4 | 2500 | 16 | 65kw | 4-6 | 110-175kg | 22kw | 7.5kw | 19kw |
ZT-8*6 | 8000-10000 | 48 | 135kw | 5-7 | 310-4800kg | 51kw | 22kw | 26kw |
ZT-8*4 | 3000-5000 | 32 | 72kw | 5-7 | 260-400kg | 40kw | 22kw | 19kw |
ZT-8*5 | 5000-7000 | 40 | 120kw | 5-7 | 270-450kg | 47kw | 22kw | 21kw |
ZT-12*4 | 5000-7000 | 48 | 160kw | 5-8 | 300-600kg | 55kw | 22kw | 26kw |
ZT-12*5 | 6000-9000 | 60 | 180kw | 6-9 | 350-750kg | 75kw | 30kw | 37kw |
Main Features
1.High production
2.Easy to install and operate
3.Rugged construction
4.Heat resistance
5.Competitive price
6.Green:No waste paper emission
7.Stable final product quality(Good&strong look, same weight and size)
8.Space saving & low investment
9.Best pre-sale, in-sale and after-sale service.
Detailed Images

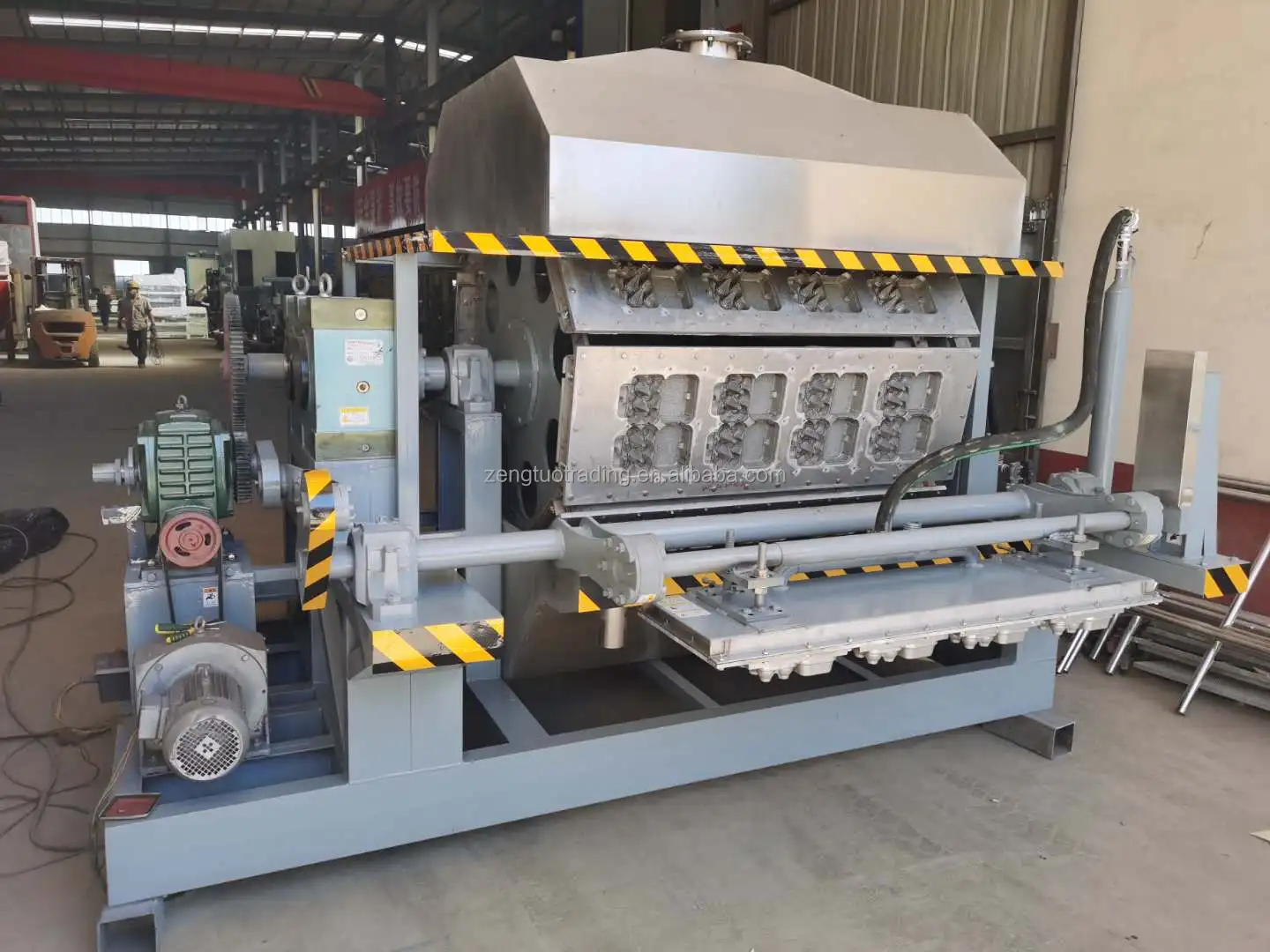

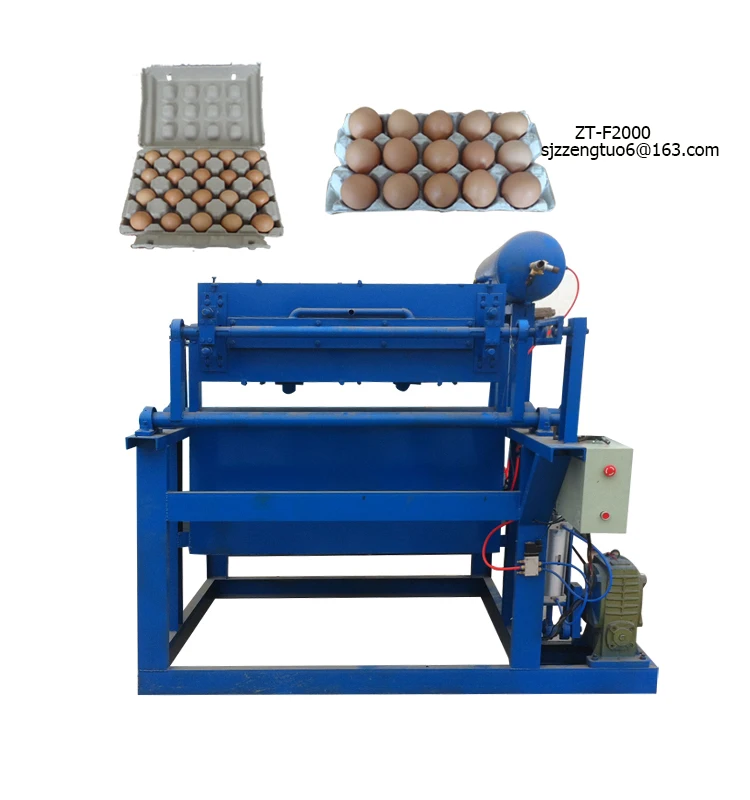

ZT-F1000-2000
Voltage :220v/380v
Motor Power:2.2kw
Template size:1.23m*0.4m
Operating speed: 7 times/minute
Overall demention 2.3m*1.7m*1.6m

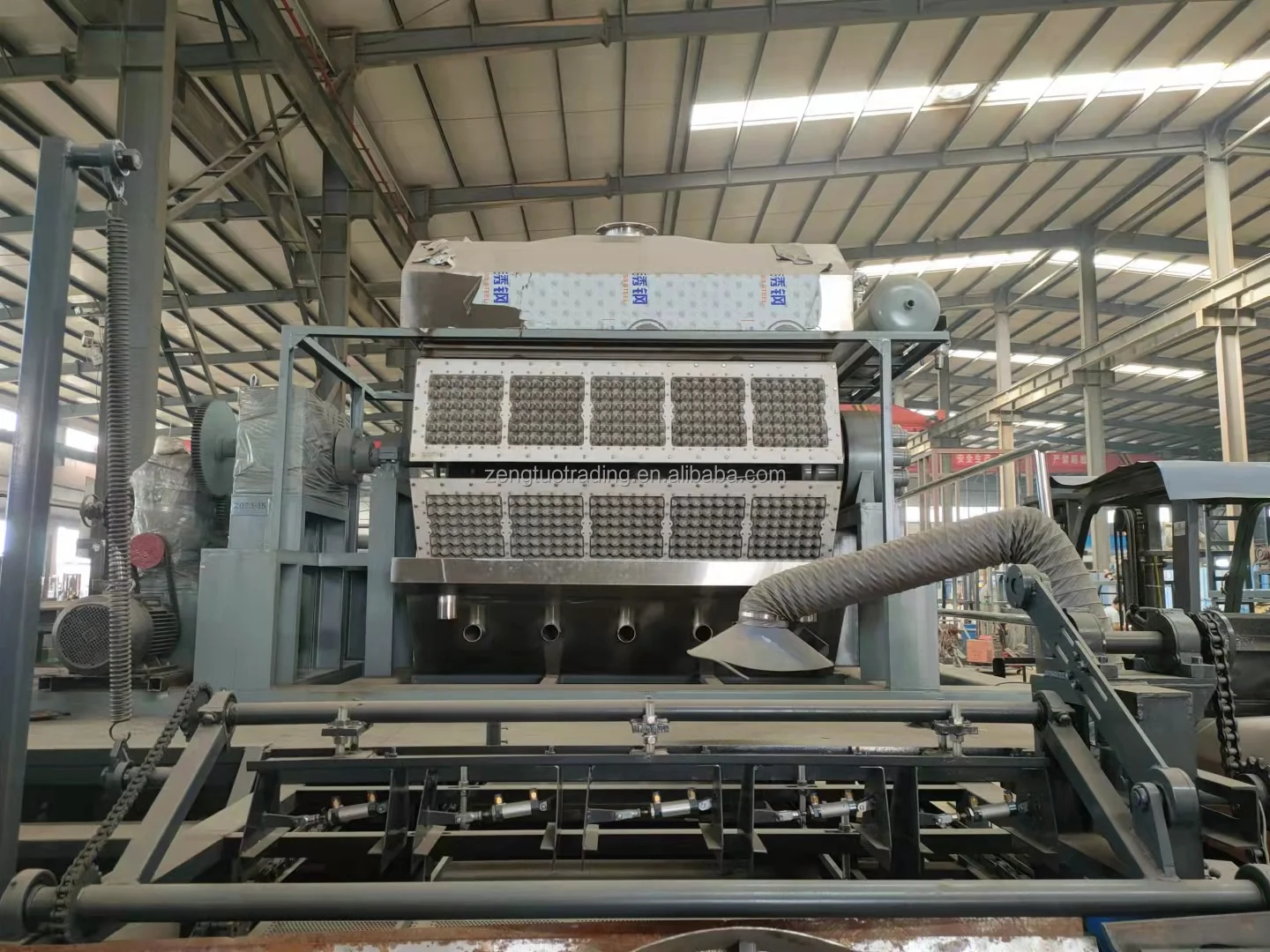

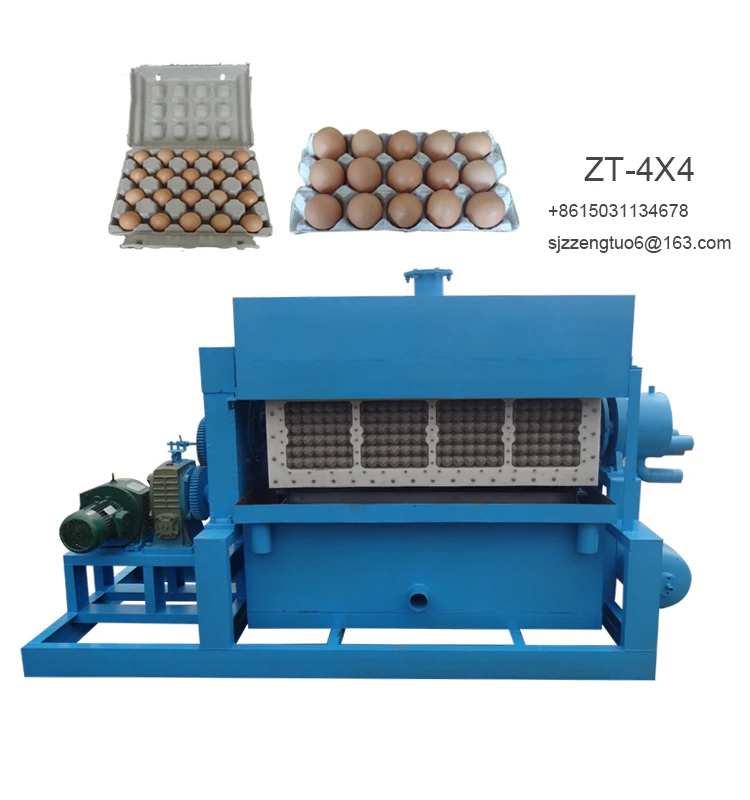

ZT-4*2500
Voltage :220v/380v
Motor Power:3kw
Template size:1.47m*0.47m
Operating speed: 10 times/minute
Overall demention: 3.1m*1.7m*1.8m
Motor Power:3kw
Template size:1.47m*0.47m
Operating speed: 10 times/minute
Overall demention: 3.1m*1.7m*1.8m

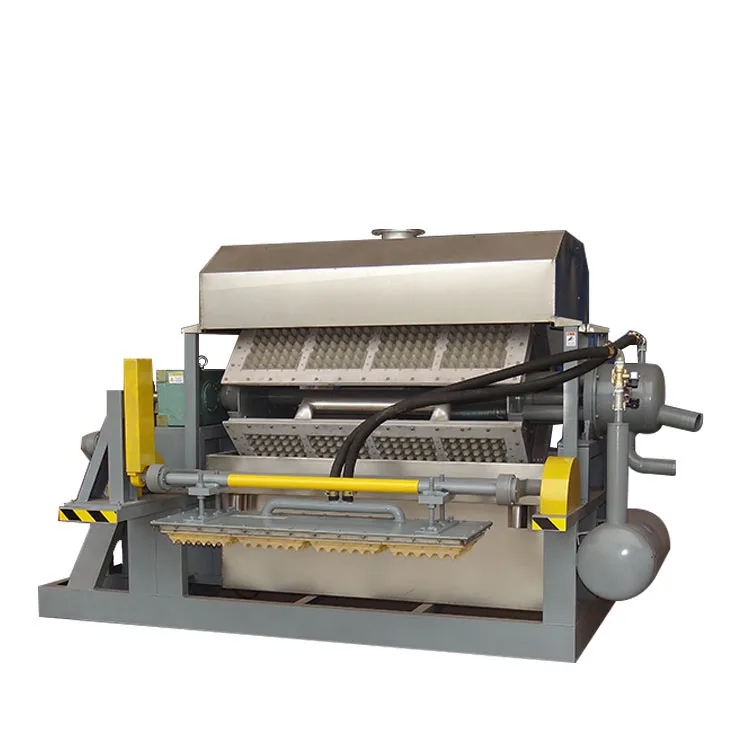

ZT-8*5000
Voltage :220v/380v
Motor Power:3kw
Template size:1.47m*0.47m
Operating speed: 10 times/minute
Overall demention: 3.1m*1.7m*1.8m

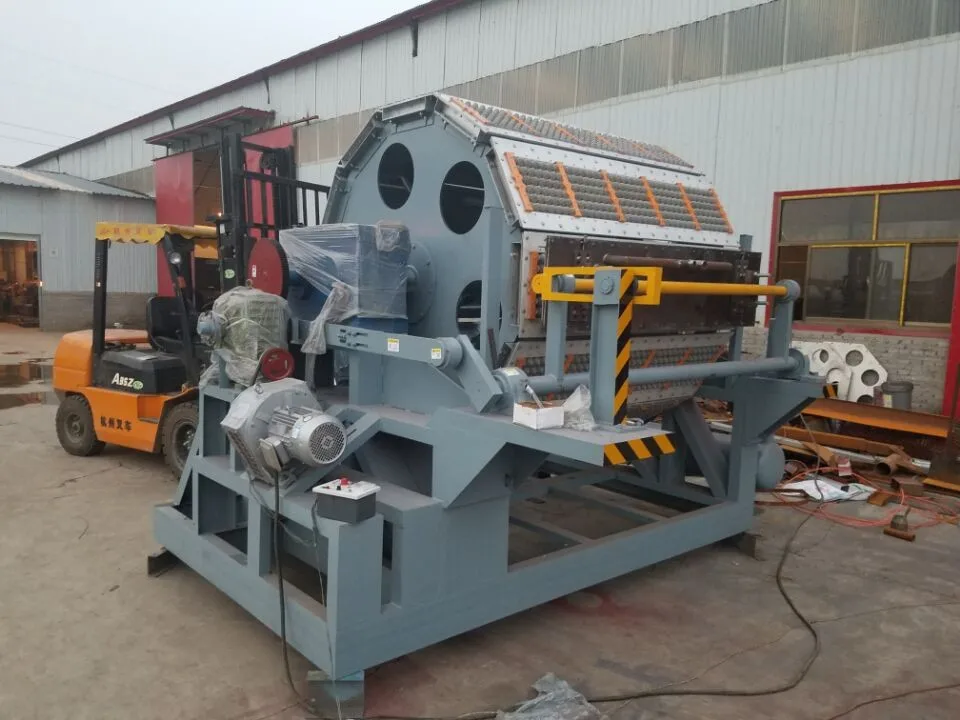

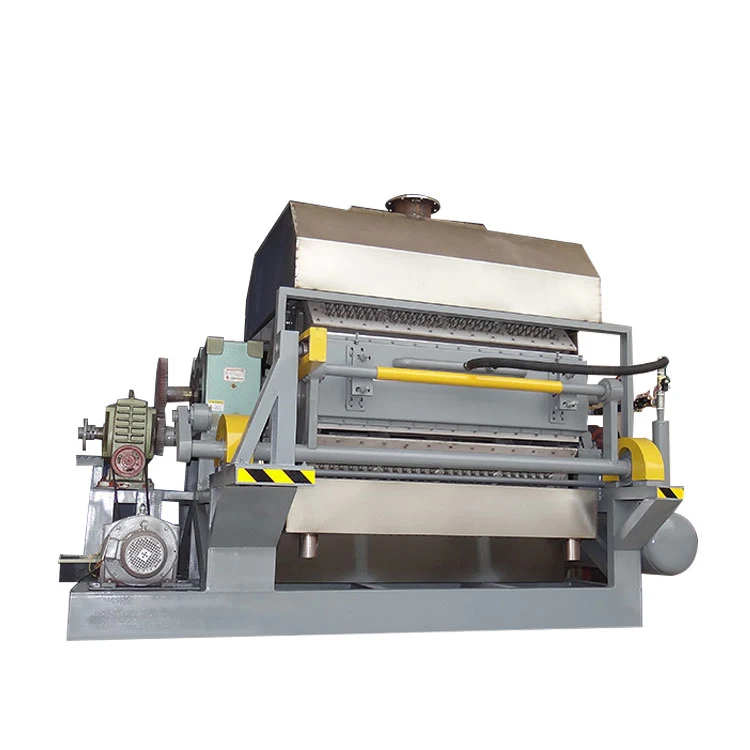

ZT-12*7000
Voltage :220v/380v
Motor Power:3kw
Template size:1.47m*0.47m
Operating speed: 18-32 times/minute
Overall demention: 3.5m*3.7m*3m
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
process of flowsheet
