Hydraulic 1 post inground car washing lift parking lift
Hydraulic 1 post inground car washing lift parking lift
Hydraulic 1 post inground car washing lift parking lift
Hydraulic 1 post inground car washing lift parking lift
Hydraulic 1 post inground car washing lift parking lift
Hydraulic 1 post inground car washing lift parking lift
Hydraulic 1 post inground car washing lift parking lift

Hydraulic 1 post inground car washing lift parking lift

Share on (60812804689):


Price:$2,460.00

Quantity:


Product Overview

Description



Feature:

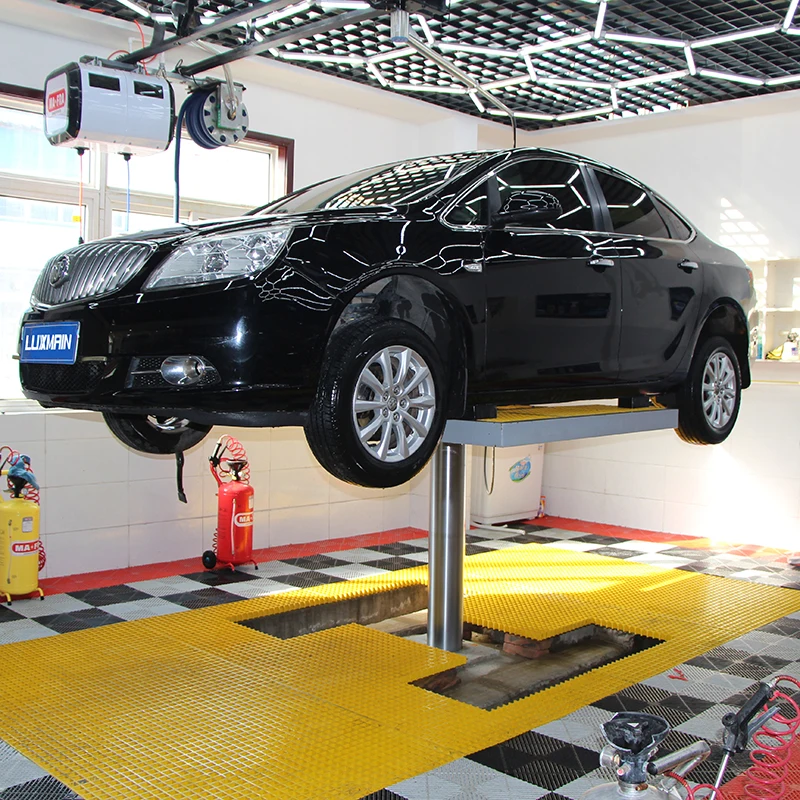

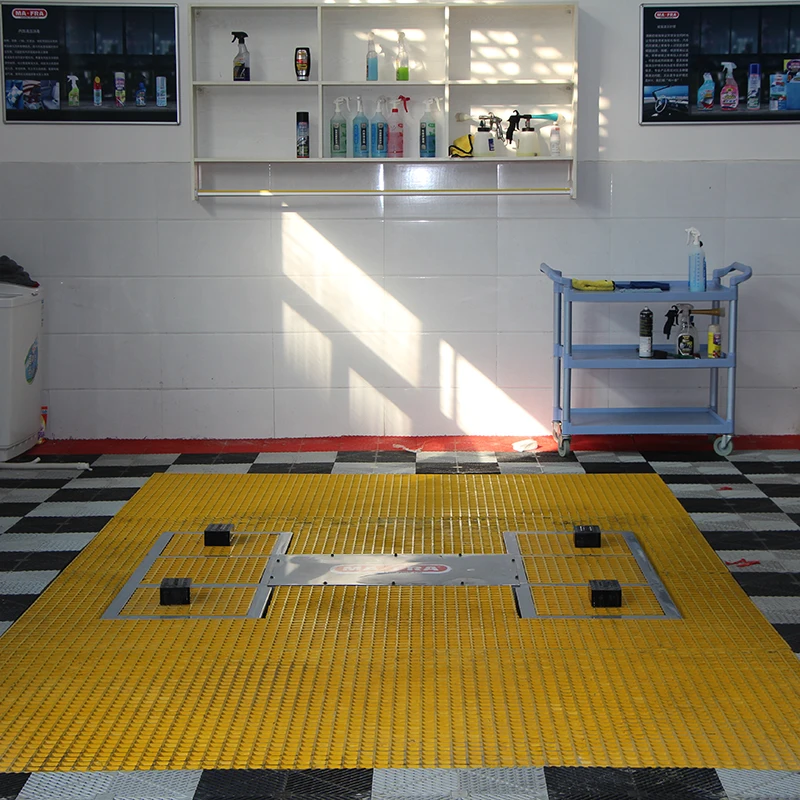

1.The main unit is underground and the supporting arm is on the ground .

2.Open space for working

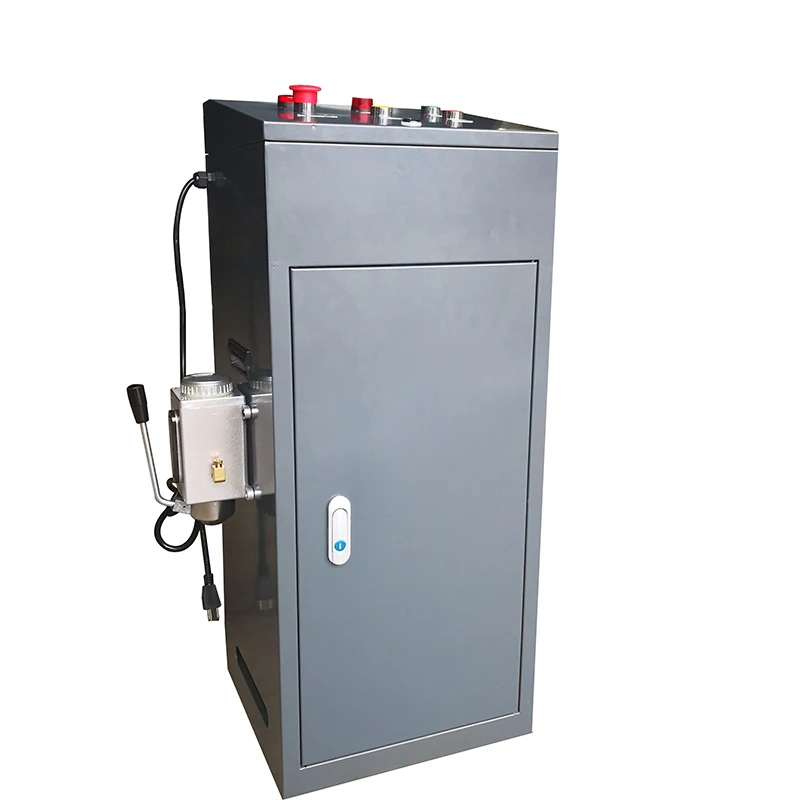

3.External electric hydraulic control system,easy for maintenance

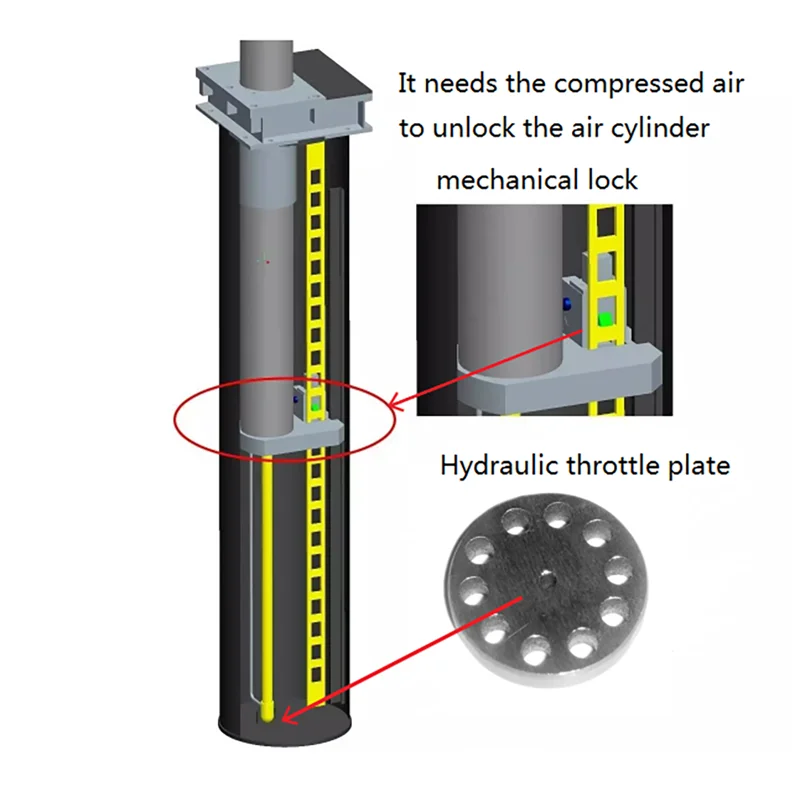

4.Internal mechanical hydraulic safe device

5.Applied to quick repairing , car beauty and wash

,tire change

Technical Data.

Lifting Capacity\t3500KG

Max.Lifting height\t1850mm

Raising/Lowering time\t40-60sec

Supply Votage\t380V/50Hz

The pressure air source when unlock 0.6-0.8Mpa(6bar-8bar)

Main Unit Diameter\t490mm

Main Unit Height\t2514mm

Motor Speed\t2850 rounds/min

Output of oil pump\t1.6Ml/round

Set pressure of the overflow valve\t18MPa

Pump pressure\t20MPA

Working Pressure\t15Mpa

Solenoid valve pressure\tAC220 V /50 Hz

Sound level (measured at control console)\t≤75 dBA
