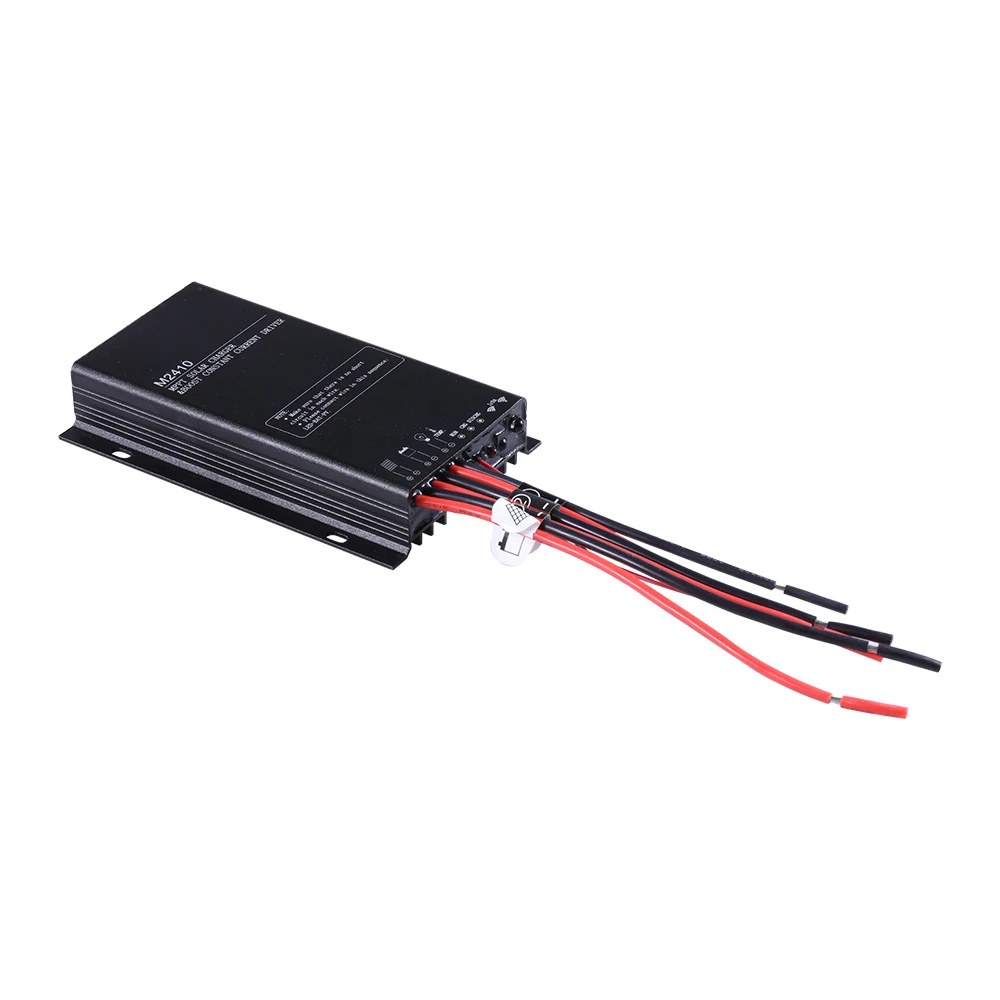

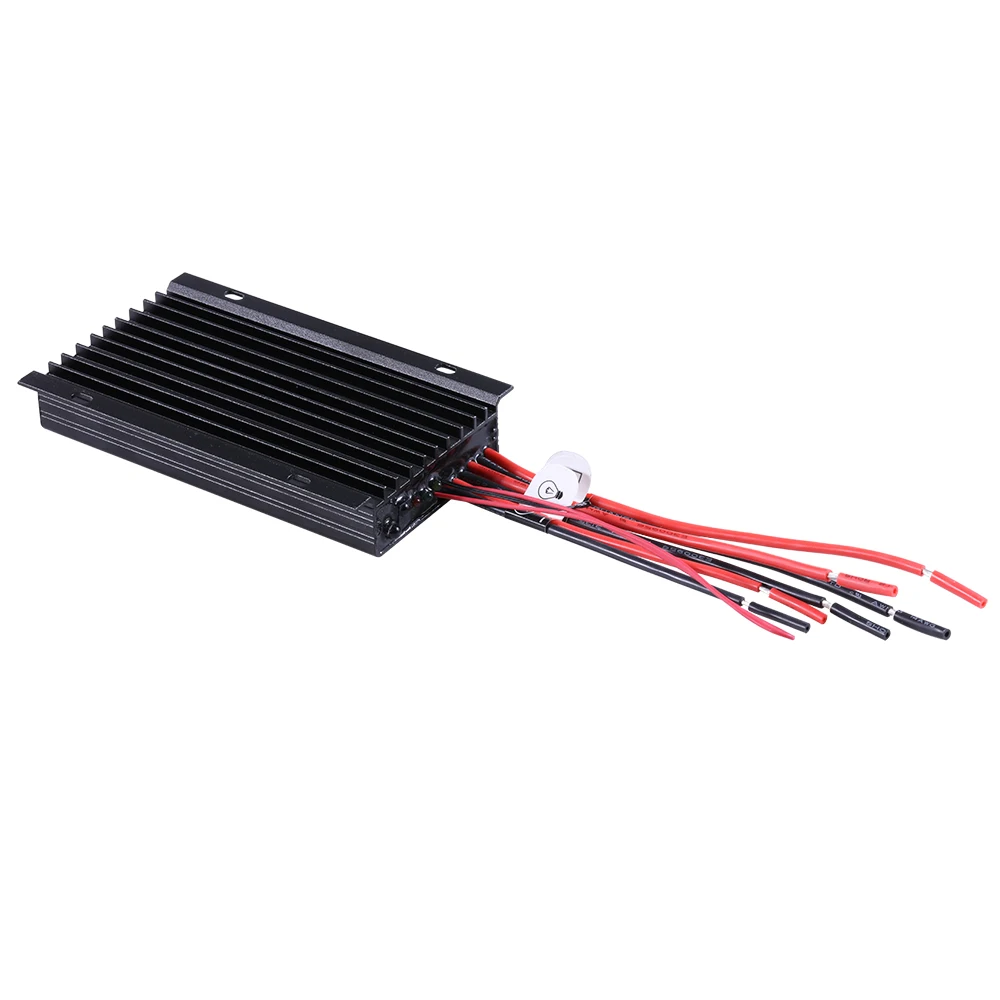

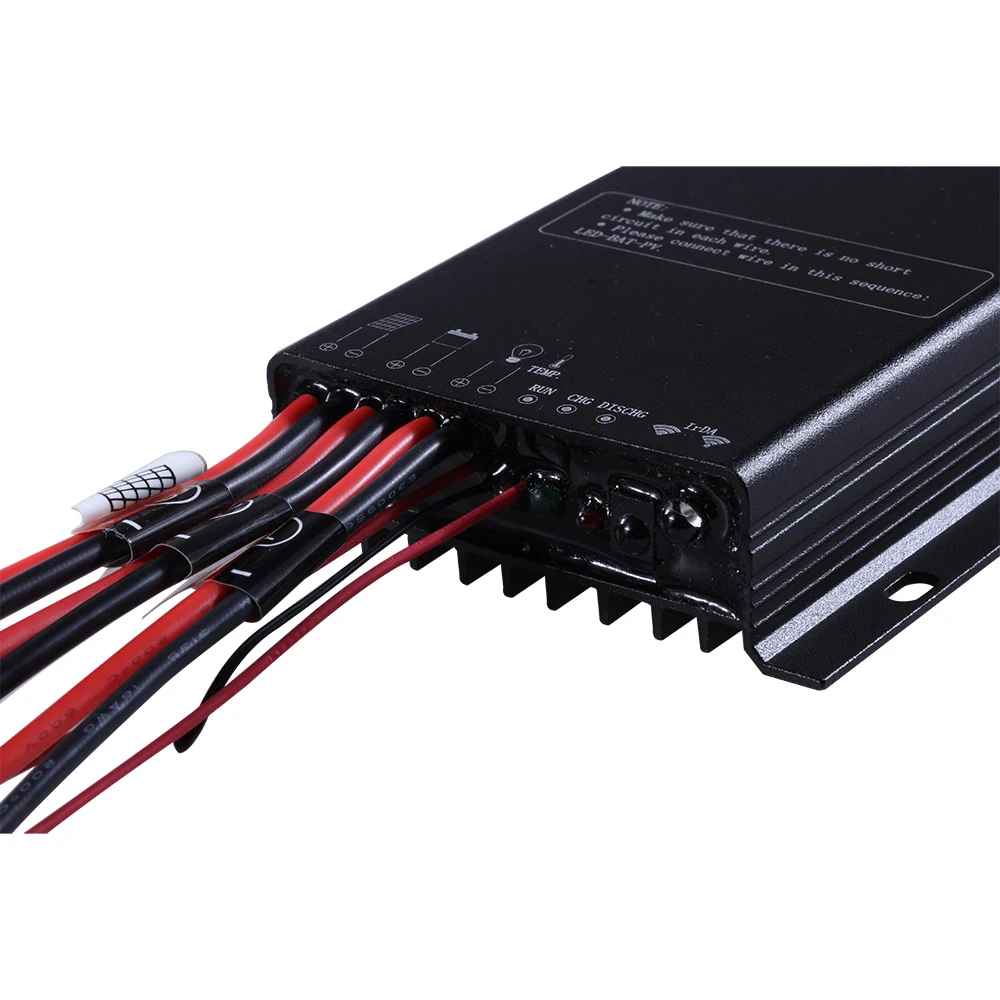

depower Waterproof 12V/24V 10A M2410 MPPT Solar Charge Controller for Solar Street Light LED driver

waterproof mppt high efficiency controller 12v 24v mppt solar charge controller 10a

Professional design to promote system reliability

*Using international well-know brand semiconductor device such as IR.TI.ST.ON.NXP and so on.
*Using industrial MCU total digital technology, without any adjustable resistance, strong anti-interference ability, no aging and drift.
*High LED driving and charging efficiency, significantly reduce the product temperature.
*IP68 protection degree without any buttons, further improve the waterproof reliability.

High MPPT efficiency
*MPPT efficiency≥99.9%, System efficiency  up to 98%, improve the system efficiency & reduces system costs.

High Transfer efficiency
*Charging efficiency up to 98%.
*LED constant current drive efficiency up to 97.4%

Minimal stand-by power consumption
*The current consumption ≤ 10mA after controller enters sleep mode.

Intelligent battery management
* Three phase time charge battery, which contains MPPT charge, constant voltage charge and float charge, which helps to extend the life time of battery.
*Significantly extends the battery lifetime up to 50% base on intelligent temperature compensation charge and discharge management

Intelligent LED drive management
*Light control function, automatic lights LED in the dark, turn off automatically at dawn.
*Five time control.
*Dimming function, control to output different power in different typical time.
*Ensure battery working in the mode of light charge and light discharge base on intelligent LED drive management, much extend the life time of battery, so guarantee the lights on all the night.

Flexible parameter set
*Infrared wireless communications, connecting with computer.
*Excellent man-machine interface, convenient operation.
*Infrared wireless communications, connecting with a handheld remote control for easy installation.

Perfect protect function
*Battery reverse connection protection.
*The solar panel reverse connection protection.
*To prevent the battery discharge to the solar panel at night.
*Battery low voltage disconnect &reconnect protection.


The LED output short and open circuit protection.
