750W 8"X16" 210 Processing Mini Metal Lathe for Variable Type of Metal Precision Mini Lathe

Share on (60812846145):


Price:RUB 49,281.70

Quantity:


Product Overview

Description

Main Features




1) Variable spindle speed of 50-2500RPM.

2) Spindle bearings use precise tapered roller bearings.

3) Rails have been quenched with high frequency and elaborate milling.

4) High precision, able to turn out standard qualified works.

5) 750W strong power, 400mm processing distance.

6) With high precision, can turn out the standard qualified works.

7) Bed saddle tail scale precision, feed more precise fine-tuning, telescopic sleeve scale practical.

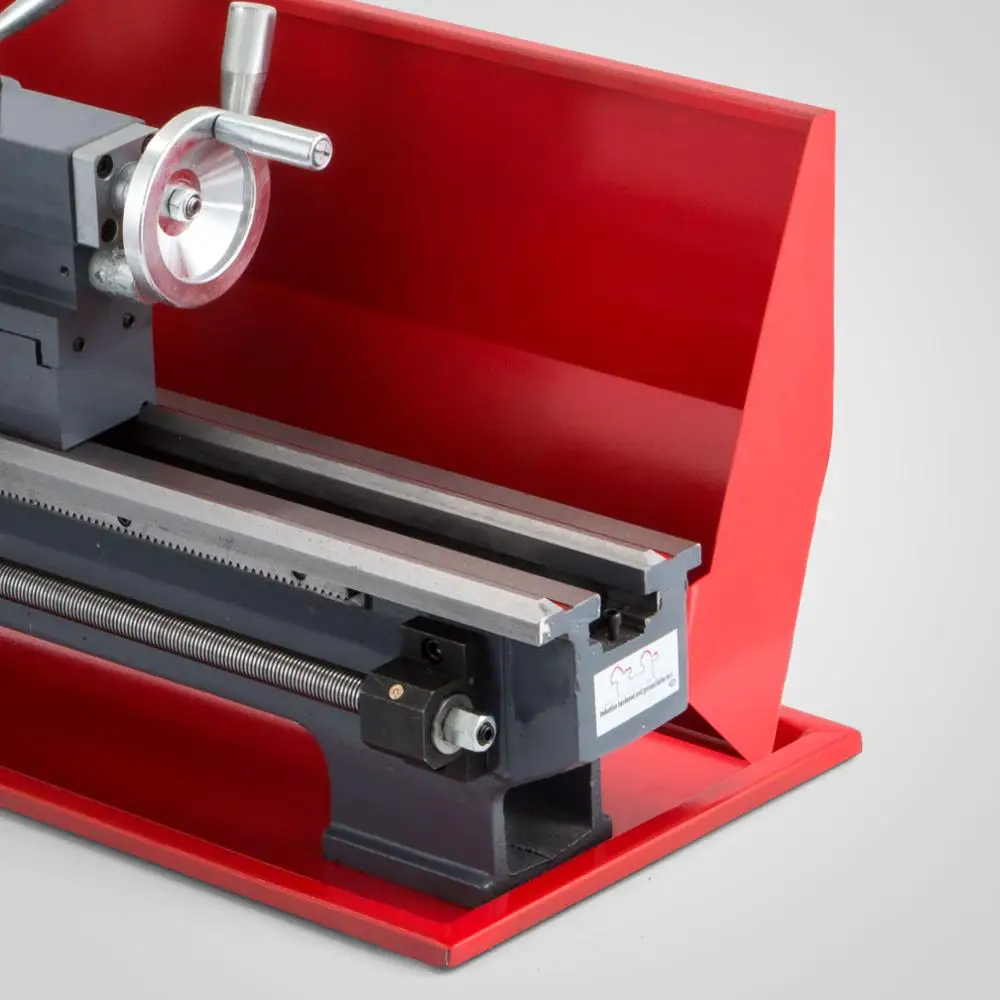

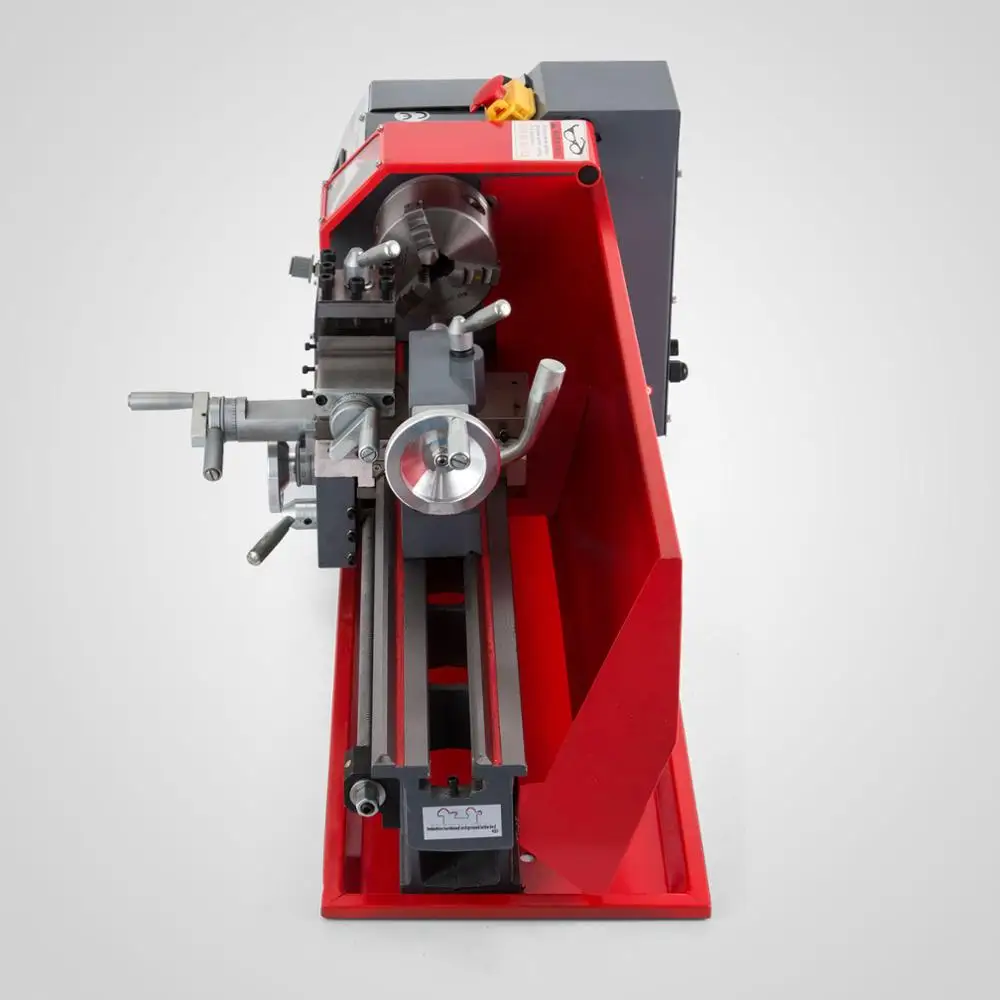

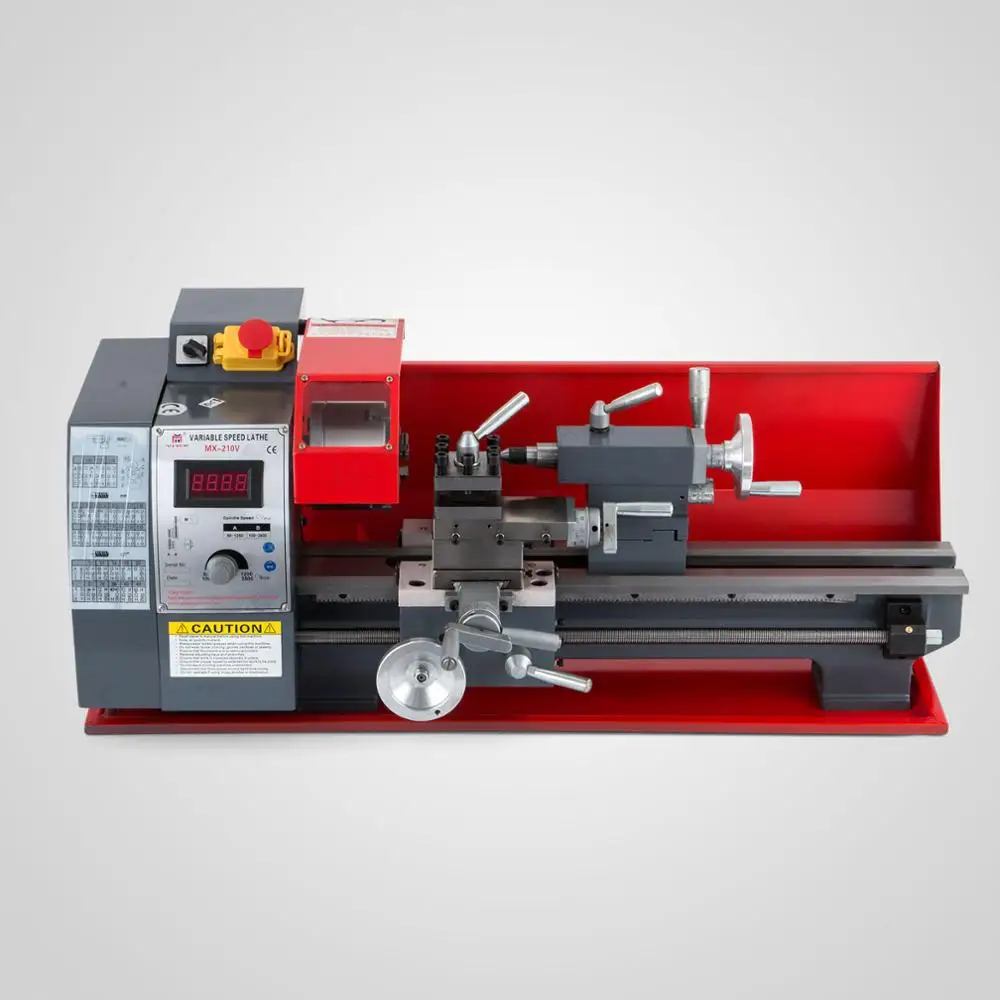

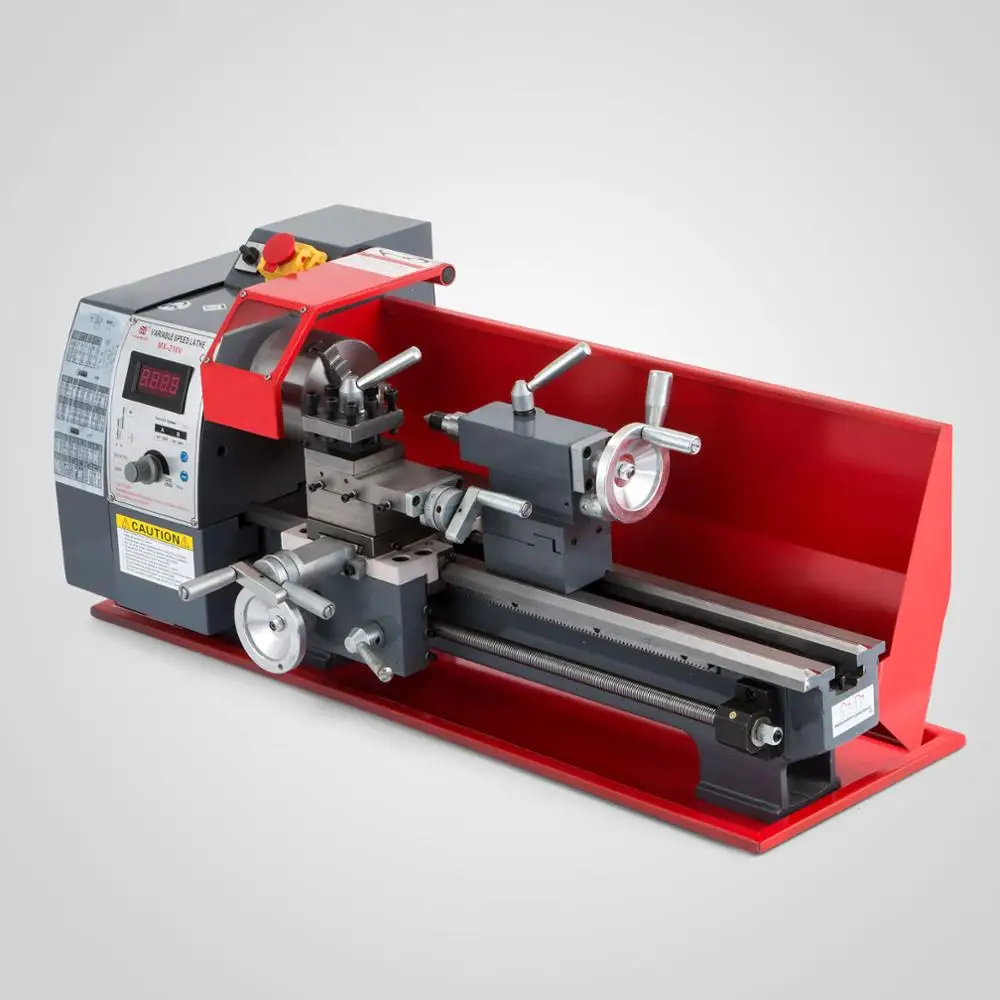

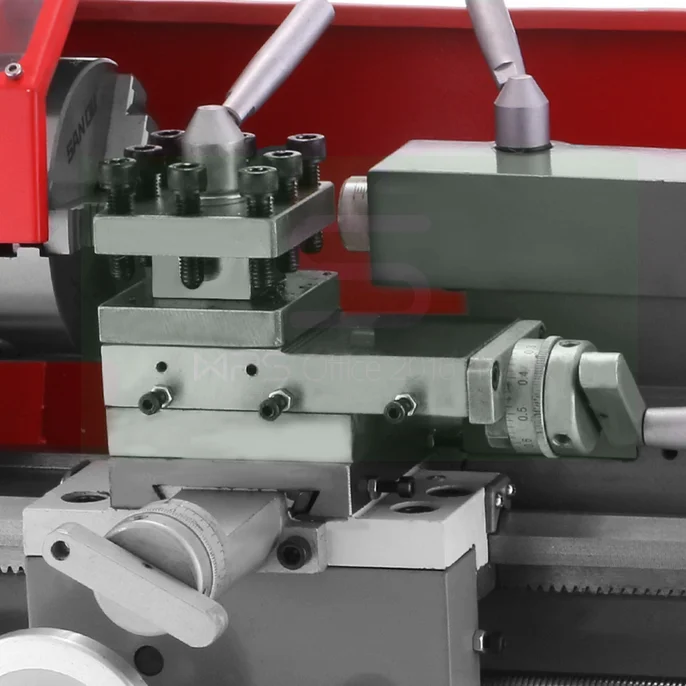

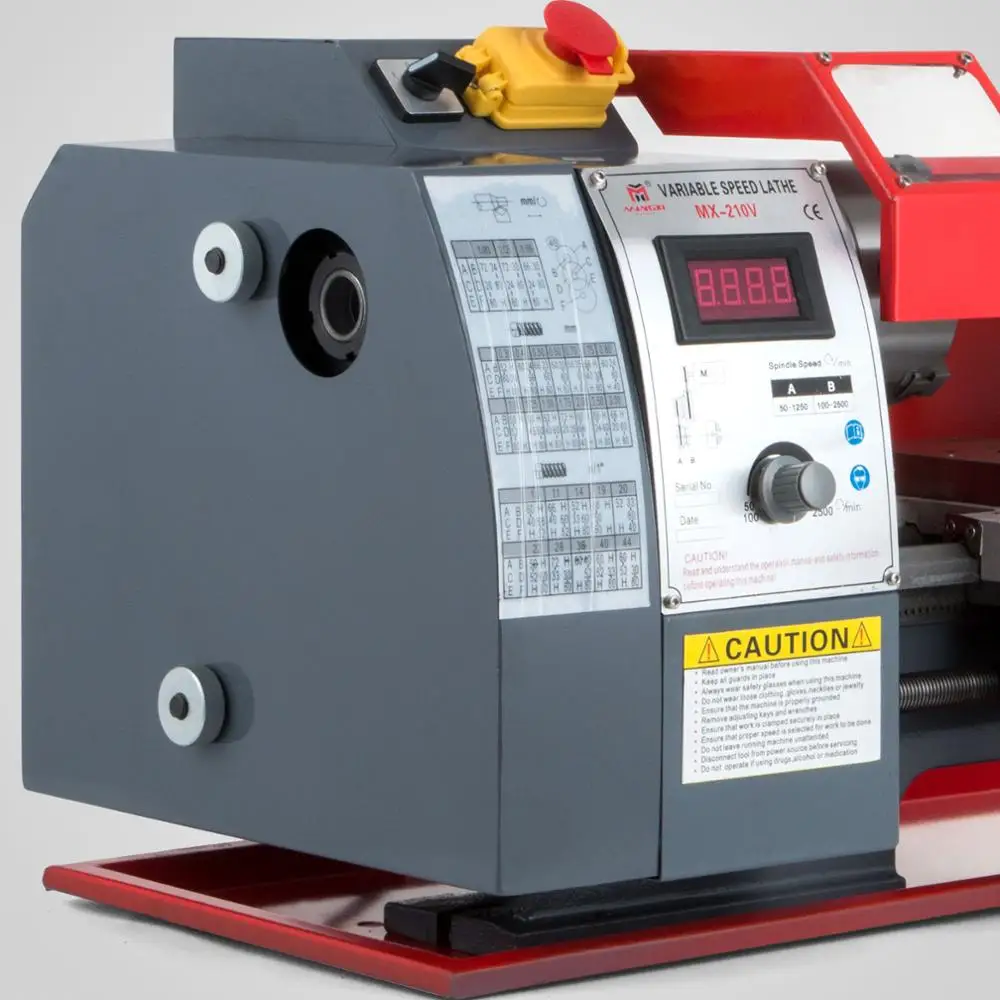

Detailed Images

Technical



 Voltage: 220V

Motor Power: 750W

Spindle Taper: MT3

Tail Stock Taper: MT2

Range of Spindle Speeds: 50-2500RPM

Distance Between Centers: 400mm (16")

Swing Over Bed: 210mm (8")

Chuck Diameter: 125mm (5")

Hole Thru Spindle: φ21mm (0.83")

Maximum Compound Slide Travel: 55mm (2")

Maximum Cross Slide Travel: 75mm (3")
