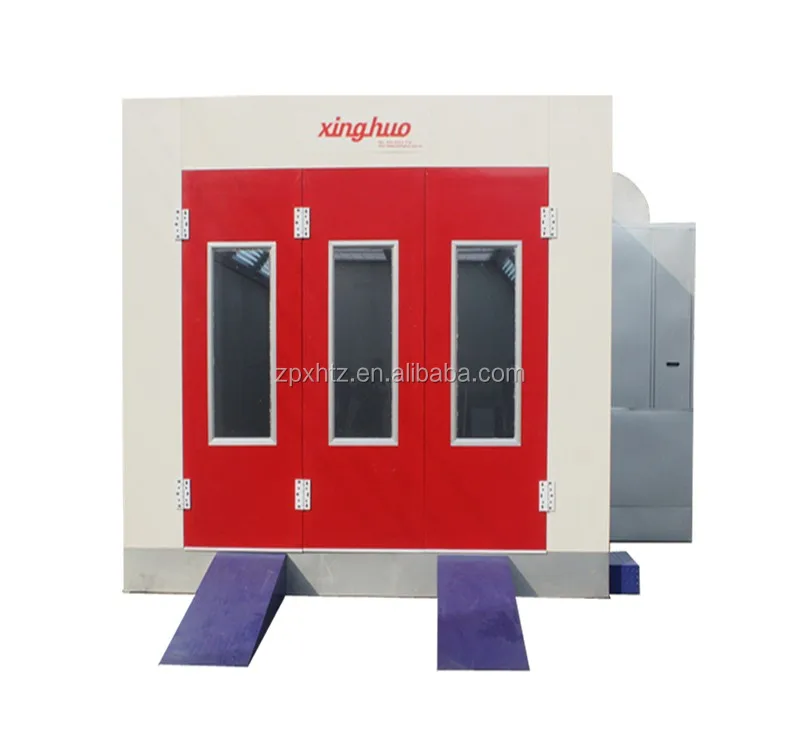

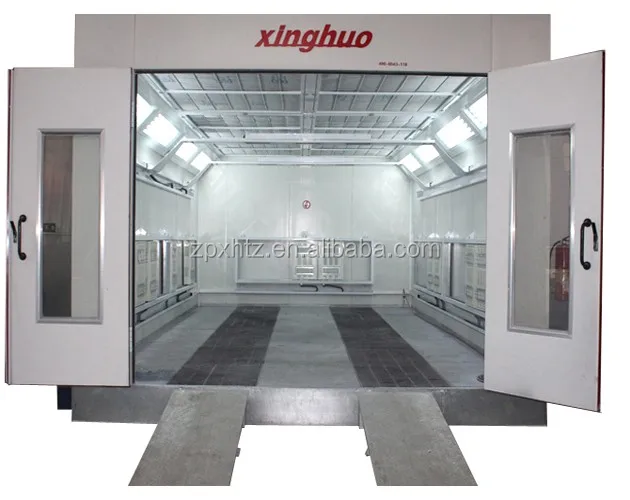

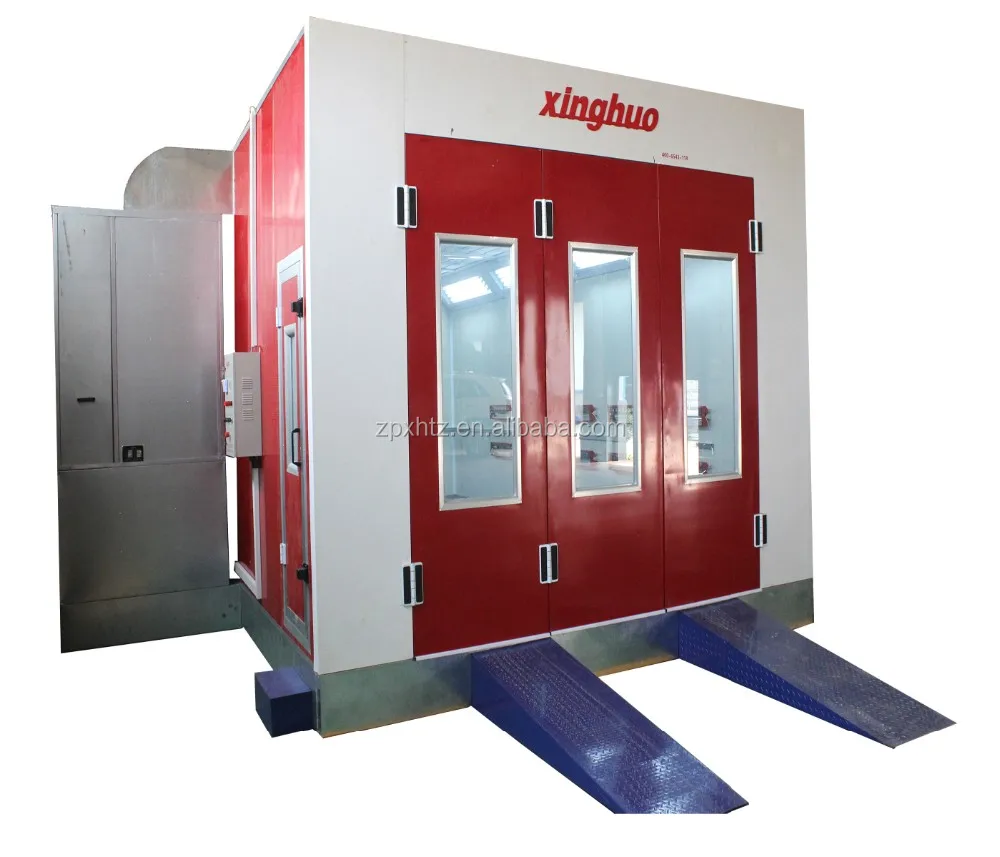

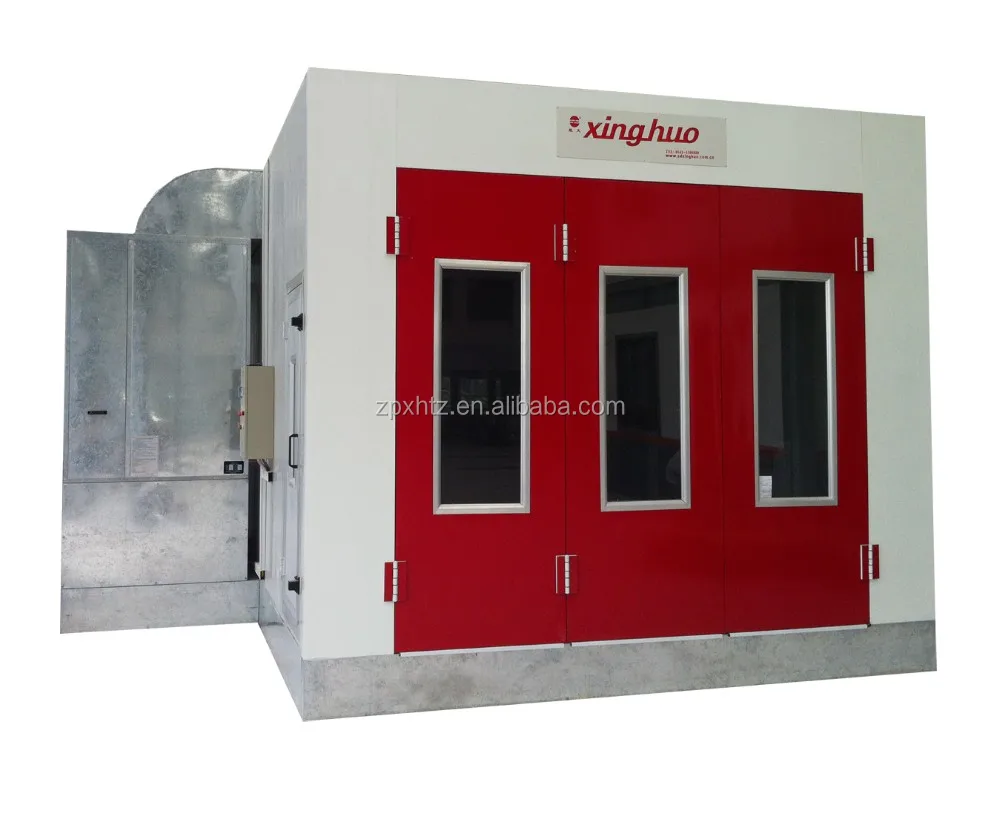

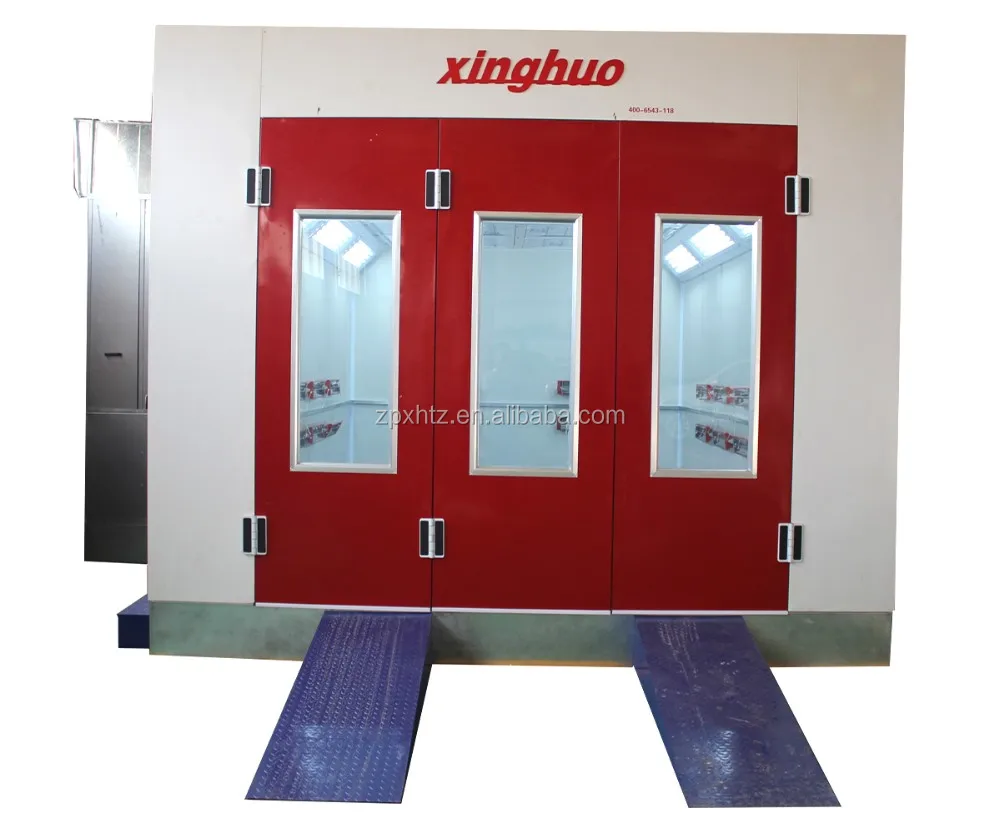

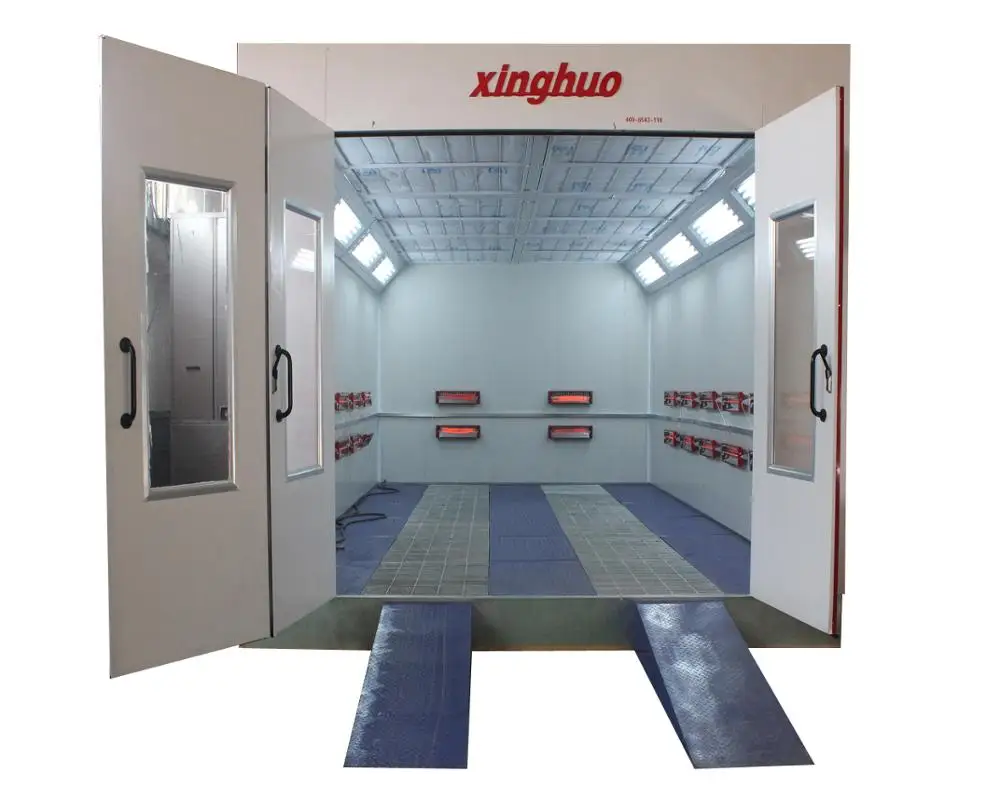

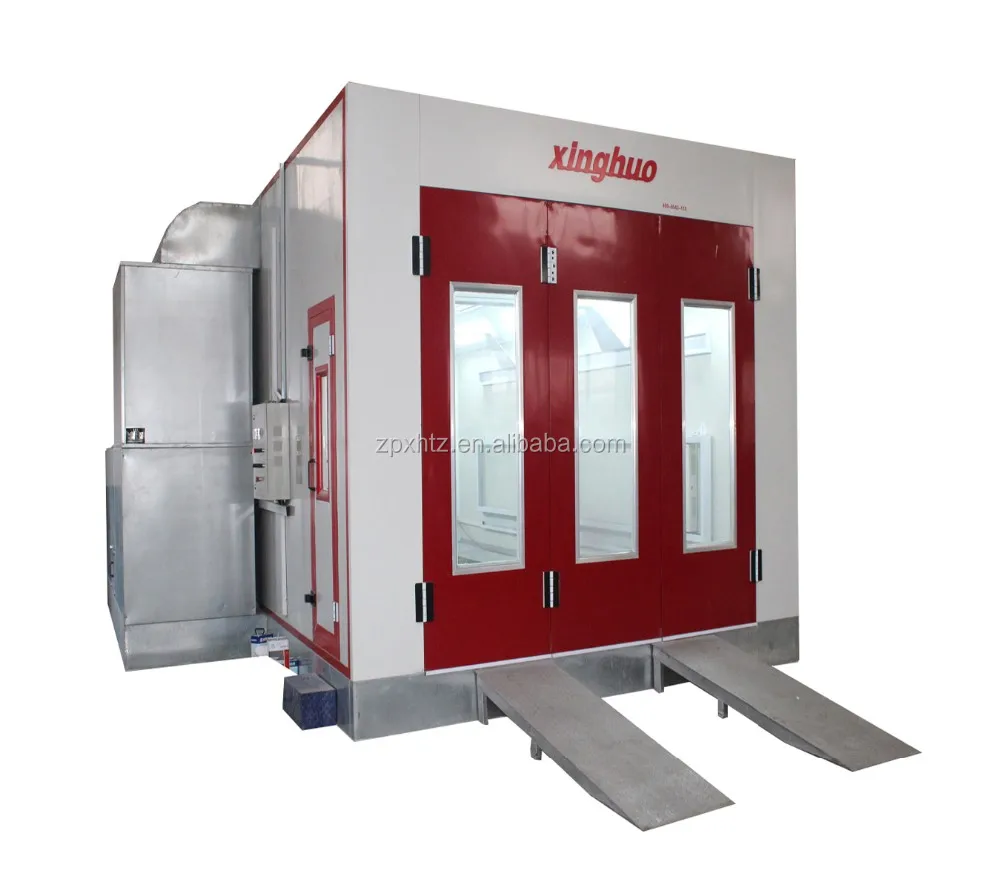

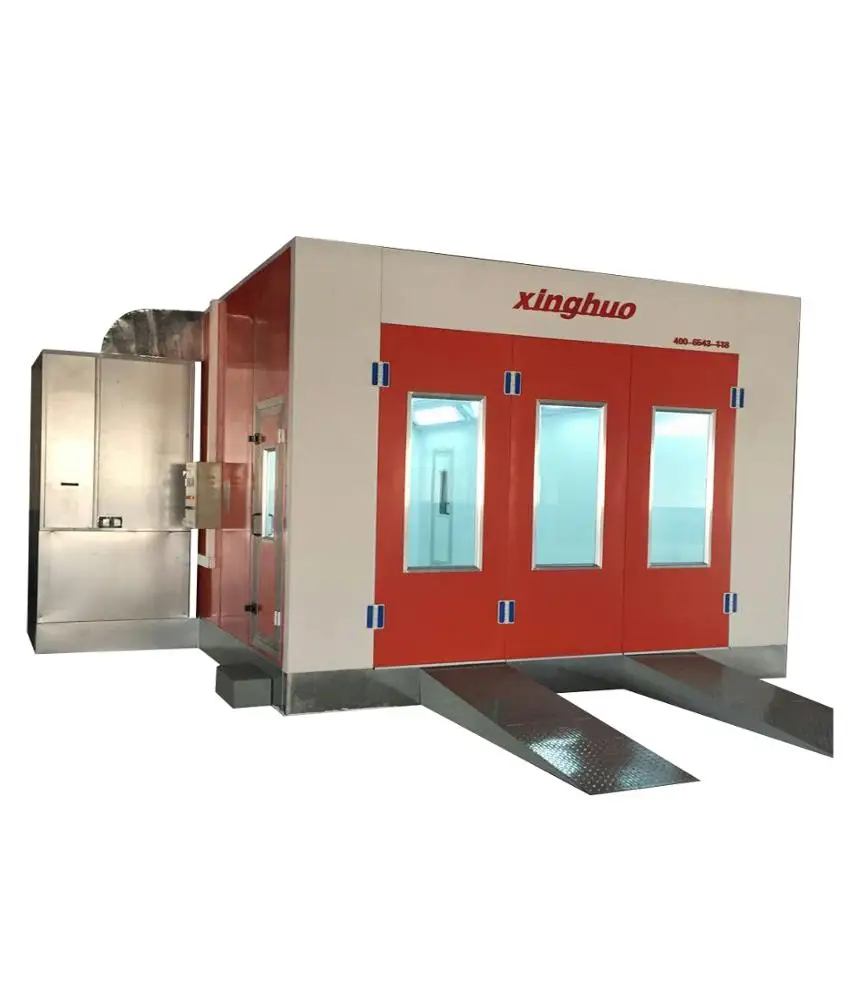

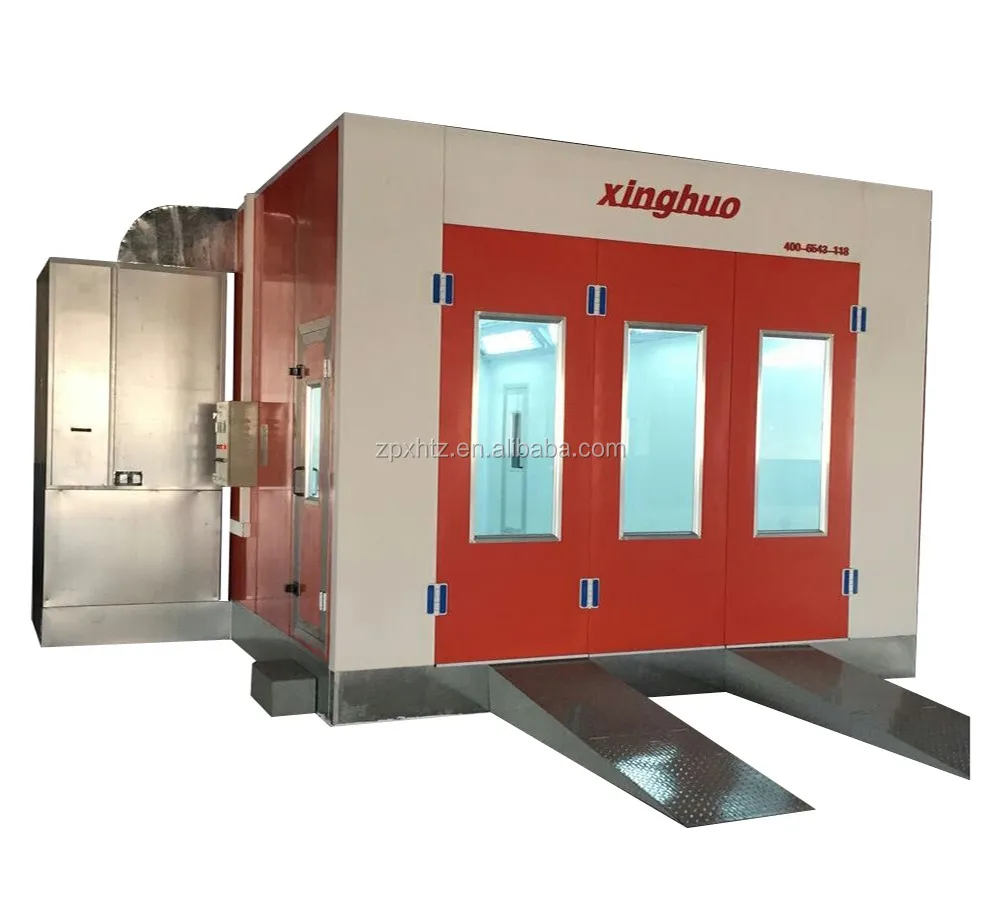

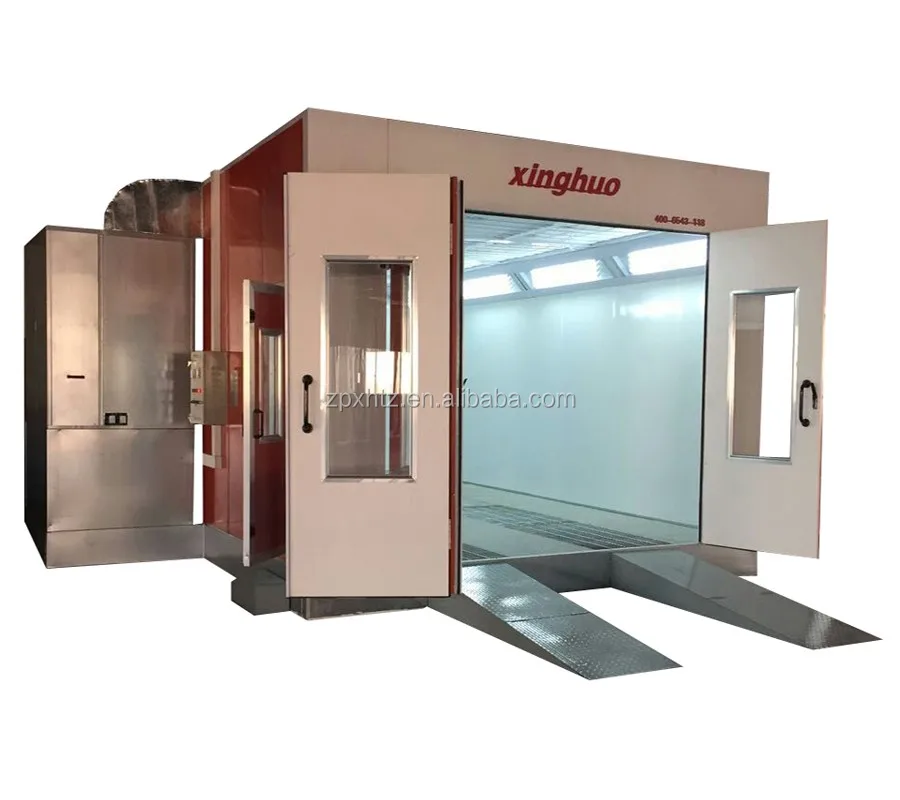

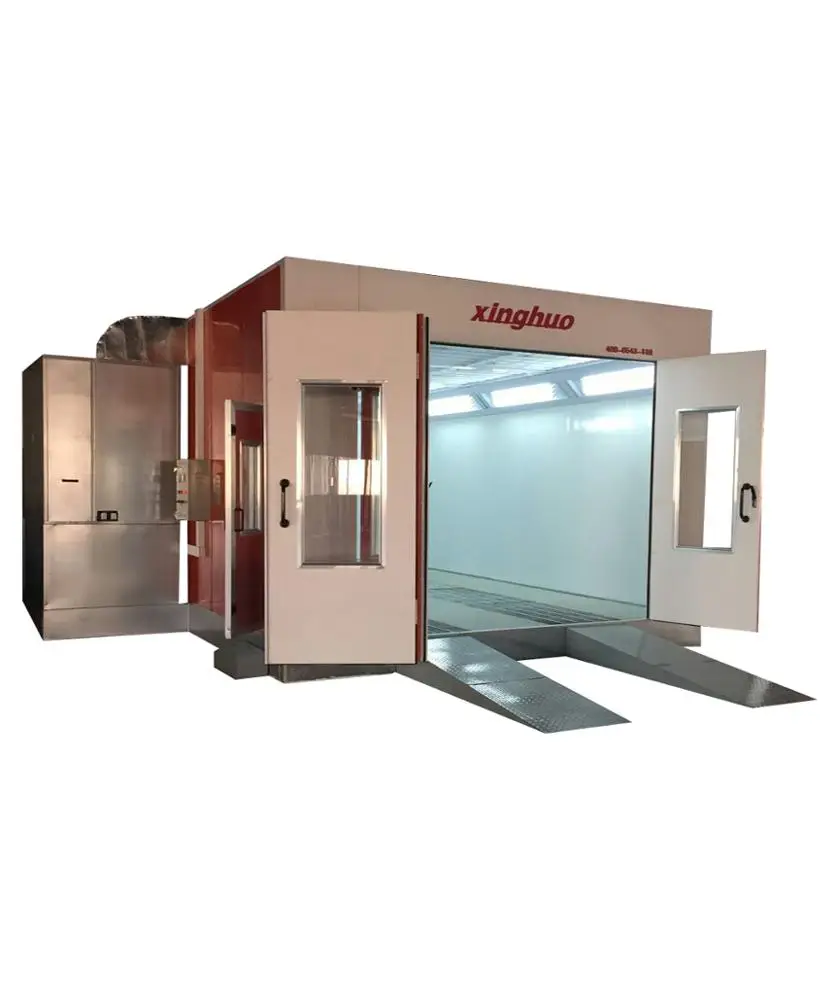

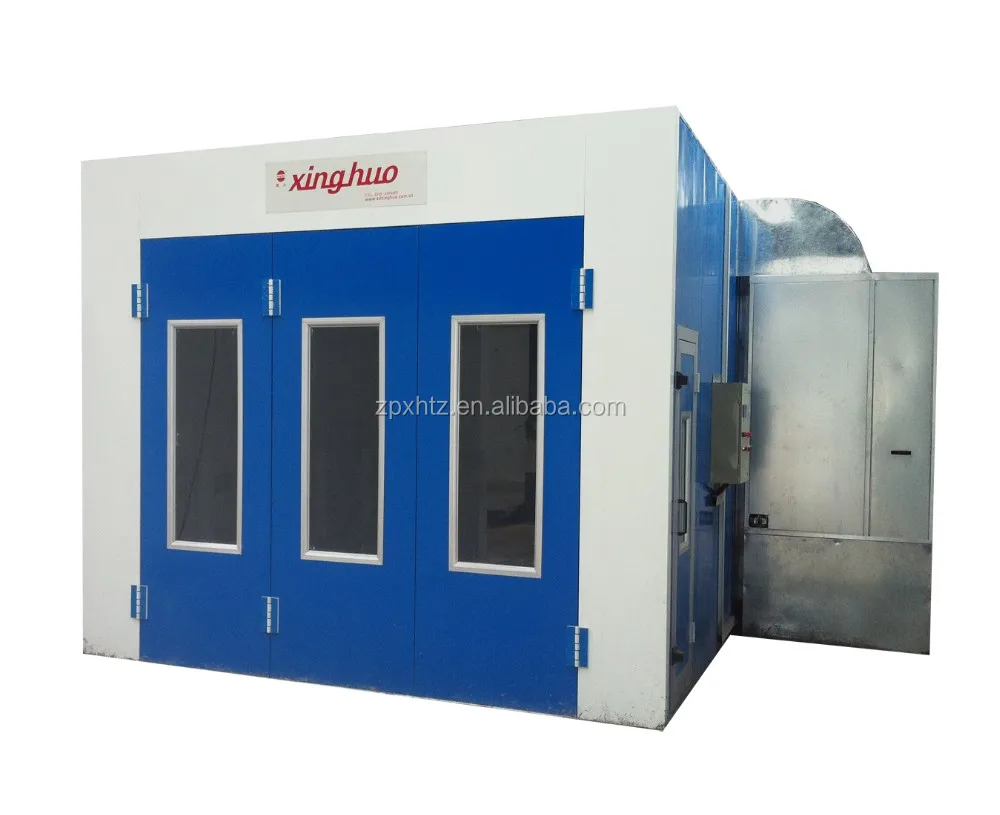

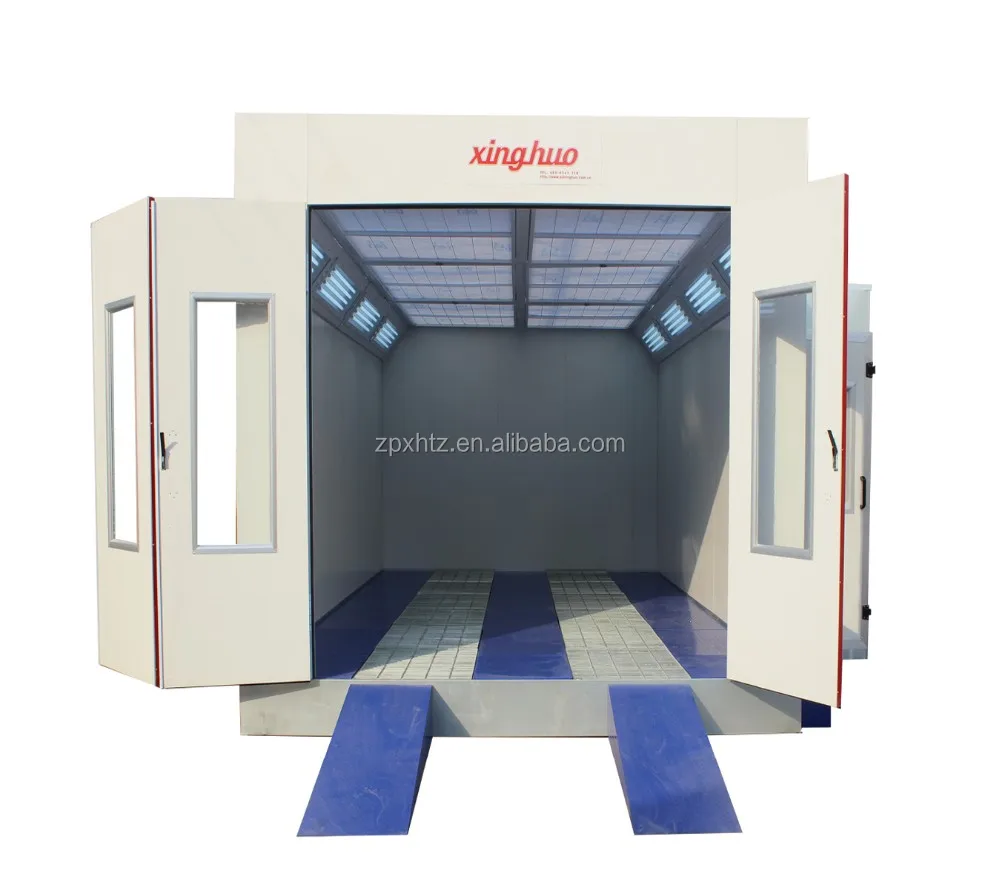

Factory Simple Assembly Ce Approved Spray Booth Used Car Paint Booth for Sale

Quick details

Total power 41kw; 380v/50hz

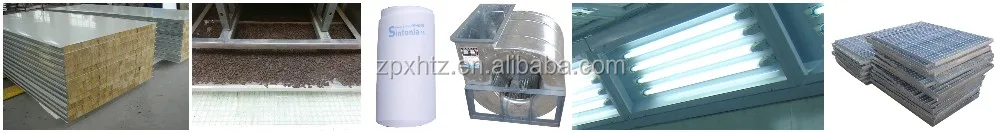

1.Walls & Ceiling

- High-quality high-temperature resistant fireproof basalt rock wool board, plate thickness 50mm, double-sided 0.4/0.4mm steel plate, rock wool density 120kg/m³

- High-quality galvanized sheet bending and fastening

2.Basement system

- The surrounding is made of high-quality galvanized sheet.

- The load-bearing bracket is 1.8mm galvanized sheet with convex steel structure welded

- Steel grilles(30*4mm flat iron and 8 #threaded steel welding)*2rows

- Non-slip boards(painted by the tread plate)*3rows

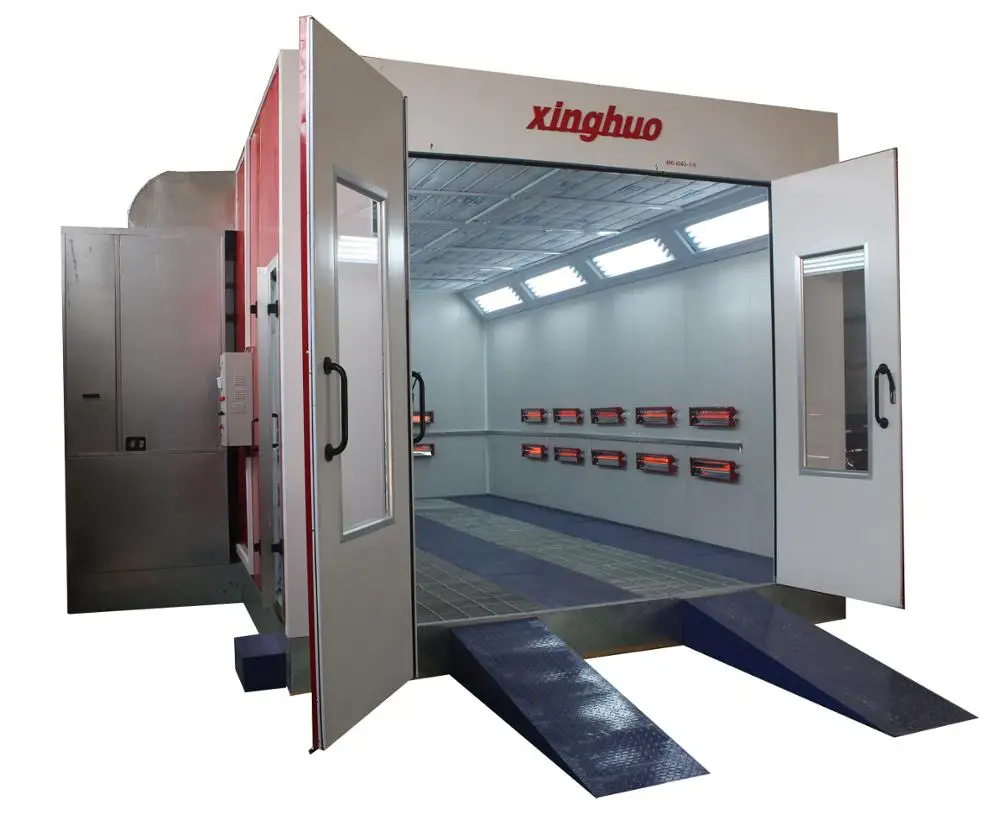

3.Heating system

- Use far infrared heating

- The far-infrared electric heating pipes are fixed on both sides of the barn and at the rear

- Far infrared electric heater total power: 30KW, divided into 3 channels.

4.Filter system

- Domestic cotton primary filtration, top filter cotton fine filtration, filtration rate 98 %

- Use high-quality galvanized sheet welded frame to make cotton mop

- Filter cotton in-line design to prevent hair loss

- Design six cotton mops, easy to replace, enhance the overall strength

5.Air system

- The fan is selected from Yancheng YDW type fan in Jiangsu

- Air-intake fans*2units,centrifugal fans with 3kw motor each

- Air-exhaust fan*1unit,centrifugal fans with 4kw motor

6.Illumination

- The light box is made of galvanized sheet by bending,welding and spraying production

- 32 sets of LED tubes with an illumination of ≥800 lux

7.Control panel

- With temperature time setting, normal temperature painting, paint switch, lighting switch, emergency stop switch, fault alarm,etc

Functional characteristics

1.Fast processing in the early stage, good baking effect

The car paint booth is a set of large-scale equipment. Before the use, the car can be subjected to the necessary pre-treatment, which can eliminate the disadvantages of manual treatment and improve the quality of the paint surface in the paint repair work.

2.Good working environment

In order to keep the internal air clean, the paint room is equipped with an air filter device (such as filter cotton) to filter the dust entering the air inside the paint booth. The circulating ventilation system of the paint booth allows the paint room to have sufficient ventilation speed to ensure the air in the room is clean.

3.High work efficiency and quality assurance

The car paint room operation is a mechanized "one-stop" service, and the work efficiency is several times or even dozens of times higher than that of manual paint and baking paint. The paint surface is smooth and uniform, free of impurities and has a high degree of polishing.

4.High safety factor

The car paint room is equipped with a thermostatic controller and a safety explosion-proof system. The humanized customized design fully guarantees the safety of intelligent operation and vehicle equipment safety.

Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

Shandong province Zouping county spark coating equipment limited company is a high-tech enterprise which integrates specializing in the design, production and sales of spray-baked paint room, waste gas treatment and environmental protection equipment and industrial painting equipment as one.The company integrates design, manufacturing, installation, commissioning and consulting services,committed to the research, development and promotion of new products, new technologies and new processes.The company is located in Mingji Development Zone, Zouping County, Shandong Province,the company has a variety of advanced professional processing equipment such as large-scale shearing, CNC bending, punching machine tools.Products sell well all over the country and Japan, South Korea, North Korea, Vietnam, Russia and other neighboring countries,won the praise of the majority of users.

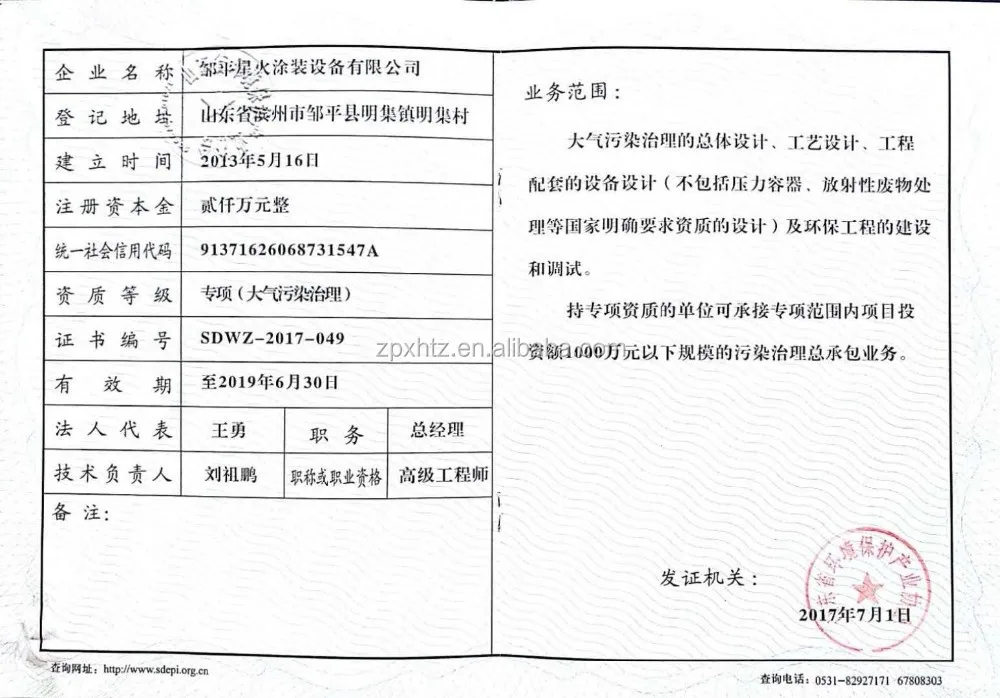

Companies adhere to the people-oriented, cooperative innovation, excellence as the concept,established a complete R&D and quality assurance system,products passed the ISO9001: 2015 quality management system certification,and has been rated as "contract-honoring and trust-keeping enterprise" many times,and passed the traffic product certification in 2010,passed China classification society traffic product certification in 2014,and reached a long-term cooperation agreement with the huge group.The Spark brand has matured and been put on the market stably,our customer network and product sales services have covered the world,the products are widely used in the surface coating of various industries such as automobile industry painting production and paint repair for the market after vehicle maintenance service, paint production in the railway rail transit industry and parts, construction machinery, energy equipment, wood furniture and other industries.
