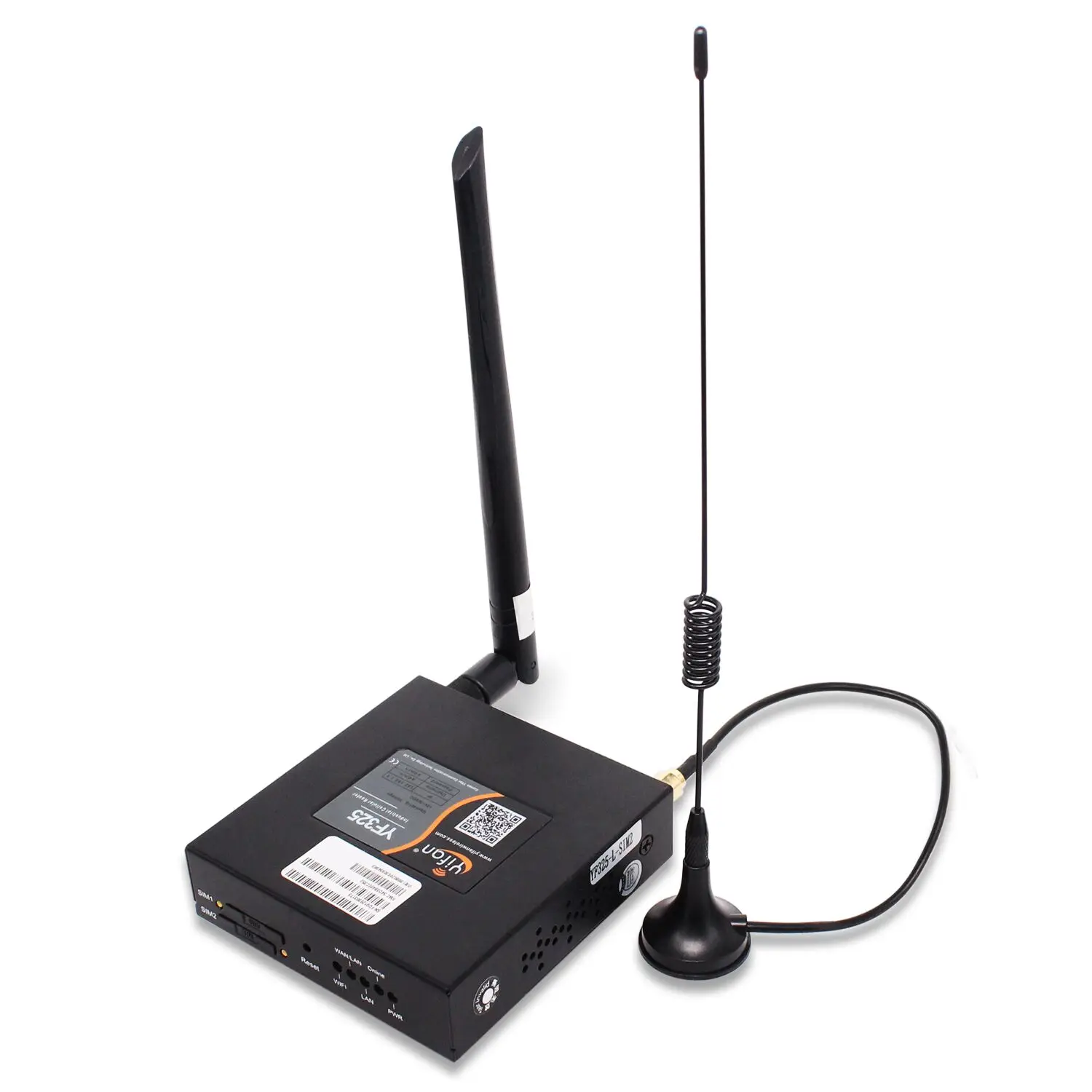

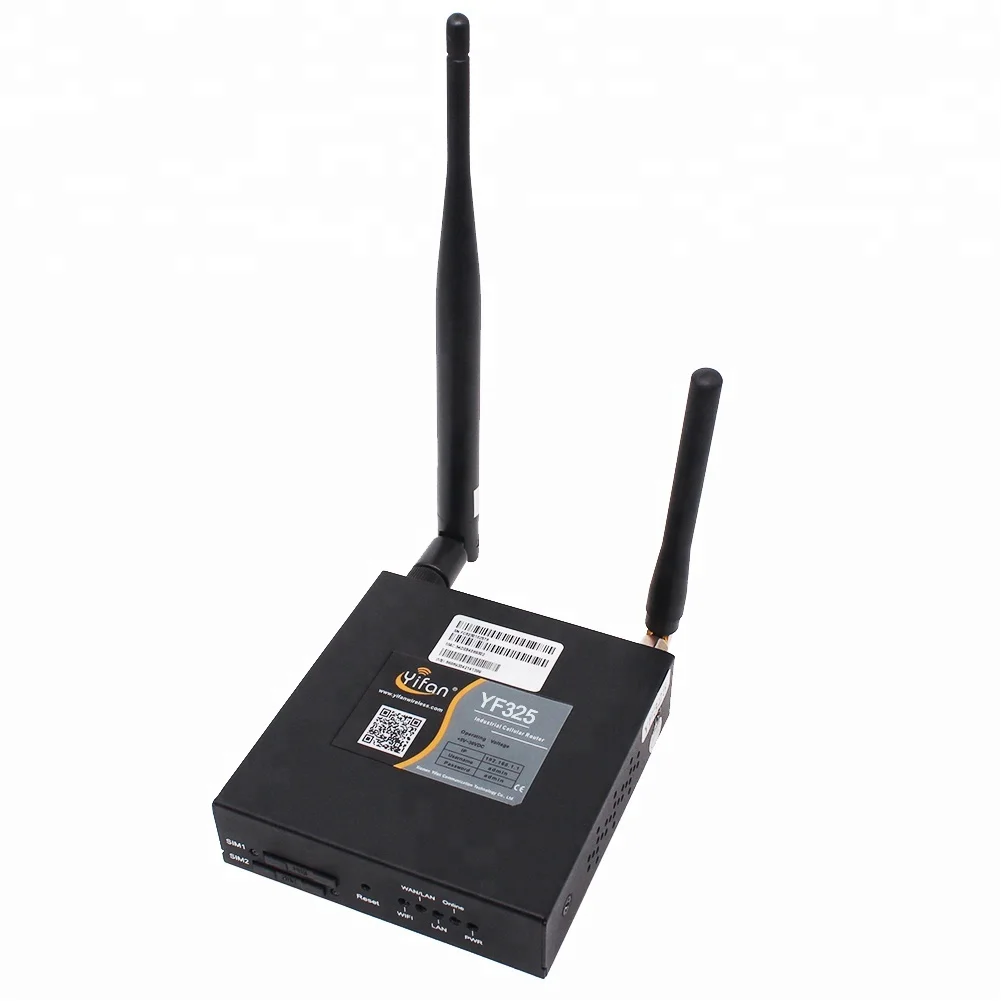

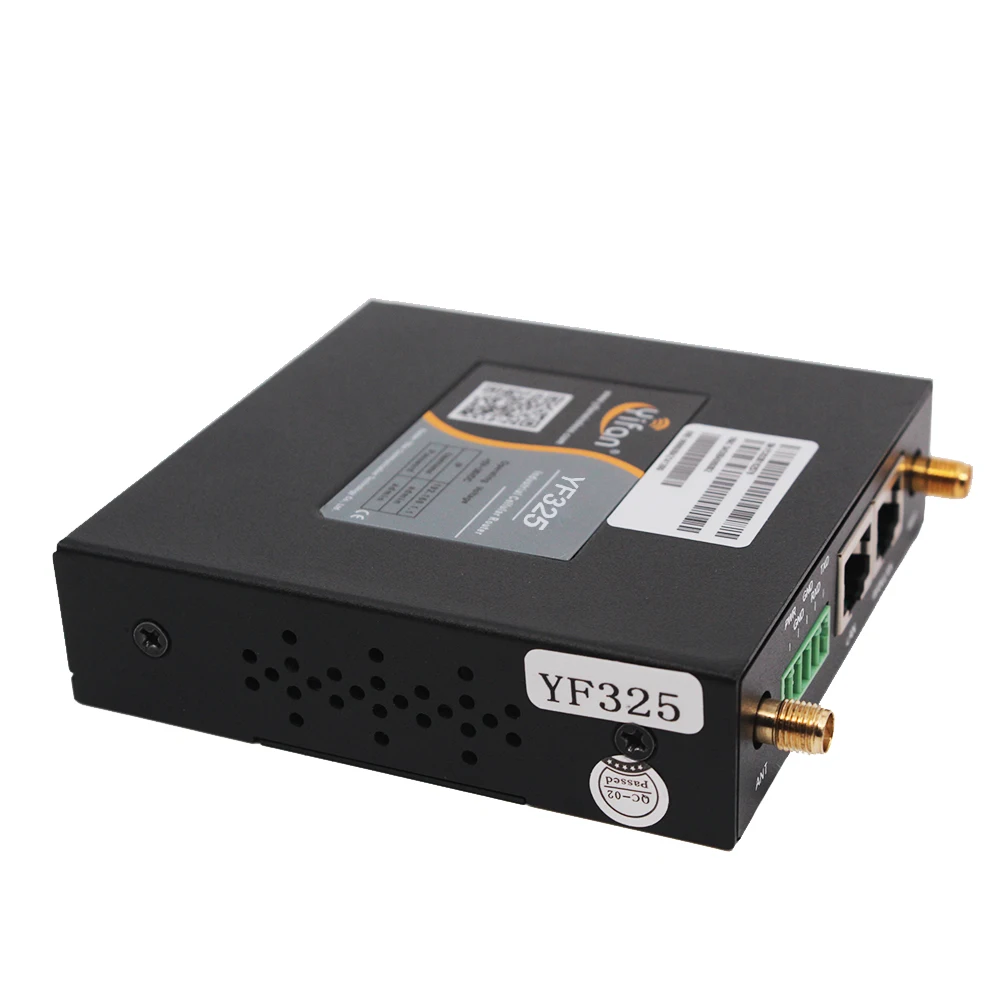

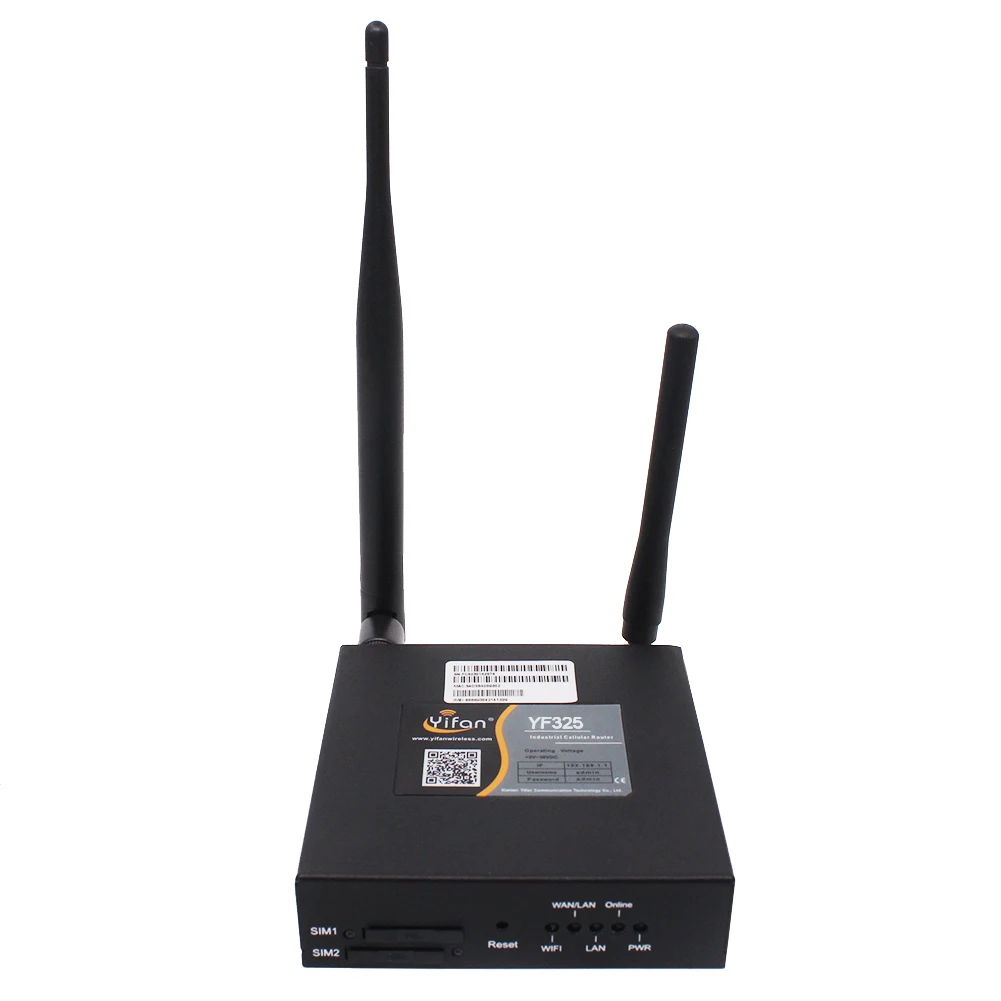

YF325 агрегатор 4g промышленный LTE маршрутизатор со слотом для sim карты и 2 портами Lan
- Category: >>>
- Supplier: Xiamen Yifan Communication Technology Co. Ltd.
Share on (60812975404):
Product Overview
Description
Product Description
YF325 Series Cellular WIFI ROUTER is a kind of cellular terminal device that provides large data transfer function by public GPRS/EDGE/UMTS/HSDPA/HSUPA/HSPA+/LTE network.
It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232 (or RS485/RS422), Ethernet and WIFI port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial, Ethernet and WIFI devices with only basic configuration.
ATM application
Smart meter
CCTV camera
bus wifi sharing
Main Functions
*High-powered industrial cellular module
*High-powered industrial 32bits CPU
*Support hardware and software WDT
*Support auto recovery mechanism, including online detect, auto redial when offline to make router always online
*Support multiple WAN access methods, including static IP, DHCP,PPPOE,3G/UMTS/4G/LTE,DHCP-4G.
*Support double link backup between LTE&WCDMA and WAN(PPPOE, ADSL) (optional)
*Support VPN client(PPTP, L2TP, OPENVPN, IPSEC and GRE)
*Support VPN server(PPTP, L2TP, OPENVPN, IPSEC and GRE)
*Support local and remote firmware upgrade, import and export configure file.
Frequency band:
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20 (2100/1900/1800/1700/850/2600/
900/800MHz)
FDD: B2/B4/B5/B13/B17/B25/B26 (Optional), B1/B2/B3/B5/B7/B8/B20/B28 (Optional)
LTE TDD: B38/B39/B40/B41
HSPA+/HSUPA/HSDPA/WCDMA/UMTS 2100/1900/900/850MHz
EDGE/GPRS/GSM 1900/1800/900/850MHz
Bandwith
LTE FDD: Download speed 150Mbps, Upload speed 50Mbps
DC-HSPA+: Download speed 42Mbps, Upload speed 5.76Mbps HSPA+: Download speed 21Mbps, Upload speed 5.76Mbps
HSDPA: Download speed 7.2Mbps, HSUPA: Upload speed 5.76Mbps
UMTS: 384Kbps
Interface

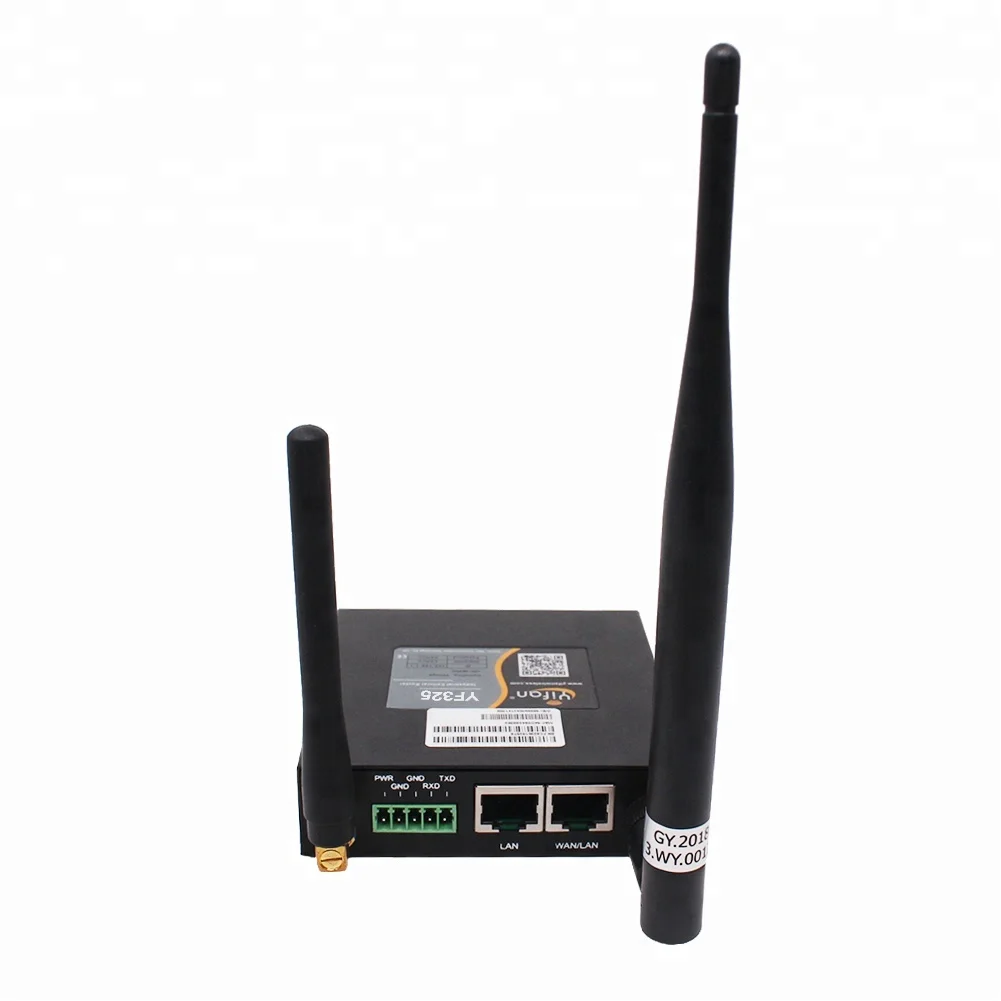

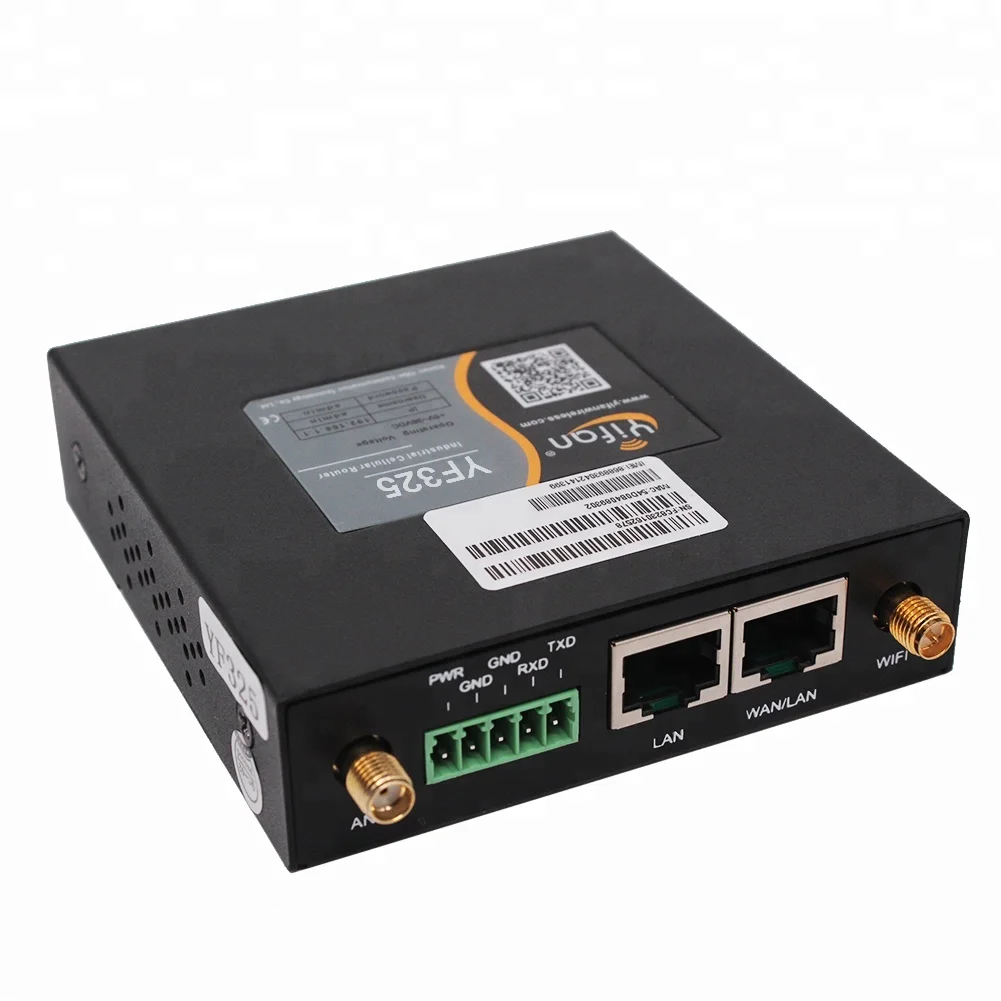

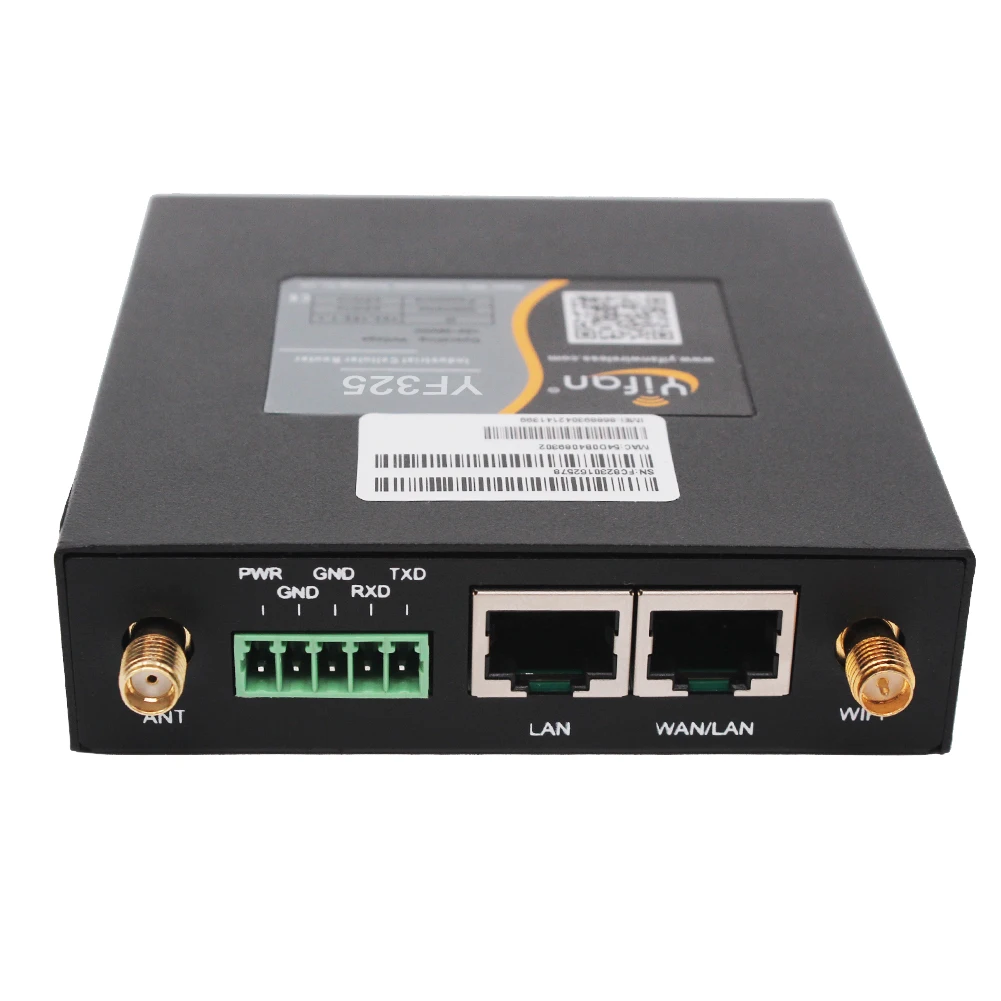

Wan/Lan: WAN/LAN configurable; 1* 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
Lan: 1 *10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
serial:1* RS232/RS485 port, 15KV ESD protection Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2Parity: none, even, odd, (space, mark)(optional) Baud rate: 2400~115200 bp
