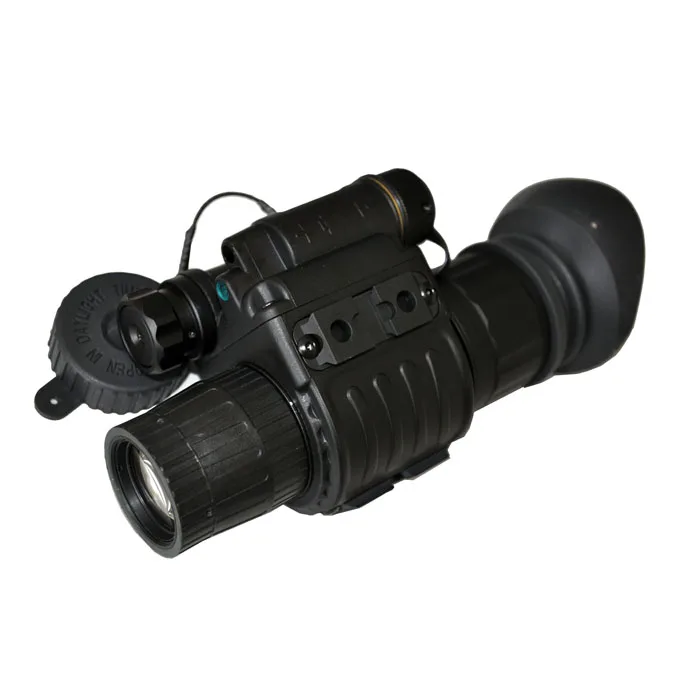

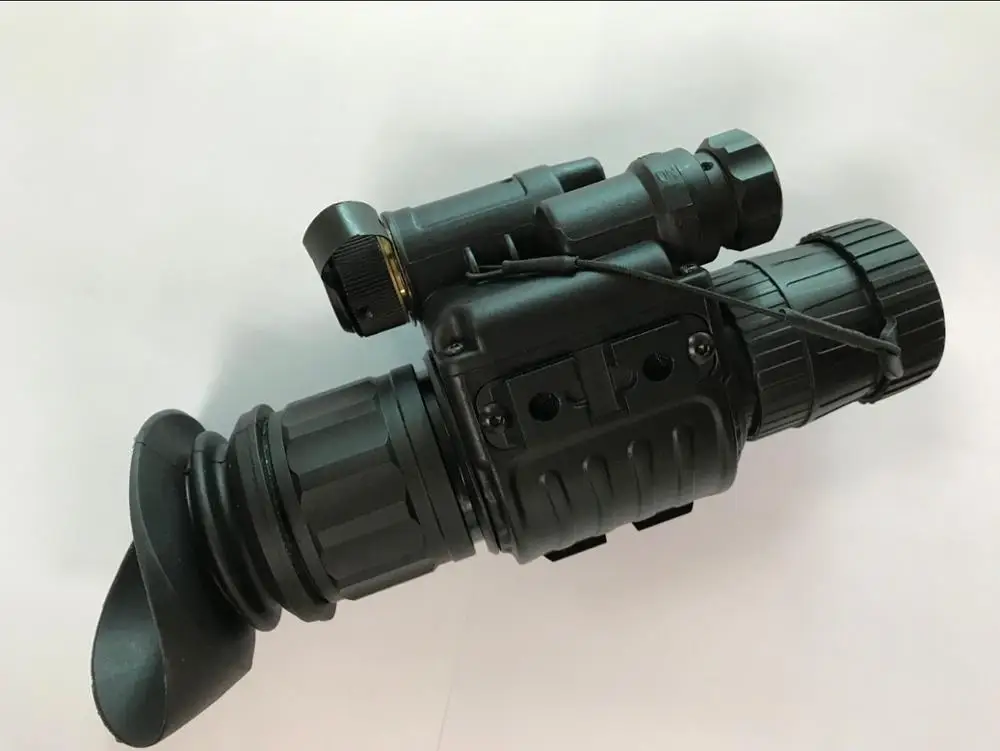

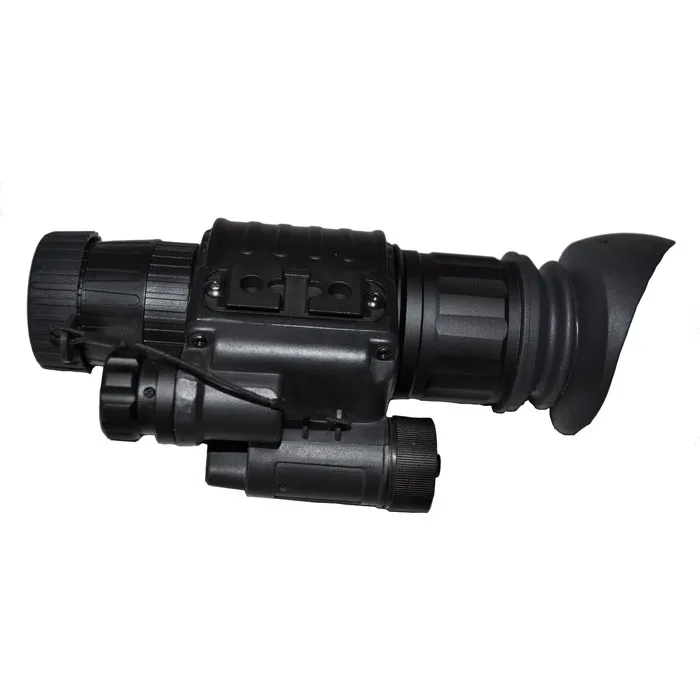

Монокулярный корпус ночного видения gen2 для военного и охотничьего использования, хорошая производительность тела ночного видения

Share on (60813013039):


Price:

Quantity:


Product Overview

Description



Product Details



Product Description:


This body includes the eyepiece, objective lens, PCBs, electronic components and housting etc. Fitted with a IIT inside, it can be a working unit.

Specifications:




























































Magnification,



1X











Range of lens focusing, m



0.25--∞











Angular field of view, deg.



40











Removing the exit pupil, mm.



18



Diopter adjustment of eyepieces, diopters



+5/-5



Supply voltage, V.



2.0-4.2V



Power supply unit



1* 3V CR123A lithium battery



Operating time, min. hours



40



Ambient temperature



-50/+60



Weight, g.



314.5(only body)











Overall dimensions, mm.



140*77*56MM










































































Image intensifier tube



IIT 2+ (without)







Photocathode type



S25







The integral sensitivity of the photocathode μa / lm.



450-600







Limit of resolution, l / mm.



45-64







Signal-to-noise ratio at 108 μlx, min.



12-21







Minimum operating hours h.



40







Range of detection, m .:220-280m



- a quarter of the moon



YES







- cloudy sky



YES







Range of recognition, m .:220-280



- a quarter of the moon



YES







- cloudy sky



YES







Characteristics indicated in the passport of the device:




























































Optical parameters















Range of detection, m



220-280











Lens, magnification, multiplicity



1X











Lens















Optical system, mm..



F1.2, 25.8mm











Focusing range, m..



0.25-infinity











Angular field of view, deg



40











Diopter adjustment of the eyepiece



+/-5



Diameter of the exit pupil, mm.



8mm



Removing the exit pupil, mm.



18











Kit includes


Night Vision Body, Protective carrying bag, Warranty card.


Features
IP66 weatherproof: This product is available against domestic water.
*  Automatic shut off when flipped up: The device will turn off automatically when pushing a button on the side of mount  and lifting the unit up until reaches in the top position. Push the same button to lower monocular to the viewing position,  then the device will turn on for continuation of operation.
*  No power consumption when in standby: It means no power consumption in case you forget to remove the battery for some days.

 Embedded spring in battery's cap: It makes screwing the cap easier and better protect the spring and contact with the battery.

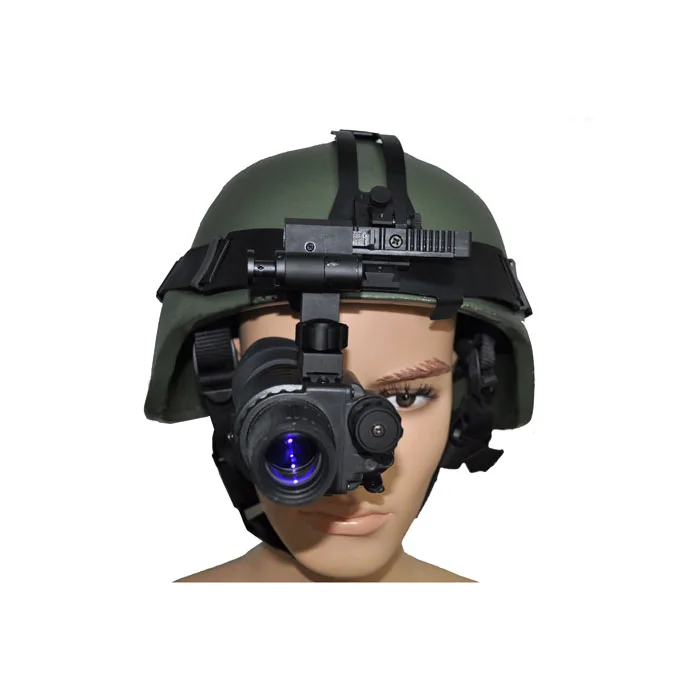

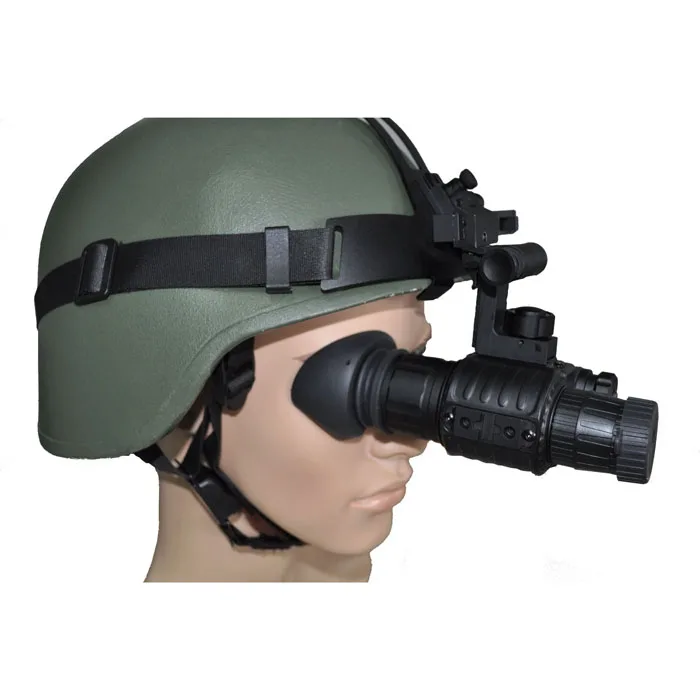

Fully adjustable head mount: The head mount can be adjusted according to head size.
 Mil-spec multi-coated optic: Multi antireflection film can restrain the reflex of lens, which can reduce the loss of light so more light can go though the lens to get a sharp image.
* Automatic brightness control: When the ambient light changes, the brightness of the image detected will keep the same to insure a stable viewing effect and also to protect users' eyesight.
* Bright source protection: The device will shut off automatically in 10 seconds to avoid the damage of the image intensifier tube when the ambient light exceeds 40 Lux.
* Low battery indication: A greenish light in the edge of eyepiece will start flickering when the battery is running low.


Warranty :
 Our warranty is 1 year from the date of purchase. For detailed warranty info, please refer to our Warranty Service.











Certifications



monocular single tube night vision equipment/iit
