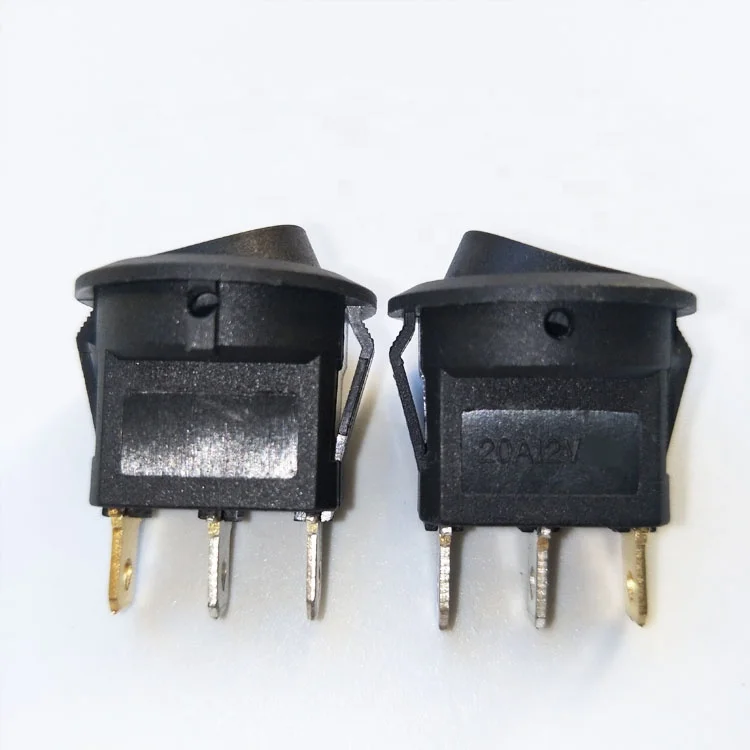

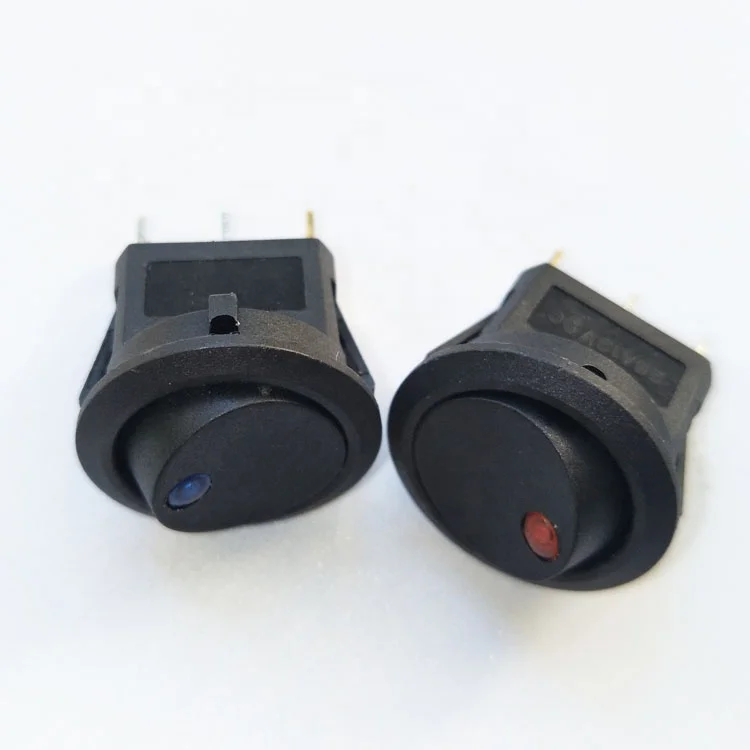

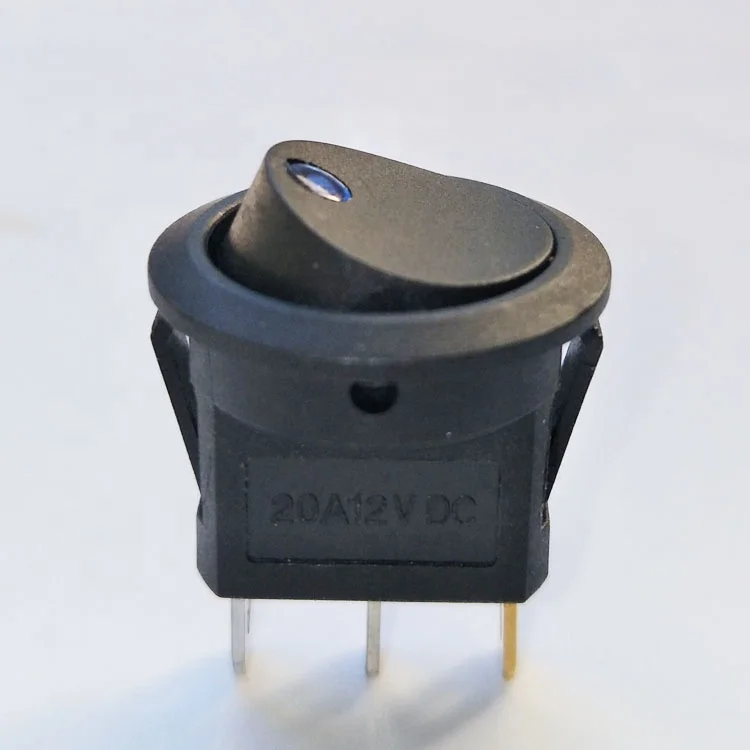

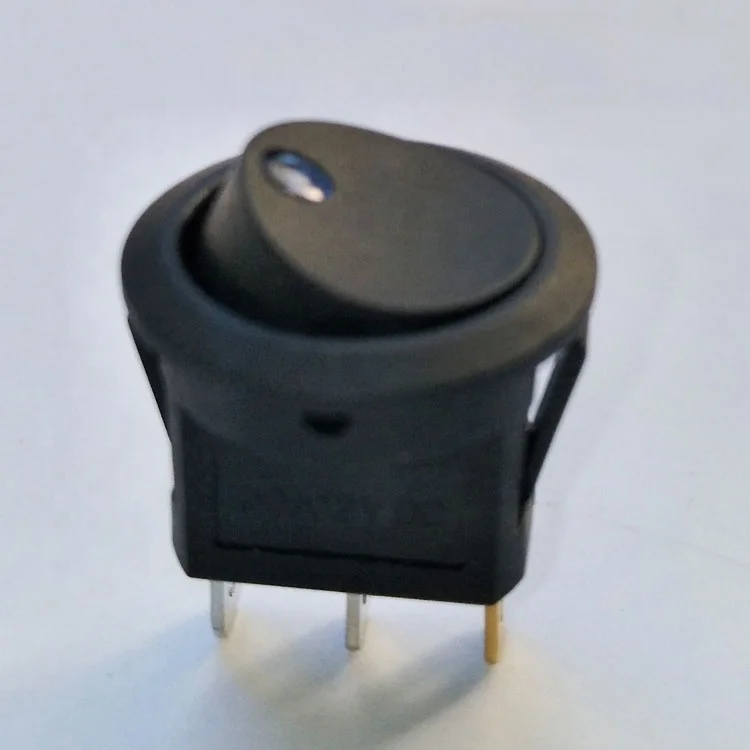

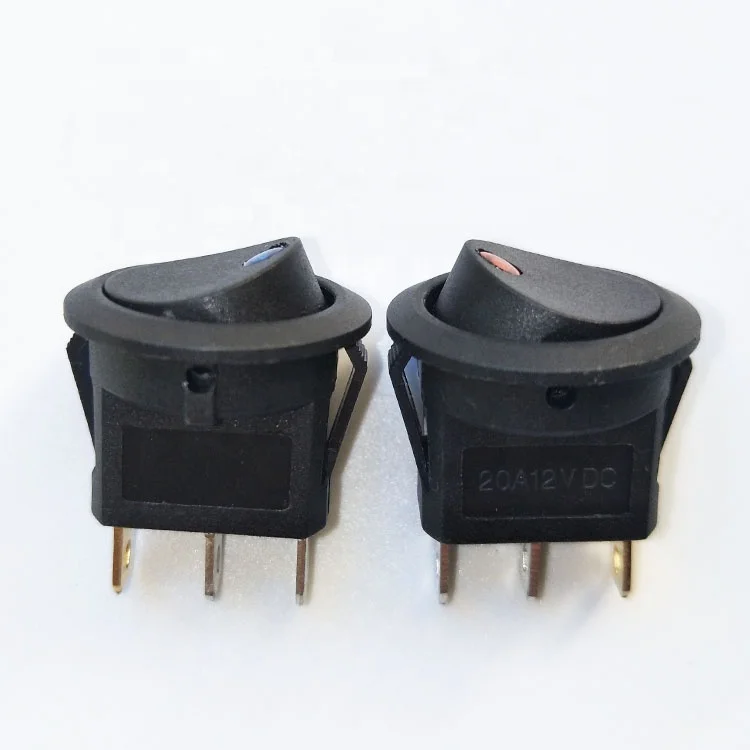

12(4)A~125/250VAC electric instruments round rocker switches with lamp
- Category: >>>
- Supplier: Shenzhen Towei Electronics Co. Ltd.
Share on (60813130158):
Product Overview
Description
Product Description
12(4)A~125/250VAC electric instruments round rocker switches with lamp
Item No SC777
Technical Parameter | |
Electrical Rating | 12(4)A~125/250V.A.C. |
HZ | 60/50 |
| Load | Res/ Mot |
| Temp(C) | 105°C |
| Pol/Thr | 1/2 or M |
| PP/Circuit | --/A |
| Endur | 10K cycles |
| Operation force | 250G+_80GF |
| Withstand voltage | 1500 V.A.C |
Material: | |
| Actuator: PA66 Flame rating: V-2 or V0 Temperature: 130°C Grade: Dupont | |
| Movable Contract: Copper | |
| Terminals: Copper | |
| Housing: PA66 Flame rating: V-2 or V0 Temperature: 130°C Grade: Dupont | |
| Apply to: | |
All kinds of electric fans,juicer,heater,coffee machine,electric oven ,humidifier,vacuum cleaner,massage equipment , air purifier,lamps,electric toys,blenders,massager and so on. | |
