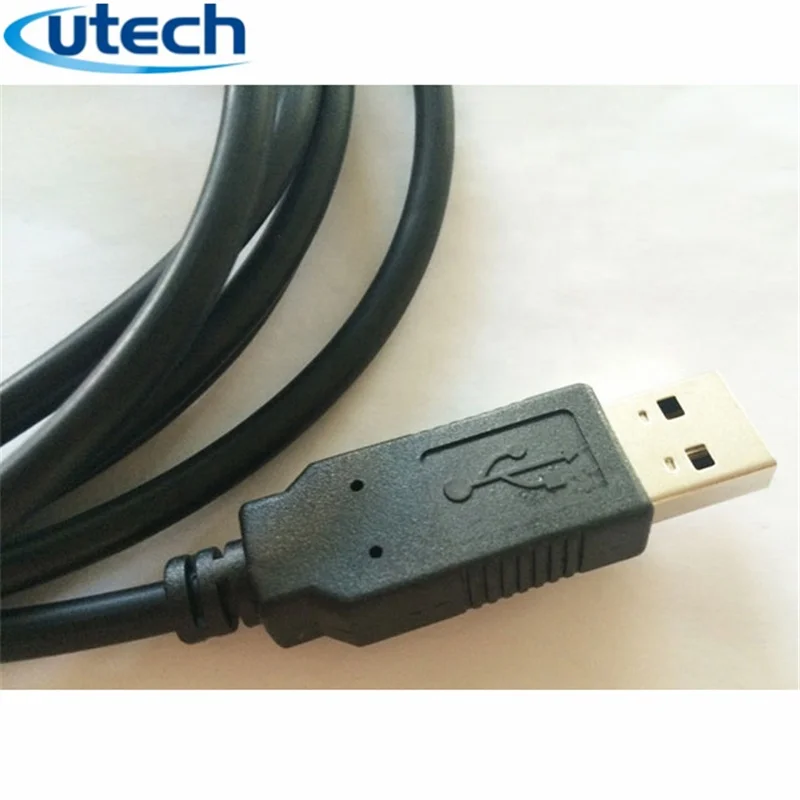

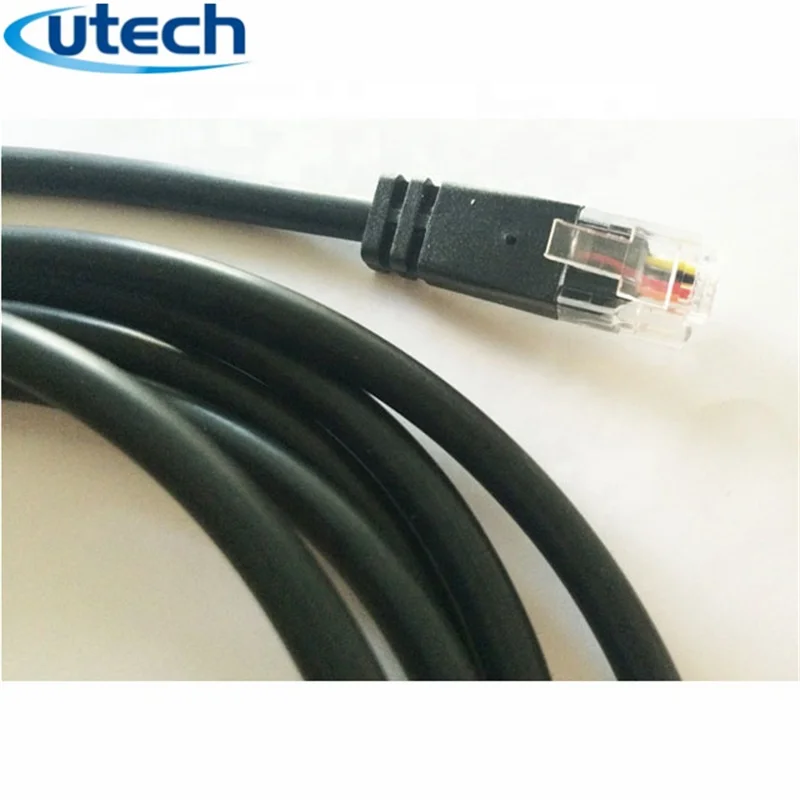

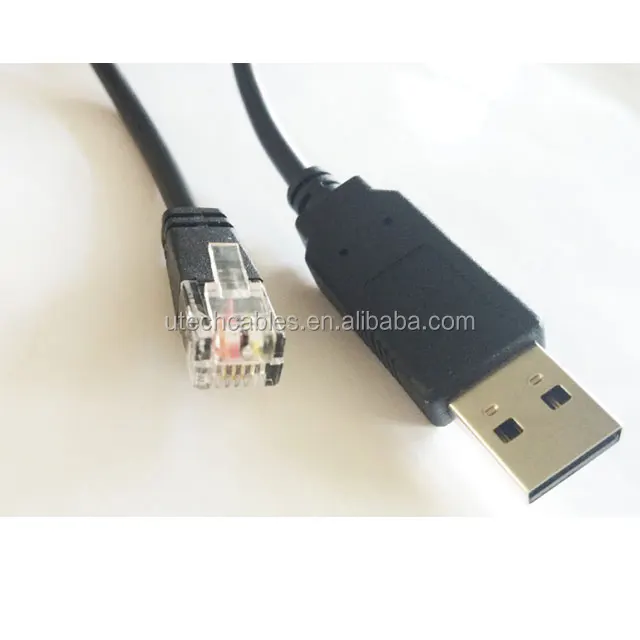

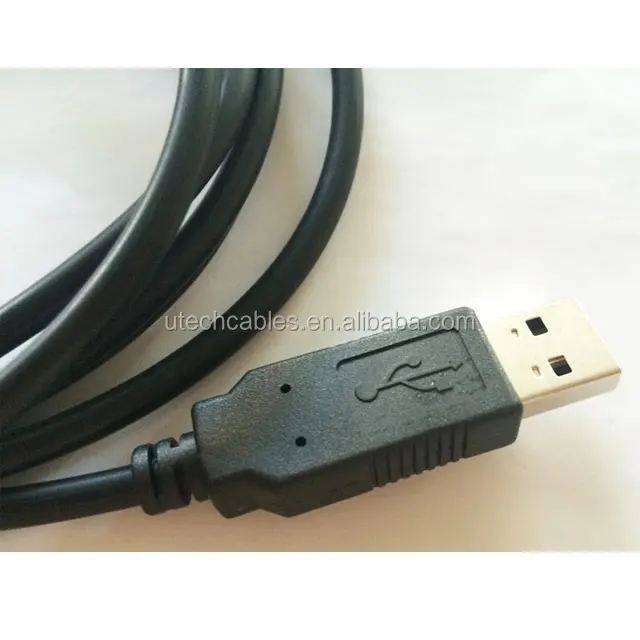

USB RS485 to RJ11 Converter Cable with FT232 and SP485 Chip

Product Overview

Description

USB RS485 to RJ11 Converter Cable with FT232 and SP485 Chip

This USB to RS-485 converter cable with the chipset built into the USB connector. This design offers a convenient way of connecting your RS485 devices directly to the RS485 wires of this 485 converter cable or via the a two-piece screw terminal connector for easy disconnection.

The processor chip in this converter cable is the high performance FTDI chip which is compatible with all versions of Windows (32- and 64-bit), Mac and Linux.

Besides the RS485 D+, D- and GND signals this converter cable also provides an addtional +5VDC at the 485 end which can be used for powering your device if needed.

The cable itself is powered from the USB port so no additional external power supply is needed for this RS 485 converter to work.

After connecting and installing the drivers for this cable a virtual COM port is automatically created and will show up in your operating system's Device Manager just as if it was a real local COM port.

This USB to 485 converter is surge and static protected to protect against the most common damages from static electricity and other voltage spikes, which makes it suitable for most applications, including industrial, commercial and any general office environment.

Automatic send data control is enabled by default so no external flow or handshake control is needed.

1.USB port-powered.

2.Compact high performance solution.

3.Indication LED lights for TX, RX and Power.

4.Interface: Terminal header + stripped wires.

5.Automatic Send Control.

6.Up to 32 nodes in network configuration.

Operating system	Windows 8.1 / 8 (32/64-bit), Windows 7 (32/64-bit), Vista (32/64-bit), XP, Server 2003/8R2 (32/64-bit), 2000, ME, 98Se (all WHQL compliant)
	Linux
	Mac OS 8, OS 9, OS X
	Windows CE.NET (Version 4.2 and greater)
	Android
Processor	FTDI FT232RL
RS485 Interface	Included screw terminal header / single wires
Fail-safe bias resistors	Yes
USB interface	Standard Type A Male
Ports	1-port available for RS485
Signals	RS485, 2-wire half duplex: D+, D-, GND
Baud rate	300-921.600bps (up to 3kbps by using alising)
TX / RX buffer size	256 Byte Transmit Buffer / 128 Byte Receive Buffer
Adjustable USB transfer sizes for TX and RX	From 64 bytes to 4096 bytes
Adjustable latency timer	1 to 255 msec
Adjustable read and write timeouts	0 to 10000 msec
Flow Control	None, Xon/Xoff, Hardware
COM port accessible by	Included virtual COM port drivers or FTD2XX.DLL
Special features	Compatible with Modbus RTU/ASCII, BACnet
	Supports non-standard baud rates
	Automatic Send Control
Electrostatic (ESD) protection	600W surge protection, 15KV static electricity protection
Current draw	Static: less than 80mA. Dynamic average: less than 150mA
Interface compliance	USB1.1,2.0,3.0, EIA/TIA RS-232
Working temp	-20°C to 60°C
