The XC6-3507 telehandler is a versatile lifting and handling device that combines stability and ergonomics for a wide range of material handling environments. The machine is compact, flexible in operation, sensitive in lifting, high in net load and heavy duty, and precise in forklift.
1.With a new ergonomic cab and an integral open hood, it is stronger and more beautiful.
2.It adopts the international famous brand engine and has strong power; the imported telescopic arm-mounted machine has a special bridge box, and the transmission is stable and reliable.
3.The world's top all-hydraulic wet brake system provides stable and reliable braking and ensures safe driving.
4.Optional torque limiting system to meet the needs of extreme working conditions to ensure the safety of the whole machine.

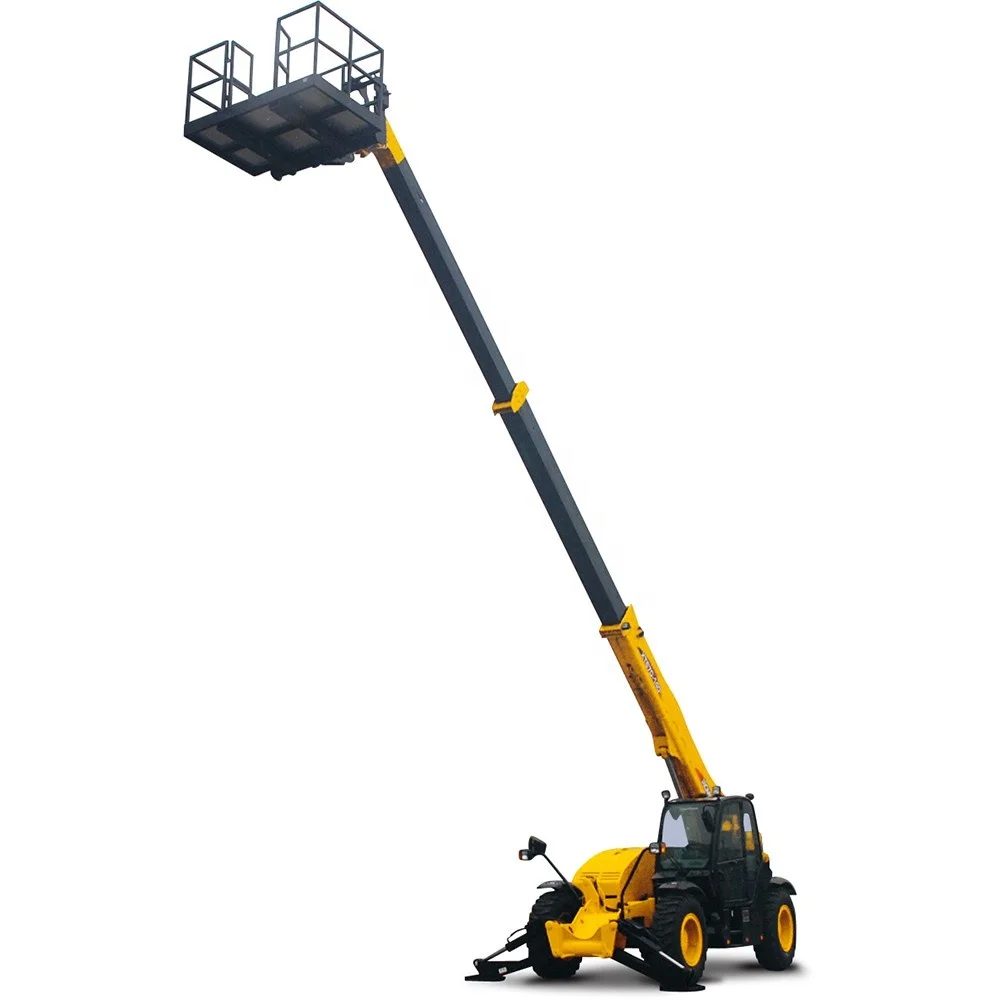

5.It can be equipped with forks, high-altitude platforms, buckets, bag holders and other tools to meet the individual needs of users.
6.The speed is up to 35km/h and it is flexible.
7.China's telescopic forklift machine leader.
8.China telescopic boom machine industry standard setter.
Main Parameters of XC6 Series Telehandler | ||||||||
ITEM | XC6-3507 | XC6-3514 | XC6-4517 | UNIT | ||||
Machine weight | 7850 | 10500 | 13500 | kg | ||||
Engine | Deutz | Deutz | Cummins | - | ||||
Rated power | 70 | 70 | 82 | kW | ||||
Max. payload | 3500 | 3500 | 4500 | kg | ||||
Payload under max. extension | 1250 | 635 | 490 | kg | ||||
Max. lifting height | 7150 | 13700 | 16700 | mm | ||||
Max. outreach | 3600 | 9460 | 12600 | mm | ||||
Load center distance | 600 | 600 | 600 | mm | ||||
Swing angle | -3~65 | -4~73 | -4~73 | ° | ||||
Fork decline angle (forwards) | 90 | 90 | 90 | ° | ||||
Fork decline angle (backwards) | 17.5 | 18 | 18 | ° | ||||
Max. traction force | ≥55 | ≥48 | ≥73 | kN | ||||
Gradeability | ≥40 | ≥28 | ≥33 | ° | ||||
Max. travel speed | 30 | 28 | 35 | km/h | ||||
Turning radius(outer of the tire) | ≤3880 | ≤4230 | ≤4860 | mm | ||||
Brake distance | ≤8 | ≤6 | ≤10 | m | ||||
Total length | 4995 | 6290 | 6890 | mm | ||||
Total height | 2470 | 2600 | 2815 | mm | ||||
Total width | 2250 | 2500 | 2500 | mm | ||||
Wheelbase | 2985 | 3250 | 3900 | mm | ||||
Tread | 1840 | 1970 | 2060 | mm | ||||
Fork length | 1200 | 1200 | 1200 | mm | ||||



* Inquiry and consulting support.
* Testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
