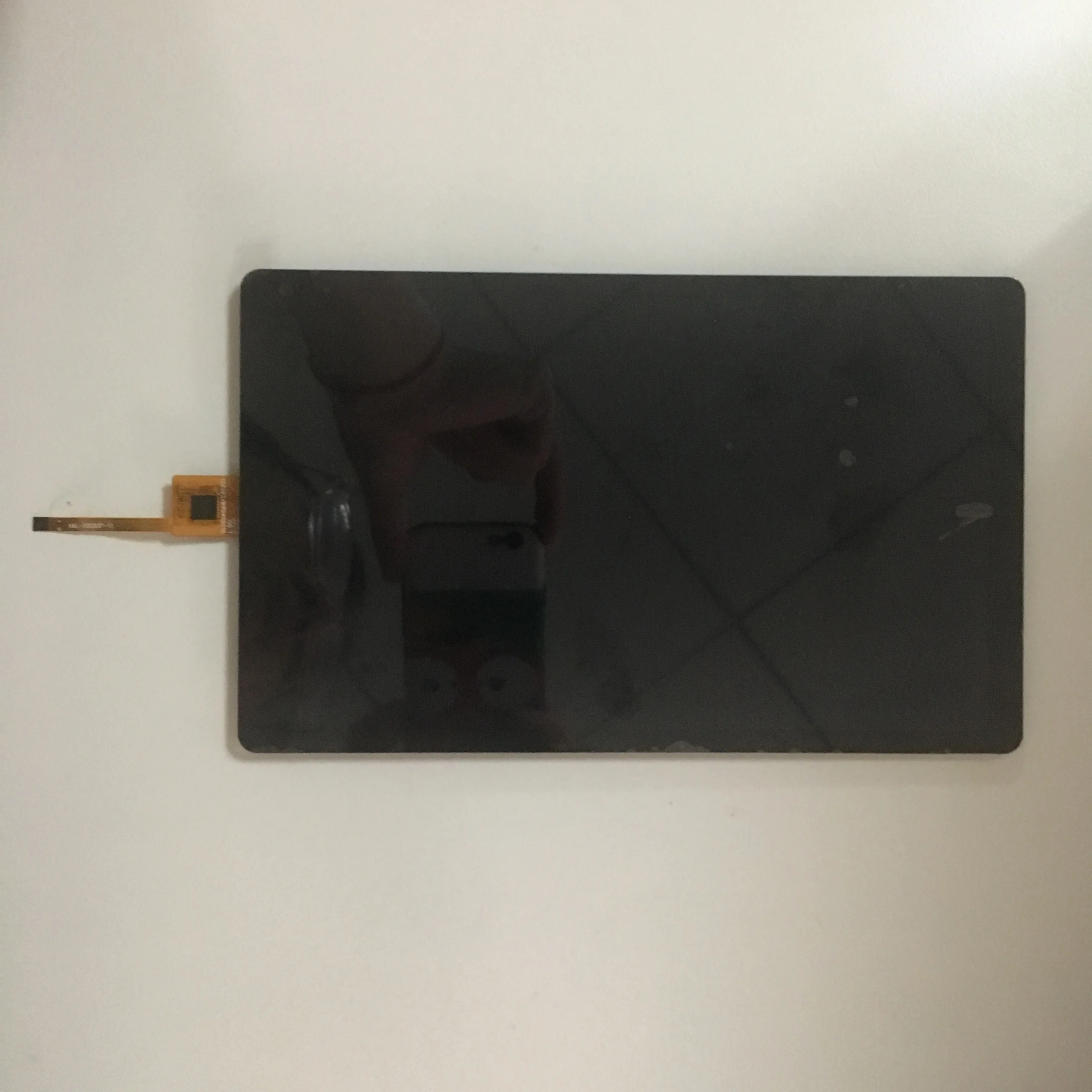

8 inch 800x1280 high resolutionMIPI IPS TFT LCD screen with touch panel
- Category: >>>
- Supplier: Shenzhen Amelin Electronic Technology Co. Ltd.
Share on (60813234542):
Product Overview
Description

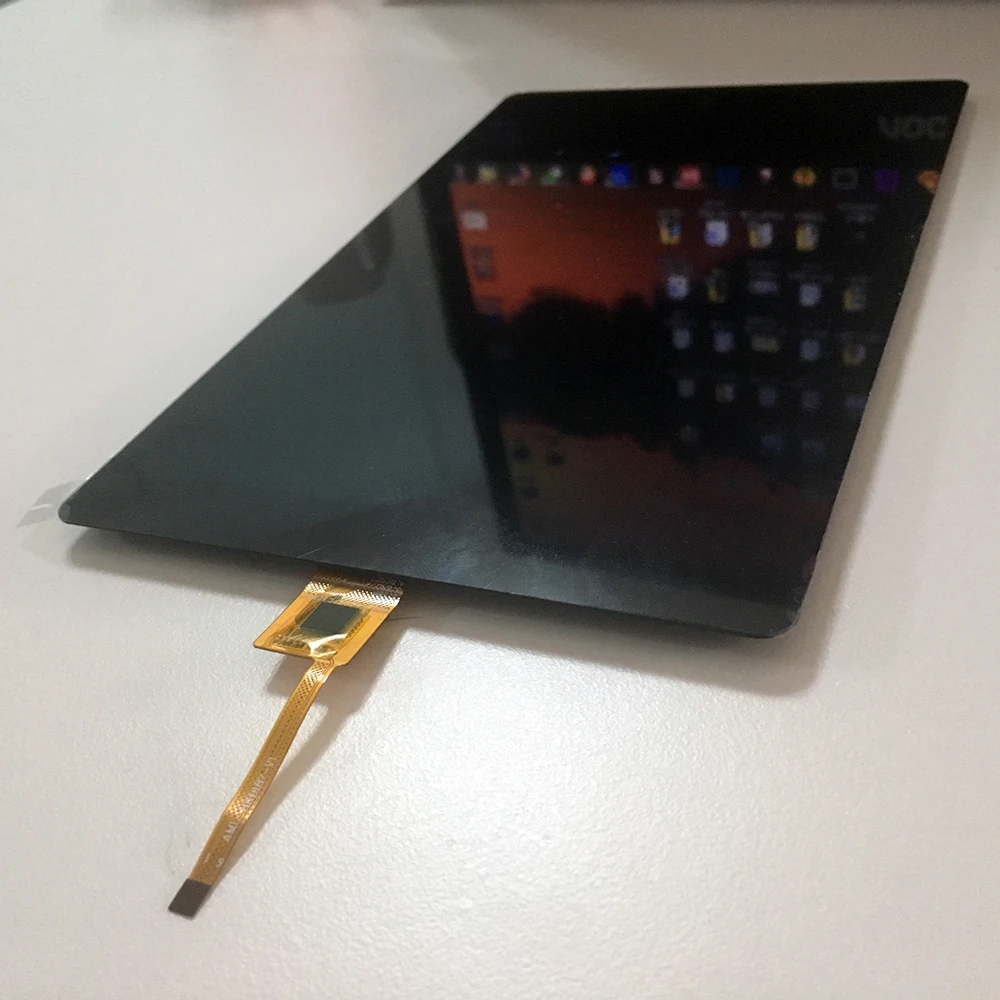

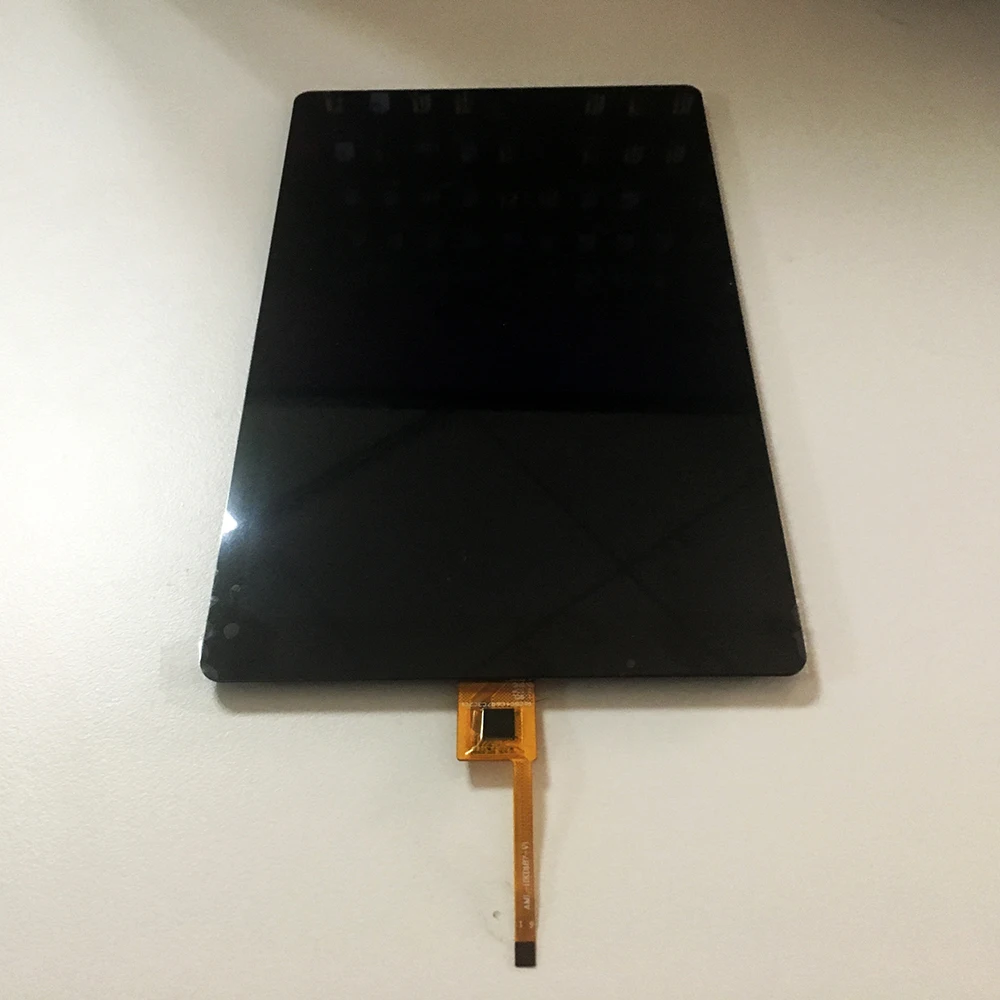

8 inch 800x1280 high resolutionMIPI IPS TFT LCD screen with touch panel
Why Choss Us
HOT: 10.1 inch 800*1280
| AMELIN DISPLAY | OTHER DISPLAY | |
| Unzerbrechlich | 1.5 M | 0.8 M |
| operating temperature | -20°~70° | 10°~60° |
| brightness | ≈300CD/M∧2 | ≈150CD/M∧2 |
| liquid crystal glass | high quality | unevenness |
| technical support | Strong technical support | not always |
| custom-made | can be custom | not always |
| quality guarantee | .After-sales service We are committed to 1 year product warranty | following year
|

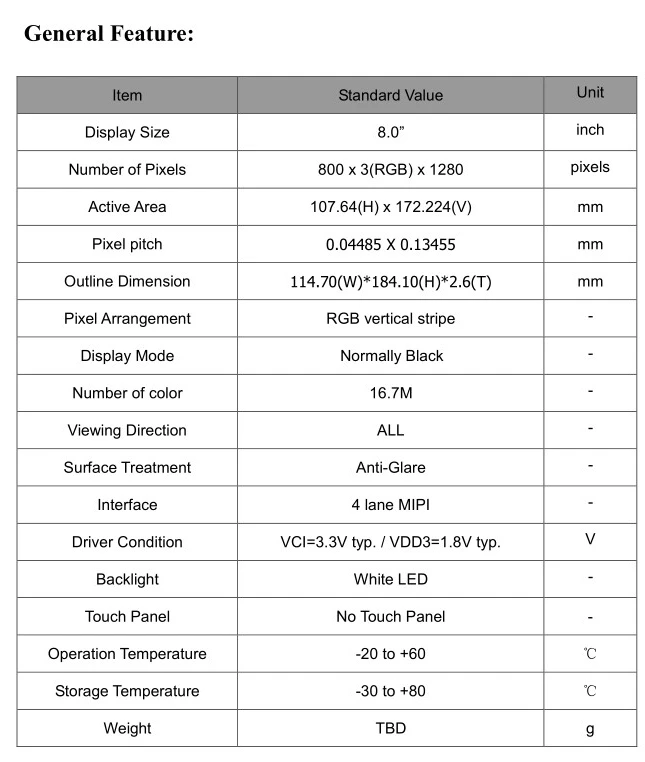

Product Description
| No | Item | Specification |
| 1 | LCD Type | TFT |
| 2 | Screen Size | 8.0inch |
| 3 | Display color | 16.7M |
| 4 | Pixel Pitch | 0.04485(W)x 0.13455(H) |
| 5 | Pixel Arrangement | RGB Vertical stripes |
| 6 | Driver IC | S6D7AA0X04 |
| 7 | Back Light | 21-LEDs (white) |
| 8 | Viewing Direction | ALL DIRECTION |
| 9 | Interface | MIPI |

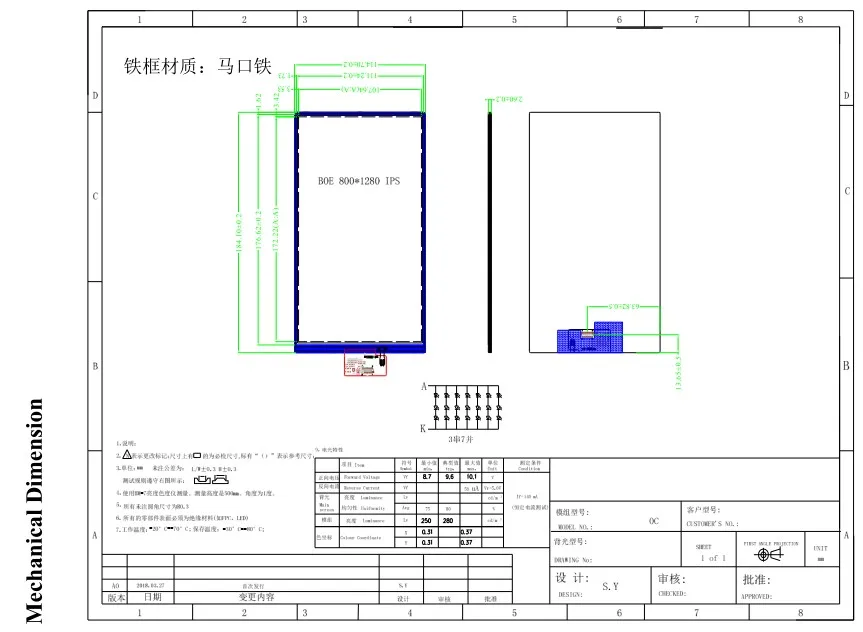

| 10 | Module size | 114.7(W)×184.2(H)×2.6(L) |
| 11 | Active area | 107.64 (W) x 172.224 (H) |
| 12 | Number of Dots | 800 (H) × 3(RGB) × 1280 (V) |
Product Catalog
About Us
Amelin has the first-class automatic production line and the specialized management
and R&D team. Now we own LCM division, TP division, SMT division, FPC division and backlight division. In 2008, our products have passed the quality system certification, and the ISO9001 in 2010, we also have the CE, FCC, ROHS, EMC certification. We take the “safety, stability, excellence” for product design principle and we are committed to the production, R&D, sales and after service.
We can provide customized TFT LCD module according to customers’ requirement. We can amend FPC, PIN assignment and driver IC and so on. We will focus on innovation and constantly apply advanced technology to product R&D and production to support our customers to occupy the terminal market.
Lead time
| quantity | lead time |
| 1-20(pieces) | Within one working day |
| 21-100(pieces) | Within two working days |
| 101-500(pieces) | Within three working days |
| 501-1000(pieces) | Within a week |
| 1000-3000(pieces) | Within two weeks |
| 3000-5000(pieces) | Within three weeks |
| 5000+ | Within four weeks |
FAQ
1. Q:Can you provide technical assistance?
A: Yes,We can provide technical support on software and hardware.
2. Q: Does your product have any warranty?
A:Yes, we offer 12 months warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.
3. Q: Can we guarantee long-term supply?
A: Yes,Strong factory guarantee long-term supply.
4. Q: Do you offer custom solution?
A: Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.
