Product Overview
Description

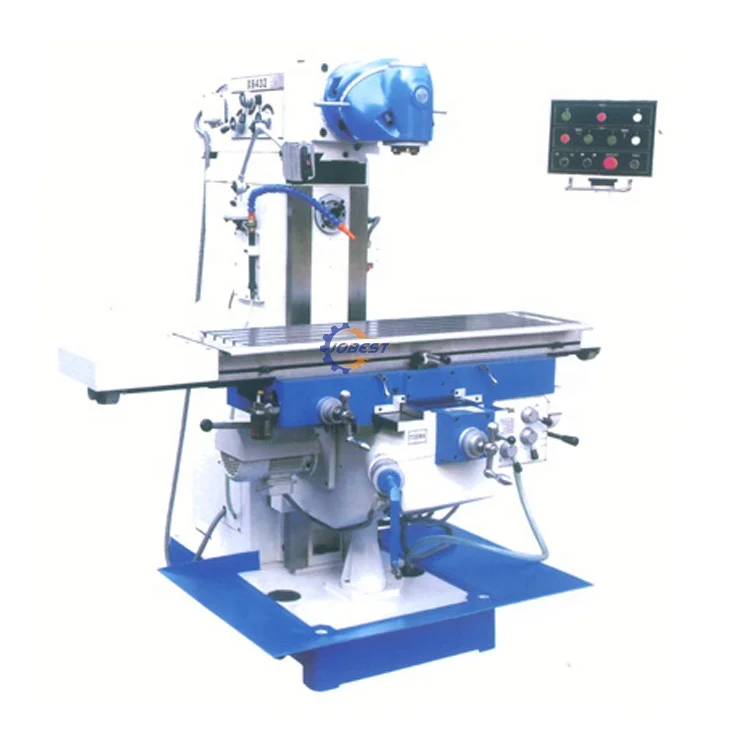

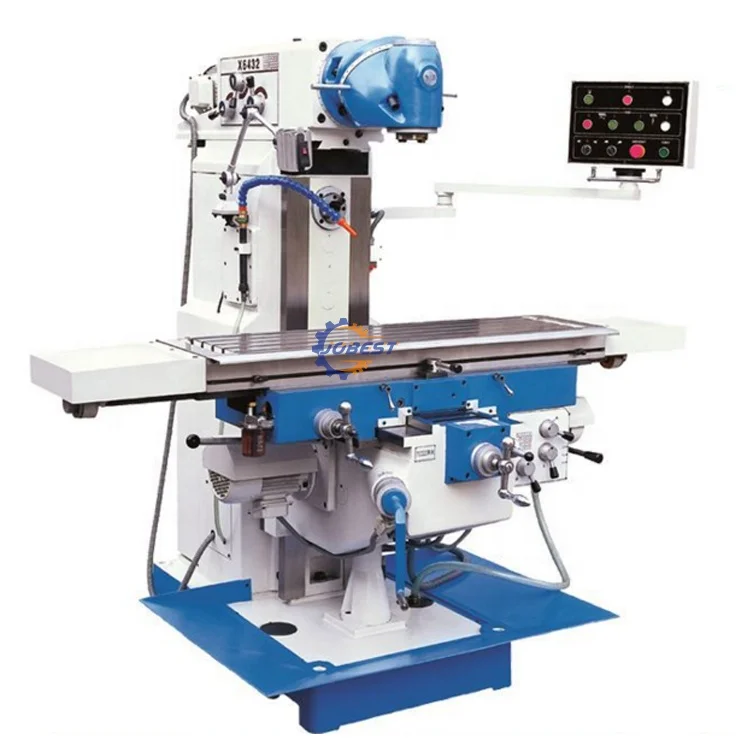

Taiwan Milling Machines X6432 Swivel Head Milling Machine Brands
Milling Machine main performance characteristics:
1. It can realize vertical and horizontal milling two processing function;
2. The two rotary milling head, spindle at any angle rotating and adjustment;
3. Can be used for processing and mold shell;
4. Work bench X. Y all are gear drive automatic feed, Z to the electric lift;
5. Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong steel, gear up for gear grinding ,by high frequency quenching and low noise durable.
Technical Parameters
Taiwan Milling Machines X6432 Swivel Head Milling Machine Brands
| Model | Units | X6432 |
| Table size | mm | 1320x320 |
| Table stroke | mm | 1000x300(manual) |
| T-type slot numbers / width /space | mm | 5-14-63 |
| Spindle taper | mm | ISO40 |
| Distance from spindle axis to table surface | mm | 220-670 |
| Distance from spindle axis and column | mm | 100-600 |
| Spindle speed range(steps) | rpm | 45-1660(V)40-1300(H) |
| Table power feed speed range | mm/min | 22-420(X) 22-393(Y) 10-168(Z) |
| Swivel angle of table | - | |
| Milling head swivel range | ° | 360 |
| Spindle motor power | KW | 3(V/H) |
| Overall dimensions | mm | 2020x1710x1994 |
| Machine weight | Kg | 2100 |
Note: Parameters for reference only, we can offer a variety of programs customized services for you, more JOBEST MACHINERY product features, configuration, features and other product information, please contact us advice, thank you.

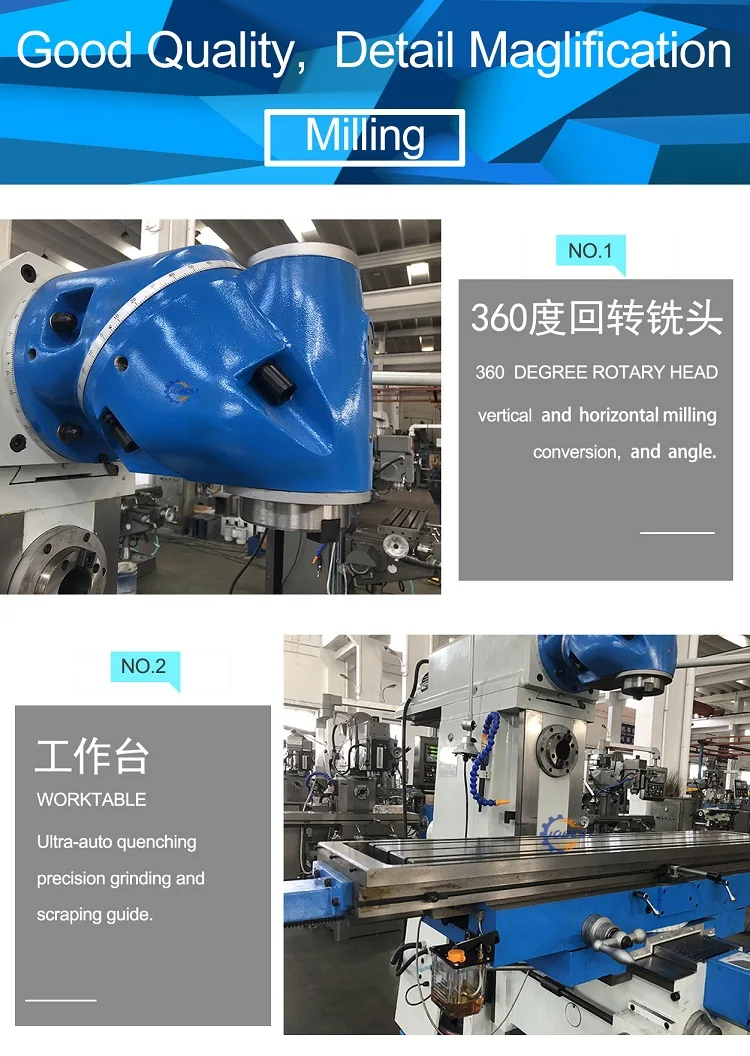

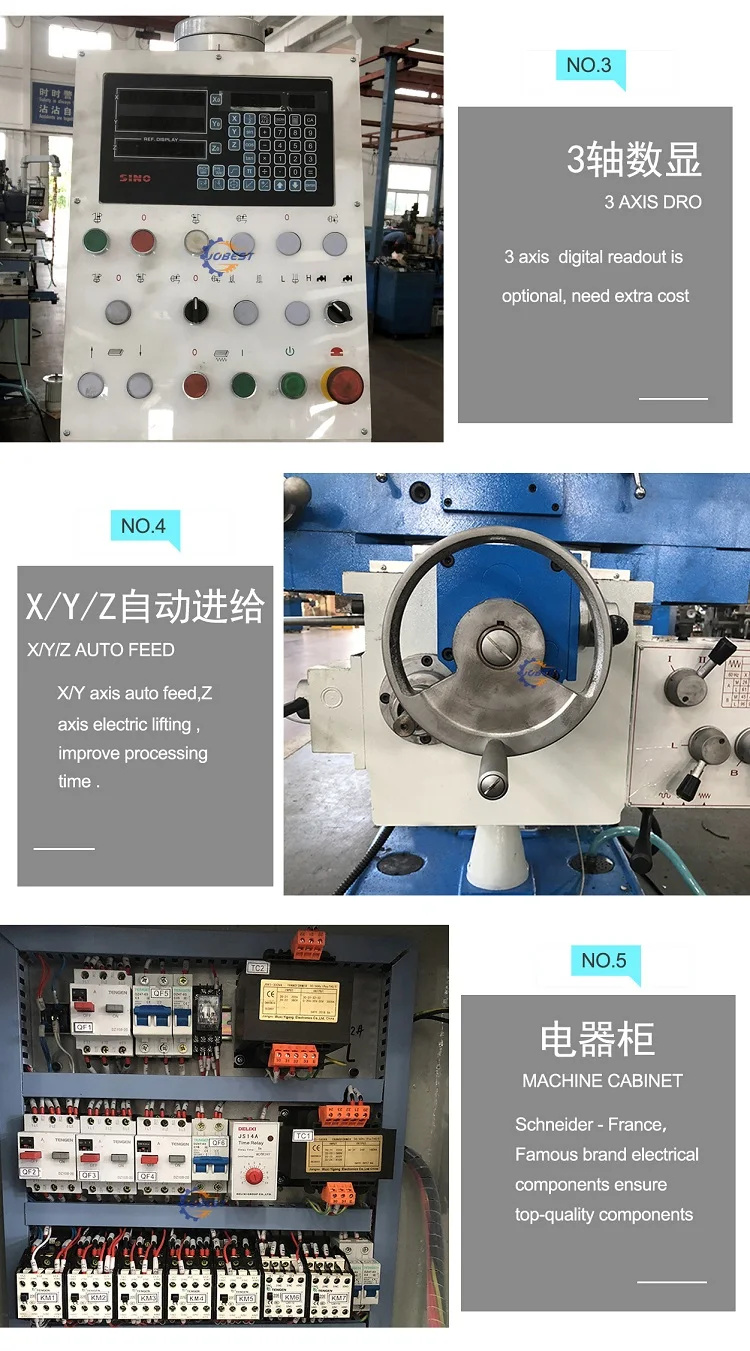

Details Display
Taiwan Milling Machines X6432 Swivel Head Milling Machine Brands
1. The spindle (vertical axis) equipped with manual and fretting two kinds of feed, processing convenient and accurate, the effect is more ideal.
2. The spindle box can be moved forward and backward, adjust the vertical plane ± 45 °, 360 ° horizontal plane rotation, to expand the machining range
3. standing, lying two main transmission gear transmission mechanism are used, speed convenient, flexible and fast.
4. X, Y, Z three-way guide rails after ultra-audio hardening after grinding, to ensure the accuracy of machine stability.
5. Table X / Y can be manually fed, but also to achieve high-speed machining and feed forward fast.
6. Z-direction table configuration rapid feed motor lift, vertical rail along the column can be up and down, easy processing.
Application
Universal rotary head milling machine is a kind of medium and small general metal cutting machine tools,that can lie milling and can vertical milling.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Related Products
FAQ
Taiwan Milling Machines X6432 Swivel Head Milling Machine Brands
1. How to choose Swivel Head Milling Machine?
According following informtaion to choose milling machine type:
1). Working table size
2). Spindle inside diameter
3). Spindle Taper
2. Do you provide training to operation Swivel Head Milling Machine?
1). Will provide operatiing video and manual book with our milling machine.
2). Welcome your operators to our factory, we'll arrange everything at our factory.
3. What about your Swivel Head Milling Machine main component?
1). Main Motor: Siemens
2). Electric parts: Schneider
4. What about your Swivel Head Milling Machine warranty?
One year warranty after machine reached customer's workshop.
And use famous brand components for long working lifespan.
5. What certificate for Swivel Head Milling Machine?
We have ISO certificate for our factory and CE Certification for our machine.
6. What delivery time Swivel Head Milling Machine?
Within 30 working days after received advanced payment.
