Automatic wire winding coiling tying binding machine HC 210
- Category: >>>
- Supplier: Changzhou Hechang Intelligent Technology Co. Ltd.
Share on (60813268018):
Product Overview
Description

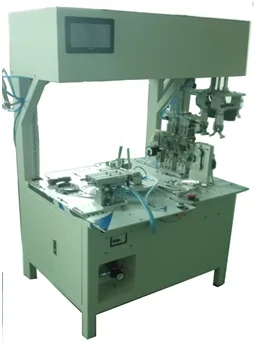

HC-210+Z—— Full Automatic wire winding /cable tie machine
Description :
Product positioning in high-quality packaging of wire products manufacturers, for USB / AC / DC wire and so on
High performance, circle mode can reach 1000 / hour, 8 Shape mode can reach 1200 / hour;
A single worker can complete the winding wire action, saving labor costs;
Wrapped around the finished product beautiful, generous, tidy, easy to package, to meet customer high quality requirements;
Small size, do not occupy the place, save the venue rent.
Easy to operate, ordinary workers, simple practice, you can skilled operation.
Humanized design, the table according to the human body structure mechanics design, greatly reduce the staff fatigue strength, improve work efficiency. Easy to maintain, ordinary workers, simple training, you can daily maintenance, conversion mode, easy maintenance adjustment.
This machine adopts programmable controller (PLC) control, man-machine interface control, automatic and uninterrupted operation....
Type | HC-210+Z (tie into shape “8”) | HC-210+Z (tie into shape round) |
Workable wire and cable | USB wire , DC, AC , Coaxial cable , multicore cable , electrical wire and so on | USB wire , DC, AC , Coaxial cable , multicore cable , electrical wire and so on |
Winding and tying shape | “8” shape | Round |
Cable outer diameter range | Min 2mm to Max6.2mm | Min 2mm to Max7mm |
Productivity(pcs/h) | Approx1200pcs/h | Approx 1000pcs/h |
space beween each pillar | 80mm-220mm ( can be adjust) | 80mm-220mm ( can be adjust) |
front remain length | Max70mm | Max70mm |
Rear end remain length | Max70mm | Max70mm |
Tie wire material | Iron wire with pvc coated | Iron wire with pvc coated |
Finished outer diameter | Max40mm | Max40mm |
Air pressure | 0.4-0.6Mpa | 0.4-0.6Mpa |
Measurement | L1100*W1200*H1800mm | L1100*W1200*H1800mm |
Weight | 110kg | 110kg |
Power | AC220V/50HZ optional : 110v 60HZ | AC220V/50HZ optional : 110v 60HZ
|
Watch video :
binding tying into shape round,
binding tying into shape “8”
about us
Changzhou Hechang Machinery Co;Ltd is a Hi-tech professional manufacturer, Providing all-rounded solutions to wiring harness processing area for the customers from Electrical Appliances, Automotive,New Energy, Industrial Control Automation, instrument and apparatus,Medical ,Electric control cabinet , lighting and so on .
Our main products included Fully-automatic wire cut strip crimp machine, wire cut strip machine, Terminal crimping machine, wire cut strip and inkject marking ,wire tinning machine , Seal insertion, Applicators for terminal crimping, quality assurance , peripherals and other special wiring harness processing electronic equipments
The exhibition
Sales Service
service
Changzhou Hechang defines an OEM (Original Equipment Manufacturer) as an entity or organization that integrates a customized or embedded Changzhou Hechang product in its own unique solution for sale to its customers. The proof of this concept is that the Changzhou Hechang product must be significantly transformed. The OEM The firm side uses its own company logo and brand name on its solution and it markets, sells and providing technical and warranty support directly to its customers. Just tell us your ideas and We can manufacture 3 wheel adult electric motorcycle as per the special requirements of our clients.we will help to make out the good design on motorcycle and send you finished files for confirmation according to your demand and our experience.
Transportation faq
Q1. What are your terms of packing?
A: Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
Q2. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A1:We keep excellent quality, thoughtful after-sales service and competitive price to ensure our customers’ benefit; A2:We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from
