Reciprocating Air Compressors

Ingersoll Rand has maintained a delicate balance between known performance and new technology developments to manufacture world class reciprocating air compressors. With a proven design and stellar track record, the Ingersoll Rand reciprocating compressor family has earned worldwide recognition for reliable, trustworthy performance that saves money and enhances business success through: Lower life cycle costs; An ability to thrive in punishing applications; Configurations that meet varying needs; Optimum solutions for greater efficiency; Our cumulative experience with how different users prefer, need and operate their compressors has taught us what is most important to compressor users.

• Non-Lubricated
• Single-Stage
• Two-Stage
• High-Pressure
• Oil-Lubricated
• Vacuum Pumps

Electric-Driven Two-Stage Air Compressors

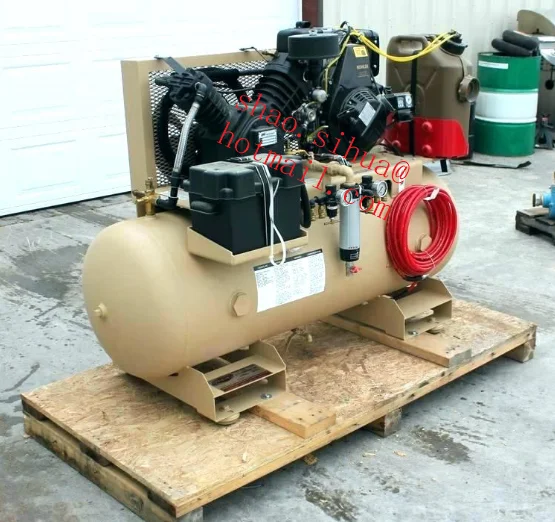

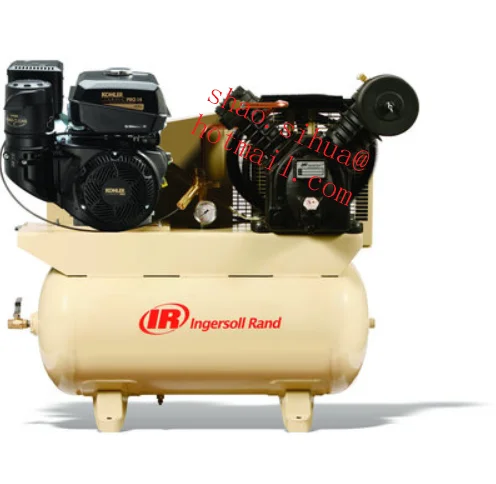

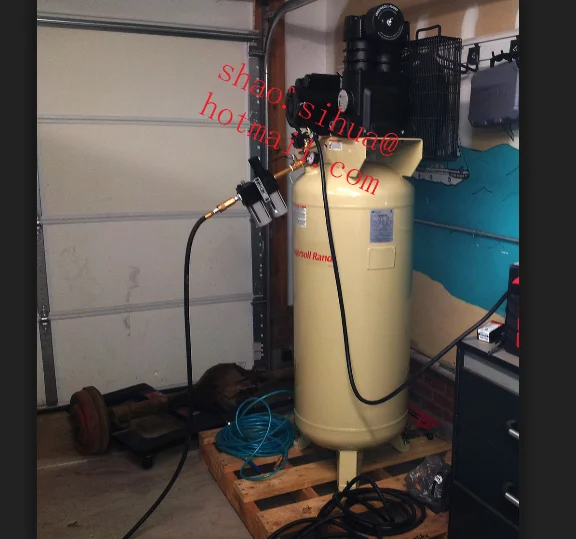

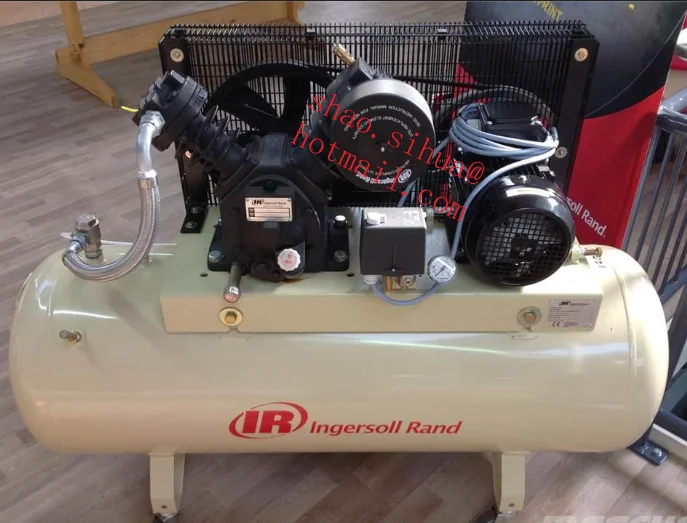

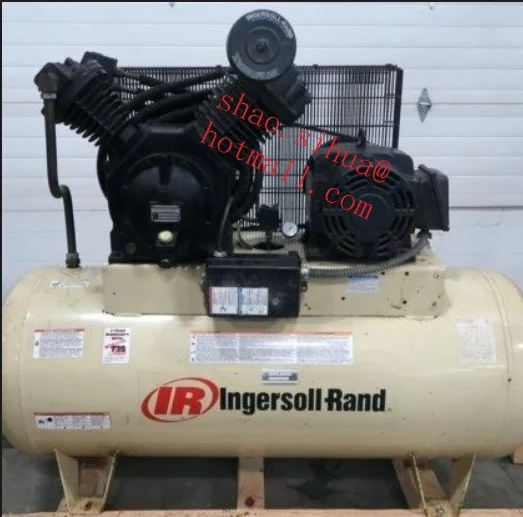

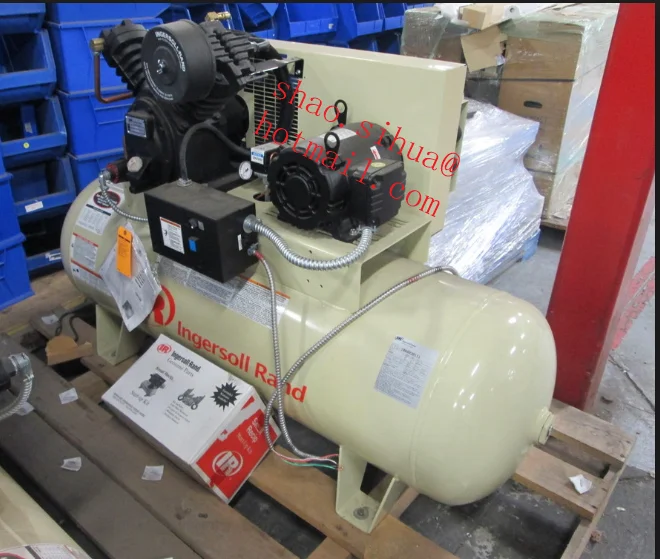

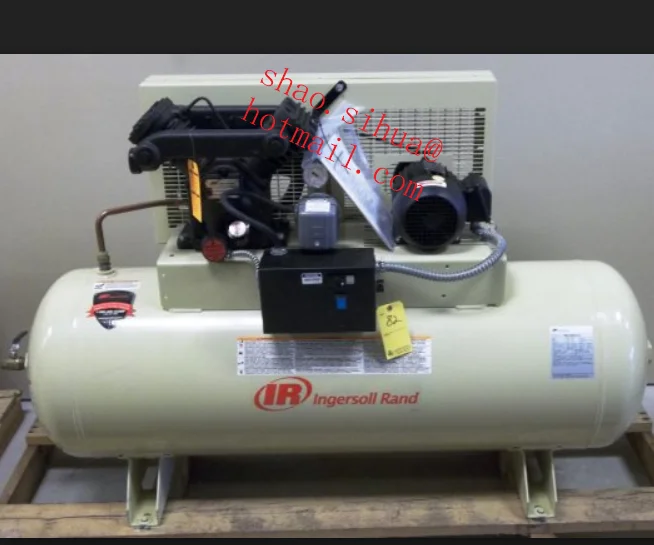

T30 Two Stage Reciprocating Compressor

The Ingersoll-Rand T30 has been the leader in its class since it was introduced in 1929. Whether this is measured by reliability, efficiency, rugged flexibility or maintainability, it has no equal.
Designed for heavy industrial applications, the two stage reciprocating air compressors provide the quality and performance that exceed customer requirements.
Others may claim to handle heavy duty applications, but the T30 defines the concept. Run it in the most demanding intermediate duty application imaginable.
It won’t make any difference because this compressor performs with total dependability in the most demanding, heavy-duty industrial applications.
Throughout this brochure we try to show you some of the features which make the T30 unique and ideal to meet your demands of a compressor package in the 2-30 HP range.
Many compressor applications need care and experience to ensure that the correct machine and configuration is selected to provide the level of efficiency and reliability which you expect.
Our Sales offices and Distributors are ideally qualified and experienced to assist you in this task. If you are seeking information about a new compressor, advice about an existing installation or ancillary equipment or spare parts, you will find knowledge available to assist you.

Designed for heavy shop or industrial use, Ingersoll Rand Electric-driven Two-stage air compressors provide the reliability and performance that are ideal for most applications and users including automotive service and body shops, fleet maintenance, machine shops, production and manufacturing lines, wood working shops, dry cleaners, car washes, general maintenance/repair shops and farms.



FEATURES:

• Durable cast iron design for 100% continuous duty application

• Precision engineered components for high reliability

• Individually cast cylinders, overhung crankshaft and one piece connecting rod for ease of maintenance and service

• High efficiency finger valves

• 175 psig maximum operating pressure for applications requiring high air capacity and pressure

• Extended 2 year warranty when used with Ingersoll Rand’s All Season Select synthetic lubricant

• Choice of Value, Value Plus and Premium packages to suit diversified customer needs



Standard Features
• CE Marked receivers to 87/404/EEC
• 4 pole IP55 TEFV Motor
• Standard voltage 400-3-50
• Auto Start and Stop regulation by pressure switch up to 7.5 hp
• Dual control regulation on 10hp to 30hp receiver mounted units
• Constant Speed Control on 10hp to 30hp Base Mounted units
• DOL starting by pressure switch up to 7.5hp
• DOL starter (10hp to 30hp)
• Star Delta Starter available from 5.5hp
• Low oil level switch fitted from 10hp to 30hp
• Totally enclosed belt guard design
• Dry type inlet filter
• Flexible discharge tube
• Factory-fill of lubricant





MODEL	POWER		CAPACITY	TANK MOUNTED	DIMENSION	WEIGHT
	HP	KW	m3/min	L	mm	kg
12barg WITH horizontal tank
2340K3/12	3	2.24	0.27	150	1440×540×970	223
2475K5/12	5.5	4.10	0.48	150	1440×540×970	245
2475K7/12	7.5	5.60	0.60	150	1440×540×970	250
2545C7/12	7.5	5.60	0.70	230	1740×620×1170	355
2545C10/12	10	7.46	0.96	230	1740×620×1170	374
7100D15/12	15	11.19	1.32	303	1890×880×1325	583
7100D15/12	15	11.19	1.32	303	1890×880×1325	583
3000E20/12	20	14.92	1.88	445	1900×1100×1540	750
3000E25/12	25	18.65	2.39	445	1900×1100×1540	780
3000E30/12	30	22.38	2.68	445	1900×1100×1540	800
