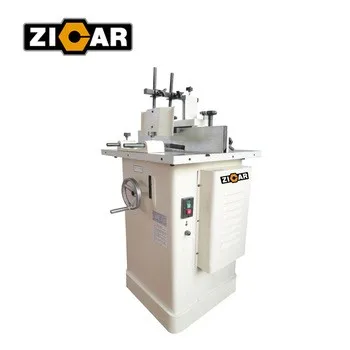

ZICAR SM5115 good quality wood spindle moulder machine

Features:

The Spindle moulders (also known as spindle shapers) is considered a larger version of a router table, with more power, and the ability to handle much larger cutters. These machines are much quieter than a router, and have much less vibration, mainly due to the fact that they are belt driven and have slower speeds.
Spindle Moulders can be used to cut much larger profiles than routers and custom made cutters can be readily ordered or fabricated. Spindle Moulders can be modified to perform specialised cuts through the use of a wide variety of accessories such as a sliding table.
Spindle moulders range from simple units with fixed spindles, to high-end units with tilting, interchangeable spindles with reversible capabilities.
With the spindle moulders that do run in reverse, (necessary for performing some cuts). It is very important to always check the position of the directional switch when starting the machine. Feeding a board into a shaper that is turning the wrong direction could result in the board flying away from the machine possibly causing injury.

Parameter

ZICAR SM5115	Spindle diameter	30mm
	Spindle travel	75mm
	Spindle speed	50Hz: 5800rpm/8300rpm
		60Hz: 7000rpm/10000rpm
	Main table size	610x534mm
	Motor power	1500w(2200w)
	G.W./N.W.	166/140kg
	Packing size	655x575x1100mm
	Units/20'GP	64units

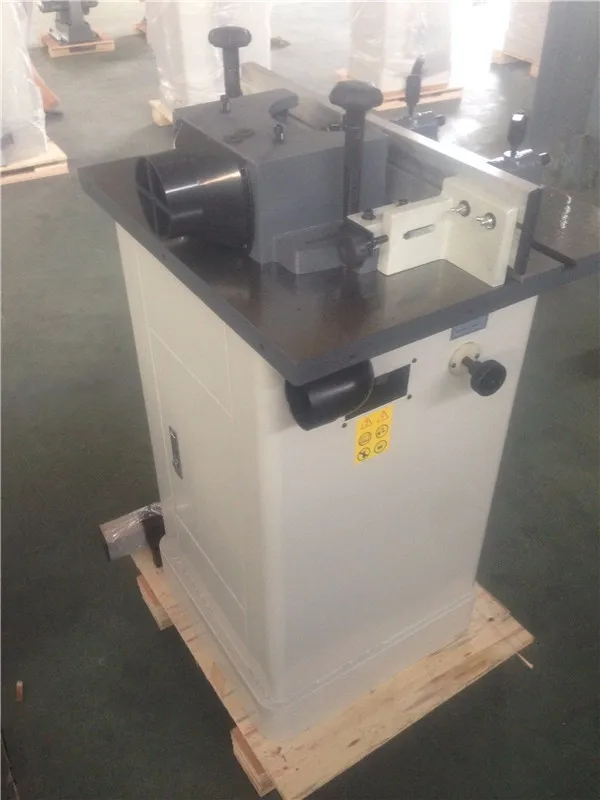

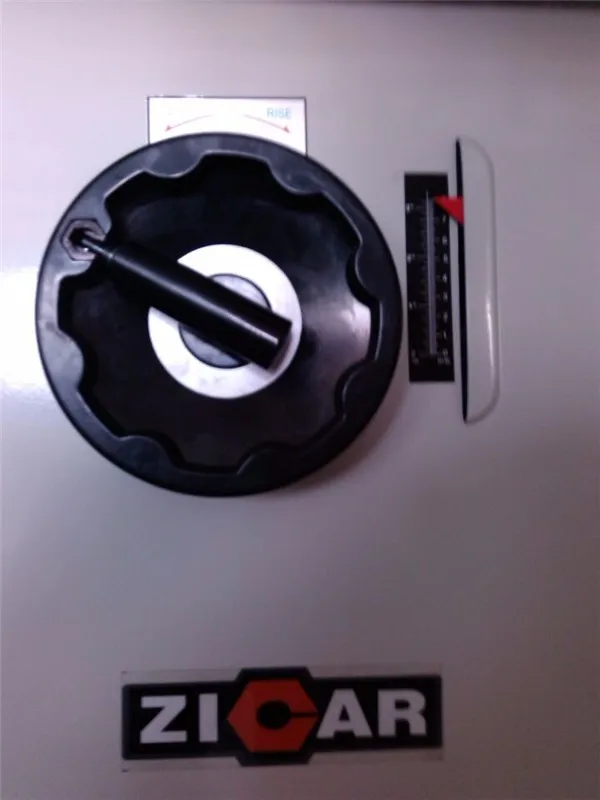

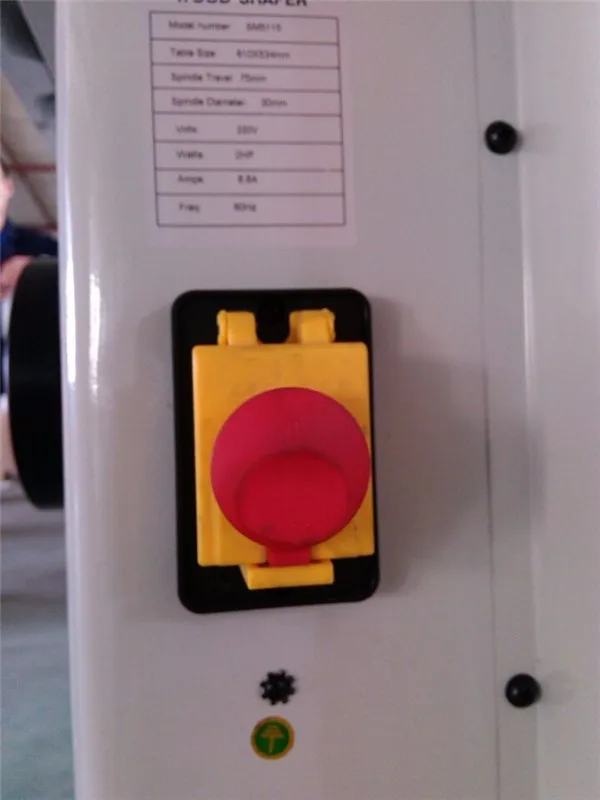

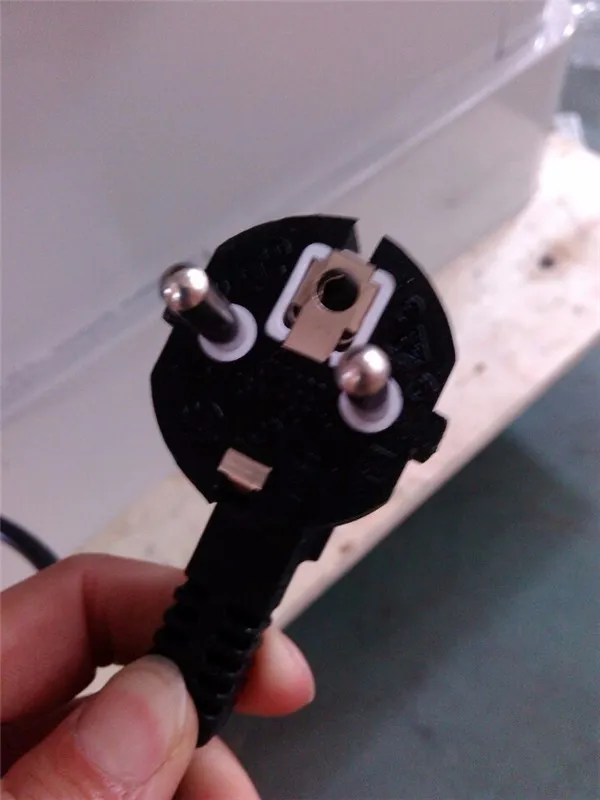

Detailed Image

Packing & Delivery

Our Service

ZICAR SM5105 good quality woodworking spindle moulder

1.Good after-sale Services
1) The machine guarantee is 1 YEAR after the shipment date.
2) 24 hours technical support by email or calling.
3) Oversea engineer after-sale service is available.
2. Reliable Quality
Our factory has been specialized in producing woodworking machines for over 50 years .
We have very high research and development capabilities to meet the requirements of customer.
3.Timely delivery and transportation
Generally it is 30 DAYS to finish after receive your order.
We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms.
