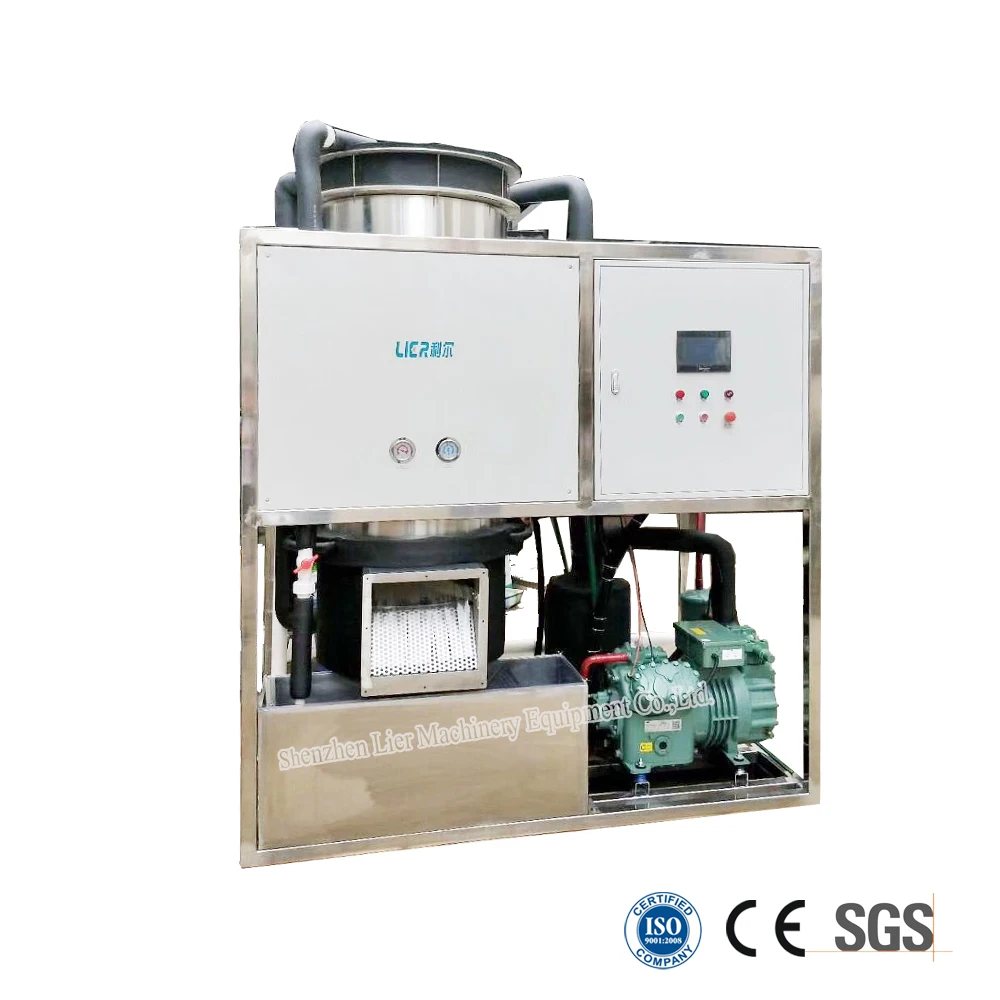

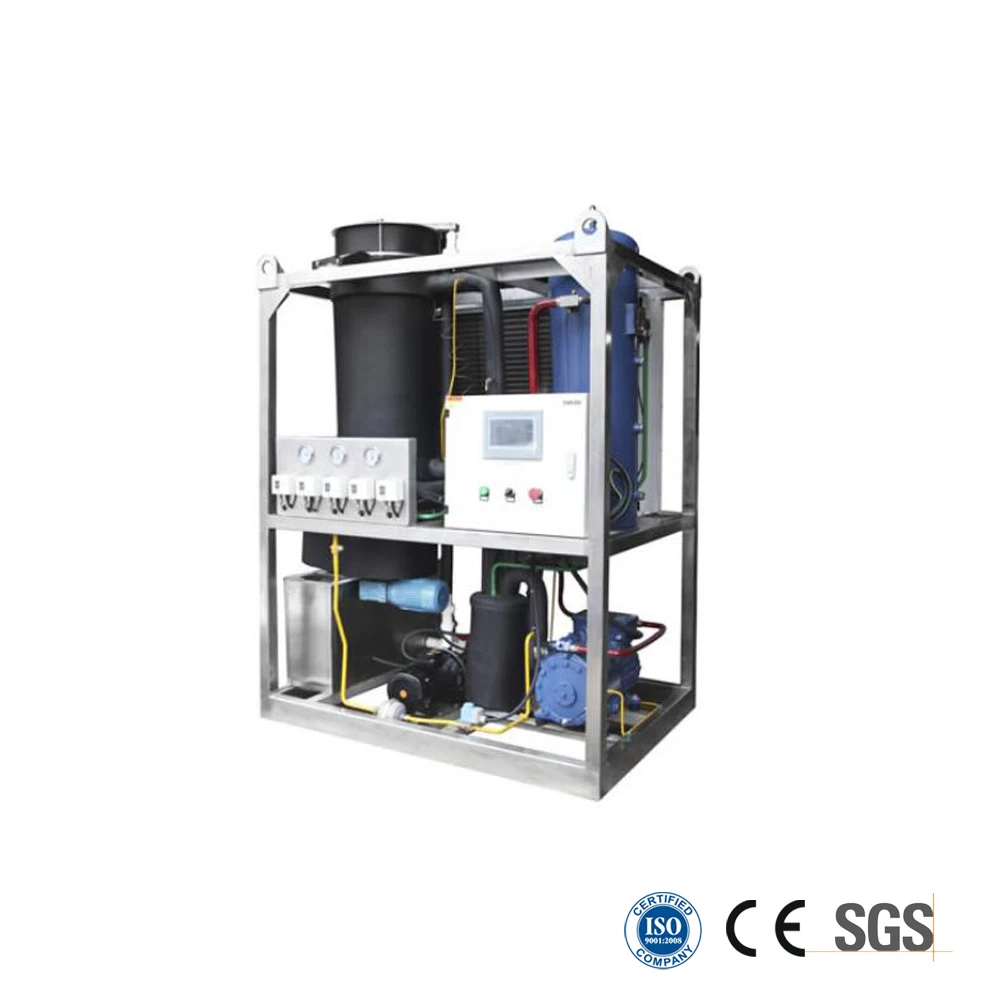

LIER Commercial Tube Ice Making Machine Factory Price For Sale 1ton to 30ton
Product Description

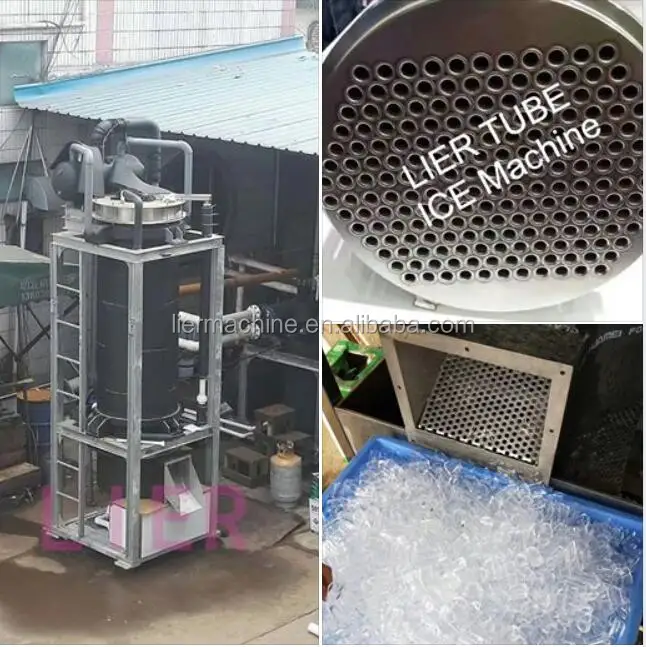

Water is circulated from a reservoir over the inner surface of the stainless steel tube. Ice is formed by a refrigerant being applied to the outside of the tube. When your desired thickness is achieved, a hot gas will be introduced, which releases the ice. This drops into a rotating blade, which cuts your ice and discharges into a storage container for use.

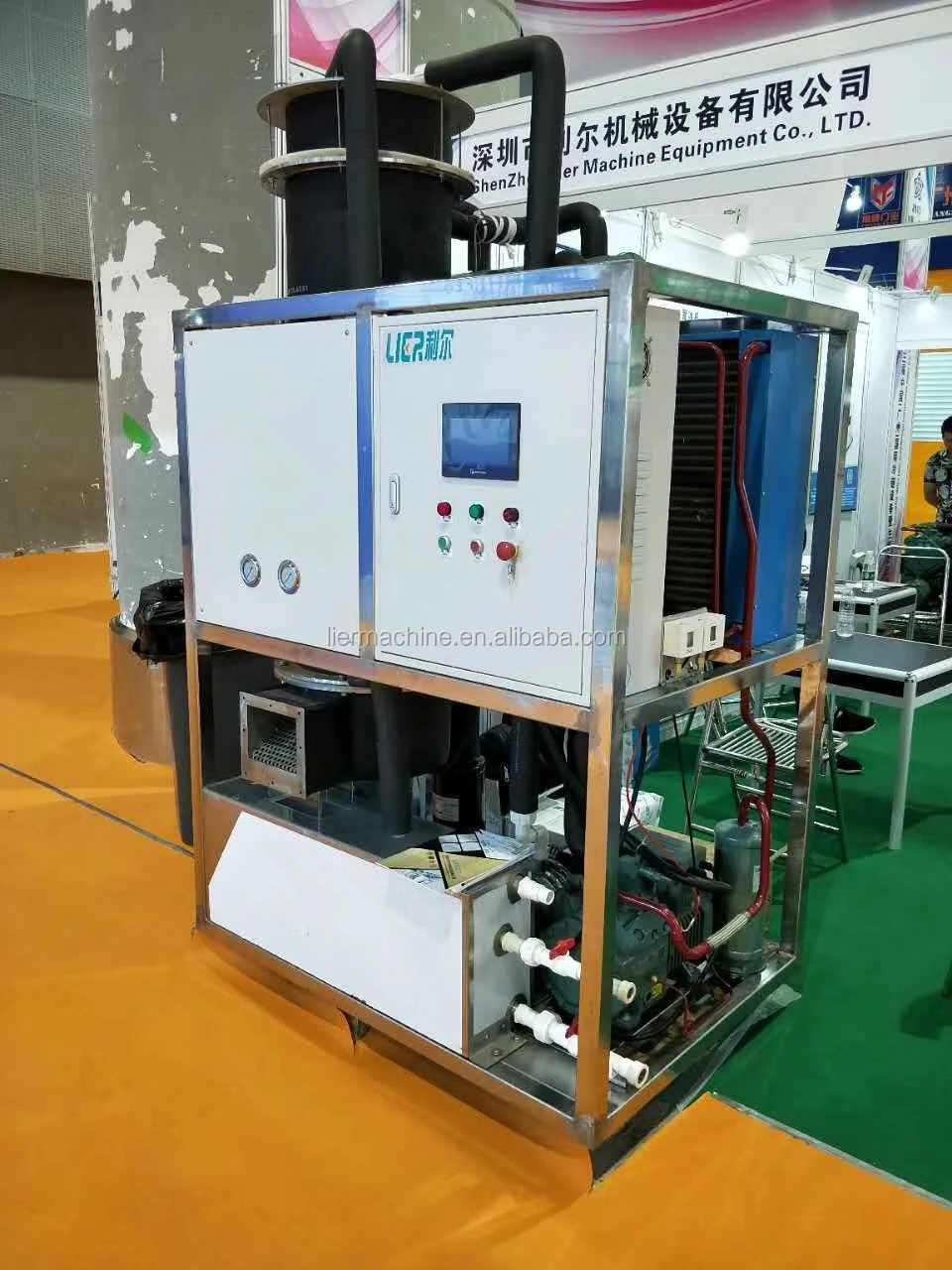

LIER Commercial Tube Ice Making Machine Factory Price For Sale 1ton to 30ton
Parameter
Model
LT-2T
Compressor
Copeland
Compressor HP
10HP
Ice capacity
2t/24h
Ref capacity (KW)
12.4
Evaporating temp. (℃)
-20
Condensing temp. (℃)
38
Input power (KW)
8.14
Compressor input (KW)
6.7
Reducer input (KW)
0.37
water pump input (KW)
0.12
saline water pump input(KW)
0.016
condensing pump input(KW)
0.75
cooling tower motor input (KW)
0.18
Power supply (kw)
3P/380V/50Hz
Tube Ice applications include:
* Human consumption
* Port ice plants
* Hospitals
* Supermarkets and convenience stores
* Aquatic and fresh food preservation
* Logistic fresh preservation
* Chemical and concrete products
Outer dimension options: 22mm, 29mm, 36mm and 41mm
Longer melting time than flake ice
High suitability for transportation
Tube Ice Machines are suitable for refrigerant R22 and R717

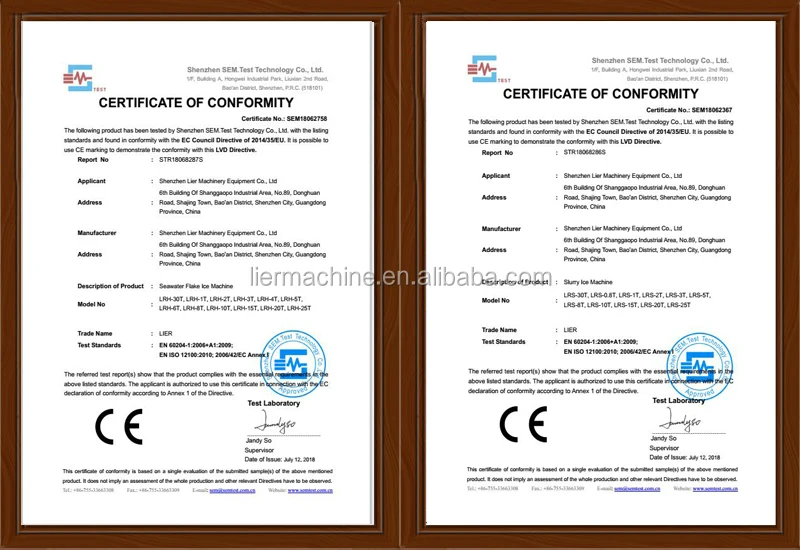

Certification

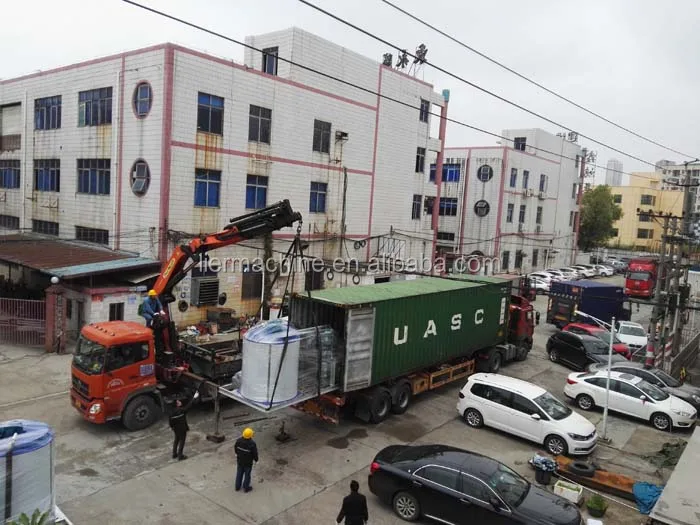

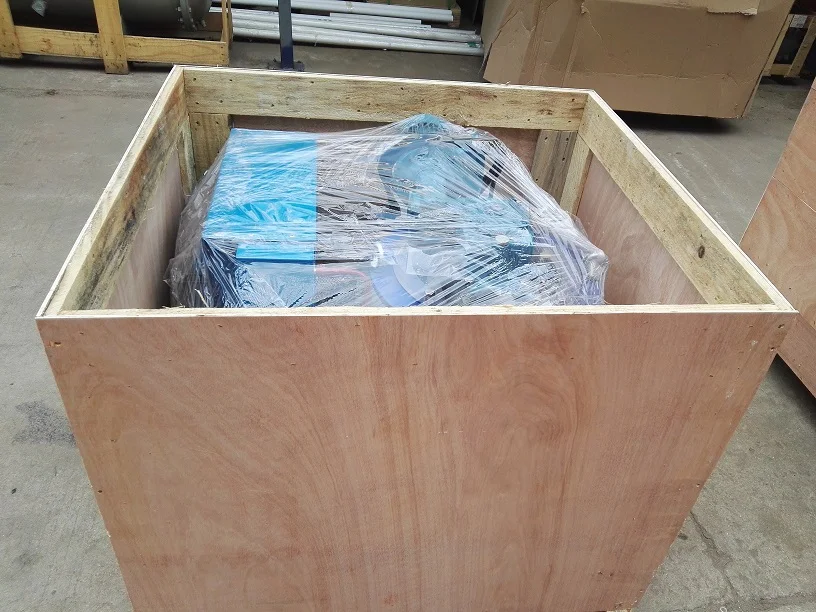

Packaging & Shipping

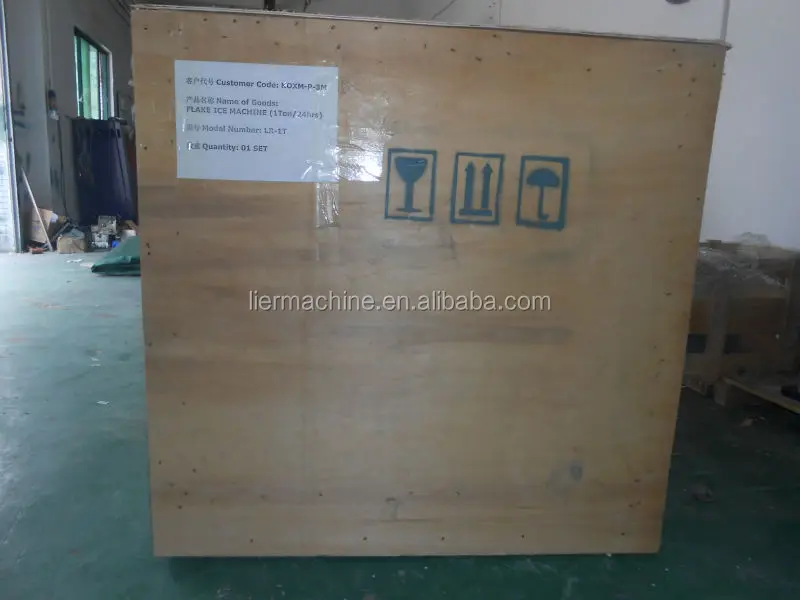

Export case or container
LIER Commercial Tube Ice Making Machine Factory Price For Sale 1ton to 30ton
Our Services
A. Our pre-sale supportive service
We are ready to serve you 24 Hours A Day, 7 Days A Week by experienced colleague,
Payment service, T/T, L/C for options. Customized service, OEM & ODM service
Provide our R&D service
B. Sale service,
We’ll in charge of everything once all information confirmed by customers after order released till cargo deliver to destination. We strictly ship goods per customer requested delivery date.
C. After-sales service
We provide after sales services, we will be responsible for the quality problem, technical issue of our products.
D. Technical service support
1, Providing project suitable scheme, recommend the best models
2, Research & development support to find a better solution for each customers if NON-standard models cannot satisfy you.
3, Installation guidance support for your installation, debugging and operation if it necessary;
4, Spare parts and technical backup at anytime;
5, Training service available if it necessary.
Company Information

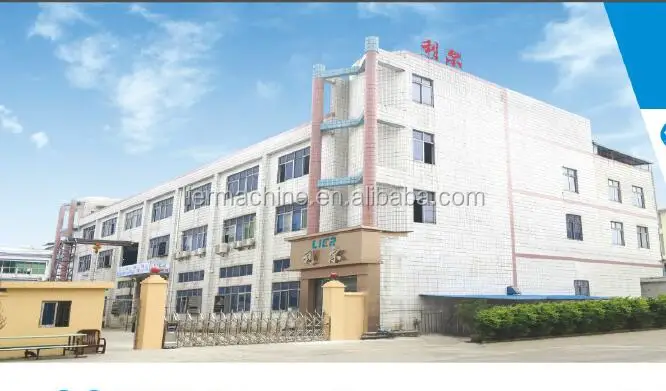

Shenzhen Lier Machinery Equipment Co.,Ltd is a high-tech enterprise integrating R&D, manufacturing, engineering installation and after-sale service for ice machine equipment since 2006. our company now as one of a leading manufacturers in China, our factory passed quality management system ISO9001:2008, products with CE, UL approval.
LIER has export more than 7years export service experience, ice machine widely used for ice cooling engineering construction project , such asconstruction project, concrete project, and some other seafood conservation projects. we believe that we are a forward looking manufacturer worth cooperation.
LR company Specialized in manufacturing & researching, development,distributing ice machine
Main products, ranges from 0.3T to 60T ice machine including flake ice maker, tube ice maker, block ice maker and cube ice maker
A. Established in 2007, factory around 8.000m2,
B. One of China's ice machine pioneer companies with independent export right.

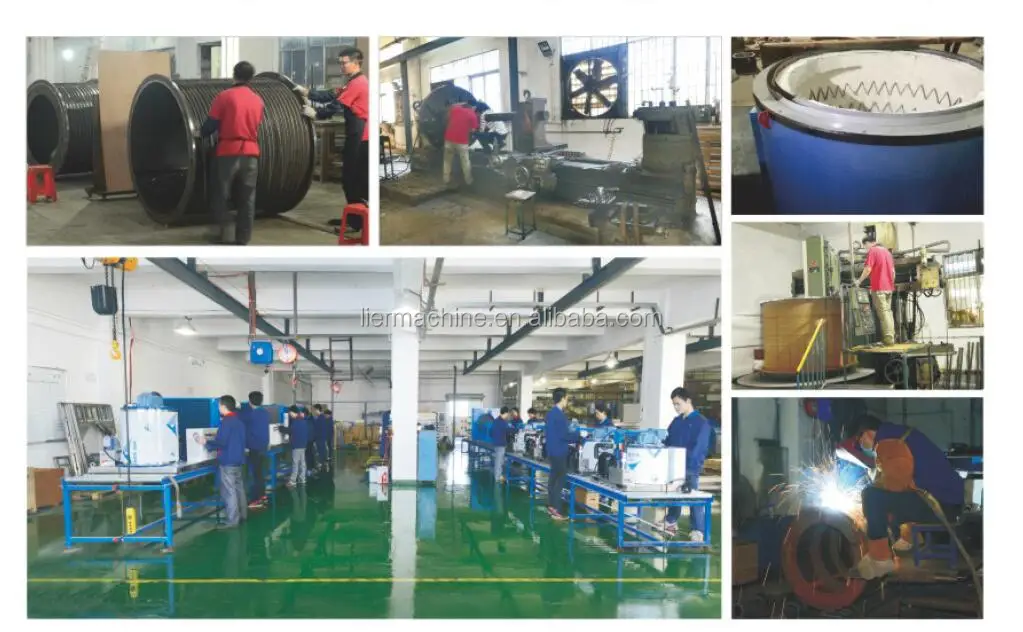

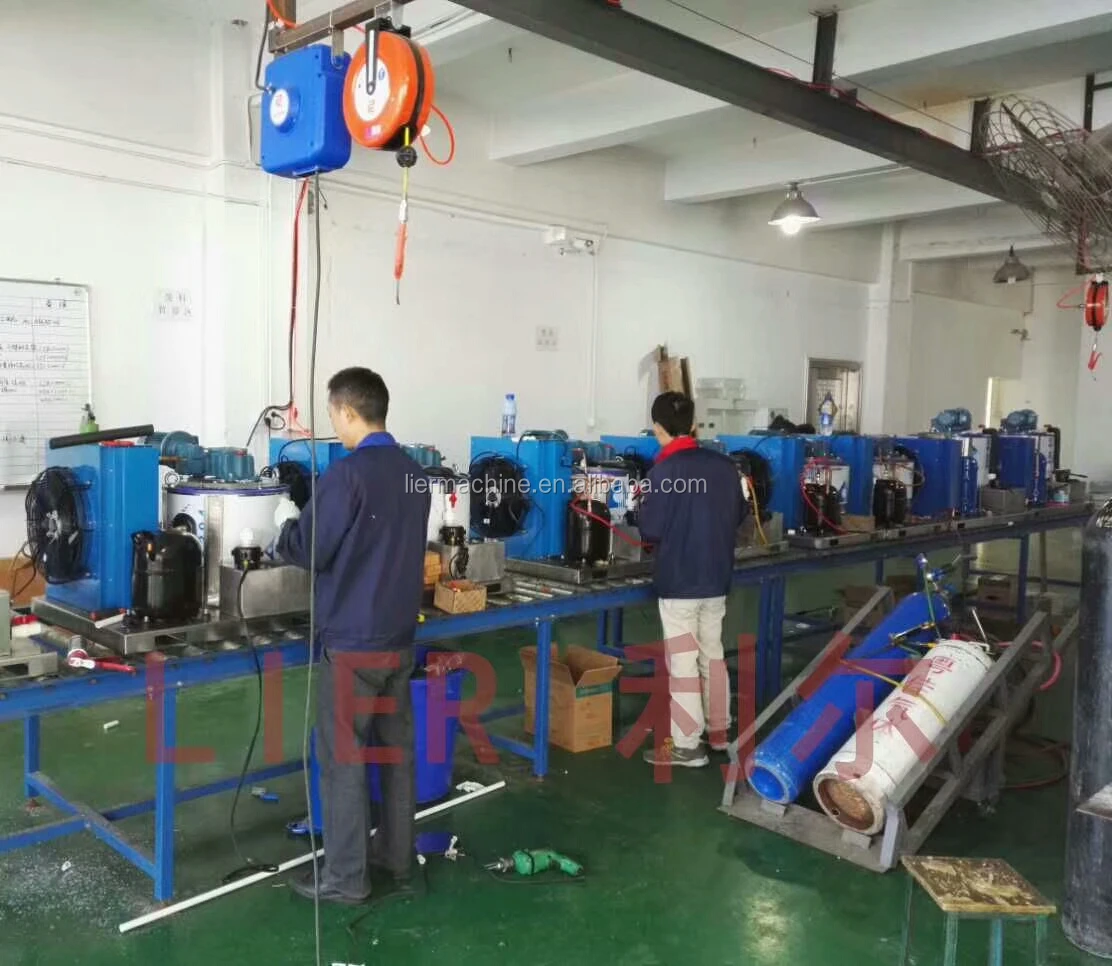

C. production line 4
D. Stuff: around 150 experienced employee, innovative patent over 30,
E. Sophisticated Engineer with rich R&D and installation experience
F. passed quality management system ISO9001:2008 attestation.
G: equipment : 2.5m vertical lathe, various horizontal lathe, automatic welding machine, 850℃heat treatment equipment , acid washing pool,

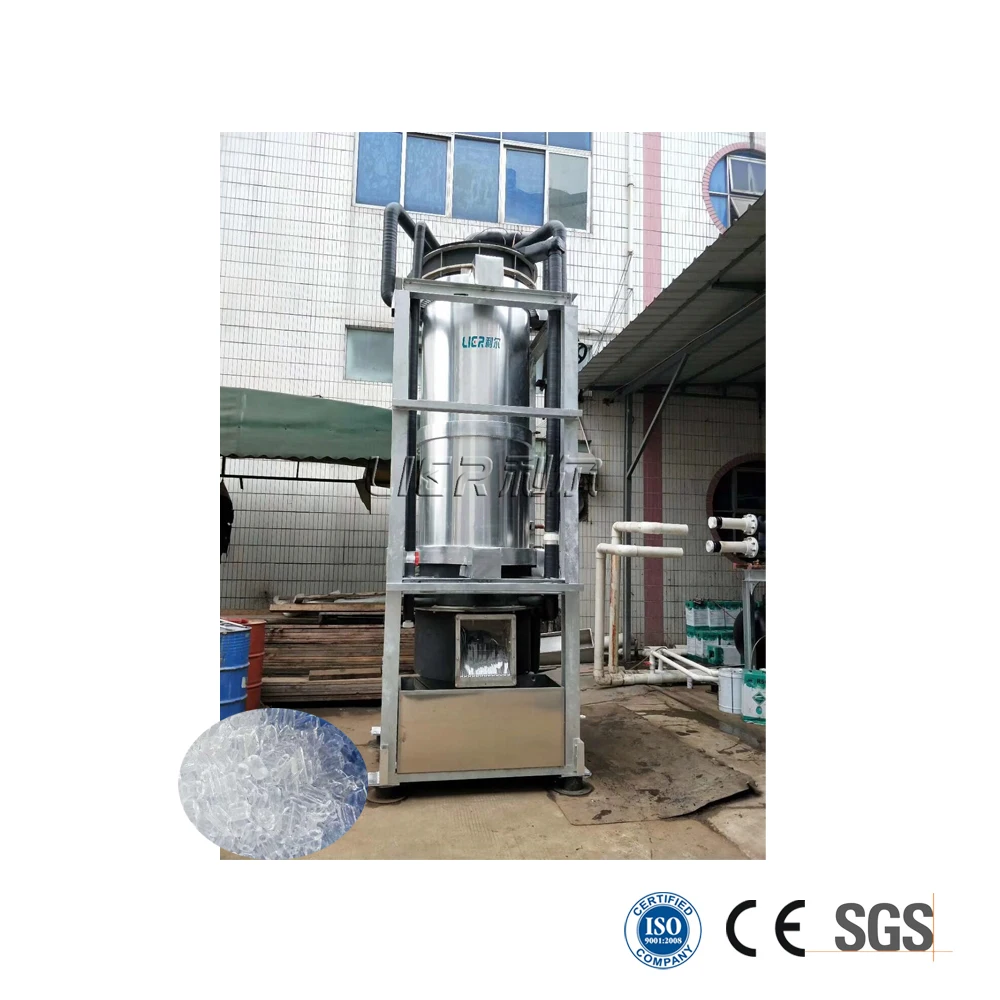

Commercial Tube Ice Making Machine Factory Price For Sale 1ton to 30ton
