♥ It can clean cars and minivans of various types;
♥ Color touch screen console
♥ Fault self detection system;
♥ Washing machine foam brush, high cleanliness, do not hurt the car.
Introduction of main functions
♥ Automatic induction water spraying
♥ Automatic high pressure water brushing car body
♥ Auto spray car wash
♥ Automatic brushing wheel rim

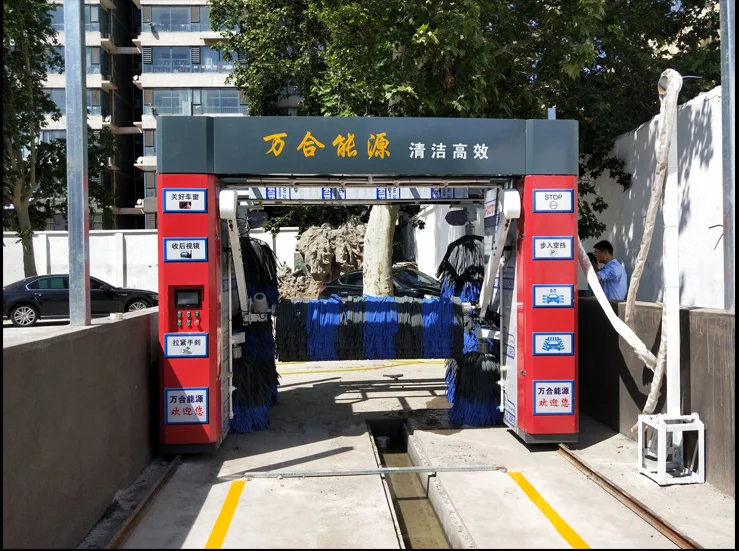

Applicable places: gas station, car wash, car beauty shop, community, car 4S shop
(1) Computer control system: using components, reliable and stable performance. Self test function can test the car washing machine manual, automatic, motor, air pressure, water spray, wax spray and other systems.
(2) Protection system: the infrared electric eye can automatically sense the vehicle type. After the car washing machine is started, there is no need for manual selection. It can automatically determine the vehicle type and wash the vehicle. All automatic car washing procedures can be manually controlled to ensure the car washing.

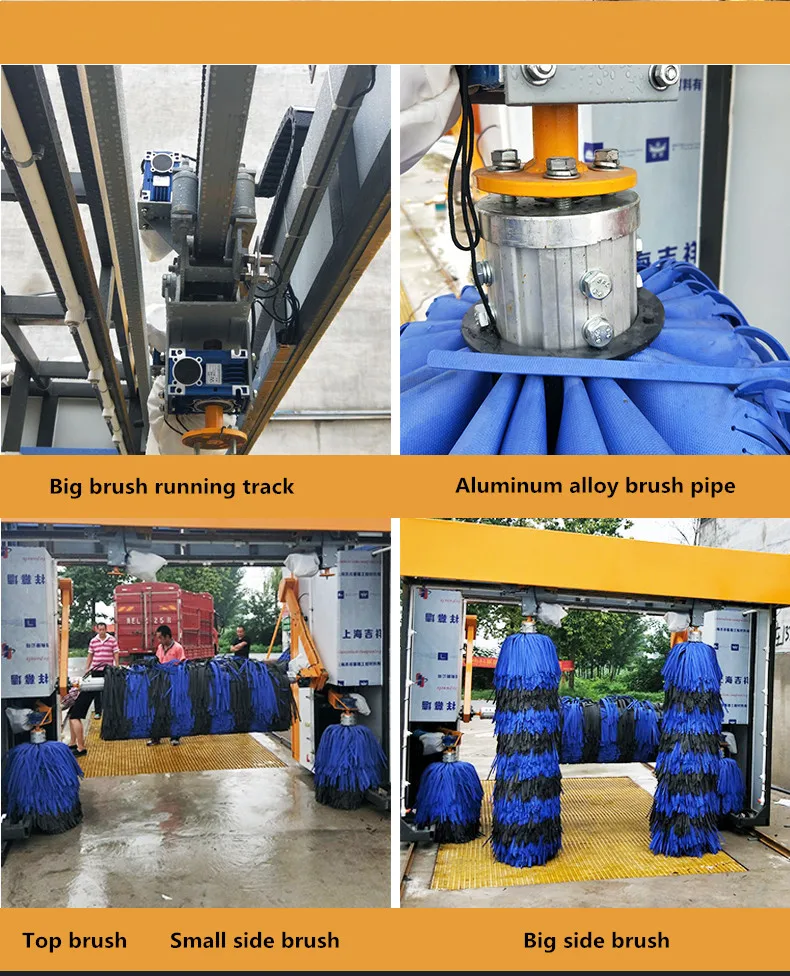

(3) Soft special brush: foam brush. It's gentle and doesn't hurt the body. The brush can keep the average pressure at all points of contact with the car body. Under the condition of small pressure, the brush can completely wrap the car body and achieve the same car washing effect.

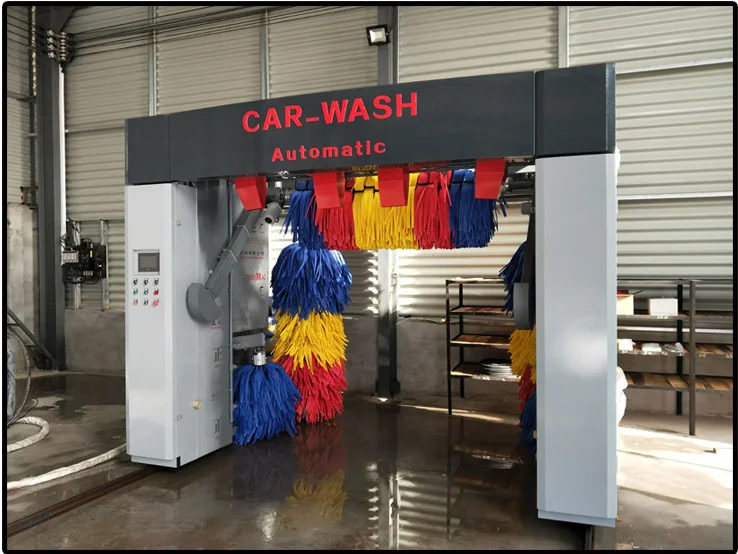

It is mainly used to clean, spray wax and air dry the surface of cars and minivans.
The equipment mainly includes electrical, sensing and pneumatic components; the brush cleans the top, two sides, front and rear, skirt and tire of the vehicle respectively, and the equipment has a number of cleaning methods. It has the functions of timing and counting. The car washing brush strip is foam brush, which does not damage the car paint, does not touch the sand, is not easy to wind debris, is soft and wear-resistant, and has high cleanliness. The whole process of automatic control operation, fast and reliable.
Washing process. Spray - Short brush car wash - Bottom wash - Foam spray - Clean - Water spray - Spray - Strong air drying


Machine size | 2400*3450*2700mm |
Washing Size | 5000*2000*2000mm |
Installation size | 10000*4500*3100mm |
Max.Track Length | 10-13M |
Washing time | Fast wash:20cars/hour(one time washing) |
Total Power | AC380V 3ph 0.3kw/vehicle |
Water pump | Vertical stainless steel high pressure water pump |
Motor reducer | XIU SHI Famous brand |
Electrical configuration | Chint, Delixi relay, transformer, leakage protector switch, electrode protector, photoelectric sensor, proximity Detector, PLC touch screen, safeguard,Computer fault alarm detection, counting system, Car body automatic detection system, photoelectric positioning |
Machine configuration | Full computer intelligent operating system,foam and wax automatic spraying system,high pressure jet system,fault detection alarm system,brush pressure precision regulating system,vechile identification system and calibration system, computer control system(touch screen)(Chassis spraying system is optional) |
Standard Configuration | top brush 1 set, side big brush 2 sets,wheel brush 2 sets.(Rim brush 2 sets:optional) |
Washing way | Reciprocating .Panel,computer dual control system |
Material | Frame:galvanized steel Panel |
