Гибочный станок для алюминиевого профиля, гидравлический гибочный станок для алюминиевого профиля cnc
- Category: Profile Bending Machine >>>
- Supplier: Shanghai Hongxun Machinery Co. Ltd.
Share on (60813375298):
Product Overview

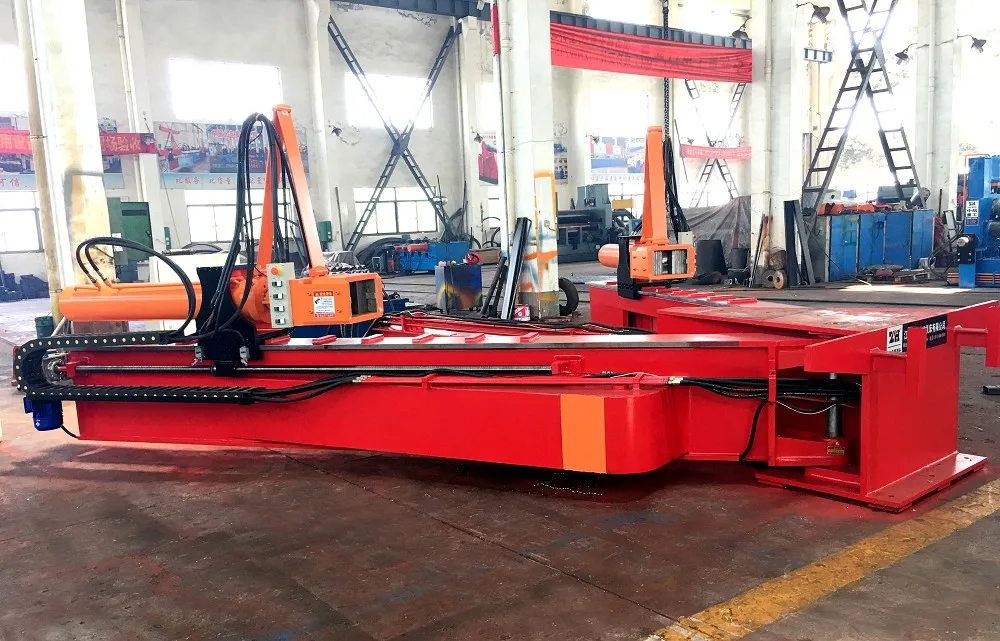

Description

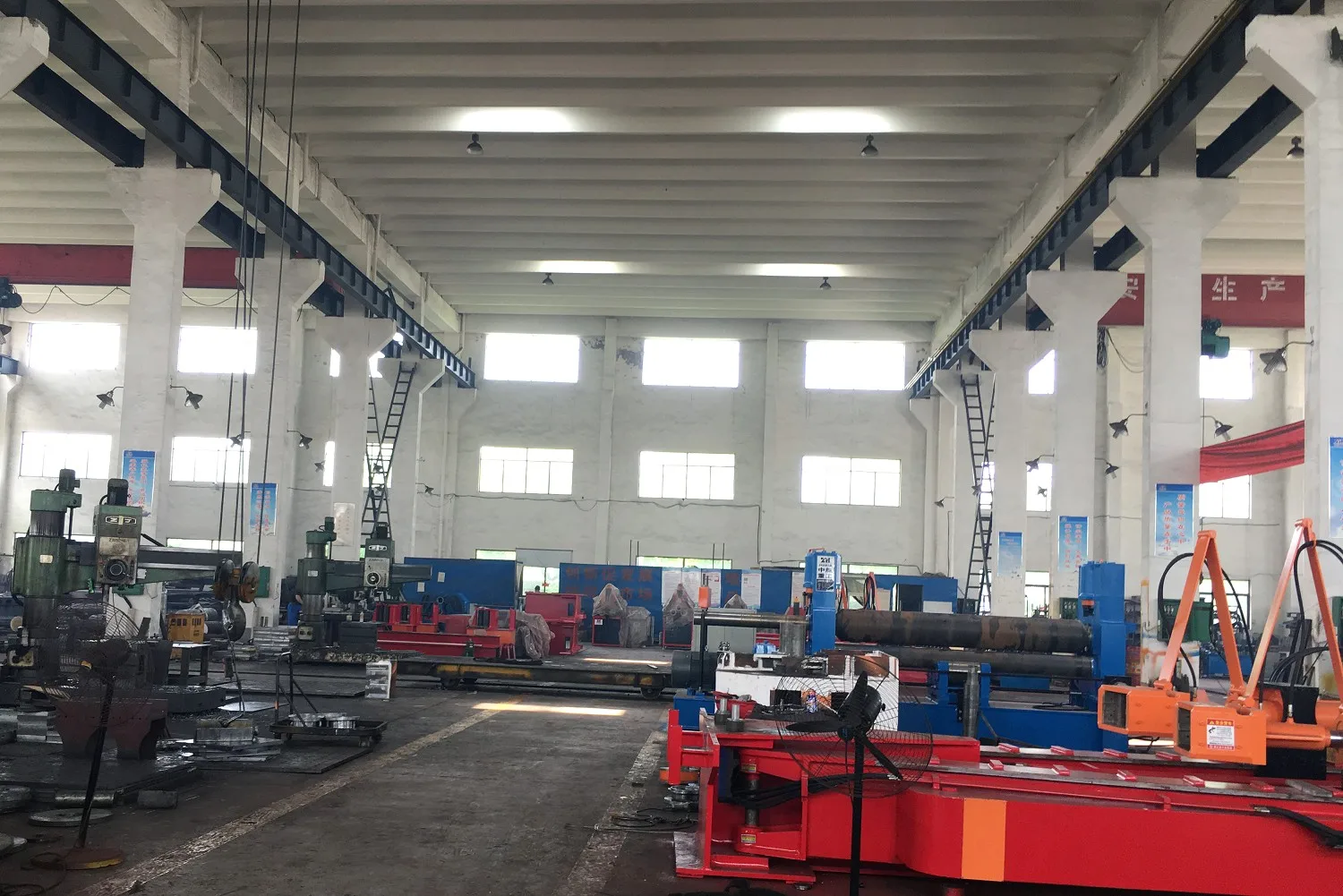

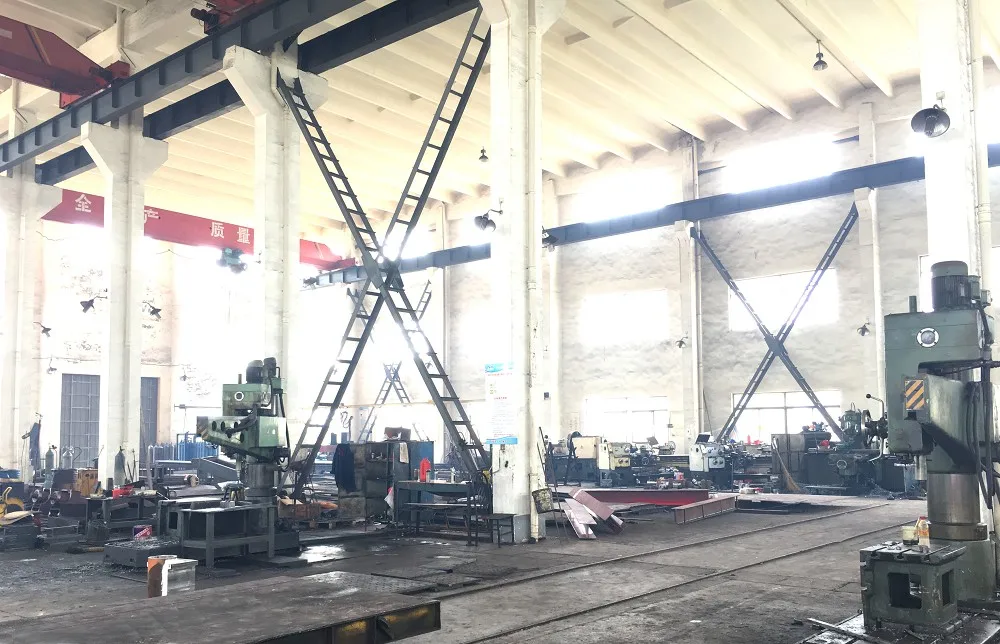

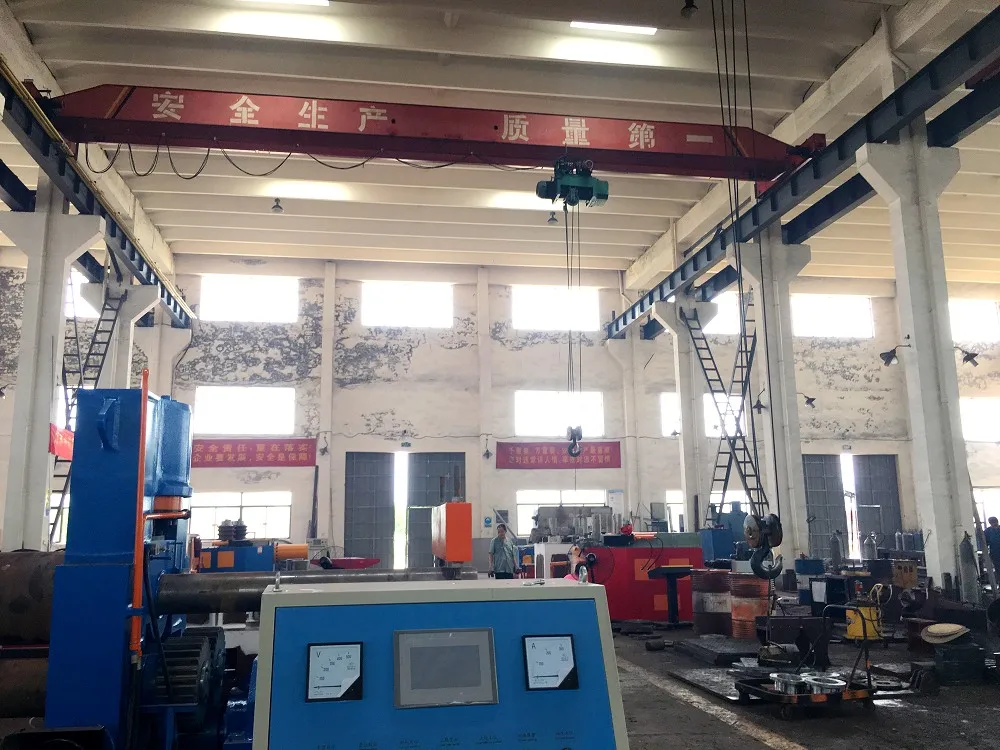

production workshop

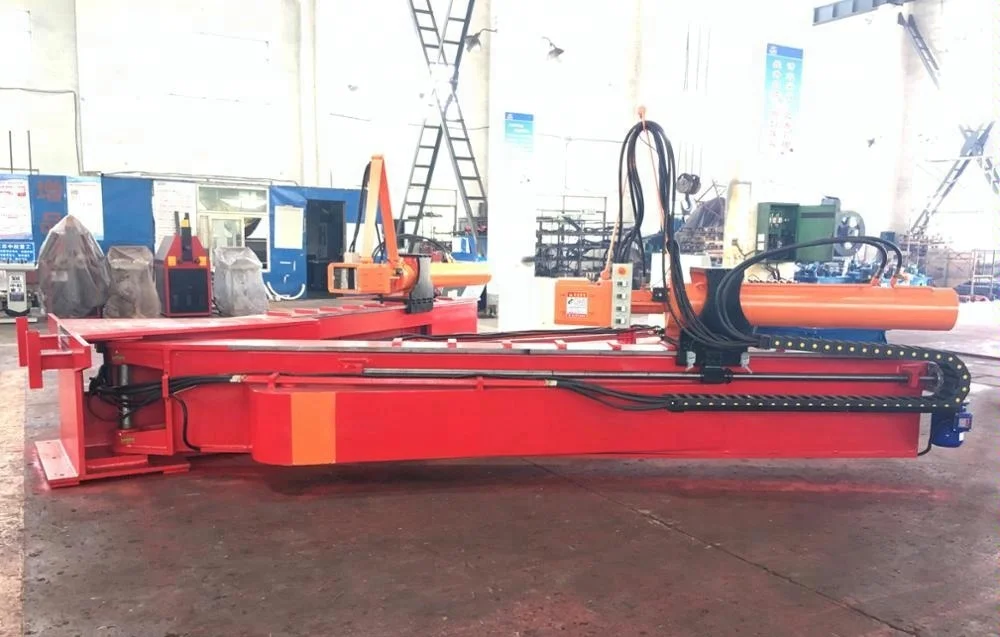

Finished Products

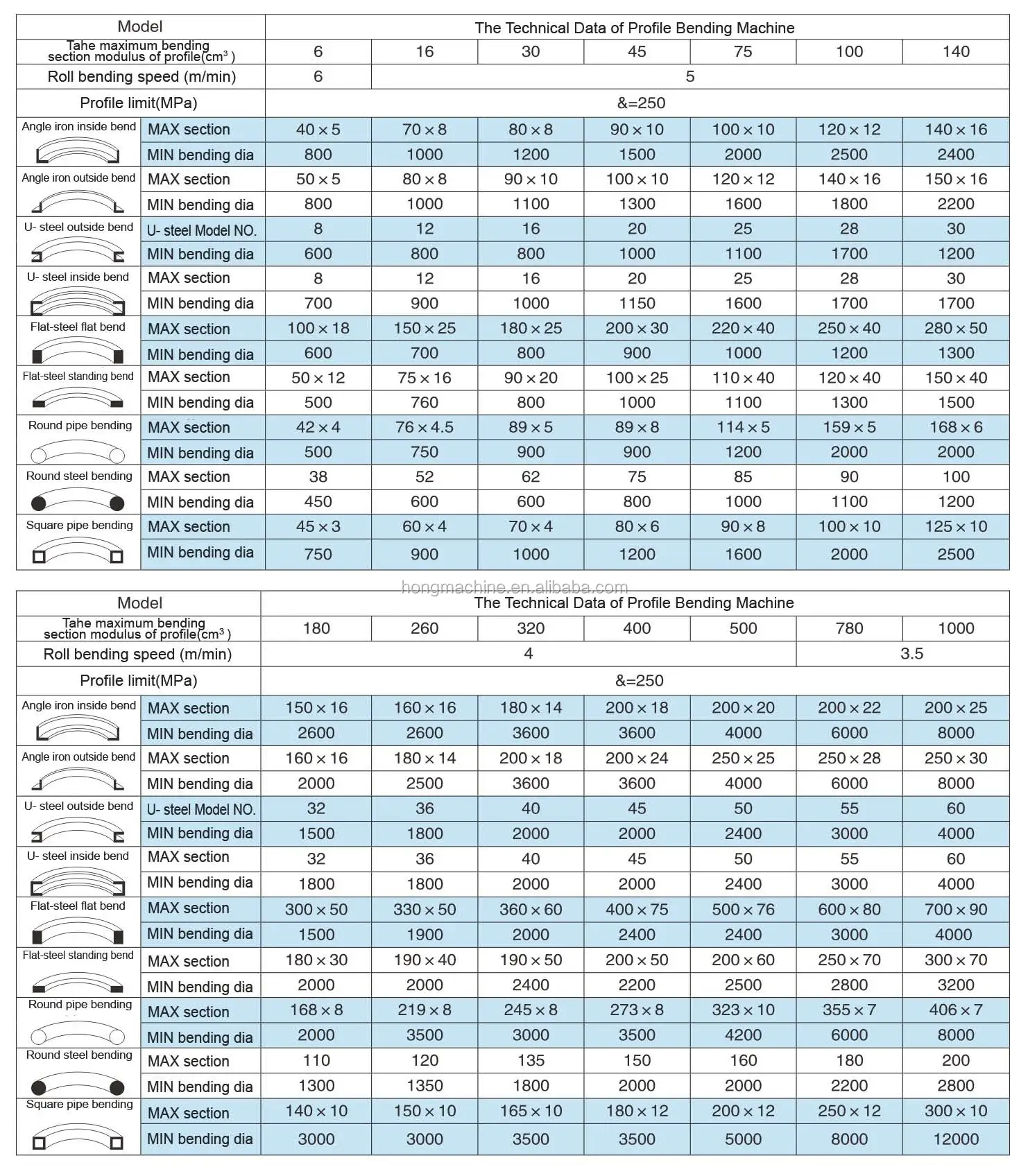

Specification
Item name | Unit | QTY | Weight |
Bending machine | set | 1 | 6.2T |
CNC control cabinet | set | 1 | 65KG |
Oil feeding system | pcs | 1 | 5KG |
O type of ring | set | 1 | |
Combination ring | set | 10 | |
Hydraulic station | set | 1 | 672KG |
Workbench
| 5pcs | 30x2000x1500 | main platform 1pcs |
| 30x1200x1200 | Secondary platform 2pcs | |
| 30x800x800 | Secondary platform 2pcs | |
External dimension of following items | |||
External dimension of control cabinet | mm | 800X500X1250 | 1pcs |
The dimension of hydraulic control station | mm | 1000X1400X1100 | 1pcs |
The external dimension of main machine | mm | 5400X2100X2200 | Big piece |
Total weight | T | 8.6T |
|
Product Description
We choose the available machine as the dimension of your product

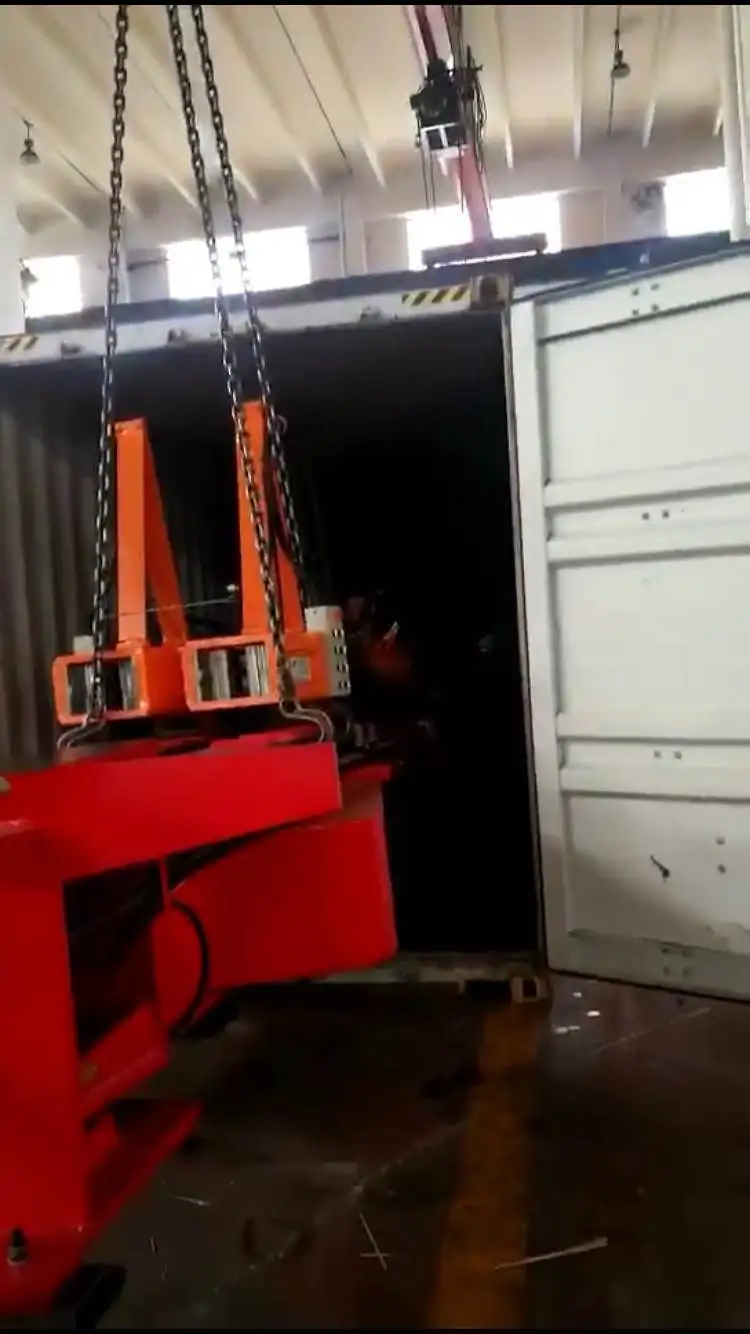

Loading Machines
